Built-in Fan Version
Weatherproof Digital Signage for 98 Inch Retail Windows, 2500 Nits IP65 Fan Cooling
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP980SB
Weatherproof Digital Signage for 98 Inch Retail Windows, 2500 Nits IP65 Fan Cooling
98 Inch Weatherproof Digital Signage for Large Retail Campaigns
A 98-inch display changes the role of a retail screen. Instead of communicating only with customers standing directly outside a store, it can present branded imagery across a much larger commercial space.
This 98 Inch Weatherproof Digital Signage model is listed with 2500-nit brightness, IP65 protection and built-in fan cooling. It is intended for projects where image scale and outdoor-facing visibility are central requirements.
98 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 2159*1380 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤2000W | |
Mechanical Para. | Machine seize H*W*D( mm) | 2800*1380*170mm |
Net weight(Kg) | 360kg | |
Package size H*W*D( mm) | 1610*2950*570mm | |
Gross weight(Kg) | 430kg | |
Large Imagery Needs Deliberate Content
The additional screen area should not be filled with more text. Large displays are most effective when they give a campaign room to breathe.
Suitable material includes full-height fashion imagery, automotive launches, destination advertising, seasonal branding and major product announcements. The main message should remain understandable before the viewer reaches the storefront.
Image resolution and source quality deserve attention. Low-resolution artwork that appears acceptable on a laptop may show visible defects when enlarged to 98 inches.
Window Reflections and Exterior Placement
The 2500-nit brightness specification supports high-ambient-light viewing. The screen position should still be evaluated for direct sunlight, reflective glazing and viewing angle.
If the display is installed behind a retail window rather than directly outdoors, glass type, tint and spacing can affect perceived brightness and heat. These conditions should be included in the technical review.
Structural and Service Planning
A screen of this size requires more planning than a smaller digital sign. The cabinet’s weight, dimensions, access direction and installation route should be confirmed before production.
IP65 protection helps protect the enclosure from dust and water jets. Built-in fan cooling manages heat during operation, but the required airflow must not be obstructed.

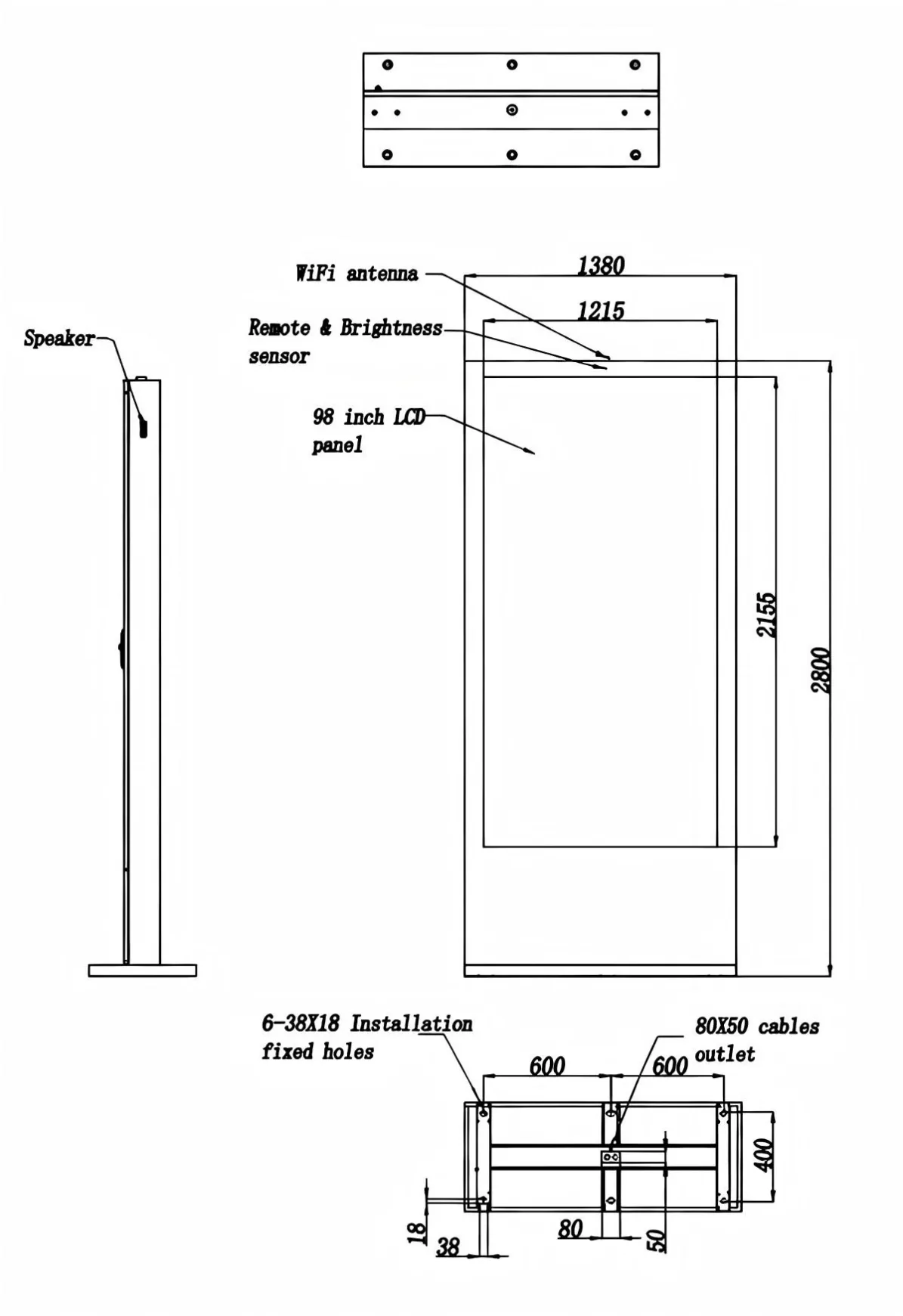

The design drawing of rear display
FAQ
Is a 98-inch screen suitable for every storefront?
No. The available wall area, viewing distance, installation route and building structure must support the cabinet. Smaller stores may achieve better results with a 55- or 65-inch display.
Can the display operate for extended retail hours?
It is designed as commercial outdoor signage, but final operating schedules and environmental limits should be confirmed in the project specification.
Does IP65 mean the screen can be installed anywhere outdoors?
IP65 provides dust and water-jet protection. It does not replace structural engineering, drainage, electrical protection or correct sealing during installation.
The 98 Inch Weatherproof Digital Signage format is best reserved for sites where the architecture and campaign strategy can make proper use of its scale.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
