Built-in Fan Version
Outdoor LCD Display 86 Inch Vertical Fan Cooling for Mall Promotions
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP860WO
Outdoor LCD Display 86 Inch Vertical Fan Cooling for Mall Promotions
86 Inch Vertical Outdoor LCD Display for Shopping Center Media
An 86-inch portrait screen gives retail campaigns enough height to show full-body fashion imagery, product launches and event graphics without dividing the message across several smaller displays.
This 86 Inch Vertical Outdoor LCD Display is specified with 2500-nit brightness, IP65 protection and built-in fan cooling. It is intended for outdoor-facing commercial locations where a 55-inch screen may not provide sufficient visual scale.
86 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1896*1066 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

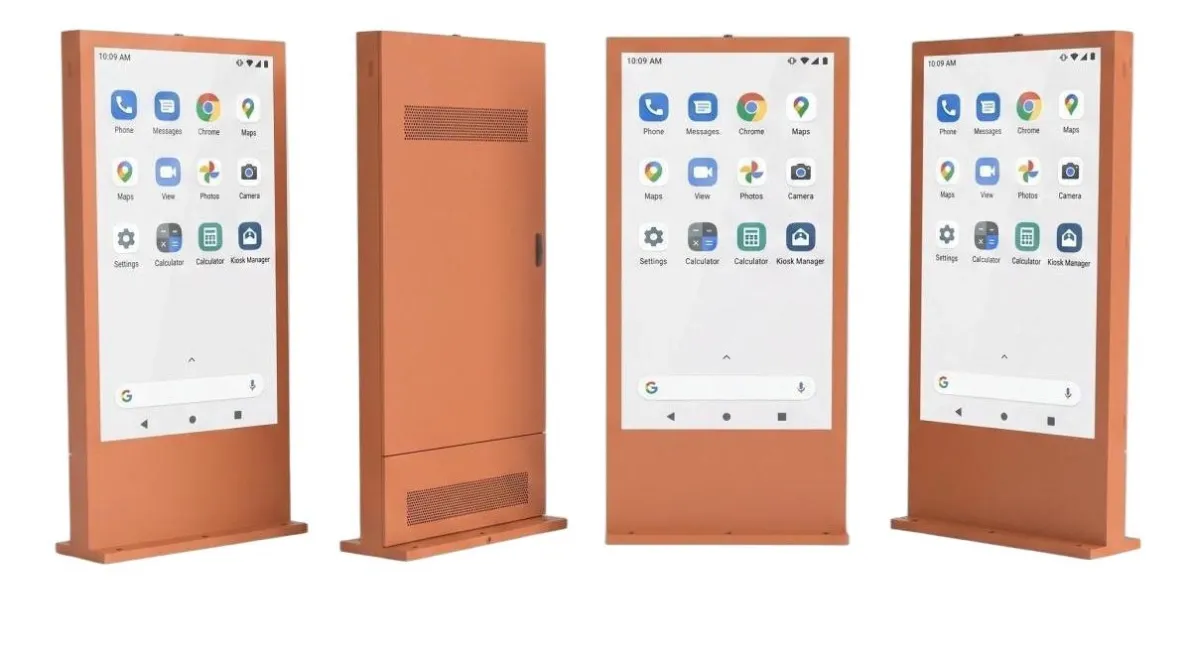

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

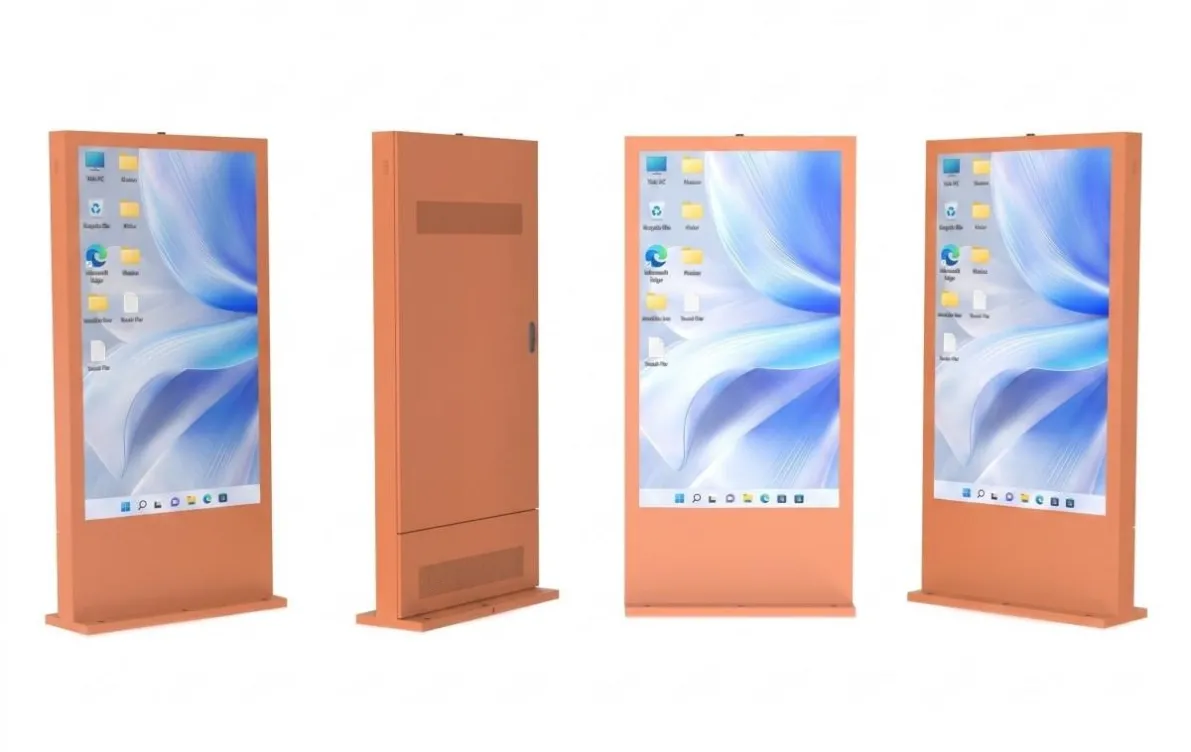

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

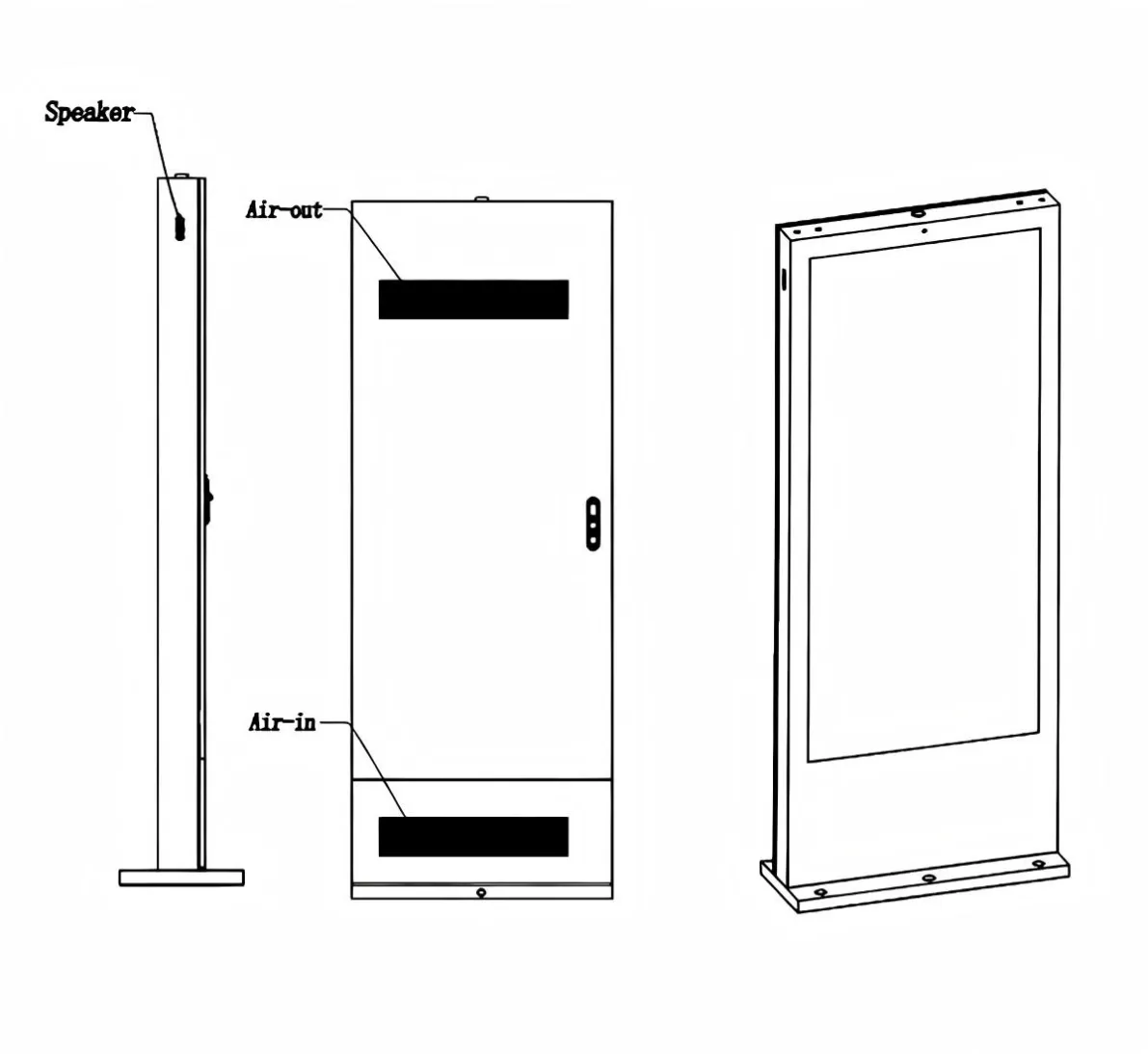

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤1300W | |

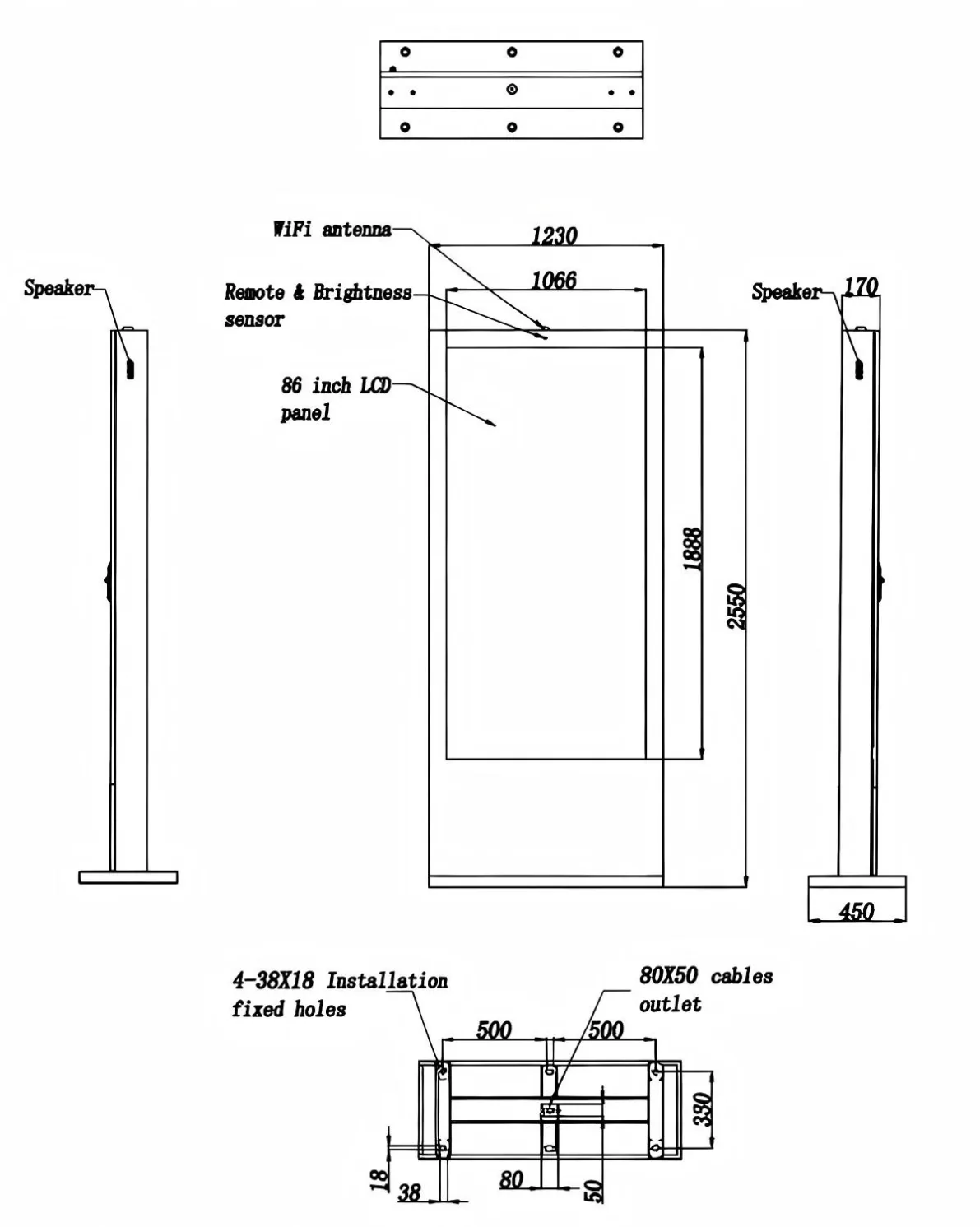

Mechanical Para. | Machine seize H*W*D( mm) | 2550*1230*170 |
Net weight(Kg) | 230 | |
Package size H*W*D( mm) | 1460*2700*520 | |
Gross weight(Kg) | 290 | |

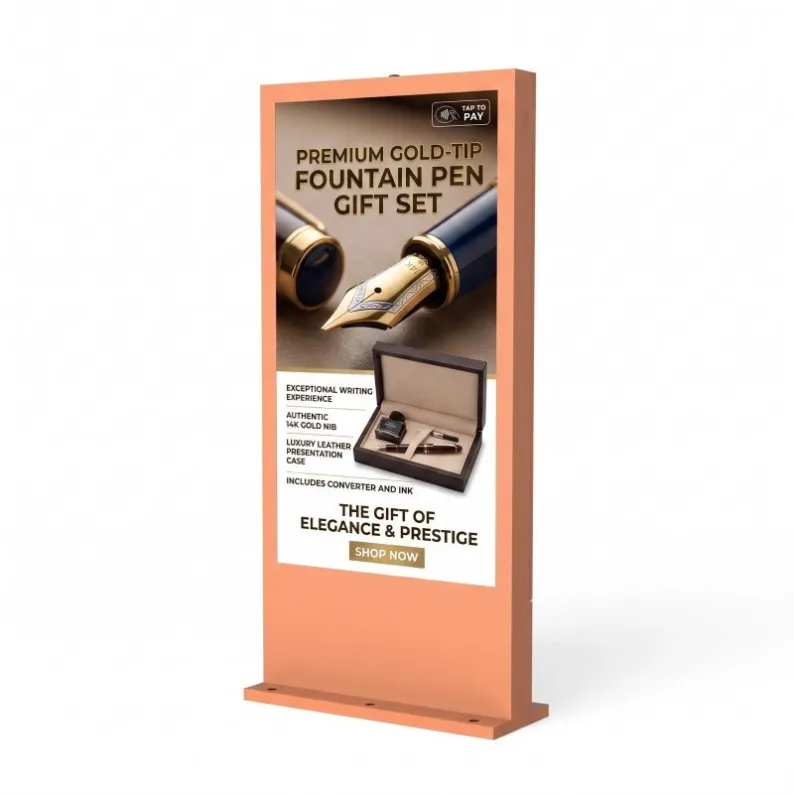

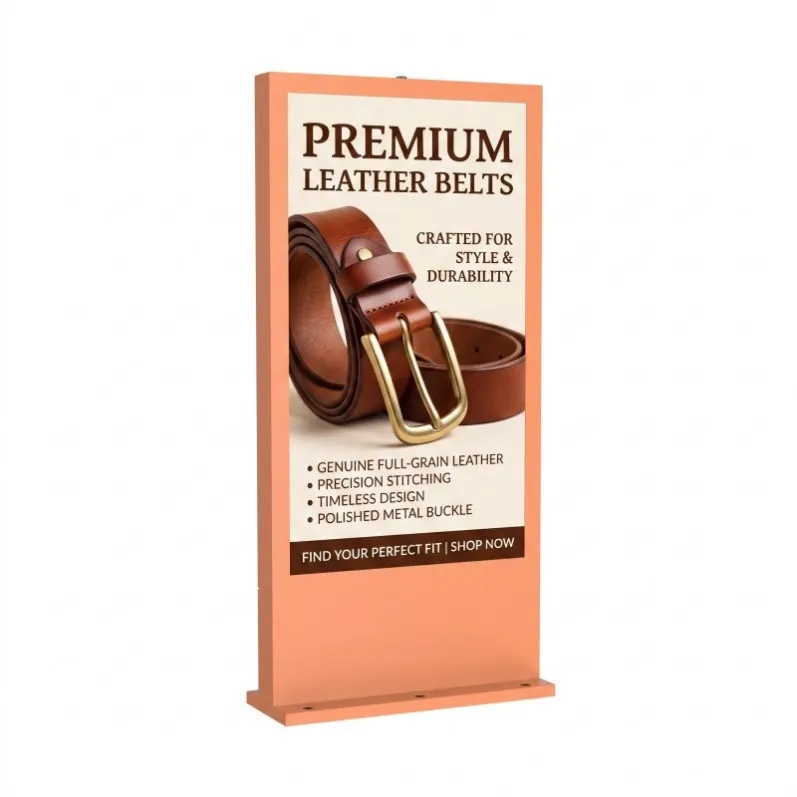

Use the Height Rather Than Filling It
Portrait campaigns should be designed for the screen’s proportions. Full-height products, people and architectural graphics can make effective use of the display without requiring dense text.
A typical layout may contain:
- One large campaign image
- A concise headline
- A visible promotional period
- Store or event location
- One action or QR code
Small product grids should be avoided unless viewers are expected to stand close to the display.
Planning the Position
Shopping-center entrances and exterior walkways can provide strong visibility, but the cabinet must not restrict pedestrian routes. Viewing distance should be sufficient for customers to see the complete creative rather than only one section.
The 2500-nit brightness specification supports daylight viewing. Direct sunlight and reflective glass still need to be considered during the site survey.
Cooling and Enclosure Protection
The IP65-rated cabinet protects against dust and water jets when correctly installed. The built-in fan system manages internal heat produced by the large high-brightness panel.
Maintenance clearance is particularly important for a cabinet of this size. Surrounding decorative panels should not prevent technicians from opening the service access.
FAQ
Why use an 86-inch screen instead of several smaller screens?
A single large screen avoids visible gaps between displays and simplifies full-height campaign layouts. The best option depends on the available space and content strategy.
Is the display intended for portrait installation?
The old title identifies a vertical configuration. Final orientation and cabinet drawing should be confirmed before production.
Can campaign content be updated remotely?
Remote updating depends on the selected media player and content-management system. It should not be assumed from the LCD specifications alone.
The 86 Inch Vertical Outdoor LCD Display is most useful where the installation has adequate viewing distance and the campaign content is designed specifically for its large portrait format.
