Built-in Fan Version
49 Inch 2500 Nits IP65 Outdoor LCD Display Floor Standing Fan Cooling for Public Information
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVPD490PU
49 Inch Double Sided Outdoor LCD Display for Two-Way Public Information
The product image shows a dark purple-toned portrait cabinet with a comparatively compact screen size. Although the old title does not mention it, this model has screens on both sides.
The 49 Inch Double Sided Outdoor LCD Display is suited to outdoor pedestrian areas where information needs to be visible in two directions without using two large separate kiosks.
49 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |
Display size( mm) | 1074*604 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤760W | |
Mechanical Para | Machine seize H*W*D( mm) | 1950*810*300 |
Net weight(Kg) | 180 | |
Package size H*W*D( mm) | 1040*2100*570 | |
Gross weight(Kg) | 240 | |
Compact Screens for Close-Range Viewing
A 49-inch display is most effective where people pass relatively close to the cabinet. It can support outdoor entrance instructions, event information, tourism notices and directional content.
The two sides can address separate visitor movements. At an outdoor venue, one face might show arrival information while the reverse provides exit and transport guidance.
The screen is not large enough for dense maps or small timetable text. Content should be simplified for the expected viewing distance.
Reading the Product Form
The image shows a narrow vertical enclosure with a colored body. Its clean rectangular appearance may fit outdoor campuses, landscaped visitor sites and modern public-service areas.
The color shown is a sample appearance. Outdoor coating, branding and custom-color availability must be confirmed separately.

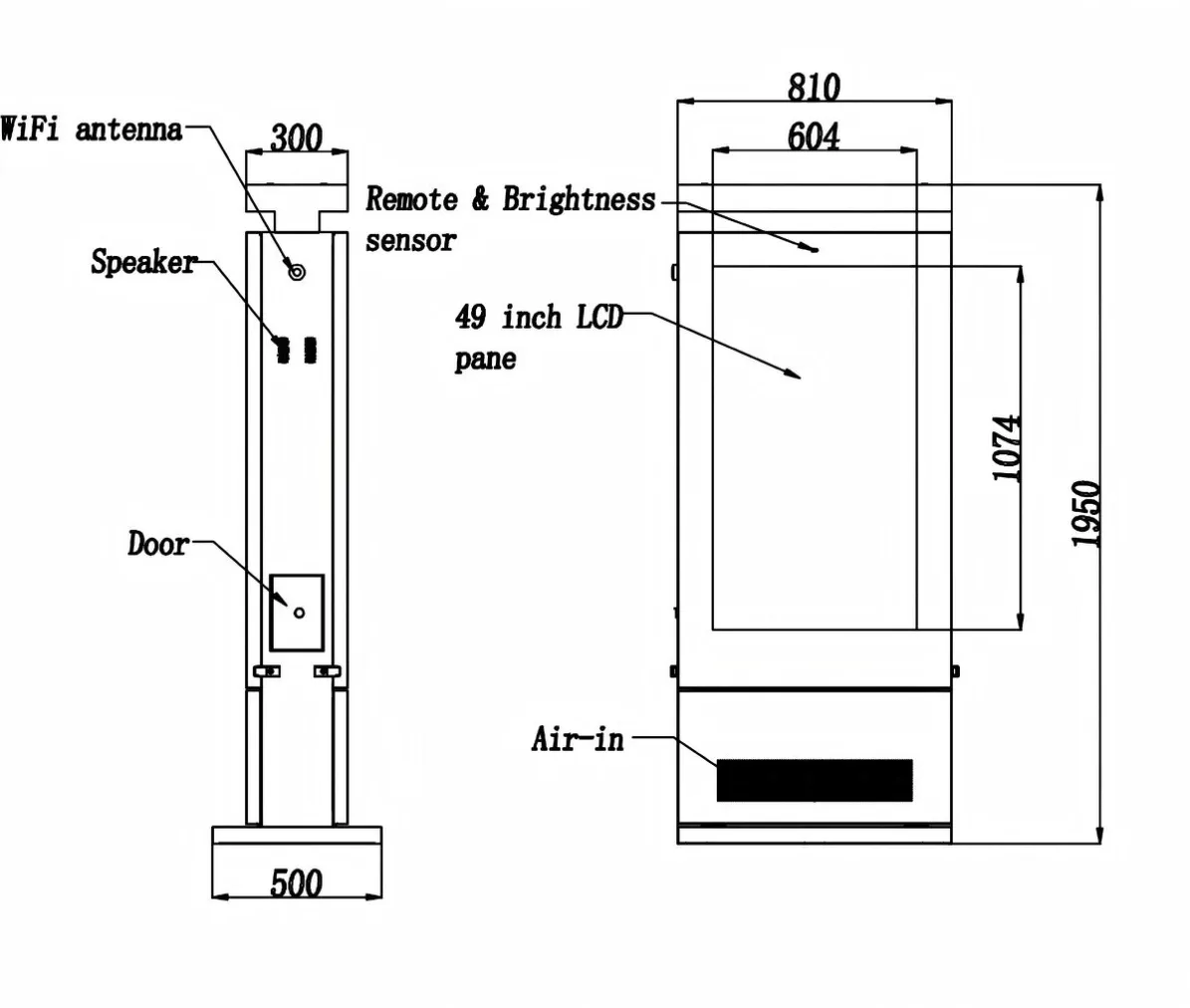

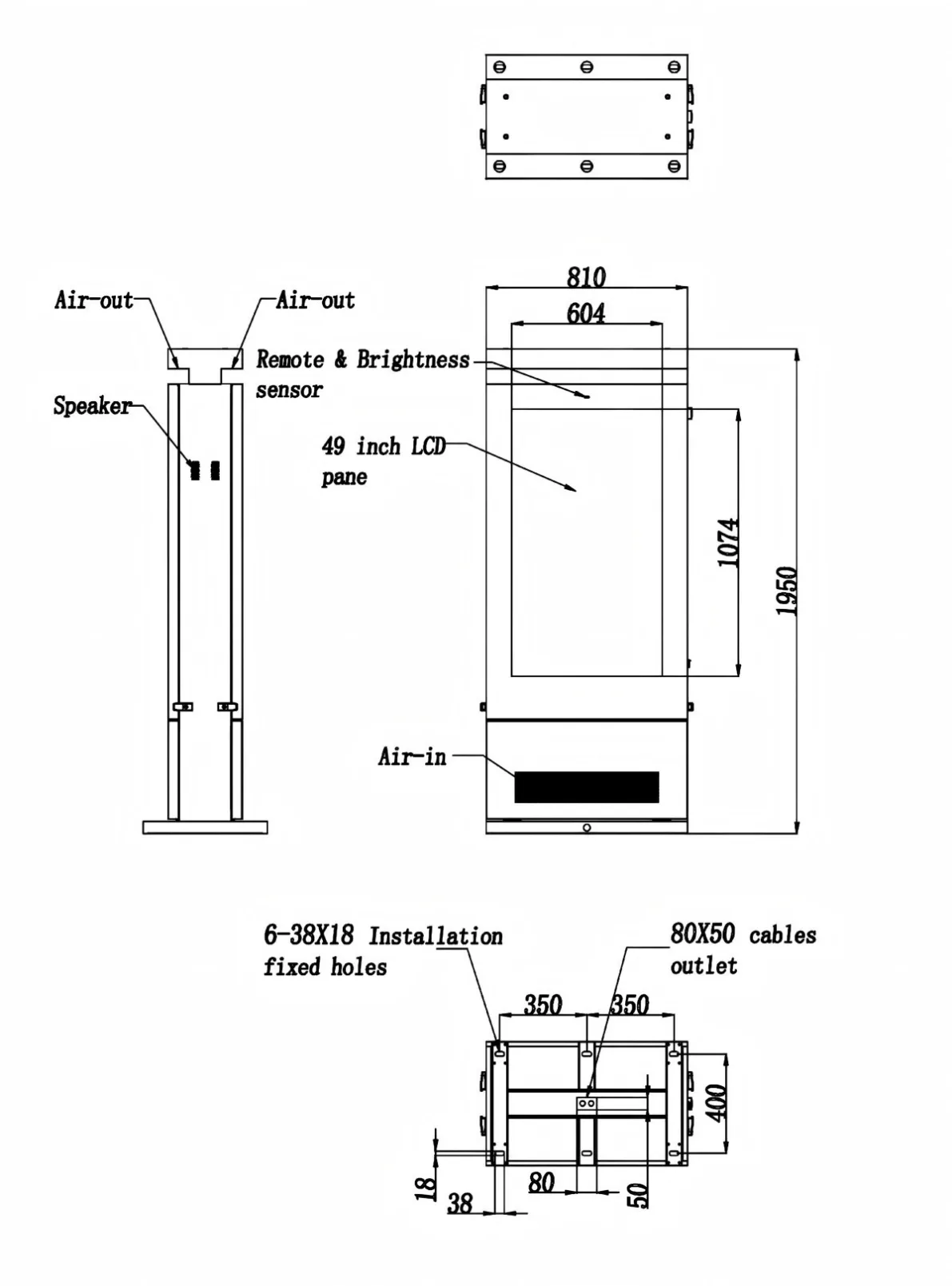

A double-sided cabinet normally has greater depth and weight than a single-screen display. The foundation should be designed from the manufacturer’s technical drawing.
Two Faces and One Installation Position
The site should be selected only after checking that both screen faces have useful audiences. Installing one side directly against landscaping or a wall would waste much of the double-sided design.
Power, network and maintenance routes can be shared within one enclosure. The media configuration determines whether both sides repeat the same content or operate separately.
FAQ
Is this model suitable for long-distance advertising?
Its 49-inch size is better suited to short- or medium-range viewing. Larger outdoor areas may require a 65- or 75-inch screen.
Are both screens rated at 2500 nits?
The product is listed with 2500-nit brightness, but the detailed specification for both display faces should be confirmed in the quotation.
Can both screens be serviced from one access point?
The exact service arrangement depends on the cabinet design. Buyers should request the maintenance drawing before fixing surrounding structures.
The 49 Inch Double Sided Outdoor LCD Display offers two-way outdoor communication in a more compact form than large transit and advertising kiosks.
