Built-in Fan Version
Floor Standing Outdoor Digital Signage 86 Inch 2500 Nits IP65 for EV Charging Ads
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP860R
Floor Standing Outdoor Digital Signage 86 Inch 2500 Nits IP65 for EV Charging Ads

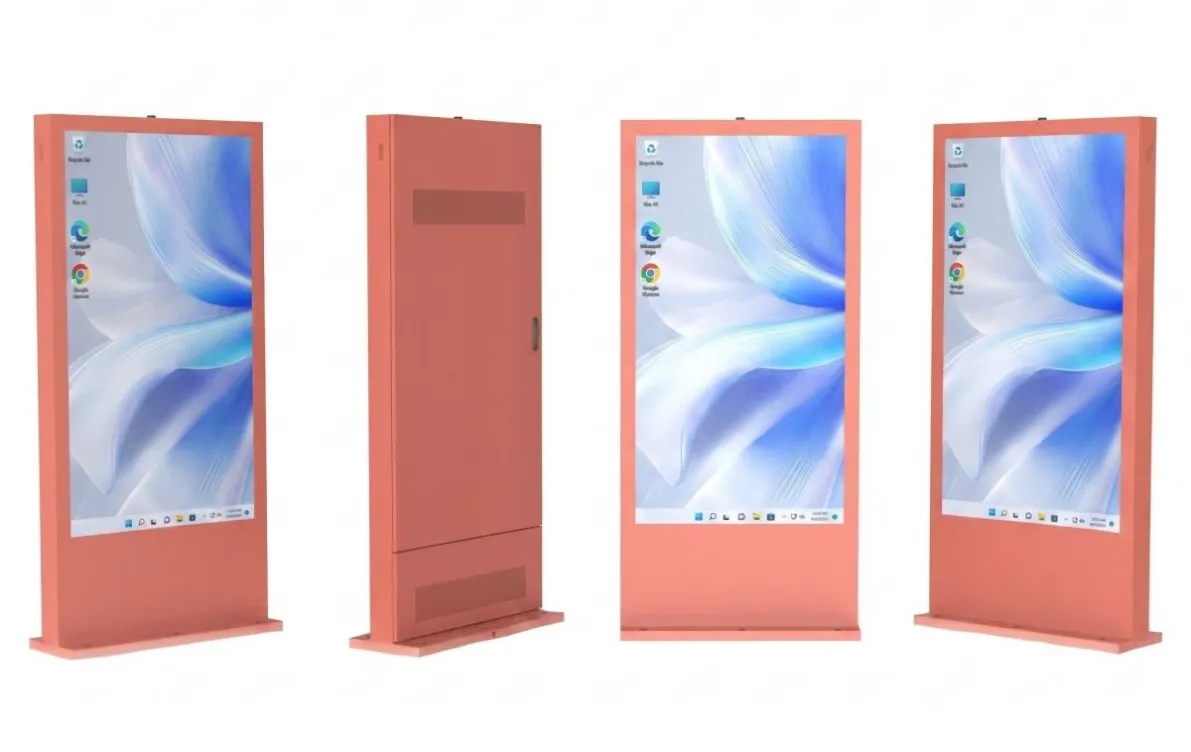

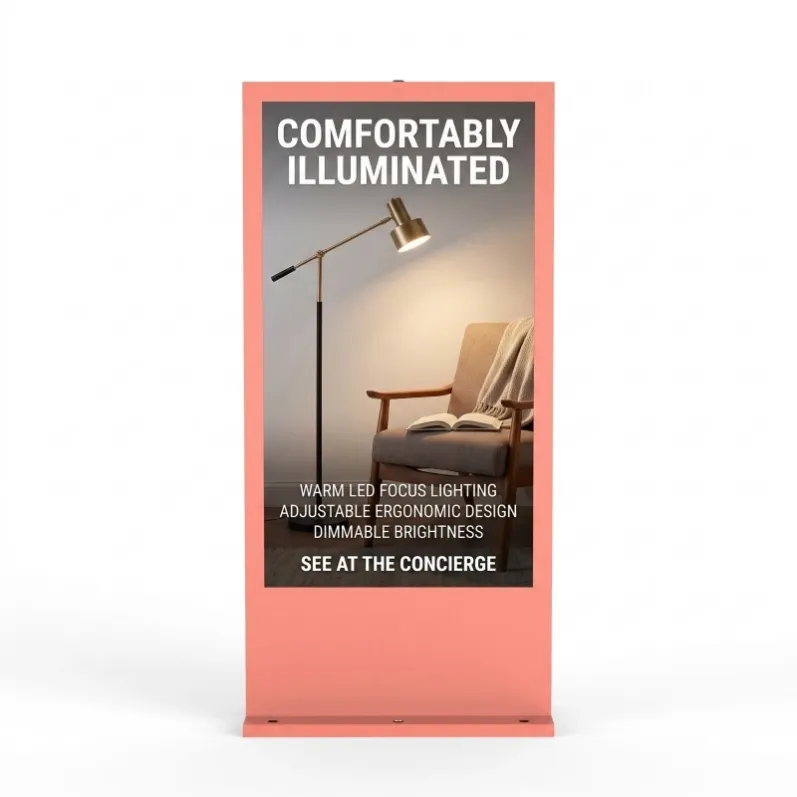

86 Inch Floor Standing Outdoor Digital Signage for EV Charging Developments
Large EV charging developments increasingly resemble service destinations rather than isolated charging points. Drivers may have time to visit nearby restaurants, stores or facilities while their vehicles remain connected.
The 86 Inch Floor Standing Outdoor Digital Signage model provides a large communication surface for these locations. It is listed with 2500-nit brightness, IP65 protection and built-in fan cooling.
86 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1896*1066 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

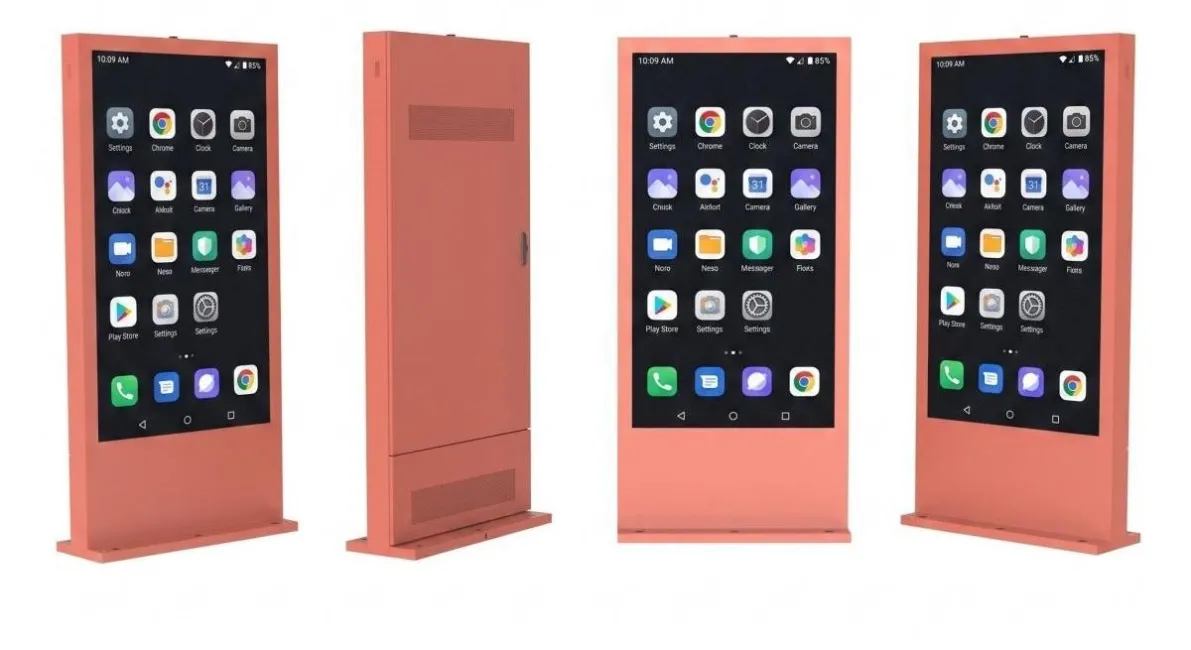

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

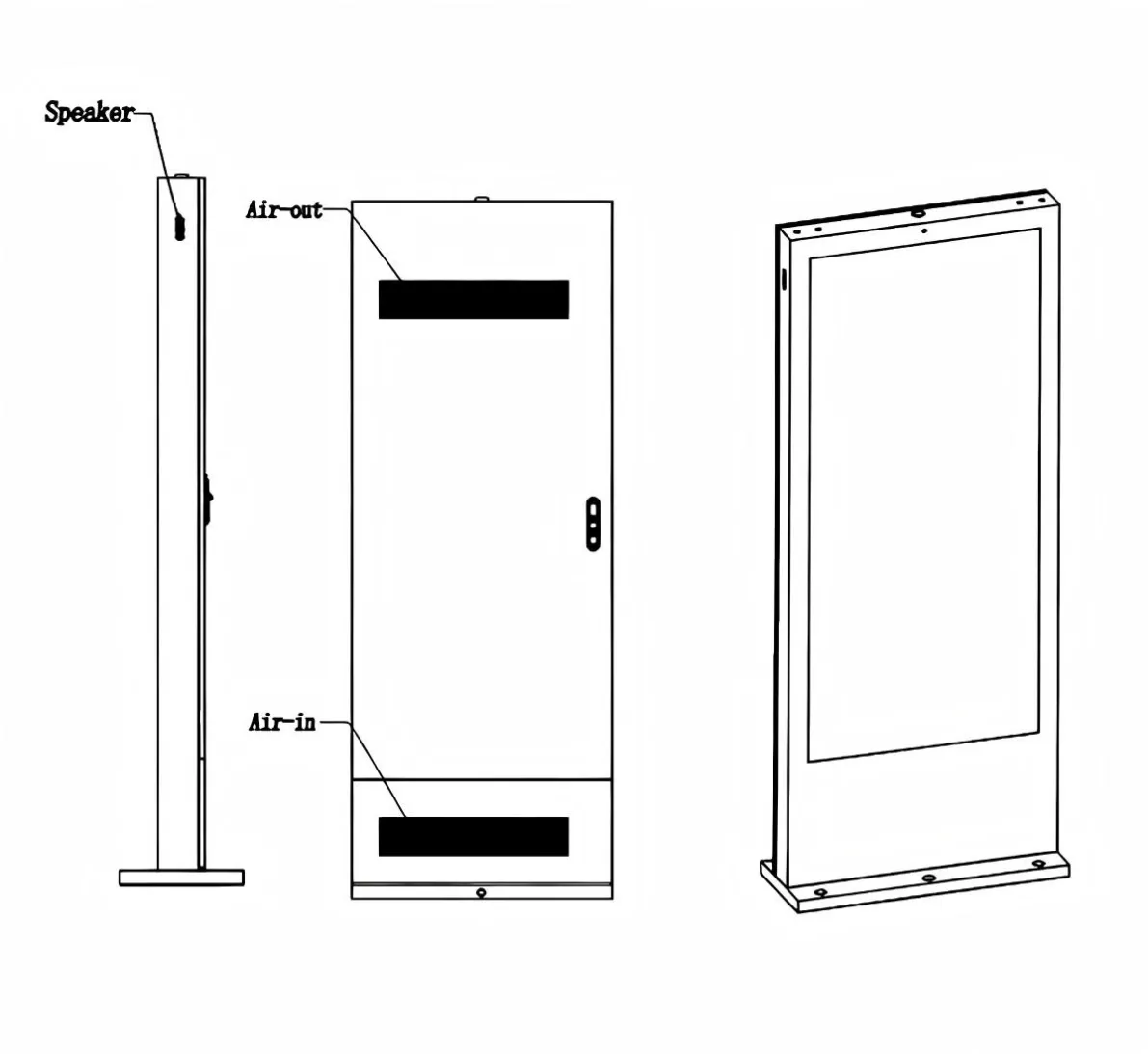

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤1300W | |

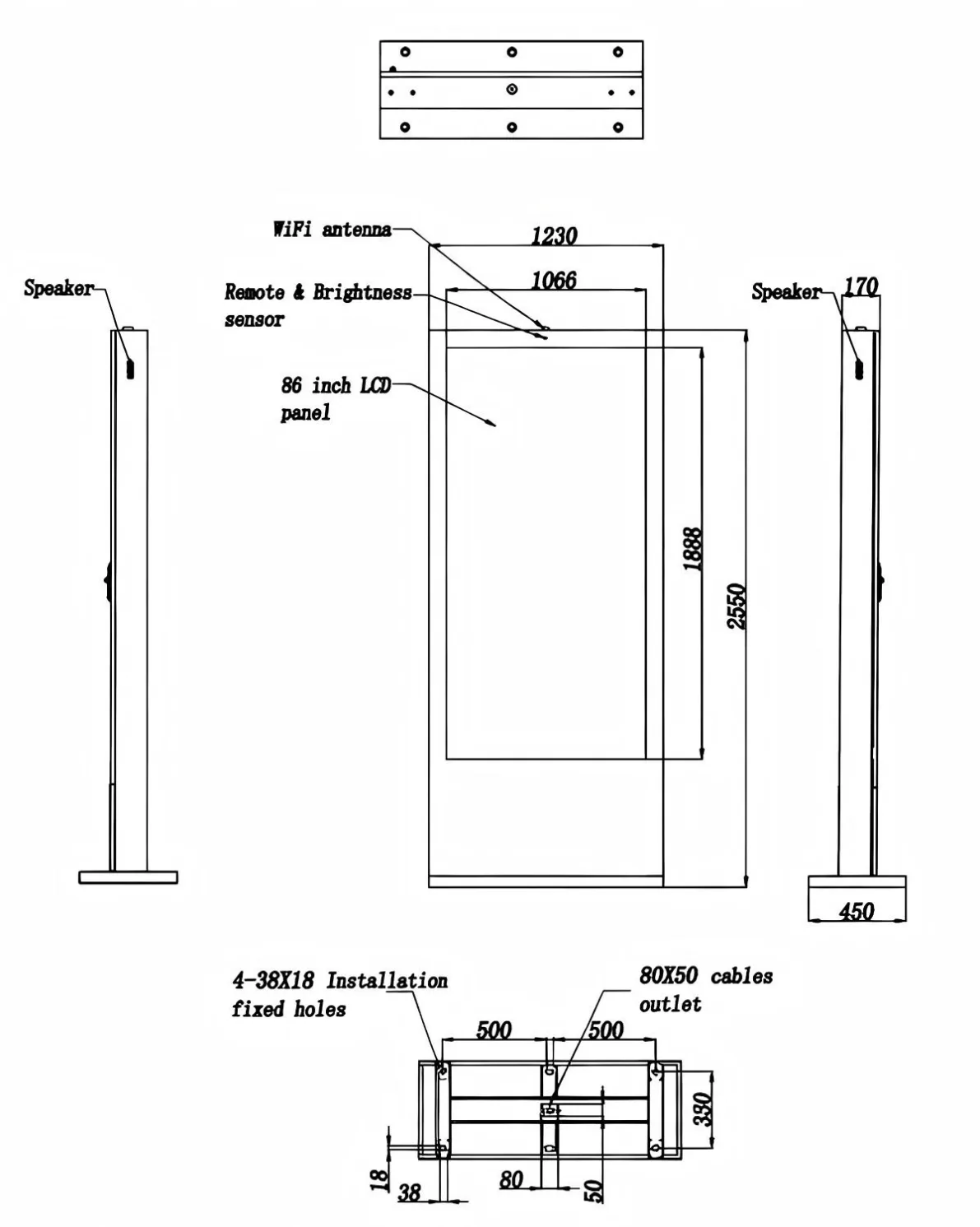

Mechanical Para. | Machine seize H*W*D( mm) | 2550*1230*170 |
Net weight(Kg) | 230 | |
Package size H*W*D( mm) | 1460*2700*520 | |
Gross weight(Kg) | 290 | |
Content for Charging Dwell Time

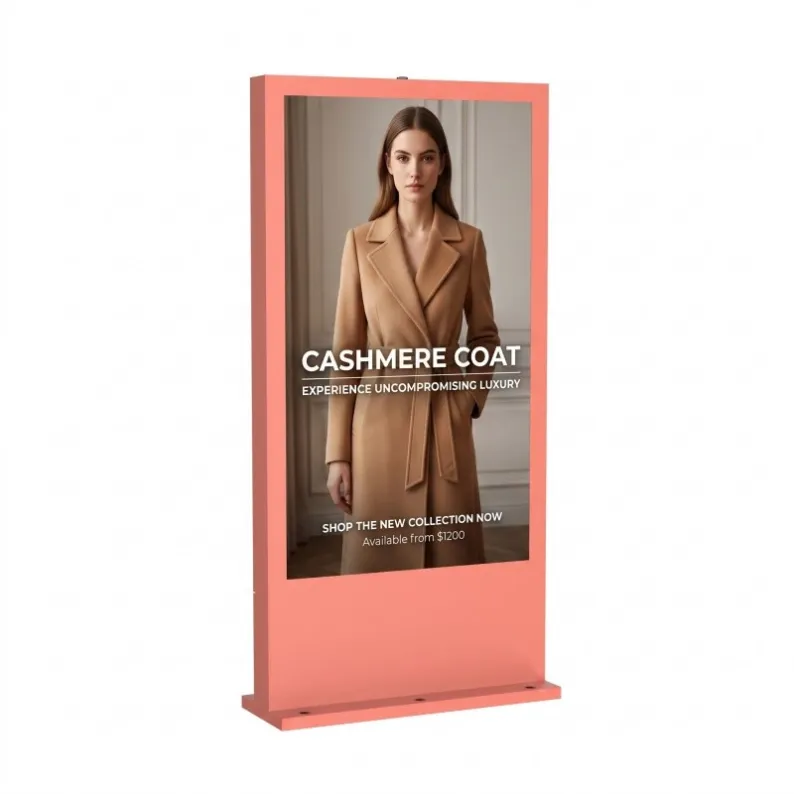

The screen can present commercial campaigns, but location-specific information may be equally valuable. Useful content could include nearby services, site instructions, customer-support details and local promotions.
The signage should remain separate from the charging-control interface unless a tested technical integration has been provided. Advertising should never obscure charging or safety instructions.
Large Format Requires the Right Position
An 86-inch screen needs enough viewing distance for drivers and pedestrians to see the complete layout. It should not block charging bays, cable access, accessible parking areas or vehicle sightlines.
The foundation, anchor arrangement and electrical route should be coordinated with the charging-station design before site work begins.
Daylight and Nighttime Operation
The 2500-nit brightness specification is intended for exposed daylight conditions. At night, lower output may be preferable for driver comfort and surrounding properties.
Brightness scheduling or sensor-based adjustment depends on the final configuration and should be confirmed during procurement.
FAQ
Can the display show charging status?
It can display supplied media, but live charging status requires compatible data access and software integration.
Does the signage share power with the EV charger?
The electrical design must be determined by qualified professionals. Signage and charging equipment may require separate circuits and isolation arrangements.
How far should viewers stand from an 86-inch screen?
The correct distance depends on content size and site layout. The screen is more suitable for medium- to long-range viewing than a compact 32- or 43-inch kiosk.
When properly positioned, the 86 Inch Floor Standing Outdoor Digital Signage unit can give a charging location a substantial media asset without relying on the charger’s own screen.
