Built-in Fan Version
Weatherproof Digital Signage for 98 Inch Mall Promotions, 2500 Nits IP65 Fan Cooling
Surface:Spraying,frosted aluminum Control method:IR controller, Android Windows OS Sensors:Light sensor,temperature sensor Temperature Control System:Precise air conditioner
Specifications
- SKU
- ZXTLCD-OUTFHW980DG
When a 98 Inch Outdoor Mall Digital Signage Screen Is the Right Scale
A 98-inch screen should not be selected simply because a shopping centre has an empty outdoor wall. It earns its place when campaigns must remain recognizable across a plaza, dining zone or broad pedestrian approach. This 98 Inch Outdoor Mall Digital Signage provides that large landscape presence for open-air retail environments.
The product image shows a wide screen in a dark enclosure with green-toned content. Its horizontal proportions support cinematic campaign artwork, multi-store events and shopping-centre destination messages.
98 Inch Outdoor horizontal wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 1896*1066 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤2000W | |

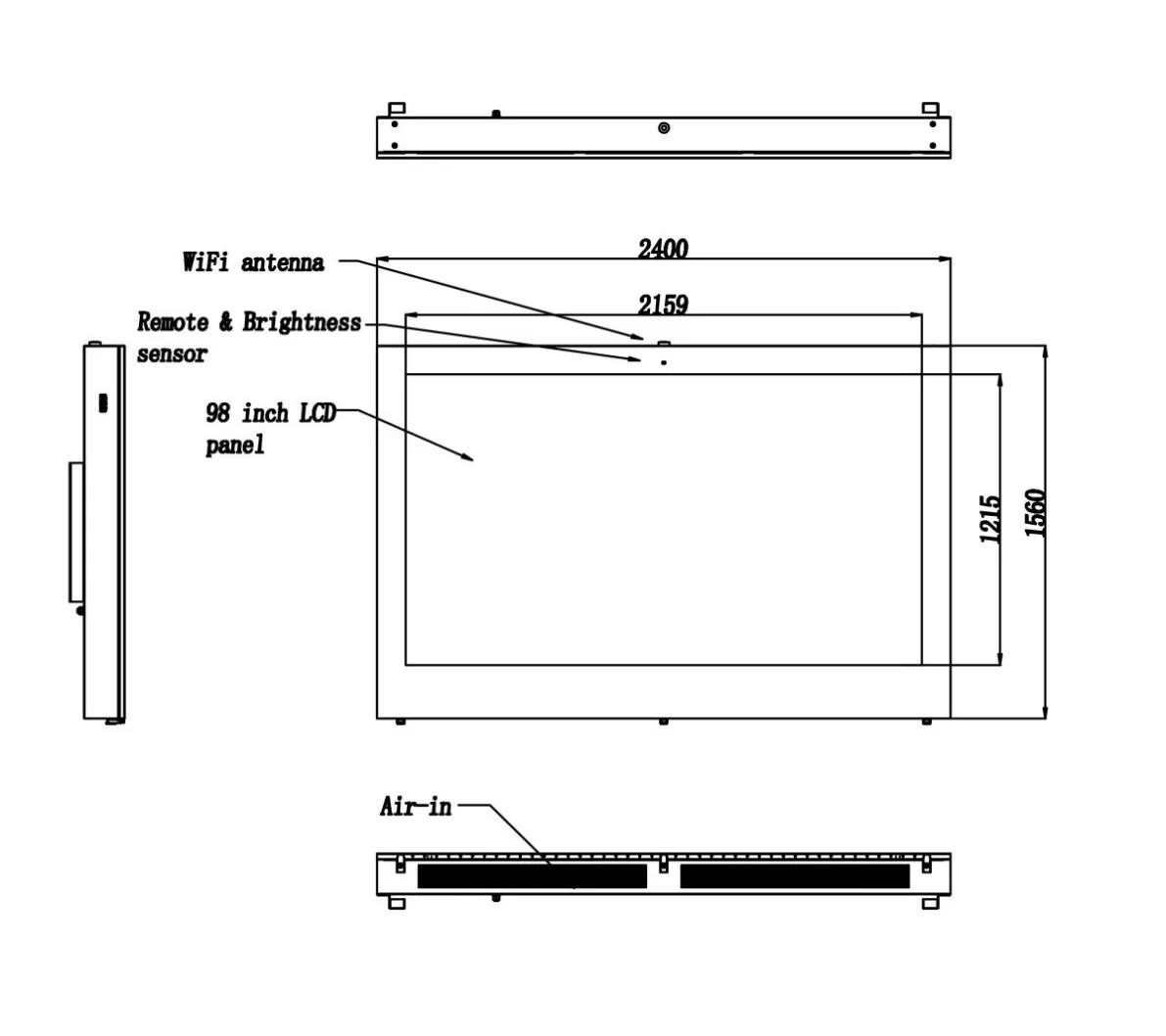

Mechanical Para | Machine seize H*W*D(mm) | 2400*1560*170 |
Net weight(Kg) | 330 | |
Package size H*W*D(mm) | 1830*2500*320 | |
Gross weight(Kg) | 400 | |
The Screen Should Promote the Destination
Smaller displays can advertise individual products. A 98-inch outdoor screen is better suited to messages that affect the wider property:
- Seasonal shopping-centre campaigns
- New retail-zone openings
- Outdoor concerts and public events
- Cinema and entertainment promotions
- Restaurant district advertising
- Site maps during special events
- Major brand launches
At longer distances, shoppers cannot read a collection of small offers. The campaign should communicate one principal reason to visit or continue toward a particular area.
Think in Viewing Zones
The audience for the 98 Inch Outdoor Mall Digital Signage may see it from several distances.
Long-distance zone
Use a campaign name, strong image and recognizable brand.
Medium-distance zone
Add the event date, retail area or main offer.
Close-distance zone
Provide store direction, QR code or limited supporting information.
Designing around these zones produces more useful content than treating the screen as an enlarged webpage.
Do Not Fill the Available Space
A large screen can make excessive content look even more confusing. White space, a single visual focal point and short copy help the message remain recognizable in a busy outdoor mall.
Landscape video can work well, but the campaign must still communicate without sound. Outdoor retail environments have background music, traffic and conversations, and local operating rules may restrict screen audio.
Daytime and Evening Campaign Versions
The specified 2500-nit brightness supports visibility in strong ambient light. Outdoor content should nevertheless be tested at the time when the screen receives the most direct sun.
The evening playlist can use darker backgrounds and lower output. A design dominated by white may look clean during daylight but become uncomfortable beside outdoor dining or leisure areas after sunset.
Installation Is an Architectural Decision

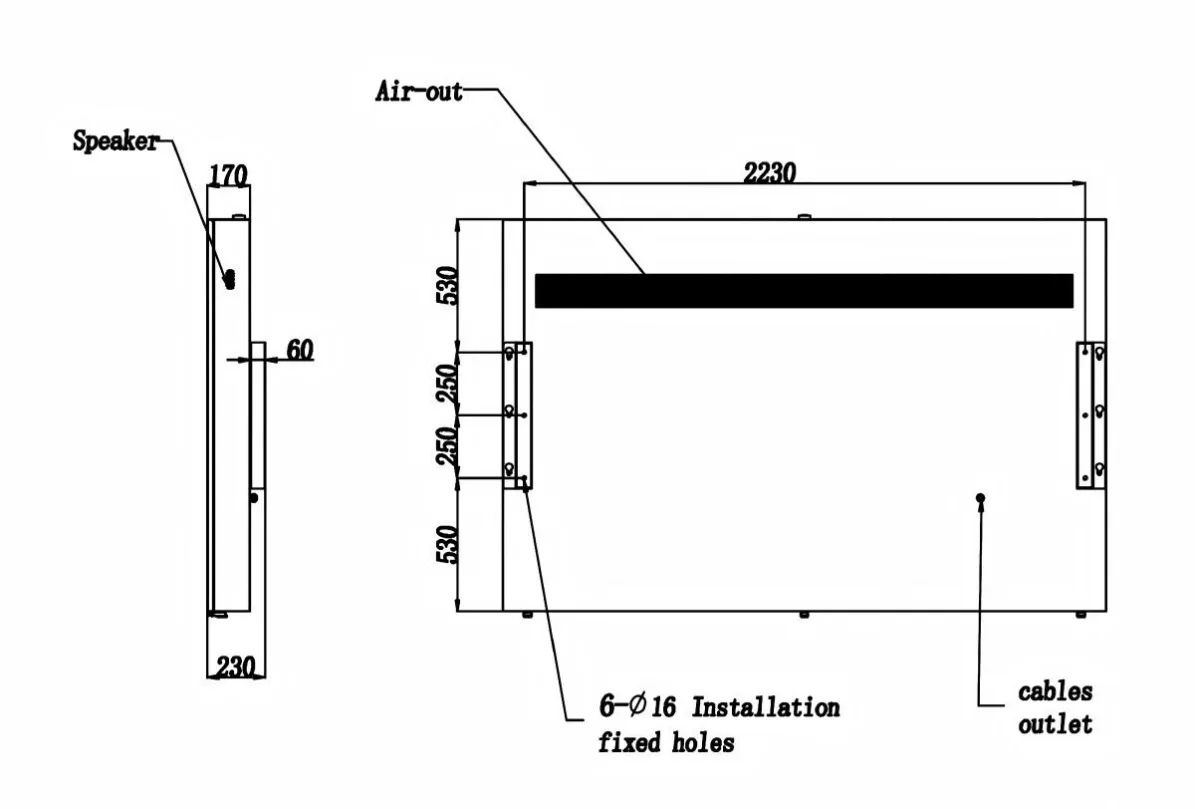

At 98 inches, wall or structure assessment is essential. The project team should provide the installation drawing, mounting height, supporting material and required service direction.
If the screen is integrated into a façade, the recess needs enough depth and airflow clearance. If it is surface-mounted, the bracket and anchors must account for cabinet weight and local wind conditions.
The display should also remain accessible without closing a large part of the retail area for routine maintenance.
Operating the Screen as a Commercial Media Asset
The 98 Inch Outdoor Mall Digital Signage may support property campaigns, tenant promotions and paid third-party advertising. These different users require a clear publishing calendar.
Mall operators should define:
- Which campaigns have priority
- How tenant content is submitted
- Who approves creative material
- How expired campaigns are removed
- What plays when no advertising is booked
- Whether playback records are retained
A default playlist with current site information prevents the screen from showing blank or outdated content between commercial campaigns.
