Built-in Fan Version
Floor Standing Outdoor LCD Display 55 Inch 2500 Nits IP65 for Drive Thru Menus
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTH550W
Floor Standing Outdoor LCD Display 55 Inch 2500 Nits IP65 for Drive Thru Menus
55 Inch Floor Standing Outdoor LCD Display for Drive-Thru Ordering
A drive-thru menu must help customers make a decision before reaching the ordering point. If product categories are difficult to locate or prices are too small, the result may be longer ordering times rather than a better customer experience.
This 55 Inch Floor Standing Outdoor LCD Display is specified with 2500-nit brightness, IP65 protection and built-in fan cooling. Its freestanding construction allows the screen to be positioned according to the vehicle lane rather than an available building wall.
55 Inch Landscape Ultra-thin Outdoor Adversting Display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 5mm tempered high permeability glass above the screen panel | |
Display parameter | LCD brand | BOE Wide temperature screen |
Backlight type | DLED | |
Display size | 1210*681mm | |
Display ratio | 16：9 | |
Resolution | 1920*1080 | |
Brightness | 2500nit | |
Contrast ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -10℃～+60℃ |
Working humidity | 10%～95% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 450W | |

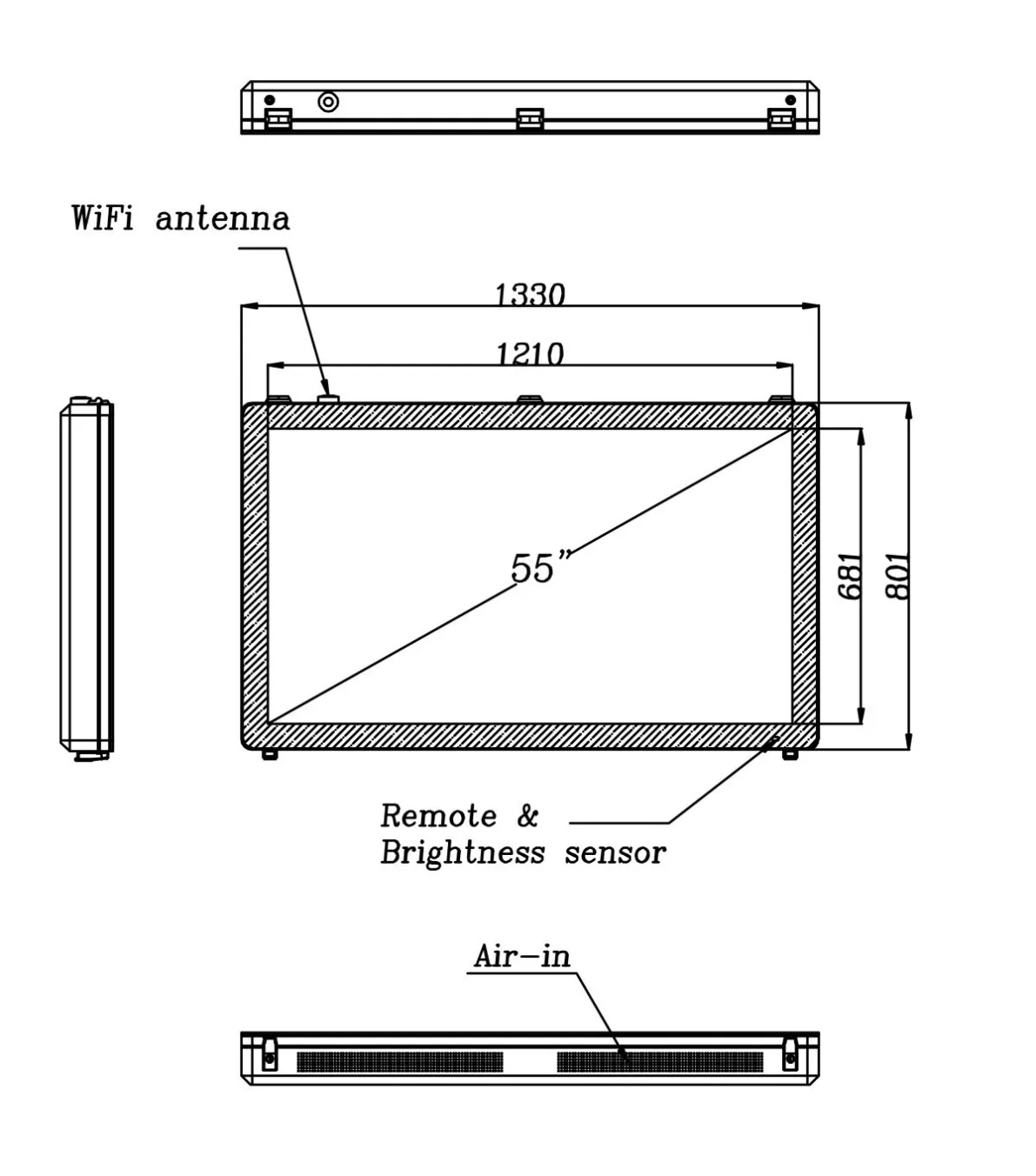

Machine size and weight | Machine size(H*W*D) | 801*1330*120mm |
Net weight | 68kg | |
Package size and weight | Package material | Wood box |
Package size H*W*D | 1020*1460*270mm | |
Gross weight | 92kg | |
Build the Menu Around Viewing Distance
A 55-inch screen can accommodate product images, prices and limited-time offers, but content should be designed for the distance between the vehicle and the display.
Menu information should follow a clear order:
- Main categories
- Popular combinations
- Product names and prices
- Upgrade options
- One current promotion
Long descriptions and several competing banners should be avoided. Drivers need to recognize the available choices within a limited time.
Daylight Visibility Is Not Only About Nits
The 2500-nit panel provides a stronger level of brightness than a typical indoor commercial display. Screen direction, seasonal sunlight and reflections still affect outdoor readability.
The intended position should be observed during morning and afternoon service. Content should also be tested on the real display because dark product photographs may lose detail under bright conditions.
IP65 Protection and Service Access
The IP65 enclosure helps protect internal equipment against dust and water jets. Correct cable sealing, drainage and foundation work are necessary to maintain this protection.
The built-in fan cooling system manages heat generated by the high-brightness panel. Service doors should remain accessible without requiring the complete drive-thru lane to be closed.
FAQ
Can the menu change automatically for breakfast and lunch?
Scheduled changes may be possible when the display is paired with a compatible media player or content-management system. The required player and software configuration should be confirmed before ordering.
Does this display connect directly to a restaurant POS system?
POS integration is not confirmed by the listed display specifications. It requires compatible software, a media platform and project-specific testing.
Can an indoor screen be placed inside an outdoor cabinet instead?
An indoor panel may not provide sufficient daylight brightness or thermal performance. This model is built around a 2500-nit panel, IP65 enclosure and outdoor cooling system.
Before Production Begins
Buyers should provide the required orientation, operating hours, content source, foundation conditions and electrical information. Local wind and vehicle-impact protection may also need engineering review.
A properly positioned 55 Inch Floor Standing Outdoor LCD Display can replace printed menu panels with content that is easier to update while retaining the brightness and enclosure protection required for outdoor operation.
