Built-in Fan Version
32 Inch 2500 Nits IP65 Outdoor Advertising Kiosk Floor Standing Fan Cooling for Public Information
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTH320B
32 Inch 2500 Nits IP65 Outdoor Advertising Kiosk Floor Standing Fan Cooling for Public Information
32 Inch Floor Standing Outdoor Advertising Kiosk for Local Information
Some outdoor messages need to be placed close to the viewer rather than enlarged across a very large screen. Entrance instructions, queue information and local notices are often read at arm’s length or from a few steps away.
The 32 Inch Floor Standing Outdoor Advertising Kiosk is designed for this type of compact communication point. Its specifications include 2500-nit brightness, an IP65-rated enclosure and built-in fan cooling.
32 Inch Landscape Ultra-thin Outdoor Adversting Display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 5mm tempered high permeability glass above the screen panel | |
Display parameter | LCD brand | LG Wide temperature screen |
Backlight type | DLED | |
Display size | 699*393mm | |
Display ratio | 0.672916666666667 | |
Resolution | 1920*1080 | |
Brightness | 2500nit | |
Contrast ratio | 145.834027777778 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -10℃～+60℃ |
Working humidity | 10%～95% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 200W | |

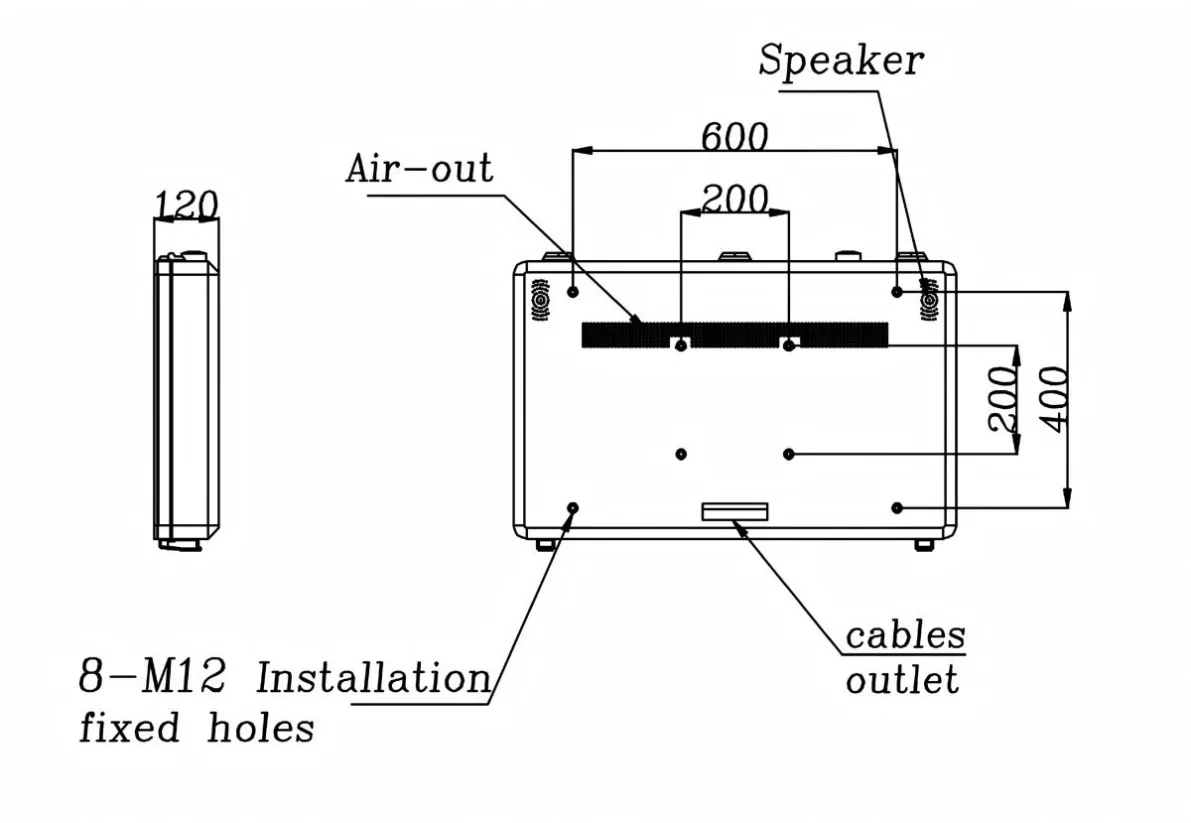

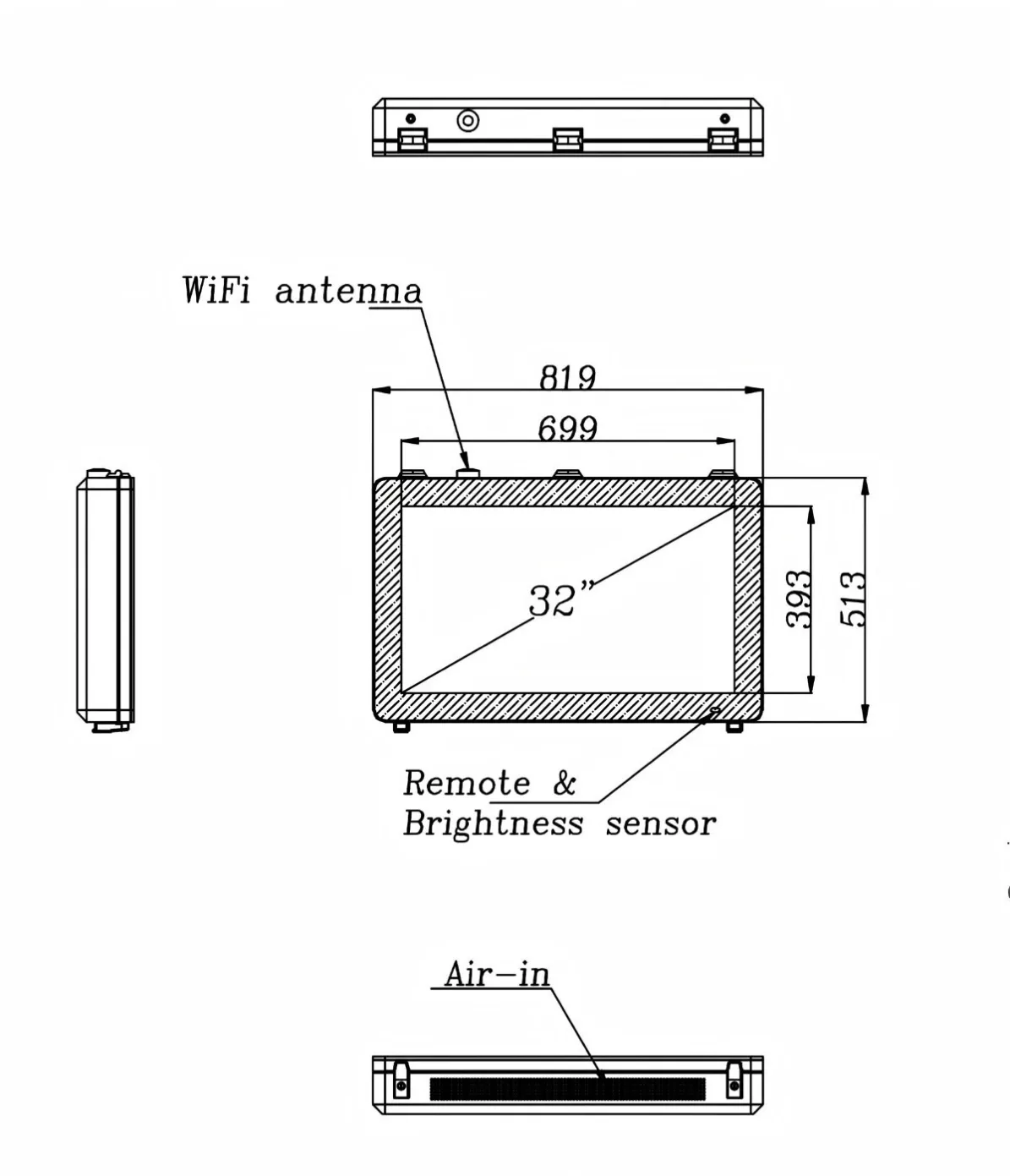

Machine size and weight | Machine size(H*W*D) | 513*819*120mm |
Net weight | 33KG | |
Package size and weight | Package material | Wood box |
Package size H*W*D | 730*950*270mm | |
Gross weight | 46KG | |
When a 32-Inch Outdoor Screen Makes Sense
This model can be considered for entrances, service points, ticketing areas, campus paths and smaller visitor facilities. The compact screen and cabinet may be easier to position where a larger kiosk would obstruct movement.
The display is not intended to reproduce a large public-information board in miniature. Content must be edited for the available screen area.
A useful page might contain one headline, a short instruction, a large icon and a simple direction. Detailed regulations or long public statements are better accessed through a secondary page or QR code.
Brightness for Exposed Viewing Areas
A 2500-nit screen is intended to maintain visibility under high ambient light. Because the panel is smaller, type size and contrast still need careful control.
A dark background with thin lettering may become difficult to read outdoors. Large text, restrained color use and generous spacing are more appropriate for quick public communication.
Installation Requires More Than a Small Foundation
The smaller cabinet does not remove structural requirements. Wind exposure, anchoring, drainage and cable routing still need to be evaluated.
IP65 protection applies when the product is correctly assembled and installed. Unsealed openings added during installation can weaken the protection level.
Managing Heat Inside a Compact Cabinet
The built-in fan cooling system removes heat from the panel and electronics. Ventilation paths must remain clear even if the unit is installed close to another structure.
Maintenance access should be retained around the cabinet. A compact installation that cannot be opened for service may create higher operating costs later.
Suitable Content Uses
The 32 Inch Floor Standing Outdoor Advertising Kiosk can display opening hours, entry instructions, event notices, queue guidance, location maps and short promotional material.
The screen’s value comes from placing current information at the exact point where visitors need it. A clear update process is therefore as important as the hardware itself.
For close-range public information, the 32 Inch Floor Standing Outdoor Advertising Kiosk offers outdoor brightness and enclosure protection without the visual scale of a larger advertising display.
