Built-in Fan Version

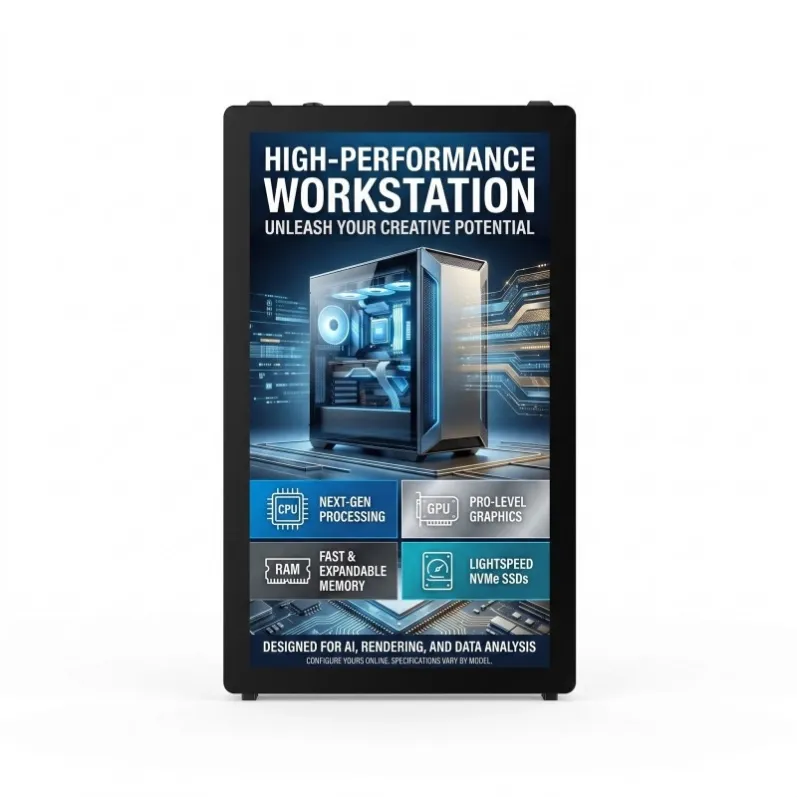

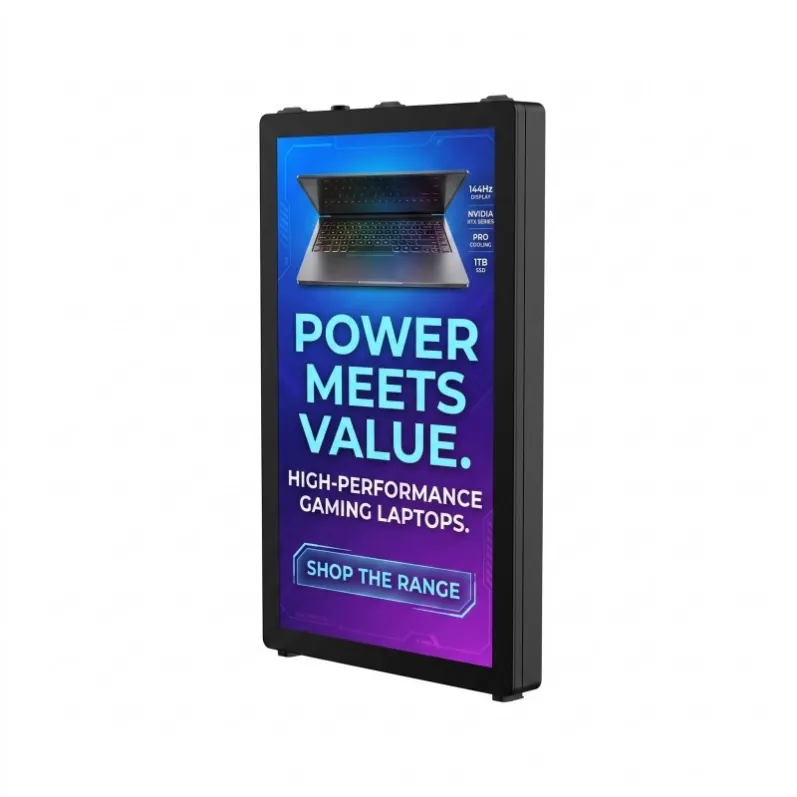

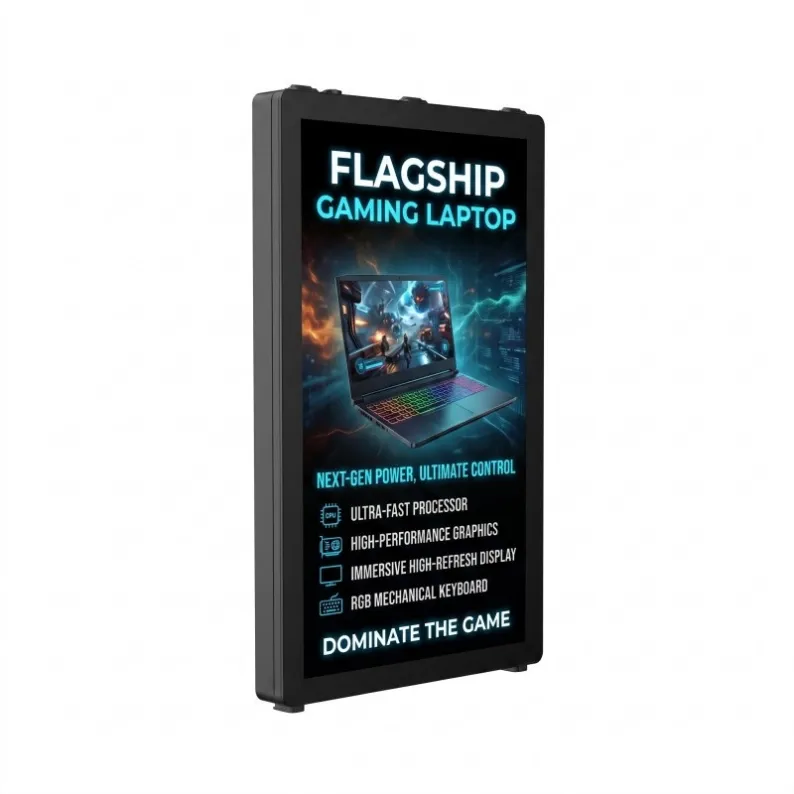

Slim Outdoor Advertising Display 43 Inch Vertical Fan Cooling for Smart City Media
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTV430B
Slim Outdoor Advertising Display 43 Inch Vertical Fan Cooling for Smart City Media
43 Inch Slim Outdoor Advertising Display for Compact Public Spaces
Public display projects often begin with screen size, but cabinet depth and ground occupation can be equally important. A large enclosure may interfere with pedestrian movement, block existing signage or look out of proportion in a narrow streetscape.
The 43 Inch Slim Outdoor Advertising Display is intended for sites where outdoor visibility is required but installation space is limited. Its listed specifications include 2500-nit brightness, IP65 protection and a built-in fan cooling system.
43-inch Air-Cooled Portrait Ultra-thin Outdoor Adversting Display | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 5mm tempered high permeability glass above the screen panel | |
Display parameter | LCD brand | BOE Wide temperature screen |
Backlight type | DLED | |
Display size | 530*942mm | |
Display ratio | 16：9 | |
Resolution | 1920*1080 | |
Brightness | 2500nit | |
Contrast ratio | 3500：1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

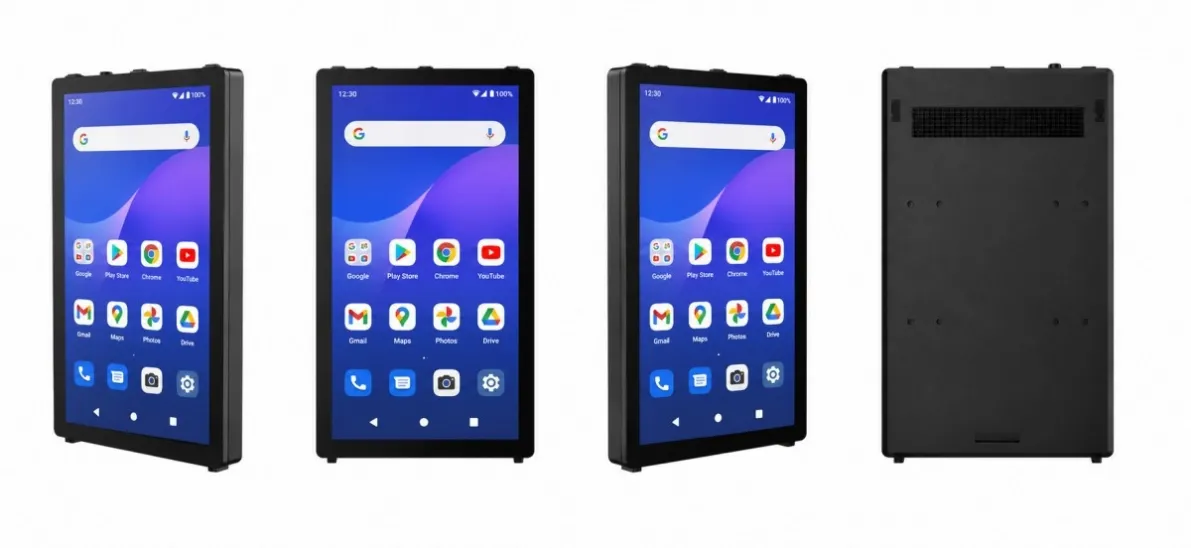

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

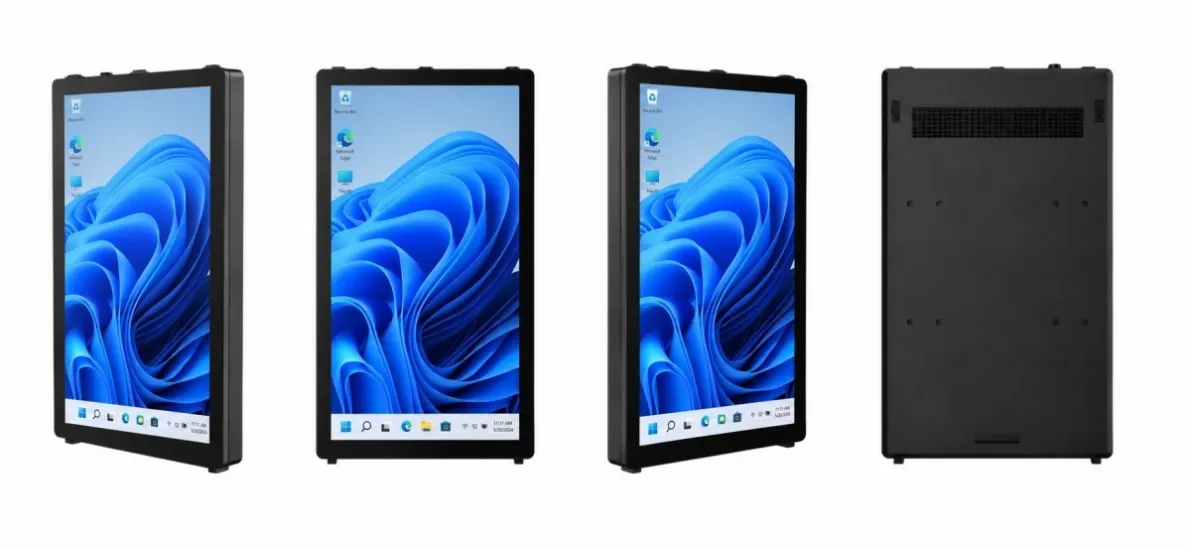

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -10℃～+60℃ |
Working humidity | 10%～95% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 270W | |
Machine size and weight | Machine size(H*W*D) | 650*1062*120mm |
Net weight | 48kg | |
Package size and weight | Package material | Wood box |
Package size H*W*D | 860*1200*270mm | |
Gross weight | 65kg | |
A Smaller Format for Close-Range Viewing
A 43-inch portrait screen is suitable for content viewed from a relatively short distance. It can present local advertising, event announcements, public notices and directional information without requiring the footprint of a large outdoor kiosk.
This size works best when the message is deliberately concise. A single image, a short headline and one action are easier to understand than a layout containing several unrelated messages.

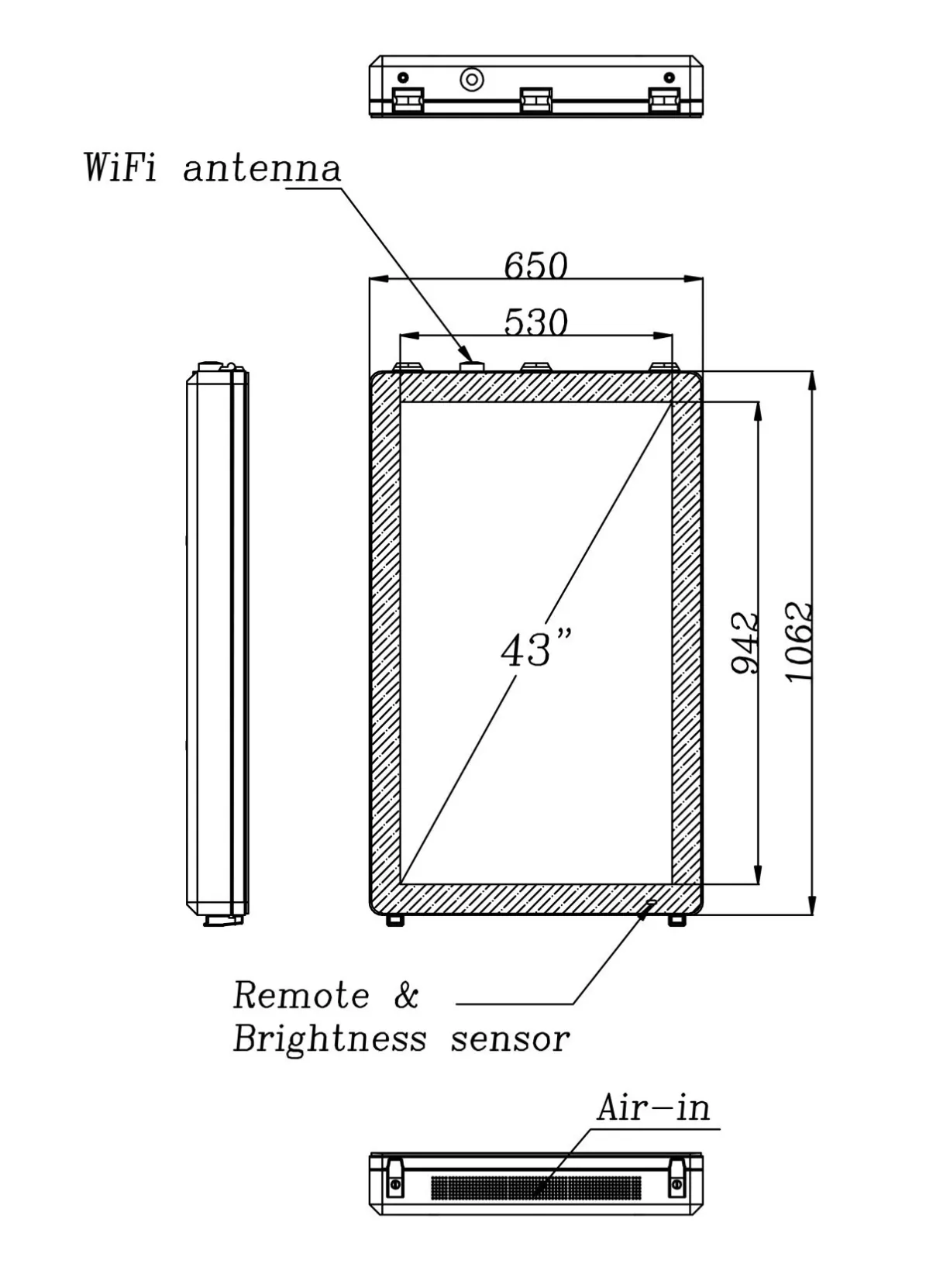

The final cabinet dimensions should be checked on the technical drawing before construction begins. “Slim” describes the product format, but it should not replace an exact depth measurement in architectural plans.
Preparing Content for Outdoor Pedestrians
People walking past a display may look at it for only a few seconds. Content designers should avoid transferring a complete website banner or printed poster directly to the screen.
A practical layout normally includes:
One recognizable visual
A headline readable while walking
Short location-specific information
One clear next step
Strong separation between text and background
If a QR code is used, the surrounding message should explain what visitors will receive after scanning it.
Managing Daylight and Evening Brightness
The 2500-nit panel is intended for high-ambient-light conditions. Installation teams should still assess direct sunlight, nearby reflective surfaces and the direction from which viewers approach.
Maximum output may be excessive after dark. The required nighttime brightness behavior should be discussed when the media and control configuration is selected.

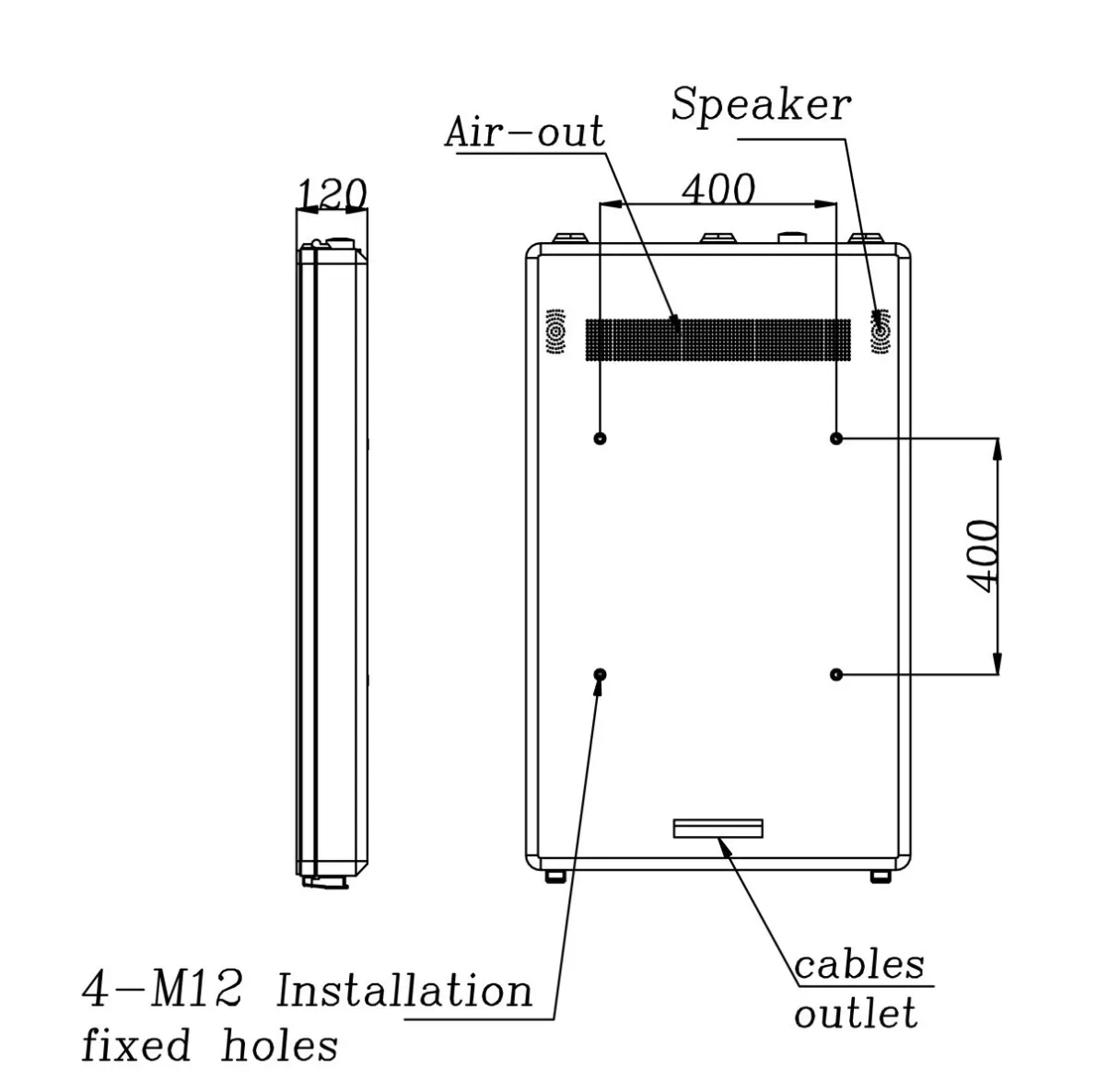

The design drawing of rear display
Outdoor Enclosure and Fan Maintenance
The IP65-rated cabinet provides dust protection and resistance to water jets when installed correctly. Cable entries, access doors and foundation openings must remain properly sealed.
Built-in fan cooling supports internal heat management. The 43 Inch Slim Outdoor Advertising Display should be positioned so specified ventilation areas are not blocked by landscaping, walls or other street furniture.
Maintenance teams should periodically inspect the screen surface, cabinet seals and cooling system. Locations exposed to traffic dust may require shorter inspection intervals.
Where This Format Fits
Possible locations include transport approaches, campus paths, shopping-center entrances, visitor attractions and municipal information points. Accessibility clearance and emergency routes must be reviewed before selecting the final position.
For projects where a full-size kiosk would be unnecessarily large, the 43 Inch Slim Outdoor Advertising Display provides a focused outdoor communication platform with a more restrained physical presence.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
