Built-in Fan Version
Weatherproof Digital Signage for 86 Inch Mall Promotions, 2500 Nits IP65 Fan Cooling
Protection Glass:6mm AR safe glass Installation:Floor standing or customized Network:WIFI / LAN / 3G / 4G Optional Resolution:1920*1080 / 3840*2160
Specifications
- SKU
- ZXTLCD-OUTFHN860R
Weatherproof Digital Signage for 86 Inch Mall Promotions, 2500 Nits IP65 Fan Cooling
86 Inch Outdoor Mall Digital Signage for Open-Air Retail Events
When an open-air shopping centre hosts a seasonal market, new-store opening or weekend event, the entrance needs more than a small promotional poster. This 86 Inch Outdoor Mall Digital Signage provides a large landscape canvas for campaigns that must be recognized across an exterior pedestrian area.

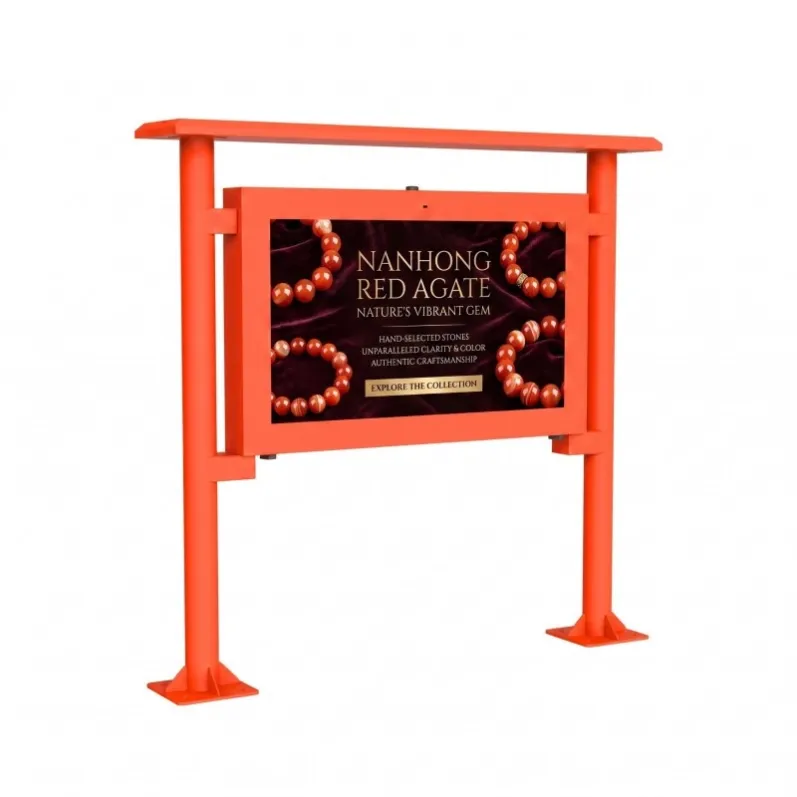

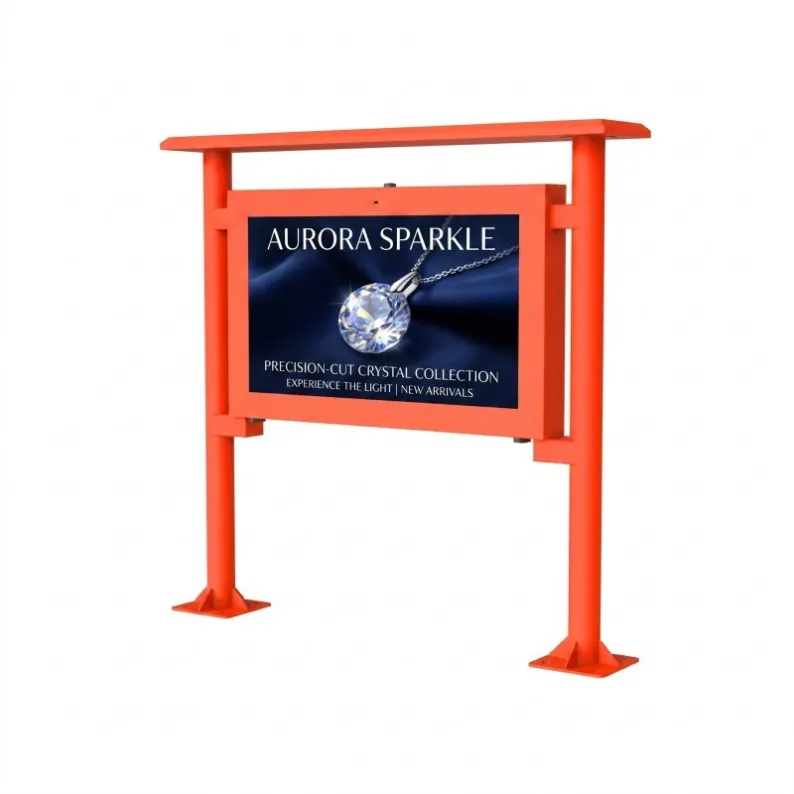

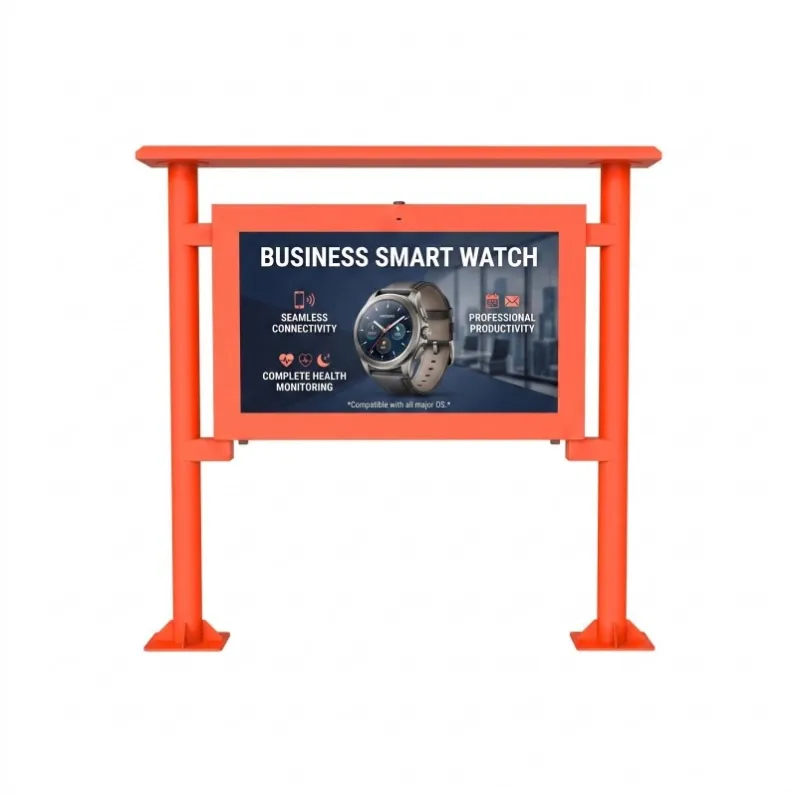

The product image shows an orange two-post structure with a projecting upper cover. The screen is positioned between the supports, leaving open space underneath instead of using a solid full-height cabinet. This gives it the appearance of permanent outdoor retail infrastructure rather than a movable advertising totem.
86 Inch Outdoor air-cooled horizontal screen floor-standing column style specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1896*1066mm | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤1300W | |

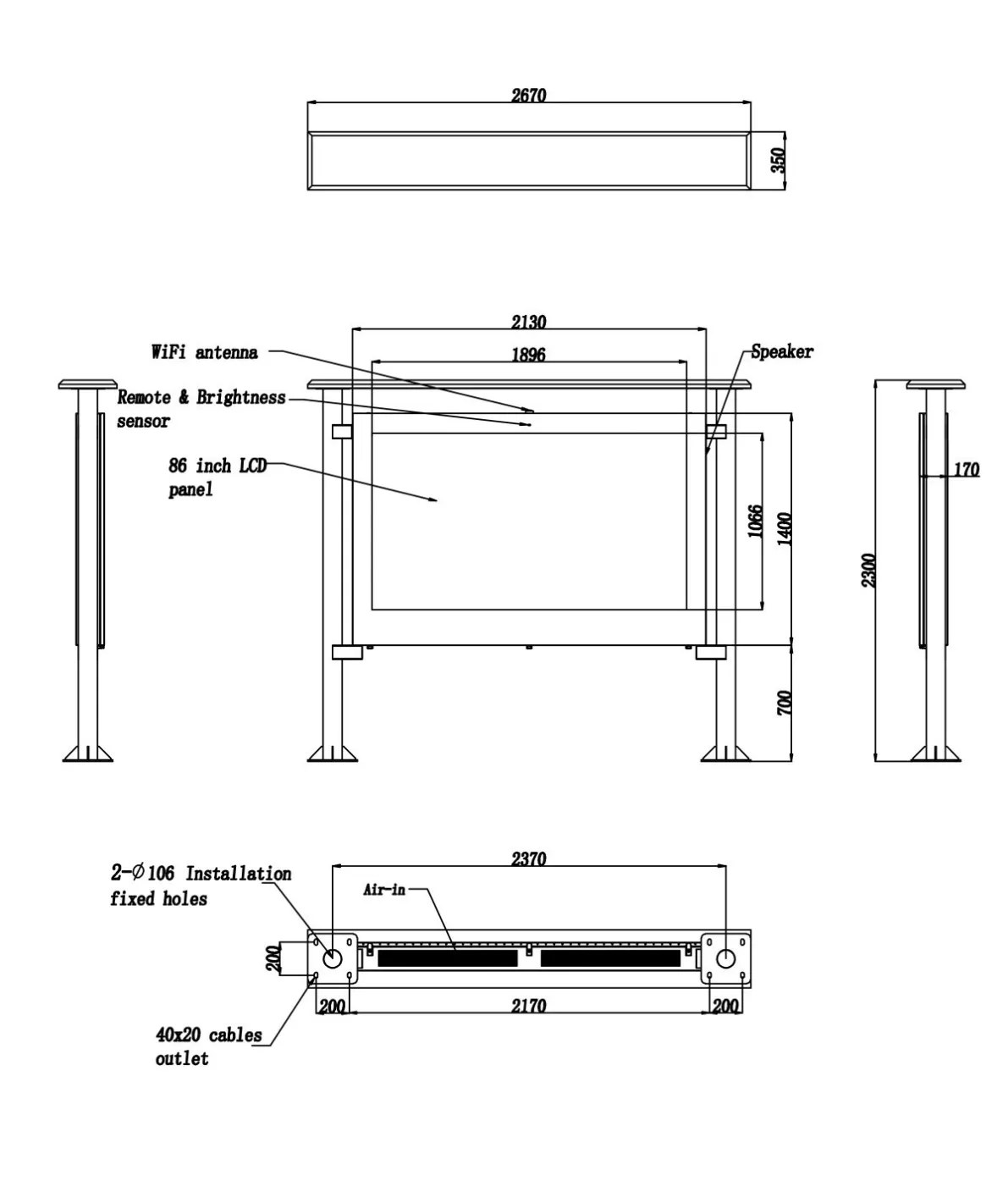

Mechanical parameters | Whole device dimension H*W*D | 2300*2670*350mm |
Whole device net.weight | 300kg | |
Package dimension H*W*D | 1670*2280*320mm | |
Stand pole package dimension H*W*D | 570*2920*510mm | |
Mechanical parameters | Whole device gross weight | 260kg |
Stand pole gross weight | 150kg | |
Treat the Screen as an Event Gateway
The wide format can introduce the event before visitors enter the main activity area. Appropriate content includes:
- Seasonal market dates
- New-store launches
- Outdoor dining promotions
- Cinema and entertainment campaigns
- Site maps for special events
- Parking or entrance changes
The 86 Inch Outdoor Mall Digital Signage should lead with the event name, date and location. Detailed schedules can follow later or be accessed through a QR code.
Content Designed for an Open Space
Artwork needs to remain readable while visitors walk toward the display. Large photography and short headlines work better than multiple small offer panels.
Evening content should use a darker background or reduced brightness so the screen does not overwhelm nearby dining and leisure areas.
Outdoor Construction and Upkeep
The display combines 2500-nit brightness, IP65 protection and built-in fan cooling. Airflow areas must remain clear, while the two posts and their foundations require project-specific structural review.
During campaign changeovers, staff should inspect the glass, cooling vents, cabinet seals and anchor points. The 86 Inch Outdoor Mall Digital Signage will represent many different advertisers, so a neutral maintenance standard is as important as the current campaign artwork.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
