Built-in Air conditioner
Weatherproof Digital Signage for 86 Inch Bus Station Wayfinding, 2500 Nits IP65 Air Conditioning
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVP860BW
86 Inch Weatherproof Digital Signage for Outdoor Bus Station Wayfinding
At a busy bus station, passengers rarely stop to study a complicated map. Most need a route number, platform direction or departure update within a few seconds. The large portrait format of this 86 Inch Weatherproof Digital Signage gives transport operators enough screen area to separate those details clearly instead of forcing everything into one crowded layout.

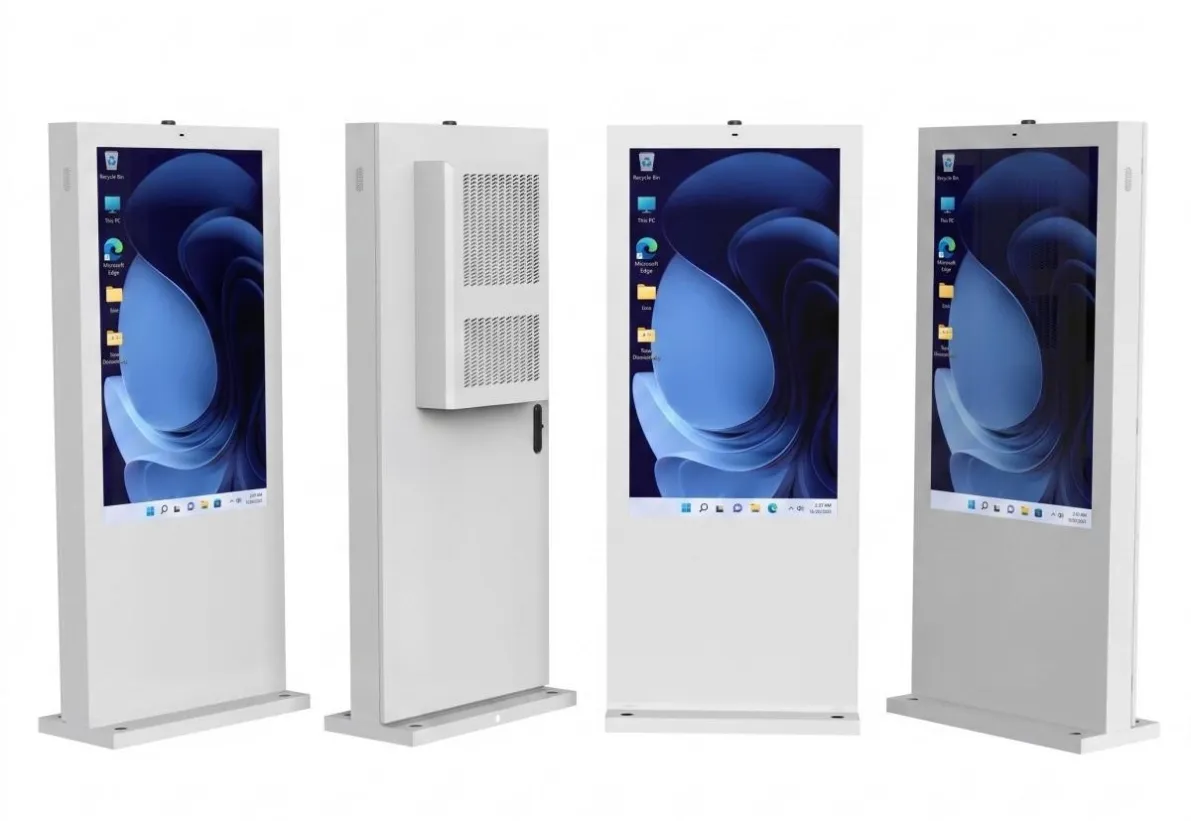

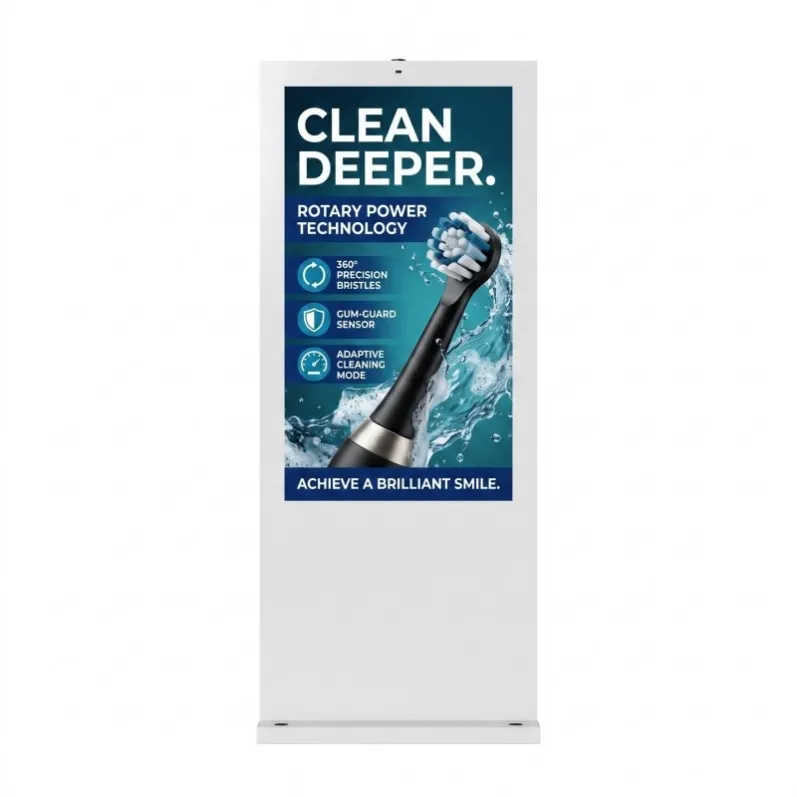

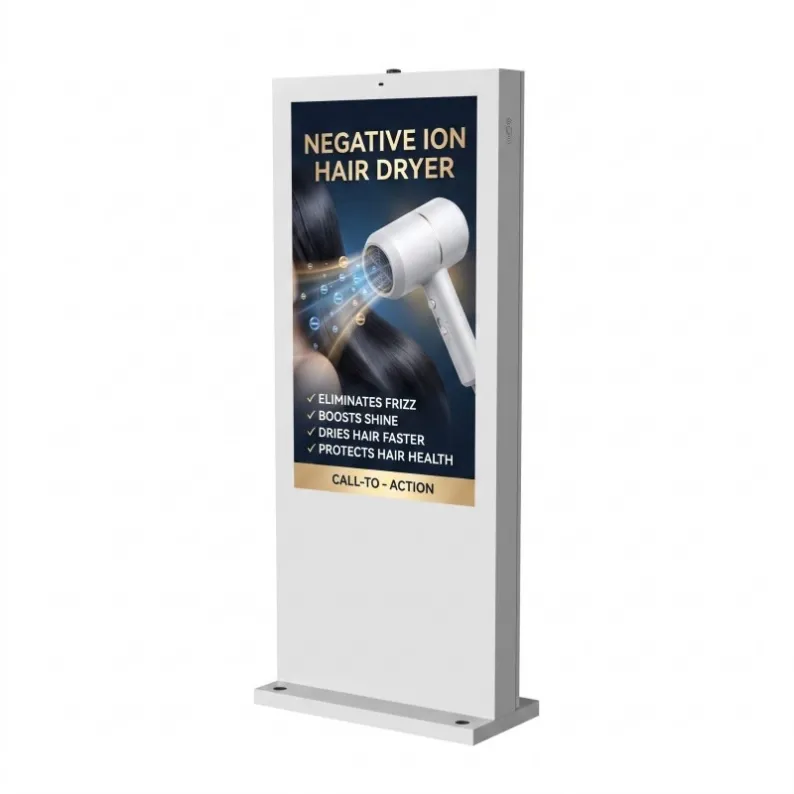

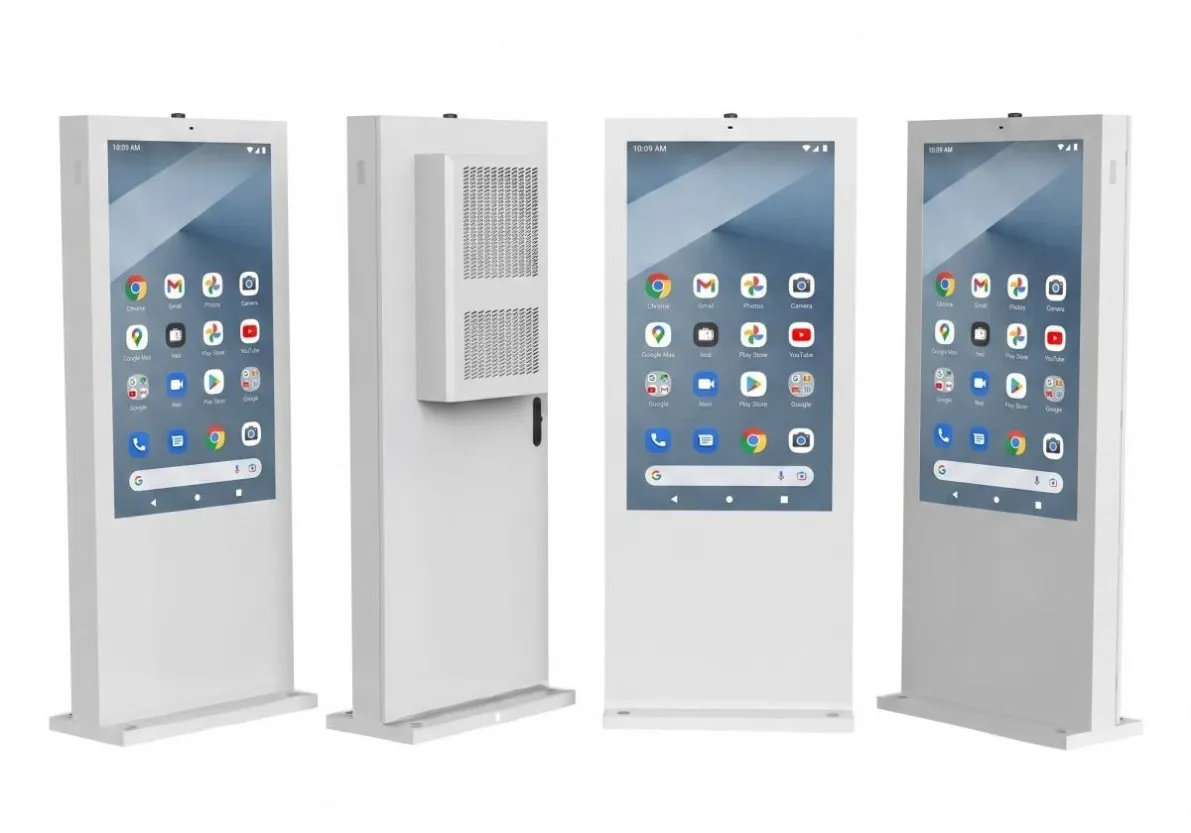

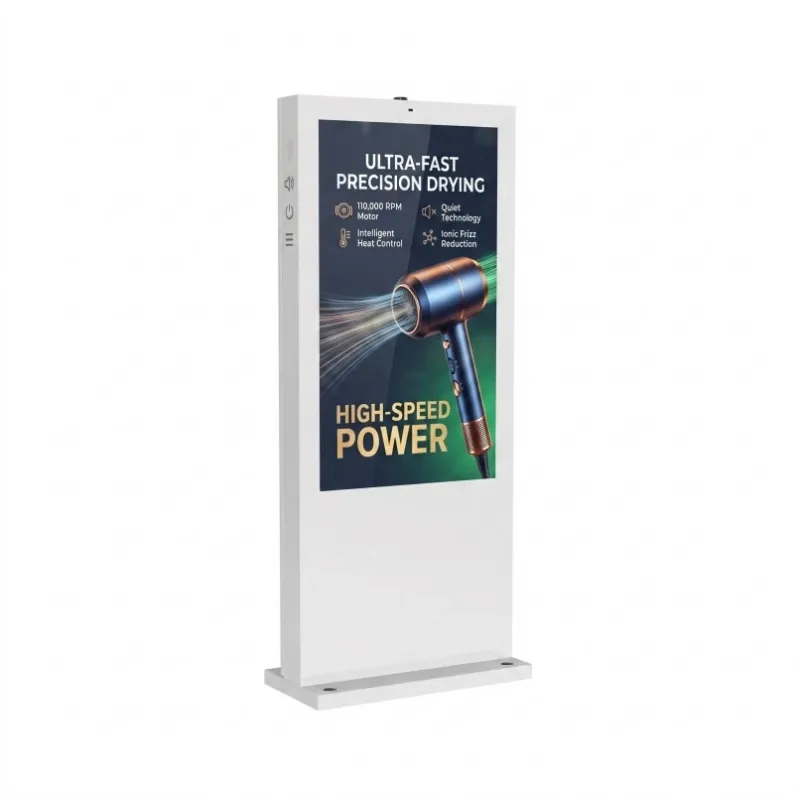

The product image shows a tall display with a light-colored lower cabinet and a relatively slim upright profile. It can be positioned near an outdoor station entrance, sheltered platform or pedestrian interchange where information must remain visible above surrounding foot traffic.
86 Inch Outdoor floor standing digital signage with air conditioner specification-B style | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1896*1066mm | |
Display ration | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

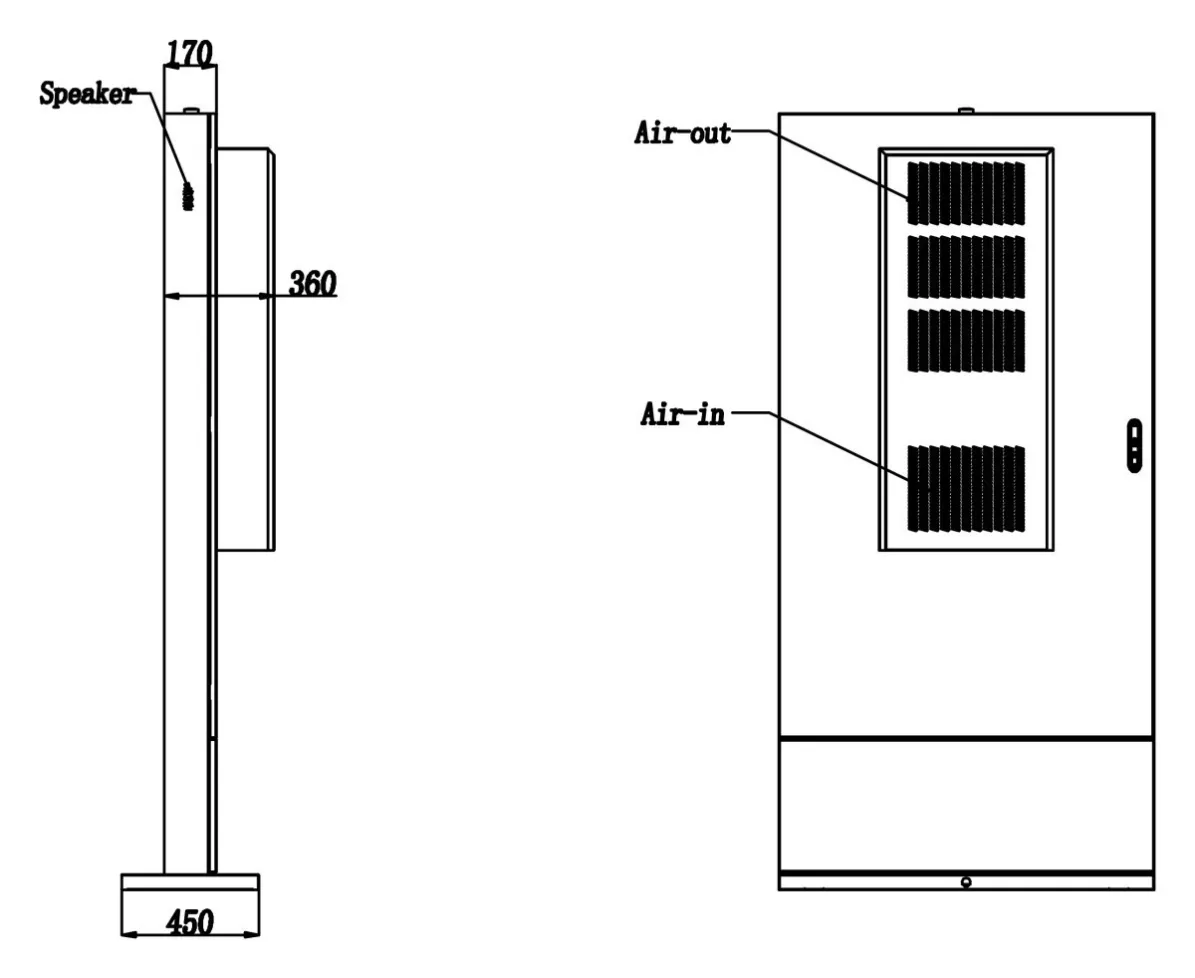

Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 2200W | |

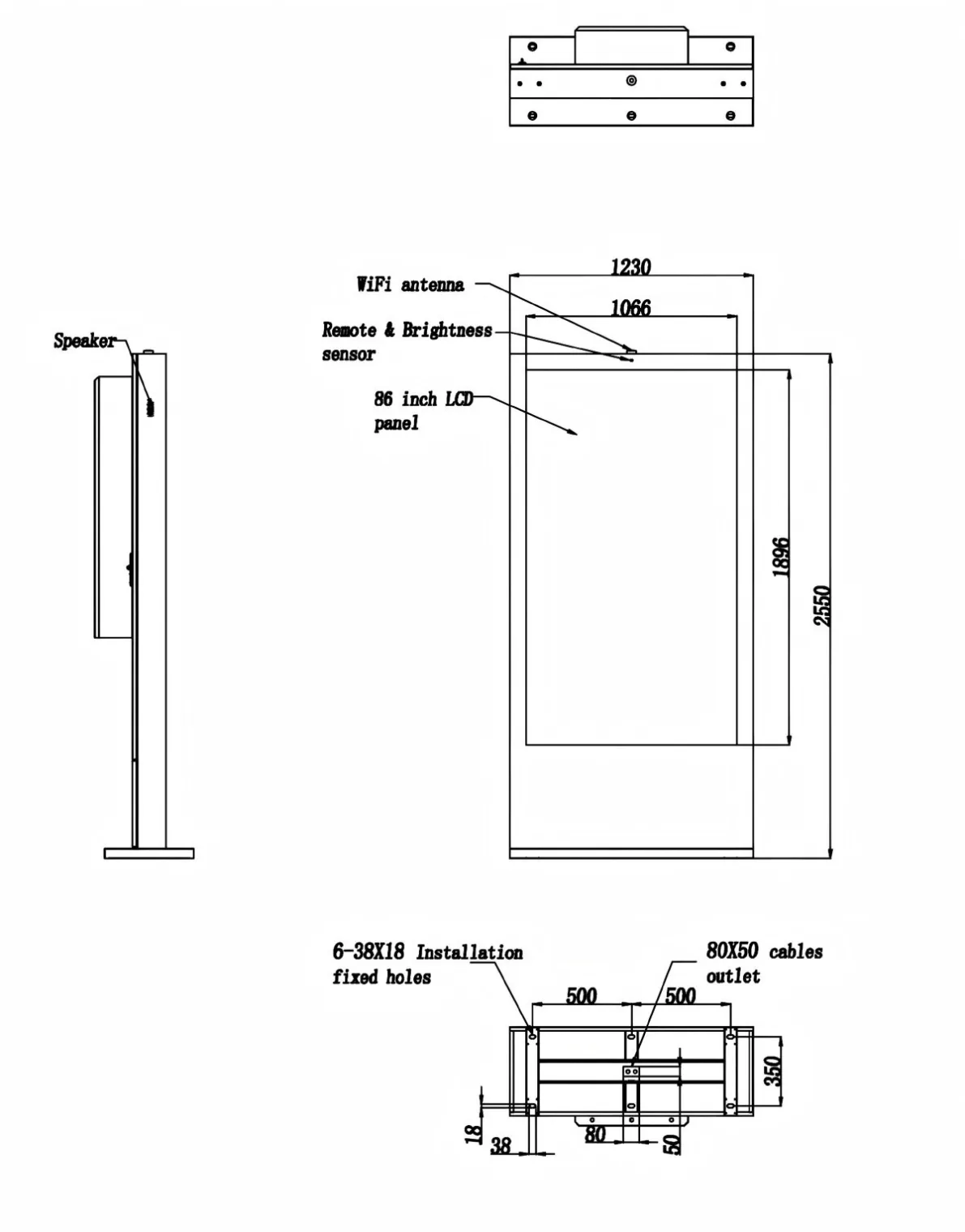

Mechanical Para | Whole device dimension H*W*D | 2550*1230*170mm |
Whole device net.weight | 280kg | |
Package dimension H*W*D | Machine 1460*2700*520mm AC1580*720*440mm | |
Gross packing | Machine 270kg AC90kg | |
More Room for Routes and Local Directions
An 86-inch screen can display a complete station map while retaining readable labels. The upper area may carry route or service alerts, while the lower portion can show local landmarks, transfer instructions and accessibility information.
Useful content includes:
- Bus routes and platform numbers
- Temporary service changes
- Walking directions to nearby streets
- First and last departure information
- Emergency announcements
- QR codes for mobile journey planning
Because passengers approach from different distances, the most important information should use large characters and strong contrast.
2500 Nits for Daytime Reading
Transport displays frequently face open daylight even when installed beneath a canopy. The specified 2500-nit panel helps the 86 Inch Weatherproof Digital Signage retain visibility under high ambient light.
Brightness alone cannot correct a poor installation angle. Reflections from glass shelters, low afternoon sun and nearby vehicle headlights should be considered during the site survey. Dark text over a busy photograph is also harder to read than a simple, high-contrast information layout.
IP65 Protection and Air-Conditioned Thermal Management
The IP65 enclosure is intended to protect the internal system from dust and normal outdoor water exposure. Built-in air conditioning provides controlled cabinet cooling for the large high-brightness panel, which is especially relevant at stations operating for long hours during hot weather.
Maintenance teams need clear access to the cooling system. Filters, drainage paths, door seals and ventilation areas should be inspected at planned intervals rather than only after a temperature alarm appears.
Installation Details That Affect Daily Operation
The concrete base must support the cabinet and local wind-load requirements. Power and network cables should enter through sealed routes, with no exposed connection boxes left beside the unit.
For a transport project, the buyer should also establish who can publish emergency content, how quickly timetable changes reach the screen and what happens if the network connection is interrupted. A locally cached schedule can keep essential information running during a temporary communication failure.
The 86 Inch Weatherproof Digital Signage is most valuable when the display, content platform and station operating procedure are planned as one passenger-information system.
