Built-in Air conditioner
High Brightness Weatherproof Digital Signage 43 Inch Floor Standing for Retail Windows
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVP430AB
43 Inch Outdoor Digital Signage for Retail Windows
A small exterior screen can outperform a larger display when it is positioned correctly. This 43 Inch Outdoor Digital Signage for Retail Windows is intended for promotions placed close to store entrances, pavement-facing windows and outdoor pickup points.

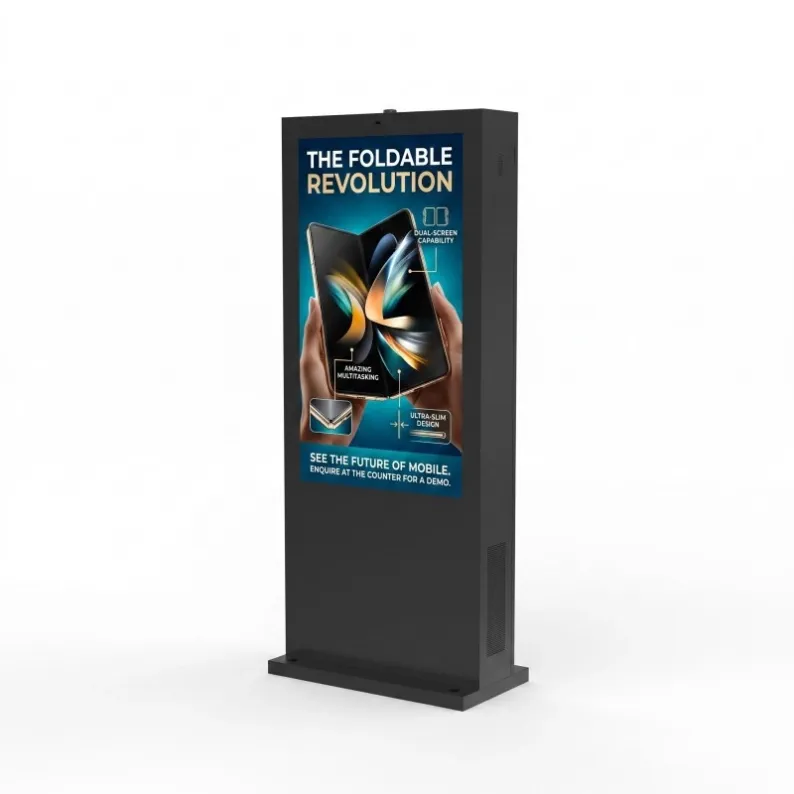

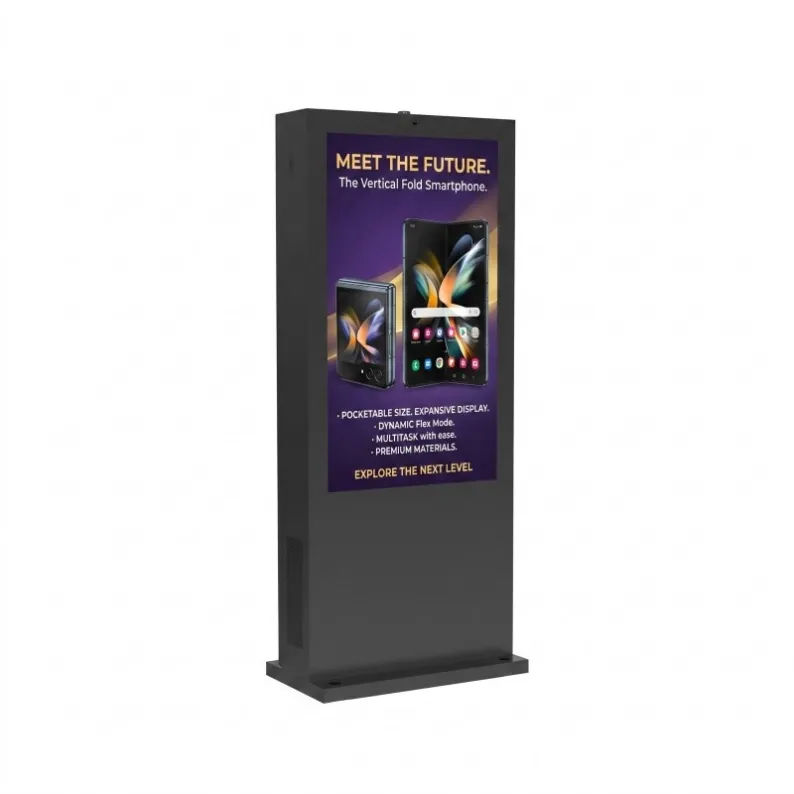

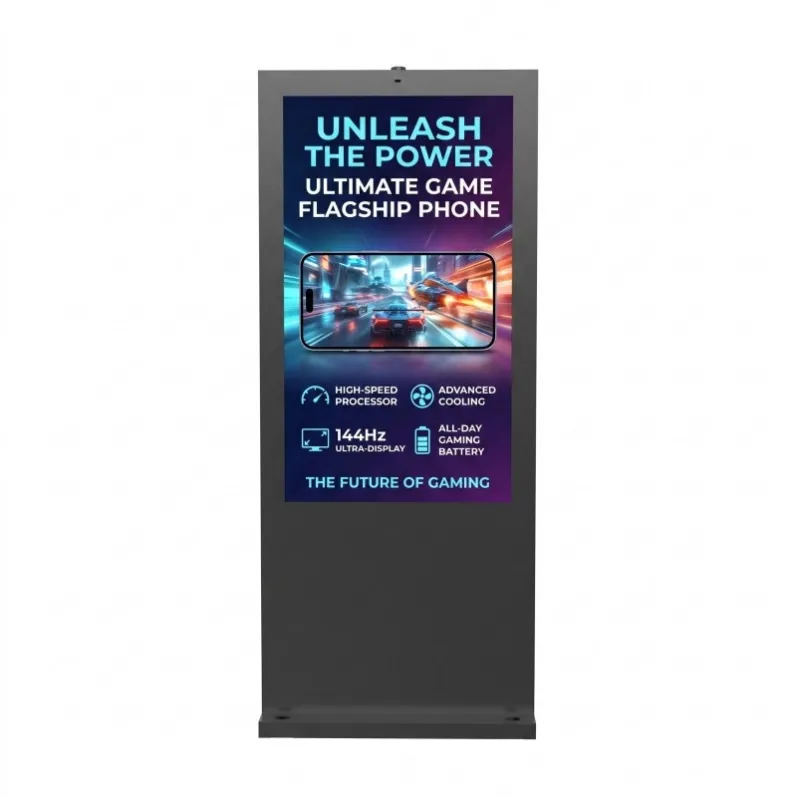

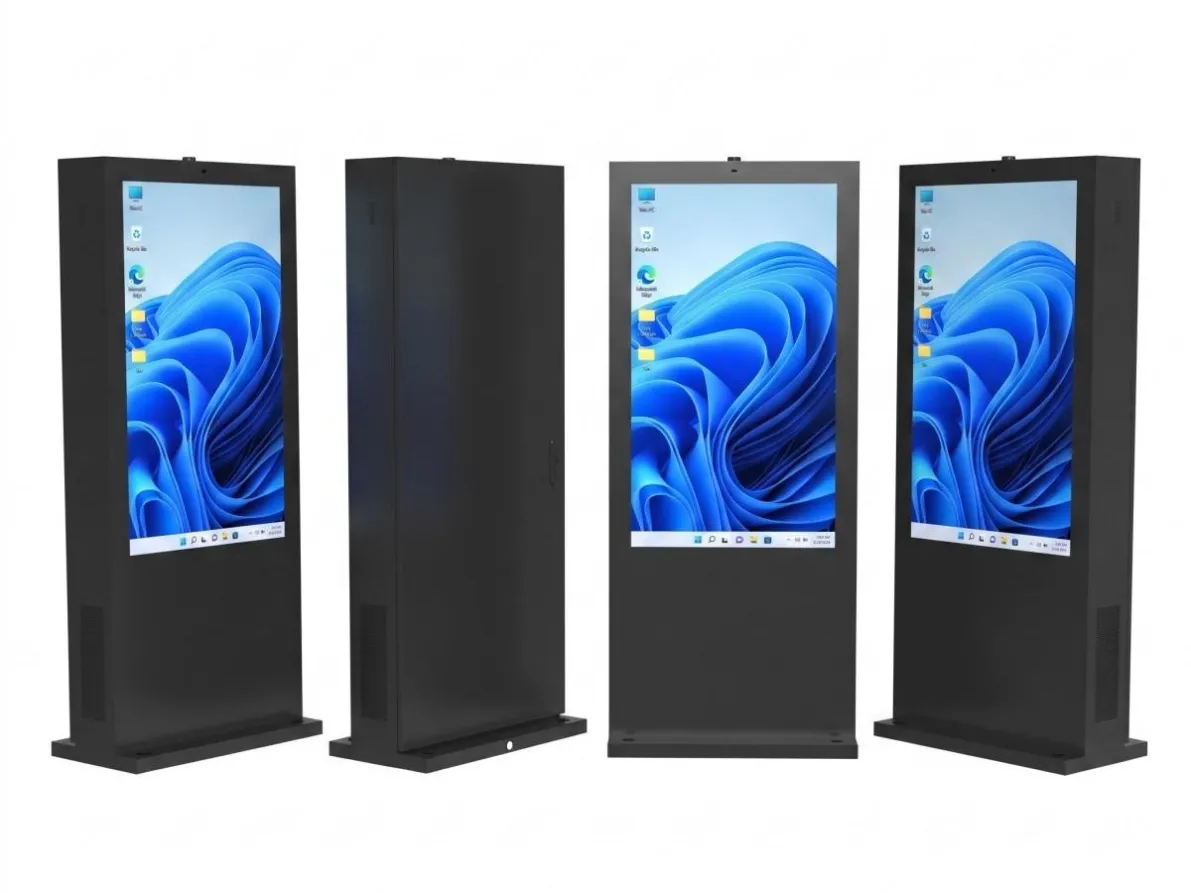

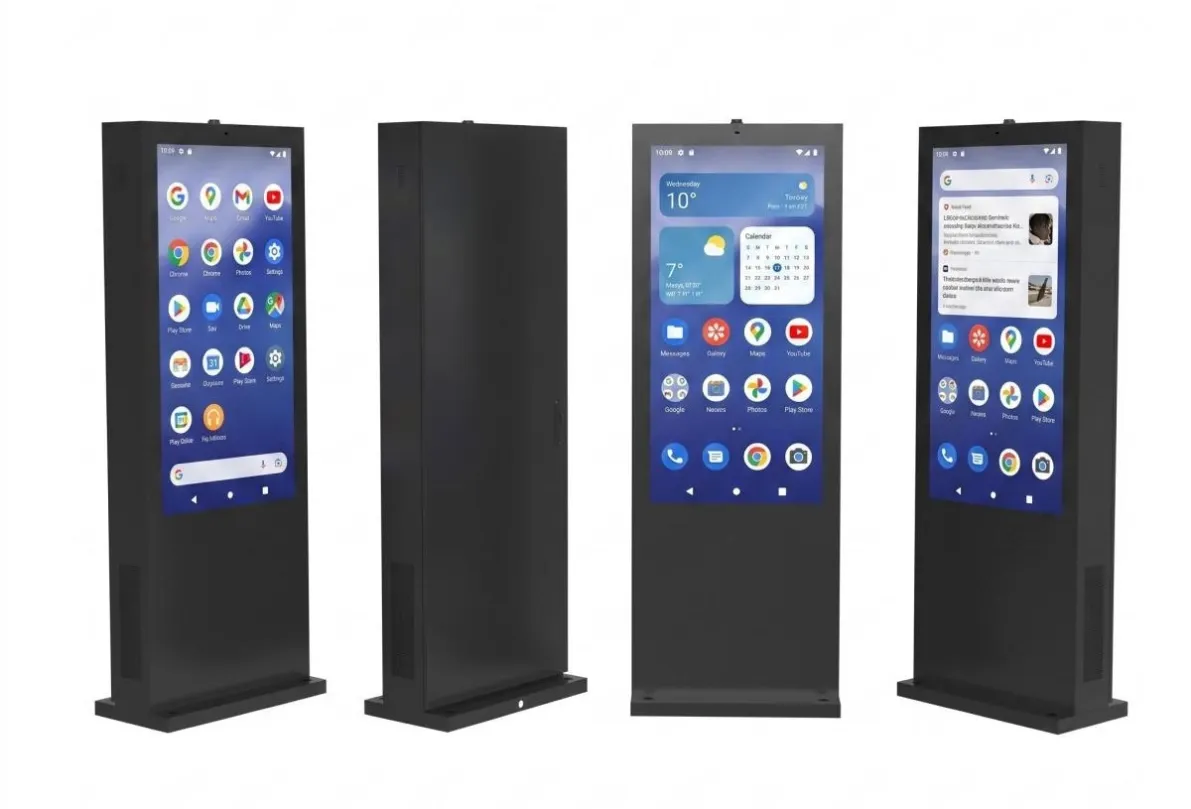

The product image shows a simple black floor-standing cabinet. Its neutral appearance avoids competing with fashion, food, beauty or electronics campaigns, allowing the screen content to remain the main visual element.
43 Inch Outdoor floor standing digital signage with air conditioner specification -A style | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension （mm） | 941*530 | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 5%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 570W | |

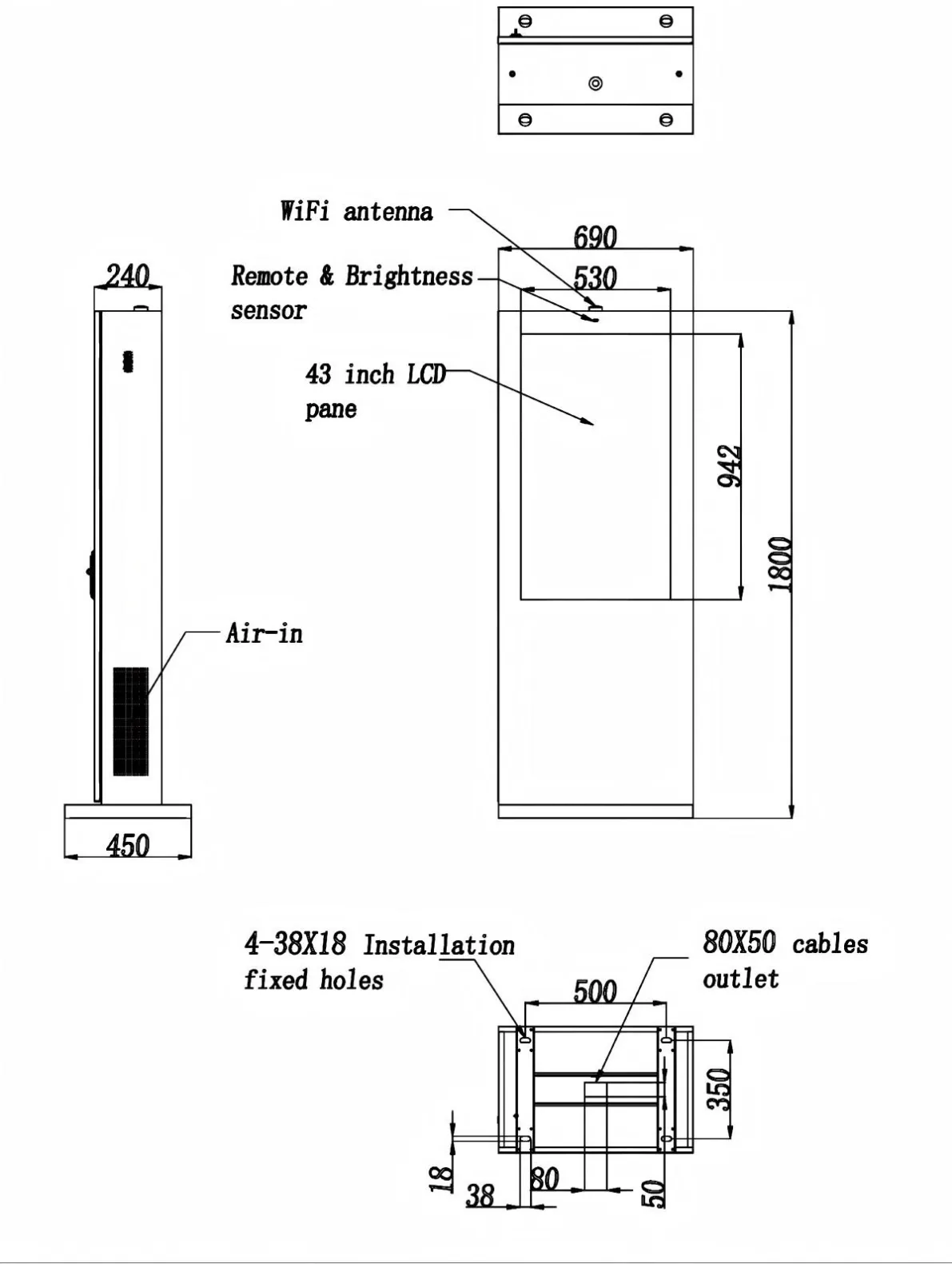

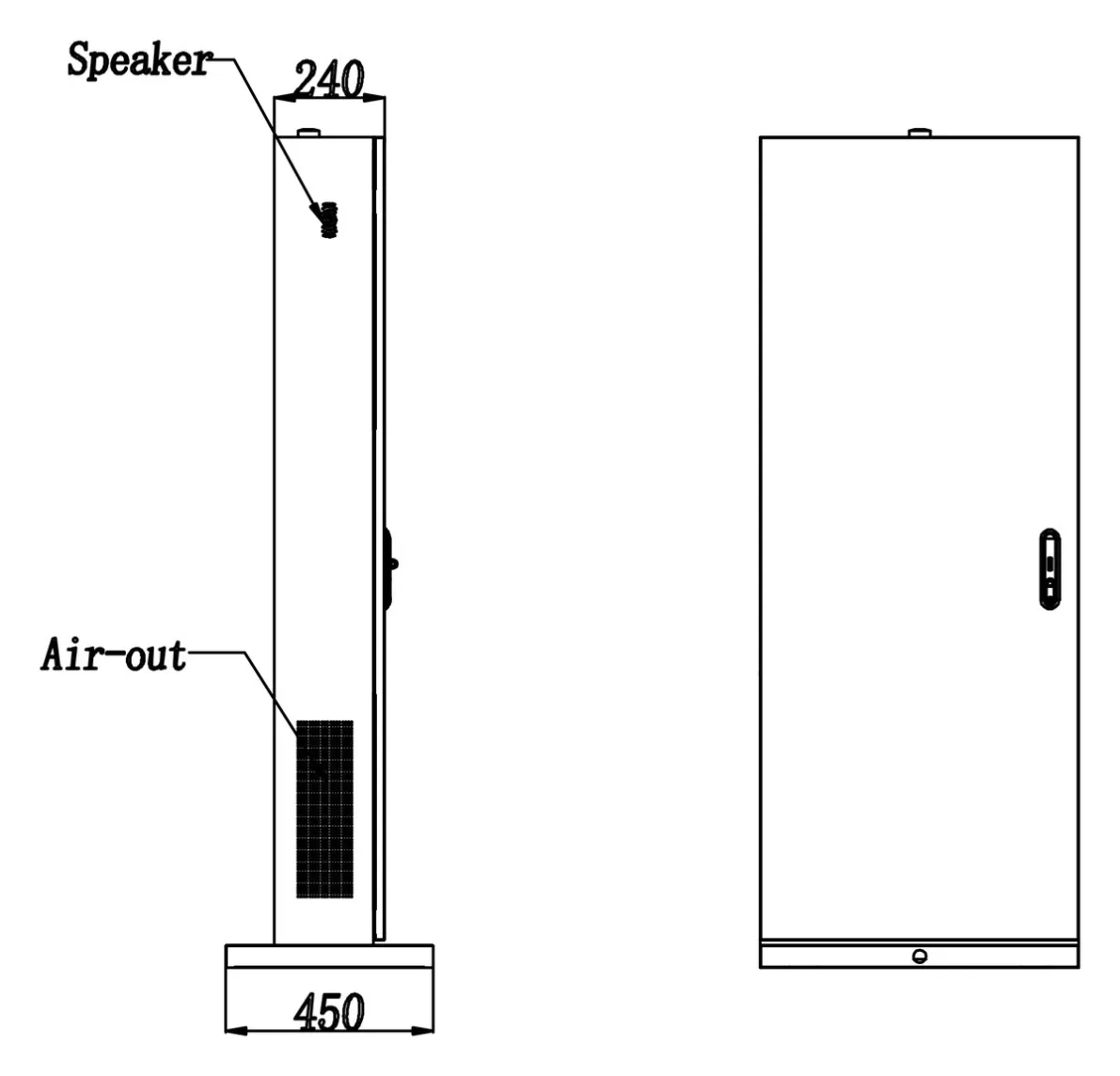

Mechanical parameters | Whole device dimension H*W*D | 1800*690*240mm |
Whole device net.weight(kg) | 110kg | |
Package dimension H*W*D(mm) | Machine920*1950*520mmAC 680*750*310mm | |
Gross packing(kg) | Machine 125kg AC 23kg | |
Work with the Storefront, Not Against It
Outdoor displays are sometimes placed directly in front of the best window merchandising. That creates a conflict between the physical products and the digital campaign.
A better position may be beside the window or slightly forward of the entrance, where the display can introduce the offer and the window can complete the presentation. The digital content might feature:
- A newly launched product
- A limited seasonal promotion
- Store opening information
- Outdoor pickup instructions
- Loyalty membership benefits
- Directions to a department or event
Design for People Who Are Walking
Most pedestrians will not stop for a complicated video. The 43 Inch Outdoor Digital Signage for Retail Windows needs content that communicates the main offer in two or three seconds.
One product image, one short headline and one recognizable price or benefit usually work better than a catalogue-style layout. Small legal text and detailed specifications can be moved to a landing page accessed by QR code.
Outdoor Operating Conditions
High brightness supports visibility under strong ambient light, while the IP65 enclosure protects the internal equipment against normal outdoor dust and water exposure.
The backend identifies an air-conditioned cooling configuration. Buyers should provide expected summer temperature, direct-sun duration and daily operating hours so the thermal system can be evaluated for the actual storefront.
Campaign Maintenance Is Part of Screen Maintenance
When a campaign expires, the physical unit should also be inspected. Staff can clean the glass, check the cabinet finish and report damage while new content is being scheduled.
The 43 Inch Outdoor Digital Signage for Retail Windows is most effective when the retail calendar and screen playlist are managed together. Current content makes the hardware appear current; an expired promotion makes even a new display look neglected.
