Built-in Air conditioner
Outdoor Digital Signage 55 Inch Vertical Air Conditioning for Bus Station Wayfinding
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVP550AO
55 Inch Outdoor Digital Signage for Bus Station Wayfinding
Not every bus stop needs an 86-inch information display. At neighbourhood stations and secondary boarding points, a 55 Inch Outdoor Digital Signage for Bus Stations can provide the necessary route information while occupying less pavement space.
The product image shows a warm orange-brown lower cabinet with a vertical screen. Its proportions are suited to information read from a standing position at close or medium distance.
55 Inch Outdoor floor standing digital signage with air conditioner specification -A style | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension （mm） | 1210*681 | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 5%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 750W | |

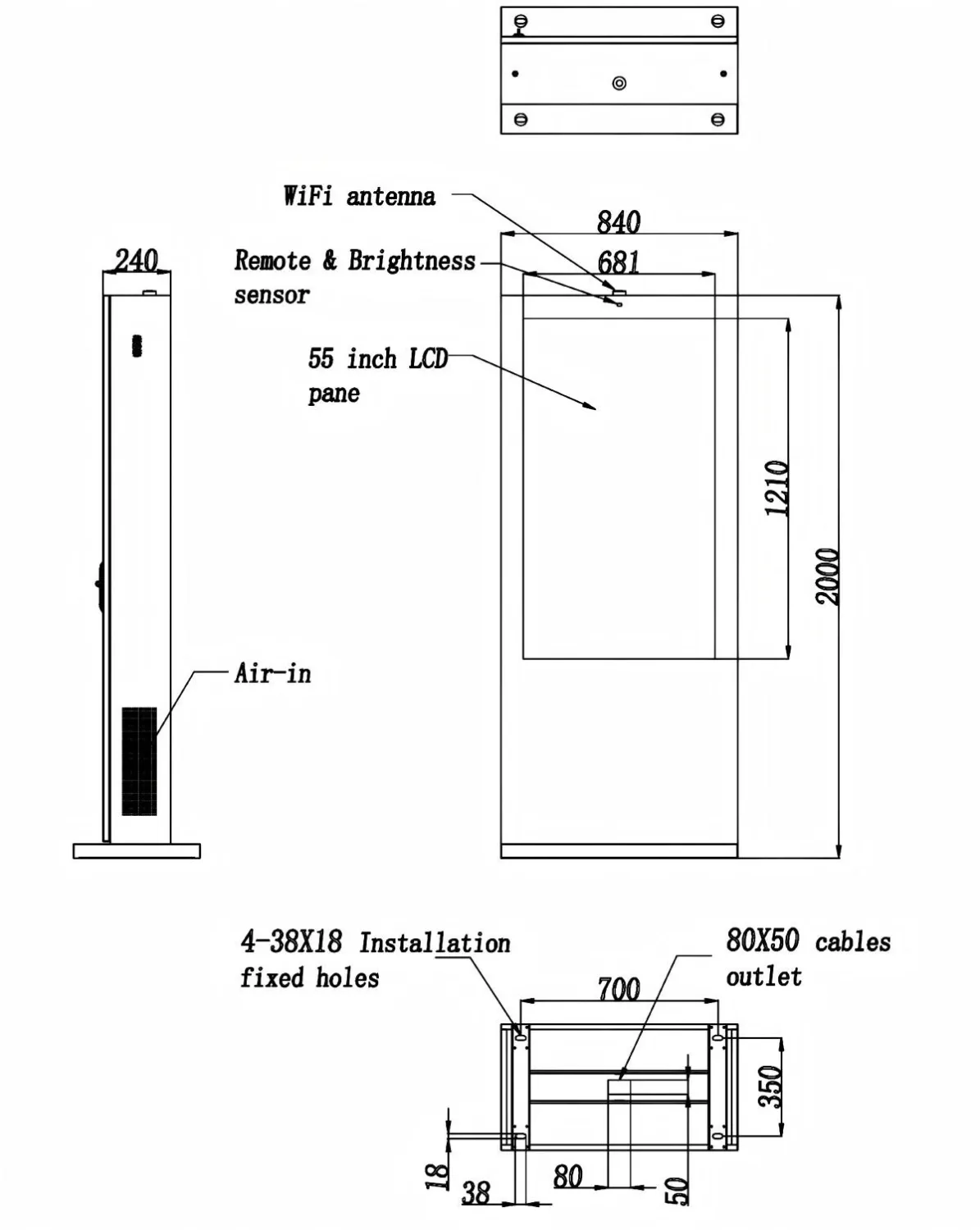

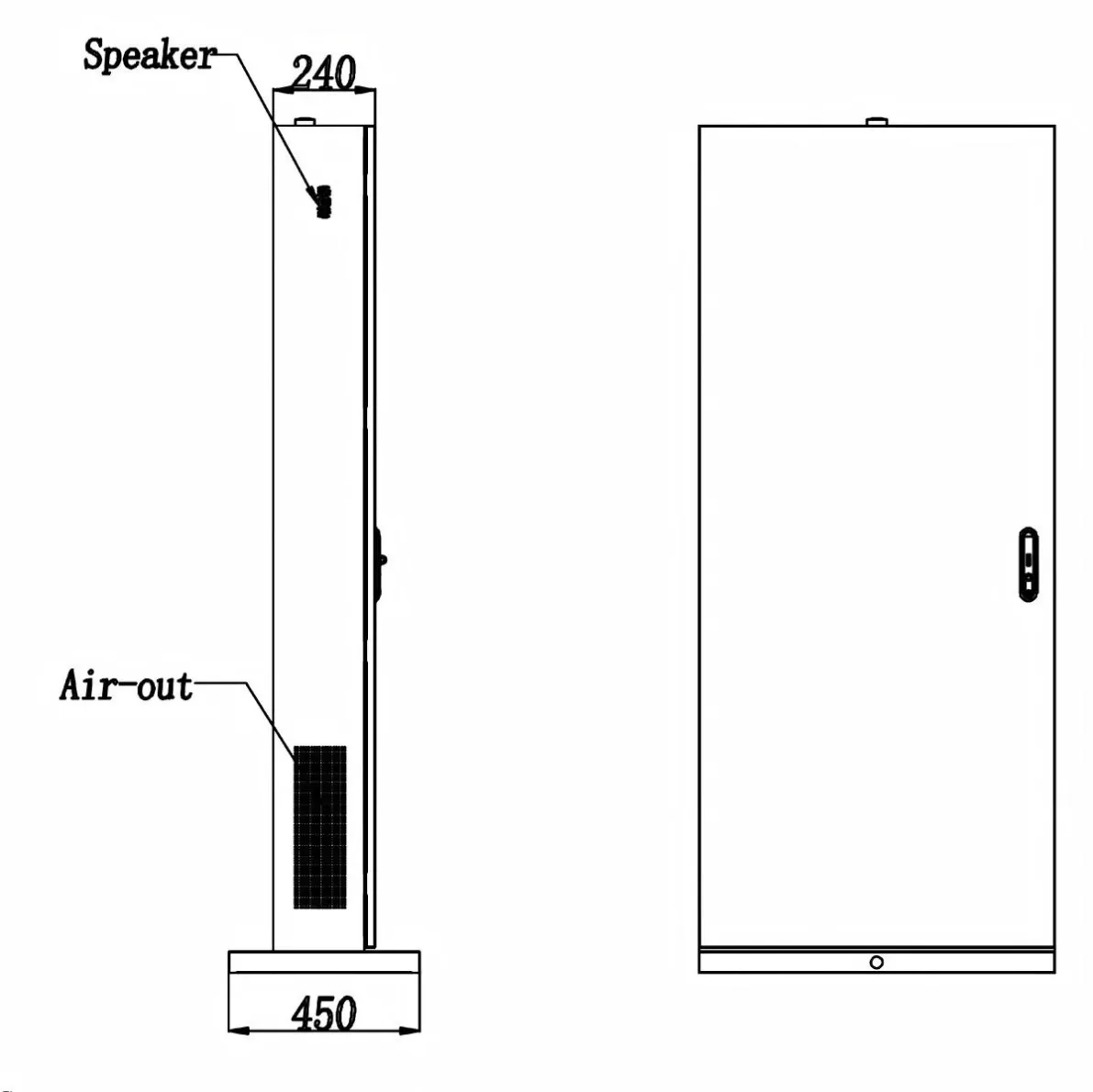

Mechanical parameters | Whole device dimension H*W*D | 2000*840*240mm |
Whole device net.weight(kg) | 135kg | |
Package dimension H*W*D(mm) | Machine 1070*2150*520mmAC 680*750*330mm | |
Gross packing(kg) | Machine145kg AC 31kg | |
Designed for the Smaller Station
A compact bus station may still need to communicate several types of information:
- Route numbers and destinations
- Transfer instructions
- Temporary stop changes
- Service operating hours
- Local walking directions
- Safety and emergency notices
The 55-inch format encourages a disciplined layout. Essential information should remain on screen continuously rather than disappearing inside a long promotional playlist.
Wayfinding Starts Before the Passenger Reaches the Screen
The screen position should be visible from the normal approach route. If passengers only see it after reaching the platform, it cannot help them find the correct boarding area.
The 55 Inch Outdoor Digital Signage for Bus Stations can be installed near an outdoor entrance, covered stop or transfer path, provided it does not reduce wheelchair clearance or block the driver’s view.
Stable Operation Through Changing Weather
Outdoor transport equipment experiences temperature changes, road dust, rain and extended daily use. The IP65 enclosure provides environmental protection, while the internal air conditioner helps regulate cabinet temperature.
Cable entries, foundation bolts and door seals deserve regular attention. Small water-entry or anchoring problems are easier to correct during scheduled inspection than after the display stops operating.
Keep Information Current During Disruption
A route map loses value when construction or temporary traffic control moves the boarding location. Operators need a publishing process that allows authorized staff to update affected screens quickly.
Locally stored fallback pages are also useful. If the network becomes unavailable, the screen can continue showing basic route, station and emergency contact information.
The 55 Inch Outdoor Digital Signage for Bus Stations is not simply a smaller version of a large advertising kiosk. Its value lies in placing concise, current travel information exactly where passengers need it.
