Outdoor Advertising Display 32 Inch 2500 Nits IP65 Floor Stand for Transit Hubs
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVP320AG
32 Inch Outdoor Advertising Display for Transit Hub Entrances
Transit media does not always need to be viewed across an entire station. Some messages belong beside a ticket point, pedestrian gate or outdoor transfer path. This 32 Inch Outdoor Advertising Display is designed for those closer viewing positions.

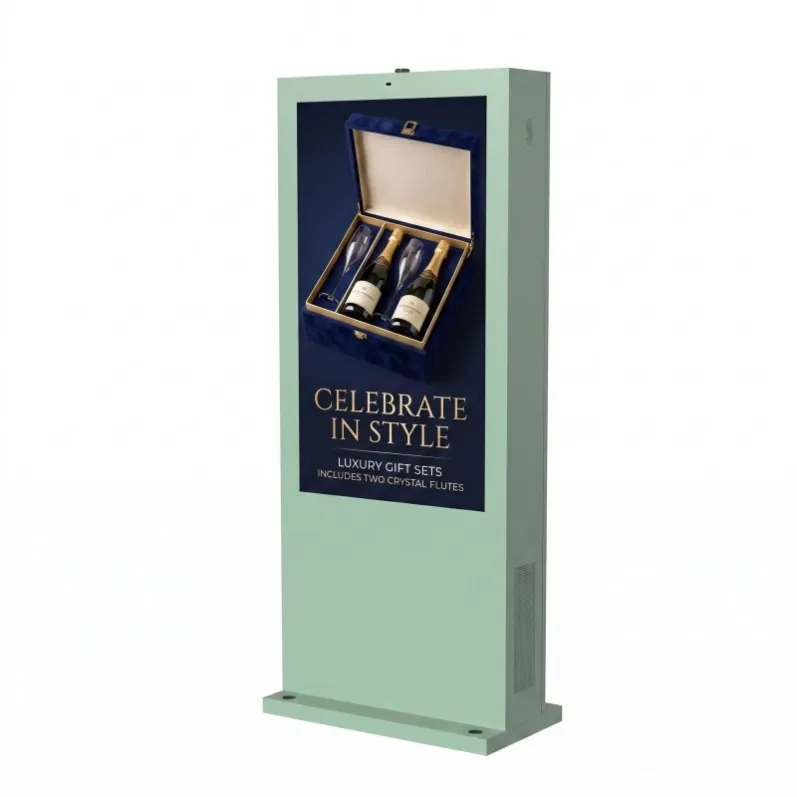

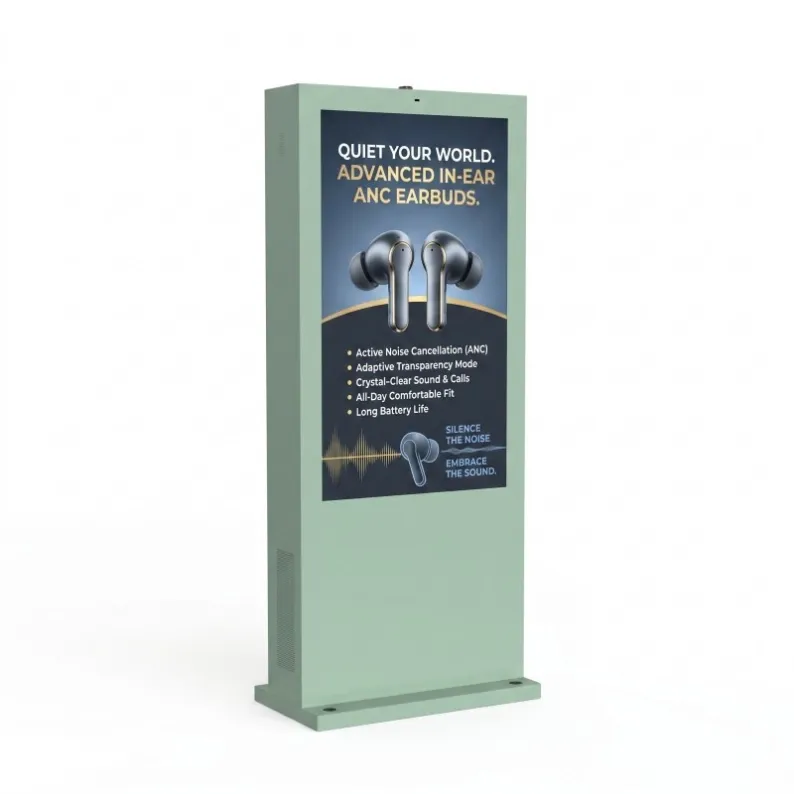

The product image shows a compact portrait screen on a pale green floor-standing cabinet. Compared with a conventional full-height advertising totem, its smaller format is easier to place where pavement space is limited.
32 Inch Outdoor floor standing digital signage with air conditioner specification -A style | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension （mm） | 697*392 | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 5%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 420W | |
Mechanical parameters | Whole device dimension H*W*D | 1700*550*240mm |
Whole device net.weight(kg) | 90kg | |
Package dimension H*W*D(mm) | Machine 780*1850*520mmAC 700*600*310mm | |
Gross packing(kg) | Machine 105kg AC23kg | |
Use the Screen for One Immediate Decision
A 32-inch display should not attempt to reproduce the content of a large station billboard. Its advantage is proximity.
Appropriate messages include:
- Last-mile transport offers
- Nearby shop promotions
- Event directions
- Ticket or travel-card reminders
- Local destination advertising
- QR-based mobile information
The primary message needs to remain readable without requiring passengers to stand directly in front of the screen.
A Compact Format Needs Disciplined Content
The 32 Inch Outdoor Advertising Display can carry attractive campaigns, but layouts should avoid multiple columns and long descriptions. Portrait creative with a strong upper headline is usually easier to scan while walking.
Advertisers should also avoid placing essential information at the very bottom, where other passengers or nearby barriers may obstruct it.
Environmental Protection in a Small Cabinet
The specified 2500-nit brightness helps the display remain visible under outdoor daylight. IP65 protection supports operation around exposed transport facilities.
Although the enclosure is compact, the backend lists built-in air conditioning rather than fan-only cooling. The cooling system and its maintenance clearance must be considered when planning the installation point.
Where This Size Makes Commercial Sense
A smaller display may achieve better value when the audience passes close to it and the message relates directly to that location. Several carefully placed 32-inch units can sometimes serve pedestrian decision points more effectively than one oversized screen.
Before purchasing the 32 Inch Outdoor Advertising Display, confirm screen orientation, installation surface, electrical access, network method and expected outdoor temperature.
