Built-in Fan Version
Weatherproof Digital Signage 65 Inch Vertical Fan Cooling for Smart City Media
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP650P
65 Inch Vertical Weatherproof Digital Signage for Outdoor City Media

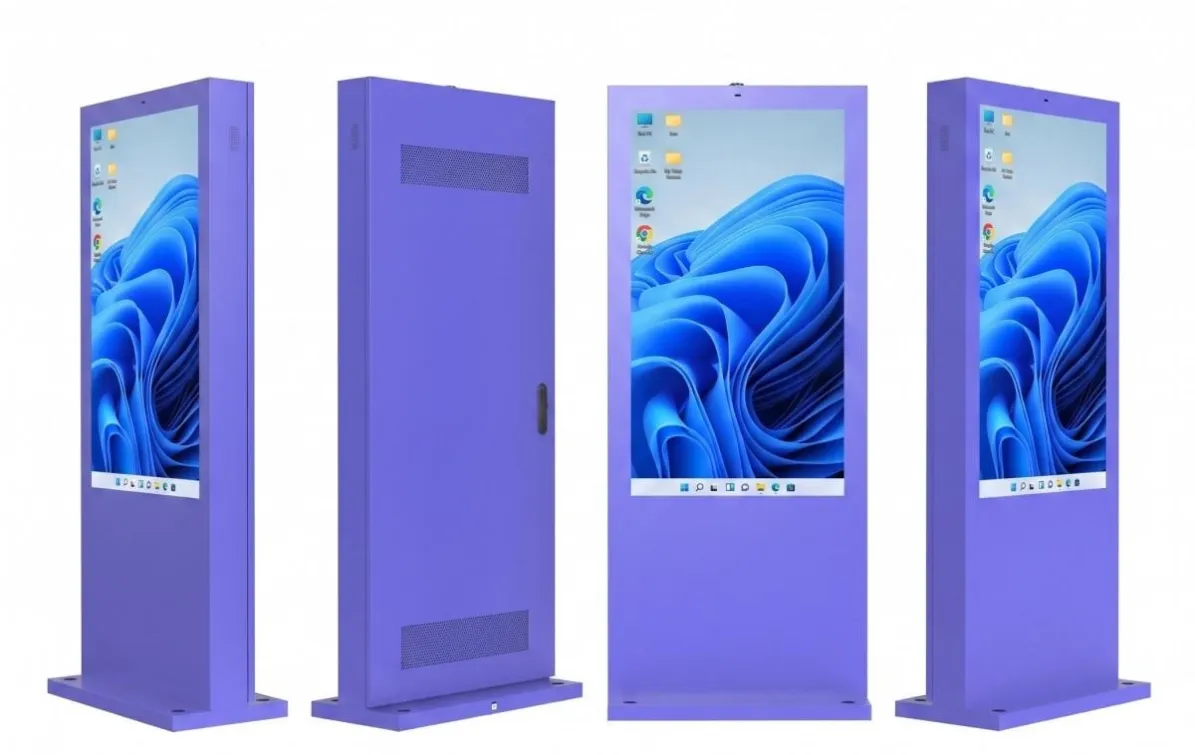

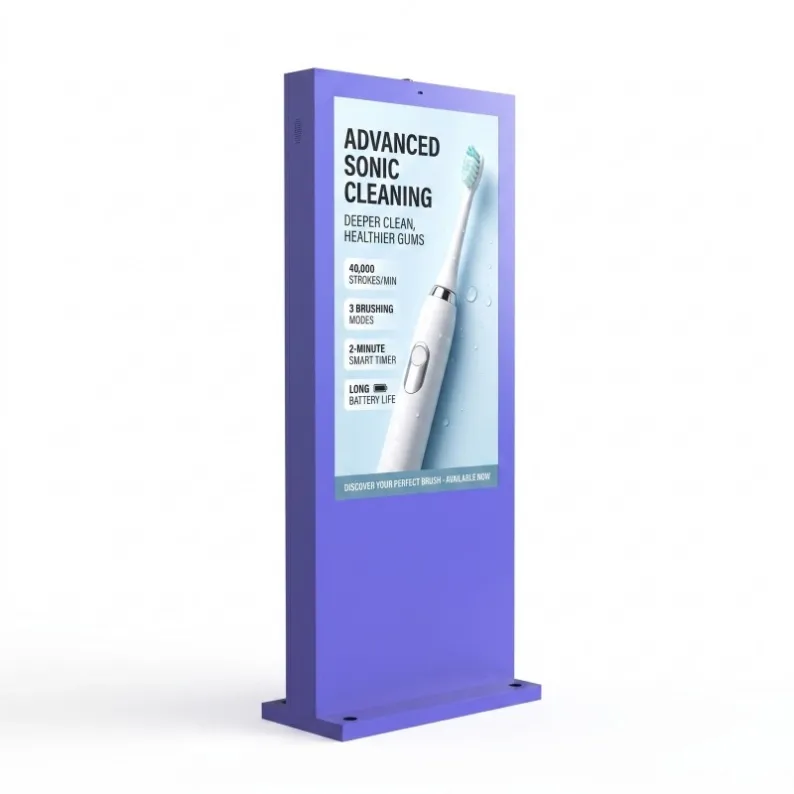

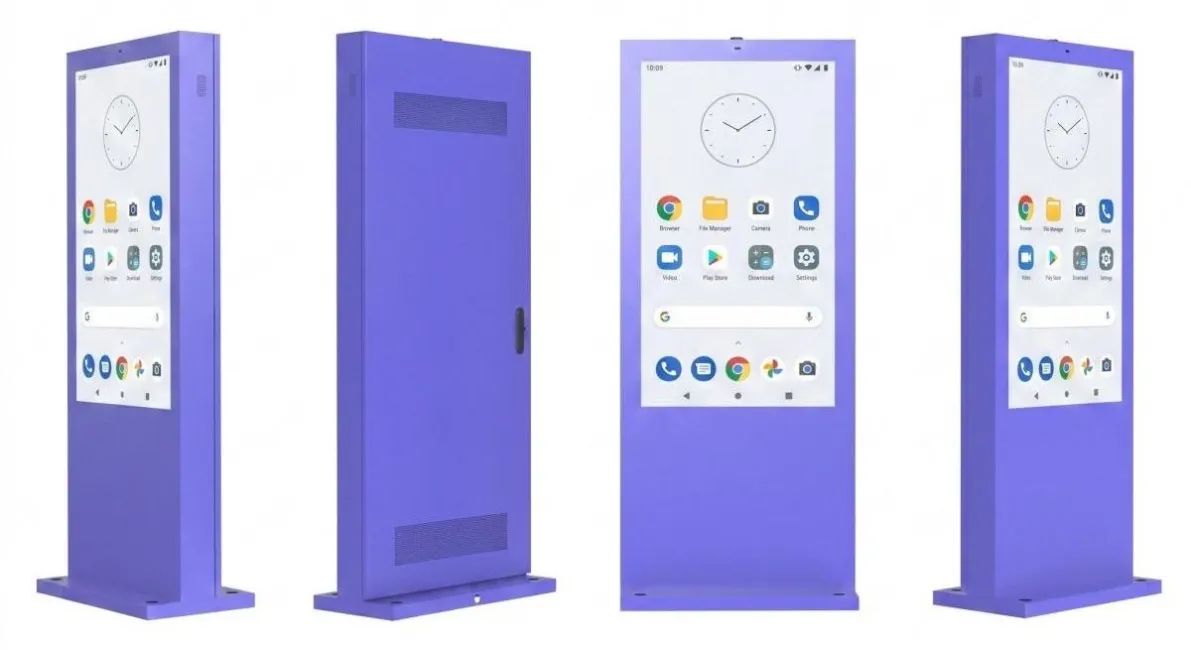

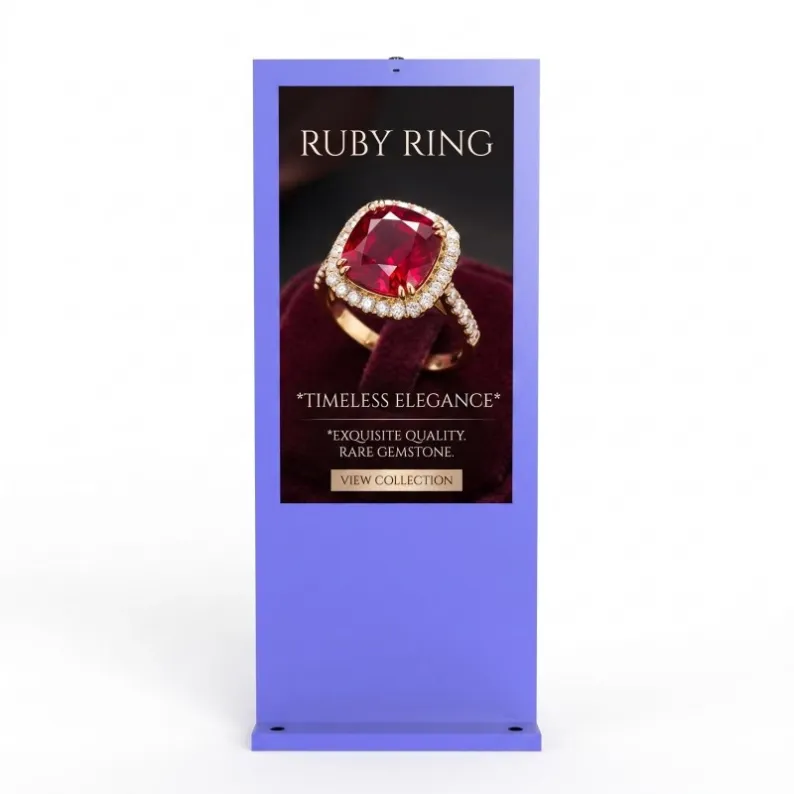

The product image presents a simple purple freestanding cabinet with a tall, relatively narrow body. Its restrained shape is suitable for a coordinated outdoor information network where the enclosure needs to remain recognizable without becoming visually bulky.
The 65 Inch Vertical Weatherproof Digital Signage model is listed with 2500-nit brightness, IP65 protection and built-in fan cooling.
65 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1429*804 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

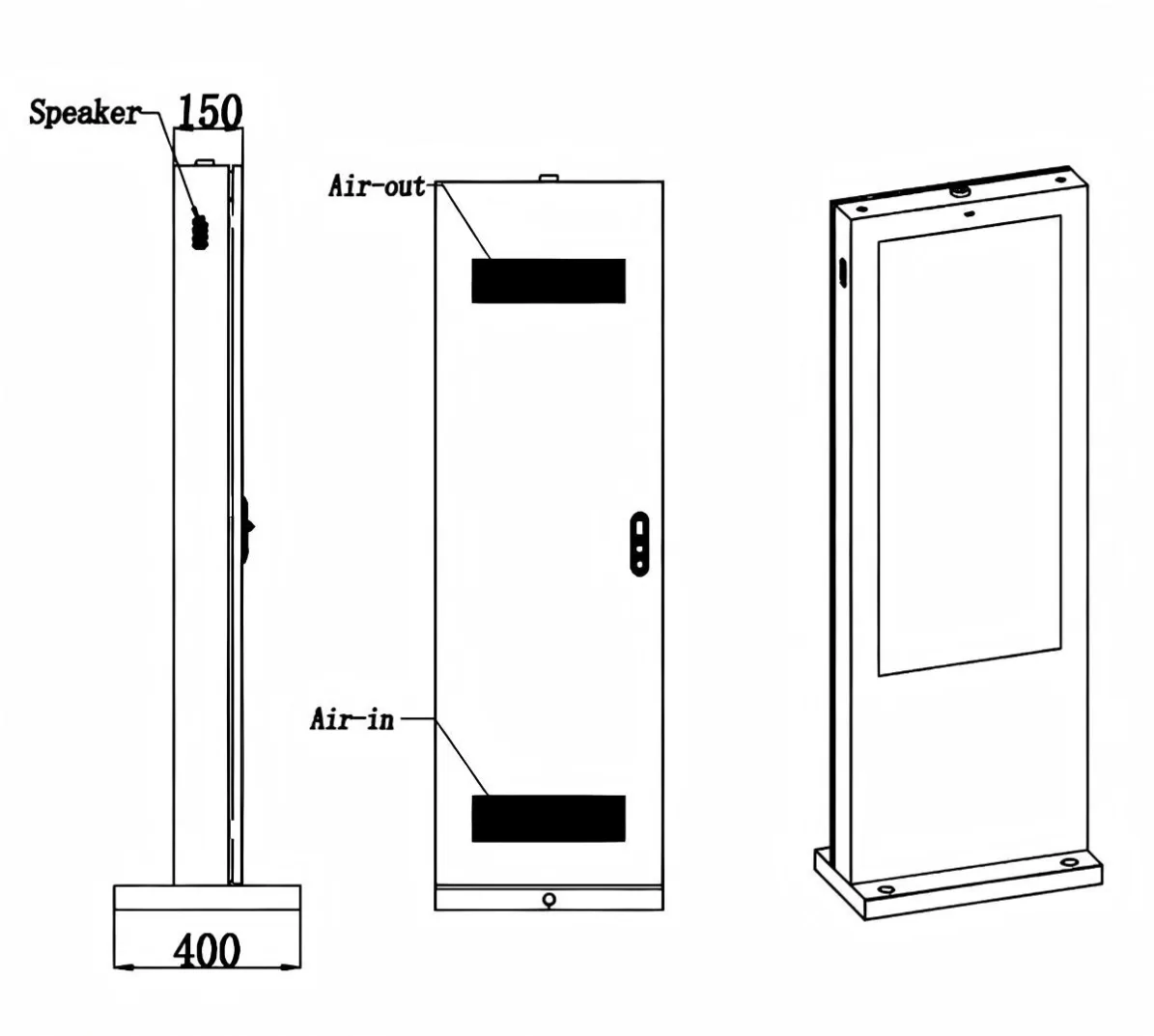

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤700W | |

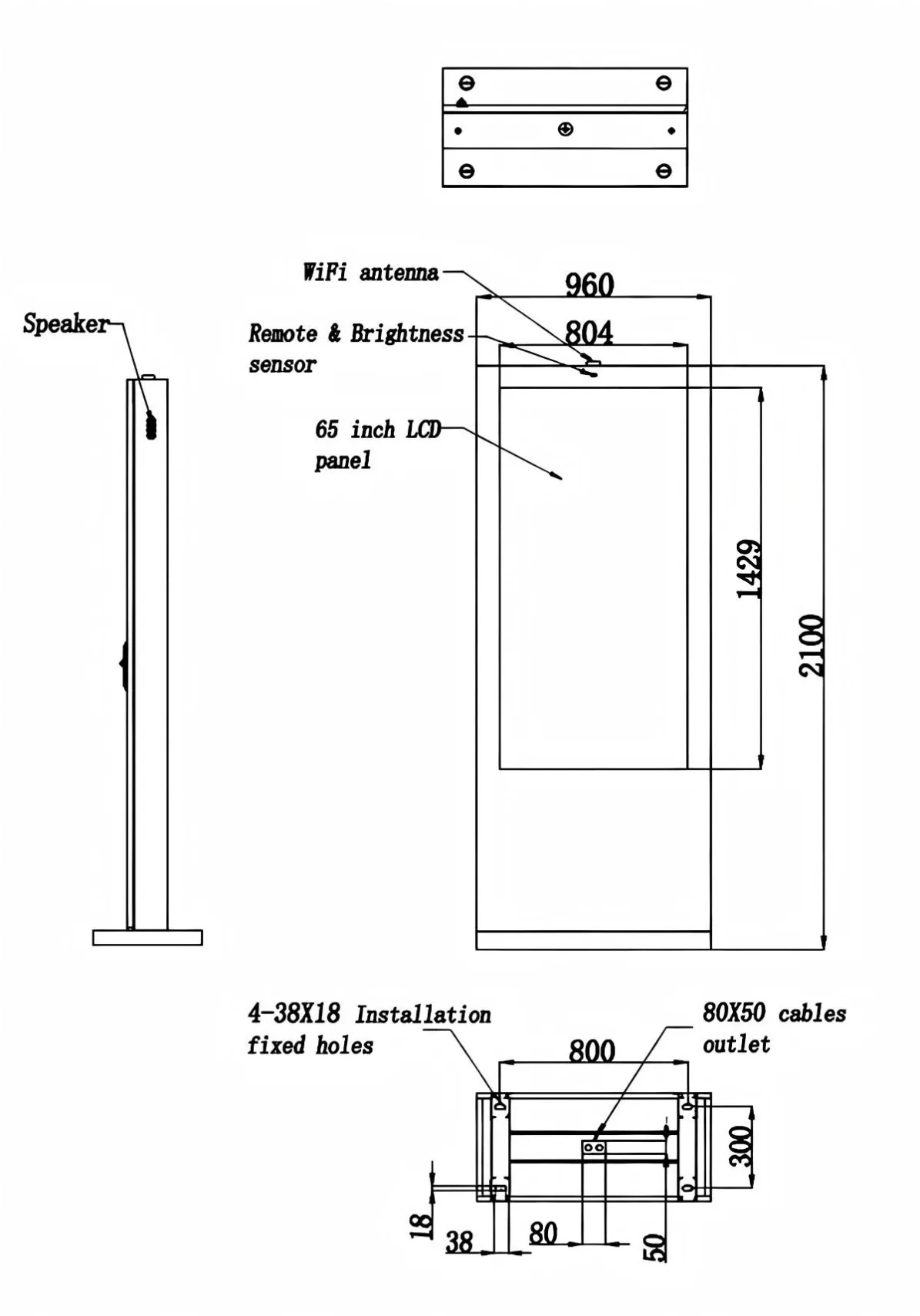

Mechanical Para. | Machine seize H*W*D( mm) | 2100*960*150 |
Net weight(Kg) | 120 | |
Package size H*W*D( mm) | 1190*2250*470 | |
Gross weight(Kg) | 170 | |
One Screen Within a Larger City System
Outdoor city displays are most useful when each location has a defined role. A screen near a park entrance may publish visitor information, while a unit along a pedestrian route may provide directions and event notices.
Suitable content includes municipal announcements, outdoor maps, transport connections, cultural events and emergency messages.
“Smart city” describes the possible application. It does not confirm that sensors, cameras or live-data software are included.
Cabinet Appearance and Placement
The purple enclosure shown in the image can help a public information network develop a consistent identity. Final color, branding and coating require confirmation.
A 65-inch portrait screen works at medium pedestrian viewing distances. It should be installed near an actual decision point rather than placed only where power is convenient.
Pedestrian clearance, wind loading, foundation requirements and maintenance access must be addressed before paving work.
Keeping Information Current
Public screens lose credibility when expired notices remain visible. The operator should establish who approves updates and how urgent information replaces scheduled advertising.
The 2500-nit panel supports daylight viewing. IP65 protection and fan cooling address outdoor exposure and internal heat management.
The 65 Inch Vertical Weatherproof Digital Signage model provides an appropriately scaled outdoor information surface for municipal and public-space communication.
