Built-in Fan Version
Weatherproof Digital Signage for 65 Inch Retail Windows, 2500 Nits IP65 Fan Cooling
Protection Grade:IP65 Brightness:2500nits Resolution:1920*1080 / 3840*2160
Specifications
- SKU
- ZXTLCD-OUTFHW650O
Weatherproof Digital Signage for 65 Inch Retail Windows, 2500 Nits IP65 Fan Cooling
65 Inch Weatherproof Digital Signage for Retail Windows
A street-facing retail window must compete with daylight, reflections and constant movement outside the store. Indoor commercial screens often lose visibility once they are installed behind glass, especially during midday hours. This 65 inch weatherproof digital signage provides a larger, high-brightness display surface for retail campaigns that need to remain readable from the pavement.
The product combines 2500-nit brightness, IP65 protection and fan-assisted cooling. Its 65-inch format gives brands enough visual space for seasonal promotions, product launches, store directions and campaign videos without requiring an oversized installation.
65 Inch Outdoor horizontal wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 1429*804 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤700W | |

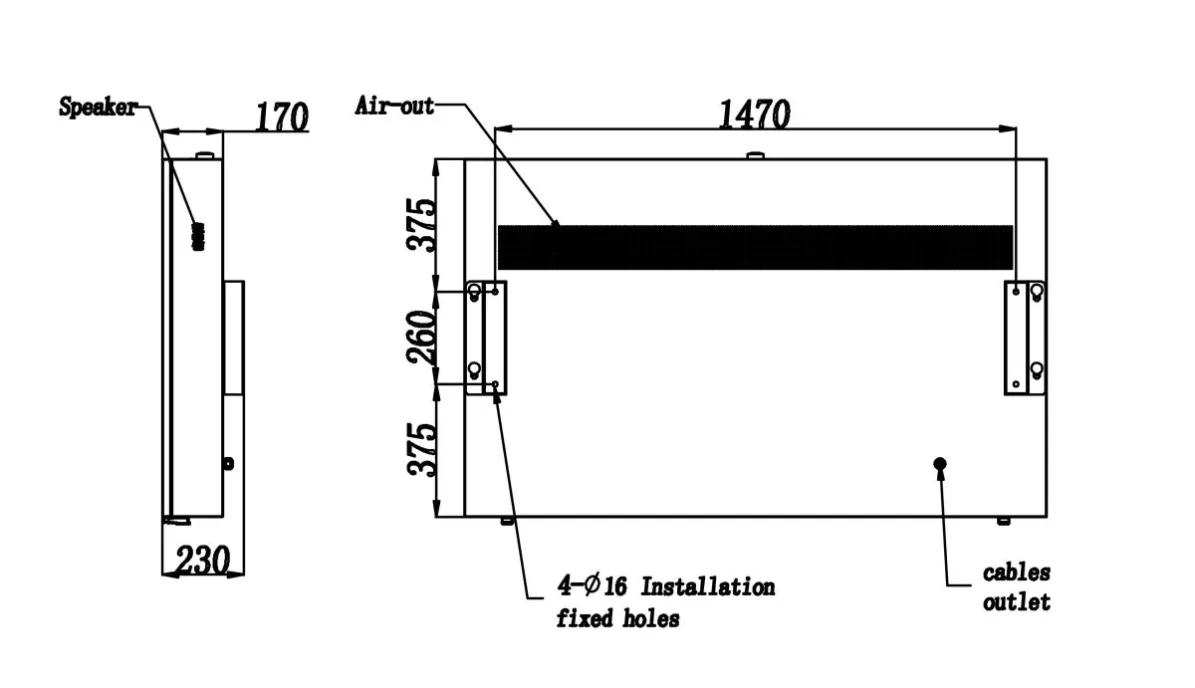

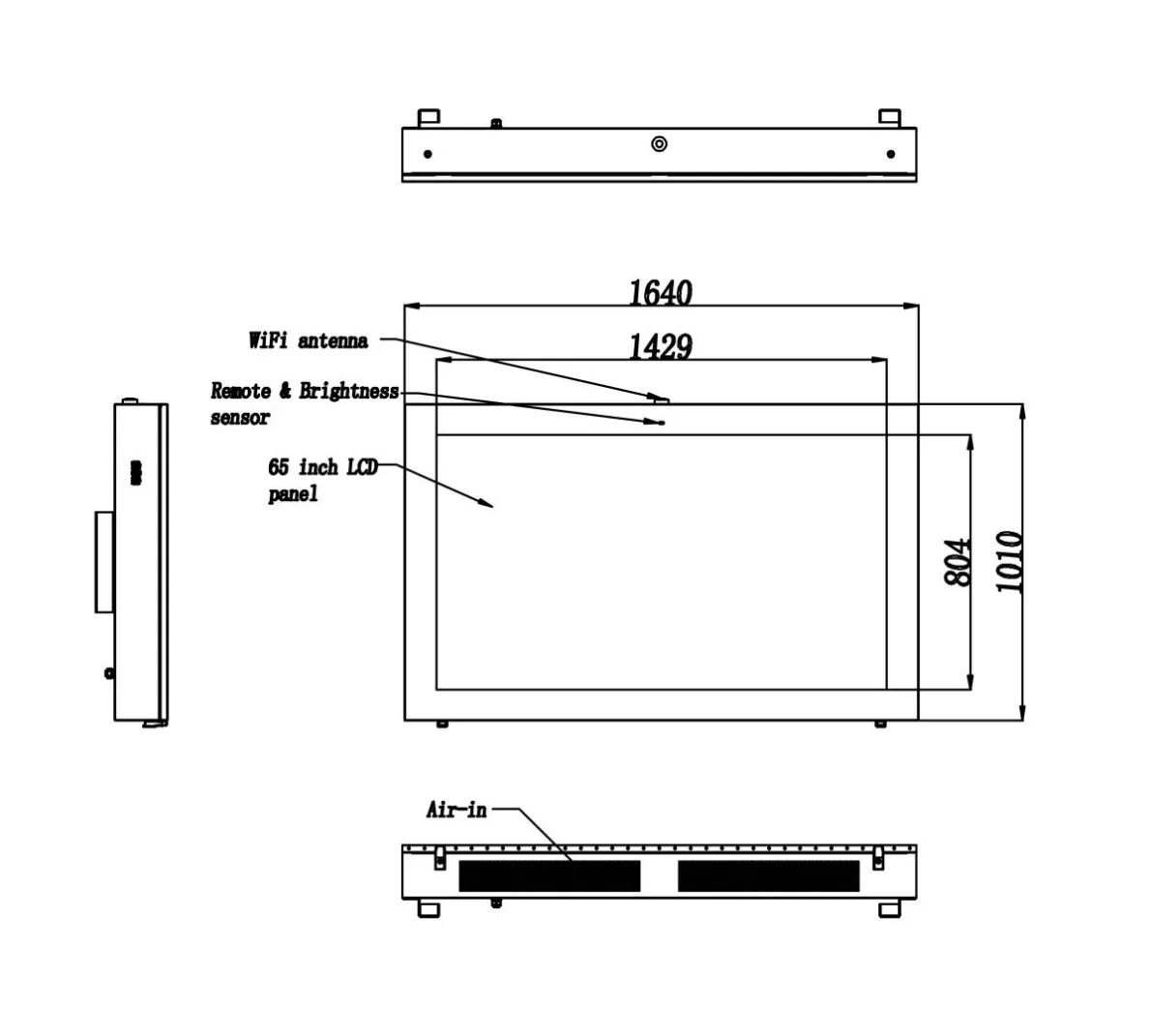

Mechanical Para | Machine seize H*W*D(mm) | 1640*1010*170 |
Net weight(Kg) | 110 | |
Package size H*W*D(mm) | 1280*1790*320 | |
Gross weight(Kg) | 145 | |
A Display Format Planned Around the Shopfront
Retail-window content normally has only a few seconds to attract attention. Large product photography, short promotional statements and clear pricing therefore work better than layouts containing many small elements.
The 65-inch screen can be positioned as a central campaign display or coordinated with physical merchandise inside the window. Fashion stores may place it behind mannequins, while electronics retailers can use it to present product demonstrations beside the items being promoted.
Before production, the buyer should confirm the viewing direction, distance from the window glass and available ventilation space. These details influence enclosure design, service access and the final installation method.
2500 Nits for Daytime Campaign Visibility
Brightness is a practical purchasing consideration for any display facing an outdoor viewing area. The specified 2500-nit panel helps campaign images and text remain visible in strong ambient light.
Brightness alone does not solve every shopfront issue. The installer should also examine:
The direction of direct sunlight;
Reflections from surrounding buildings and traffic;
The space between the screen and storefront glass;
Automatic or scheduled brightness requirements;
Heat accumulated inside the window area.
Content should be tested in the actual installation environment. White backgrounds and very fine text may create glare, while strong color contrast and simplified compositions generally perform better at a distance.
Content Updates Across Retail Campaigns
A 65 inch weatherproof digital signage installation can run product videos, promotional slides, store announcements or scheduled campaign playlists. The preferred playback method should be confirmed before ordering.
A single store may only require local USB updates. Multi-location retailers may benefit from a networked media player and centralized content management. The purchasing team should identify who approves content, how frequently campaigns change and whether proof-of-play reporting is needed.
Project Information to Confirm
For a quotation, provide the screen orientation, installation drawing, daily operating hours, expected sunlight exposure and required player system. Logo customization and enclosure details can then be matched to the storefront design.
This 65 inch weatherproof digital signage is most suitable when a retailer needs a substantial window-facing screen with 2500-nit brightness, protected construction and a cooling system designed for extended commercial operation.
