Built-in Air conditioner
Weatherproof Digital Signage 55 Inch Vertical Air Conditioning for Mall Promotions
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVPD550B
55 Inch Air Conditioned Weatherproof Digital Signage for Outdoor Mall Promotions
The product image shows a green-and-blue freestanding cabinet with a narrow portrait body. Its colored enclosure gives it a more noticeable appearance than a conventional black outdoor screen.
This 55 Inch Air Conditioned Weatherproof Digital Signage model uses a built-in air conditioner and is listed with 2500-nit brightness and IP65 protection.
55 Inch Outdoor floor standing digital signage with air conditioner specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1210*681mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

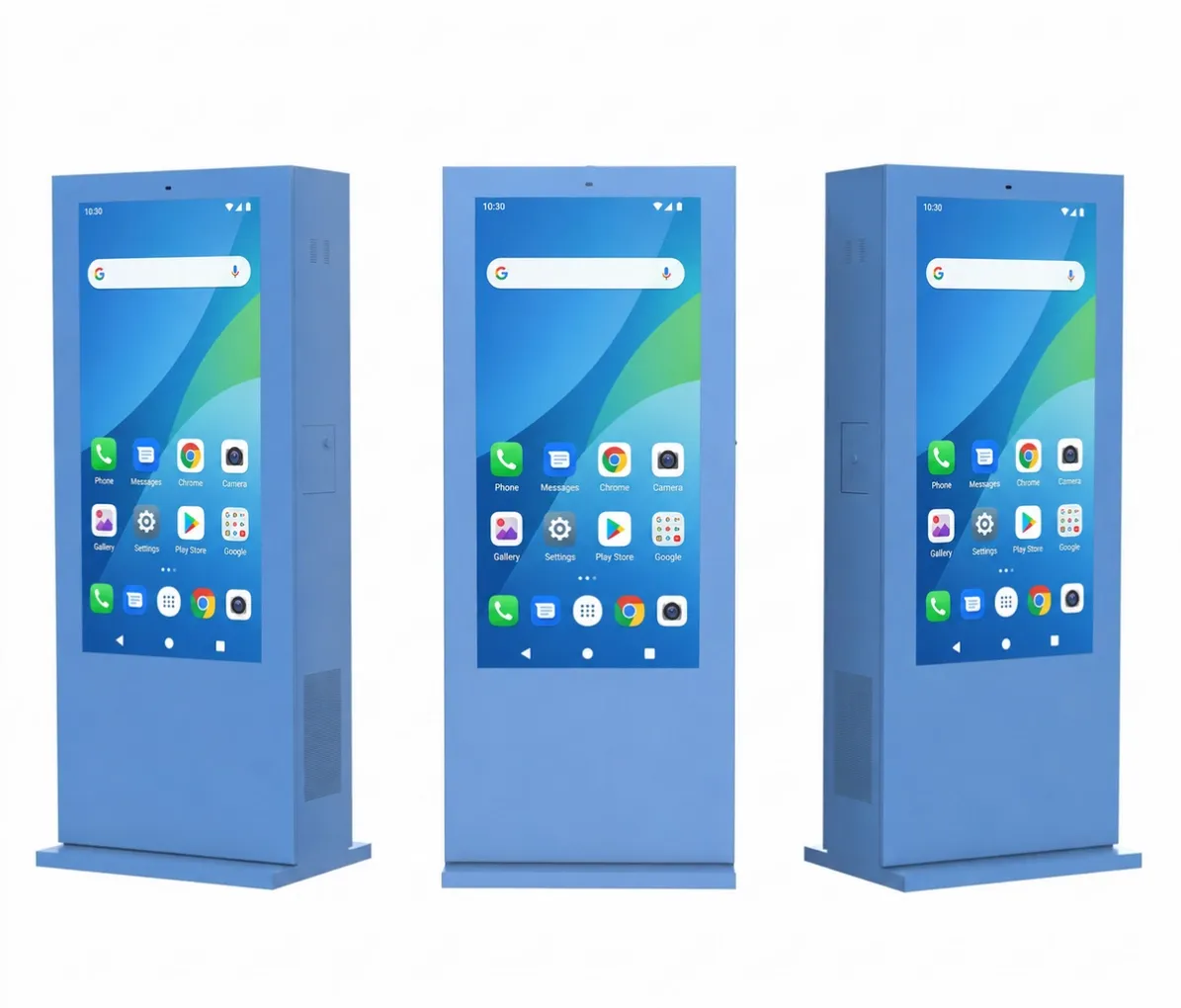

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

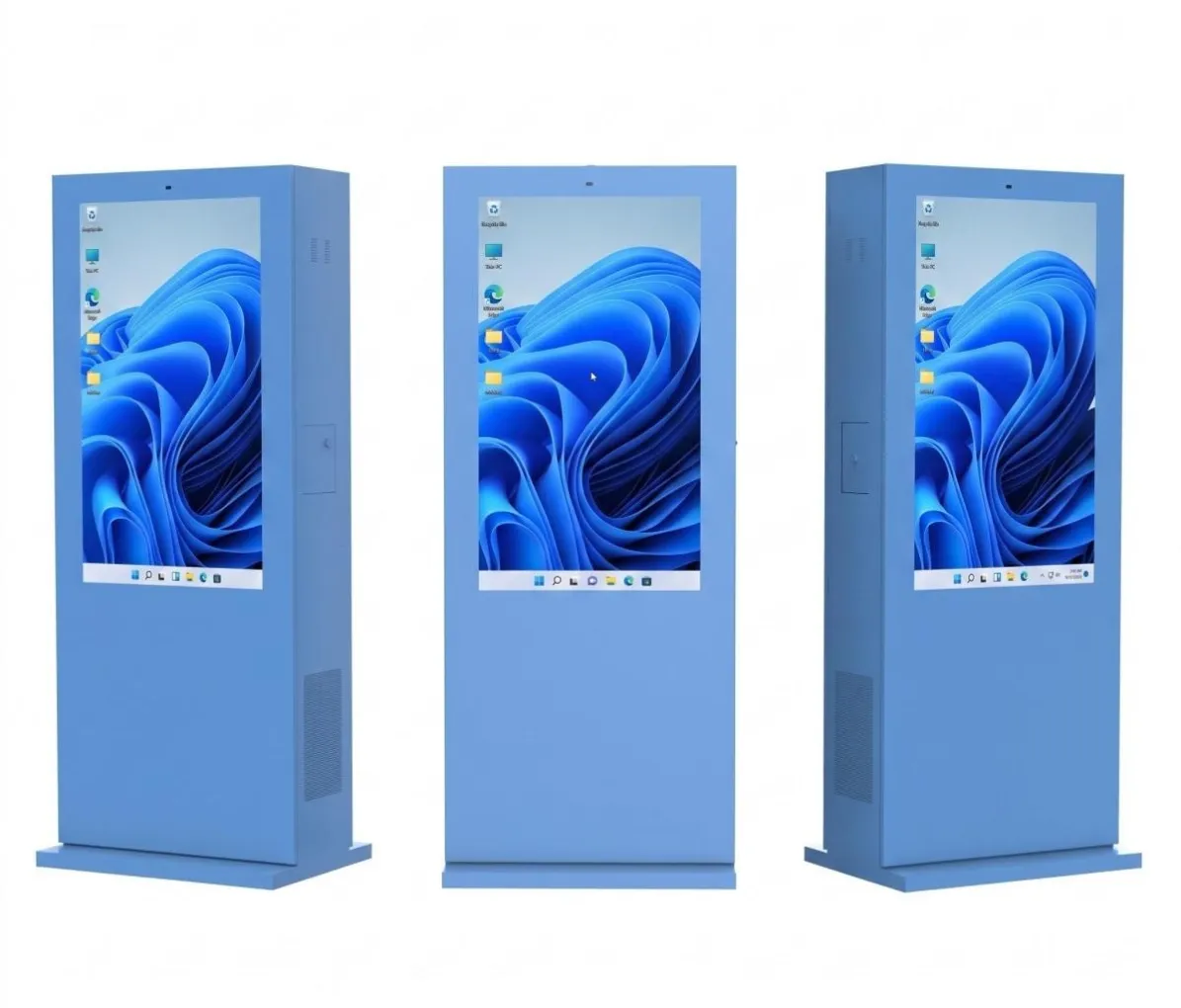

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 5%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 1400W | |

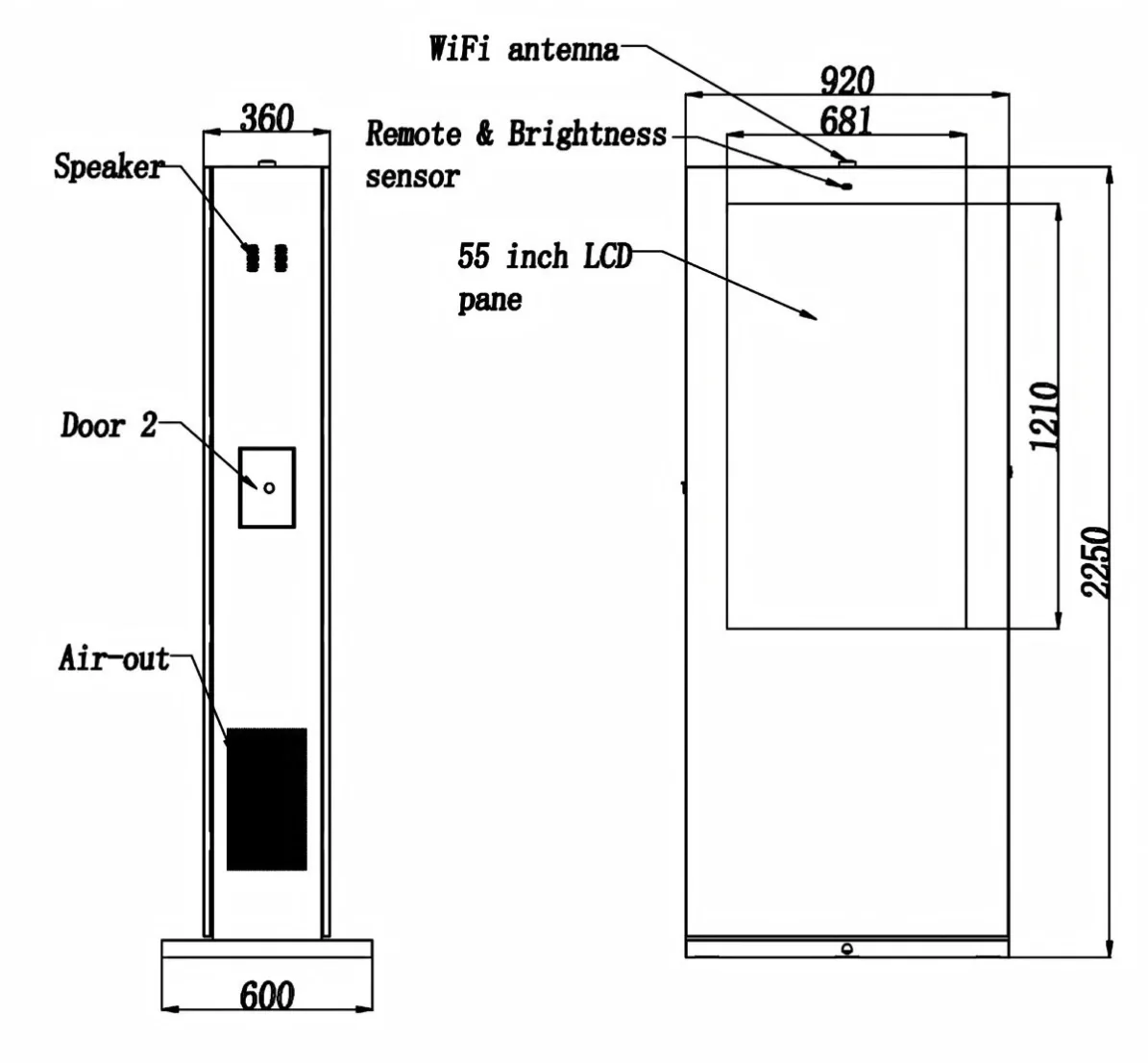

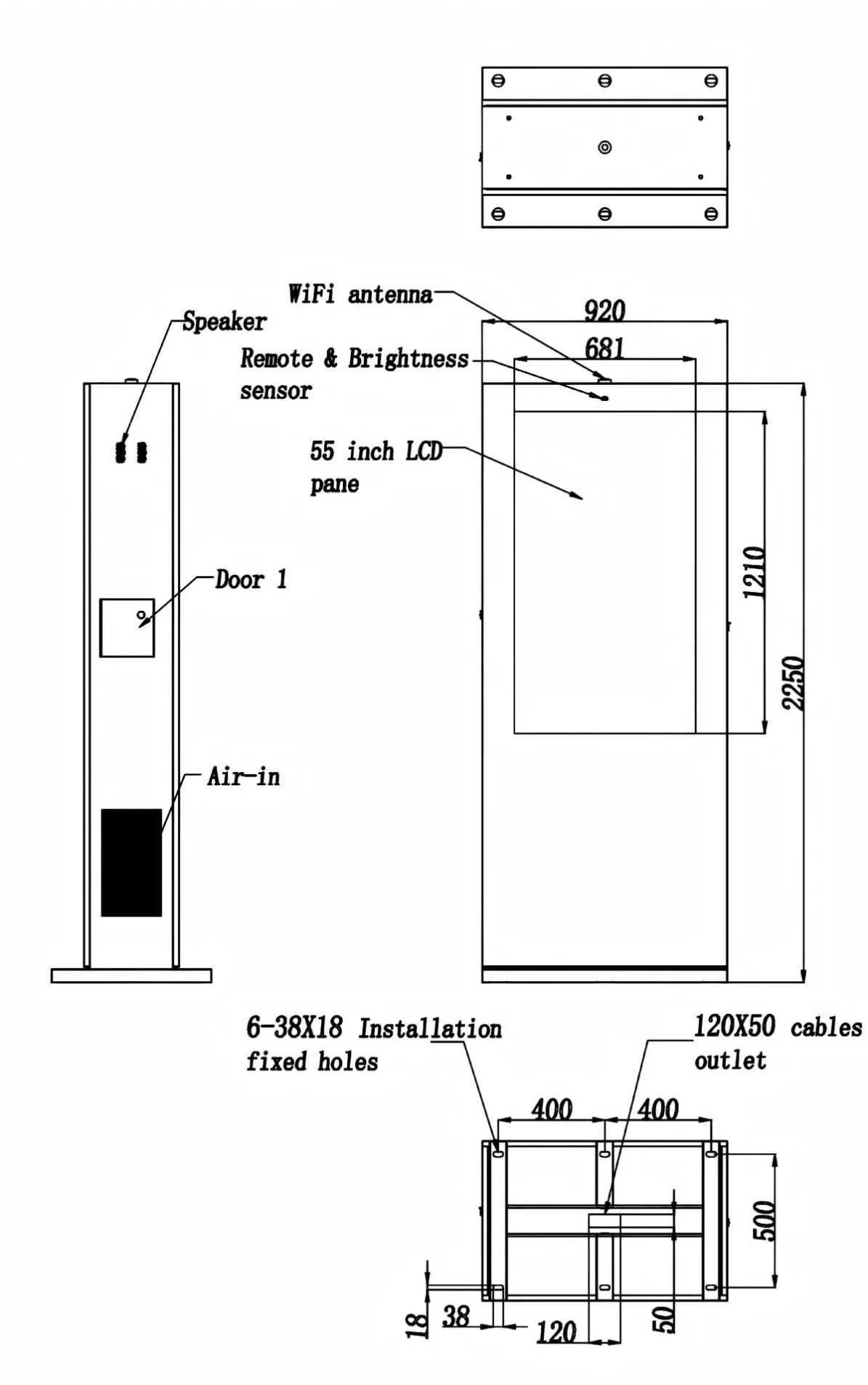

Mechanical parameters | Whole device dimension H*W*D | 2250*920*360mm |
Whole device net.weight(kg) | 180kg | |
Package dimension H*W*D(mm) | Machine1550*2400*670AC800*830*400 | |
Gross packing(kg) | Machine190kg AC40kg | |
A More Compact Air-Conditioned Format
At 55 inches, the screen suits outdoor retail areas where visitors pass relatively close to the display. It occupies less visual space than 75- or 86-inch cabinets while still supporting full-height advertising.
The integrated air-conditioning system requires an enclosed body and maintenance access. Exact cabinet depth should be confirmed before the foundation and surrounding paving are completed.
Exterior Retail Applications
This product may be used at open-air mall entrances, exterior restaurant areas, outdoor shopping streets and pickup zones.
It is not an indoor mall poster. All application descriptions should reflect exposure to outdoor light, changing temperature, dust and rain.
The green-and-blue appearance shown in the product image may suit a branded campaign or color-coded retail zone. Final finish options must be confirmed.
Content and Outdoor Visibility
The 2500-nit panel supports daylight viewing. The 55-inch portrait layout is appropriate for one product image, a short offer and a clear direction to the store.
IP65 protection helps prevent dust ingress and protects against water jets when installed correctly.
The air-conditioning system should be serviced according to the manufacturer’s requirements. Surrounding panels and landscaping must not block its air paths.
The 55 Inch Air Conditioned Weatherproof Digital Signage model provides a more compact outdoor retail screen for projects that prefer active cabinet cooling.
