Built-in Fan Version
Weatherproof Digital Signage 55 Inch Horizontal Fan Cooling for Smart City Media
Protection Grade:IP65 Protection Glass:6mm AR safe glass Installation:Floor standing or customized
Specifications
- SKU
- ZXTLCD-OUTFHK550P
Weatherproof Digital Signage 55 Inch Horizontal Fan Cooling for Smart City Media

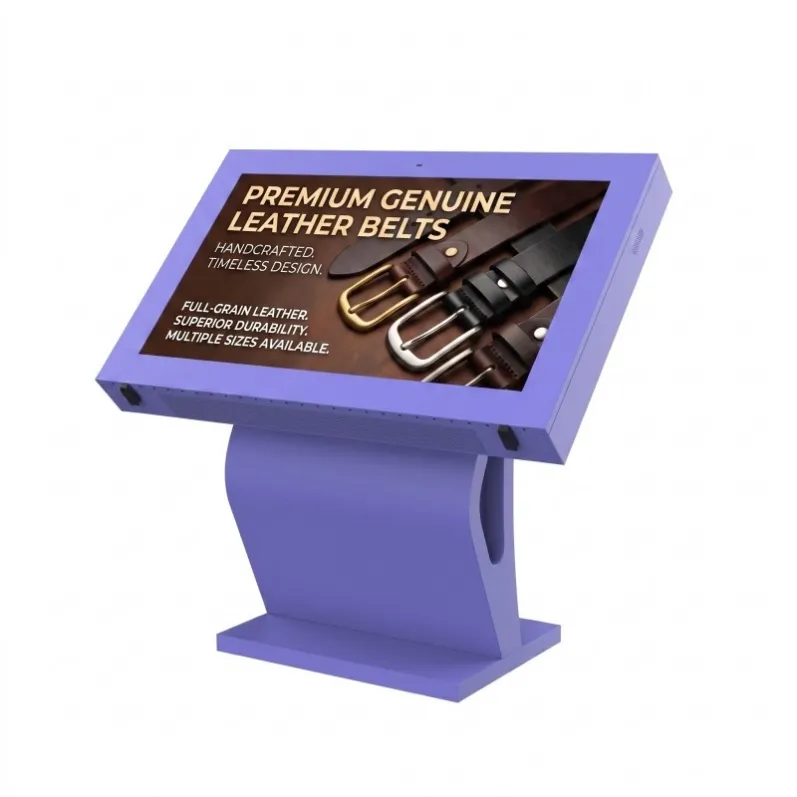

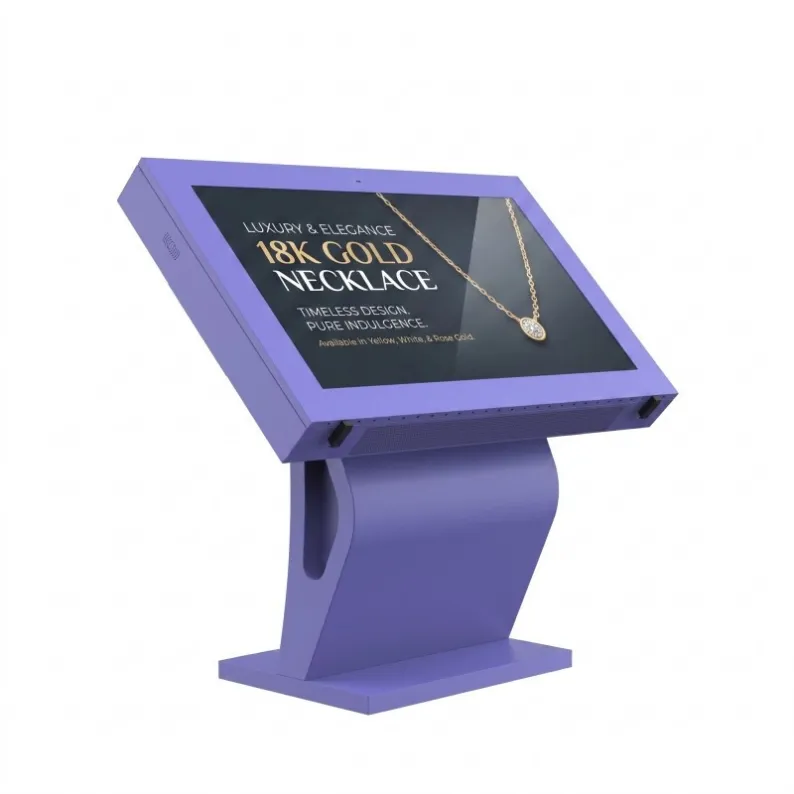

55 Inch Horizontal Outdoor Digital Signage for Smart City Projects
Smart-city media requires more than a bright screen placed outdoors. The display must fit into streetscape furniture, remain serviceable and support a mixture of civic information and commercial content. This 55 inch horizontal outdoor digital signage provides a landscape-format display with IP65 protection, fan cooling and 6 mm anti-reflective safety glass.
The unit can be supplied as a floor-standing product or adapted for a customized installation.
55 Inch Horizontal-screen Horizontal-style Digital Signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Side frame backlight |
Display dimension | 1210*681mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

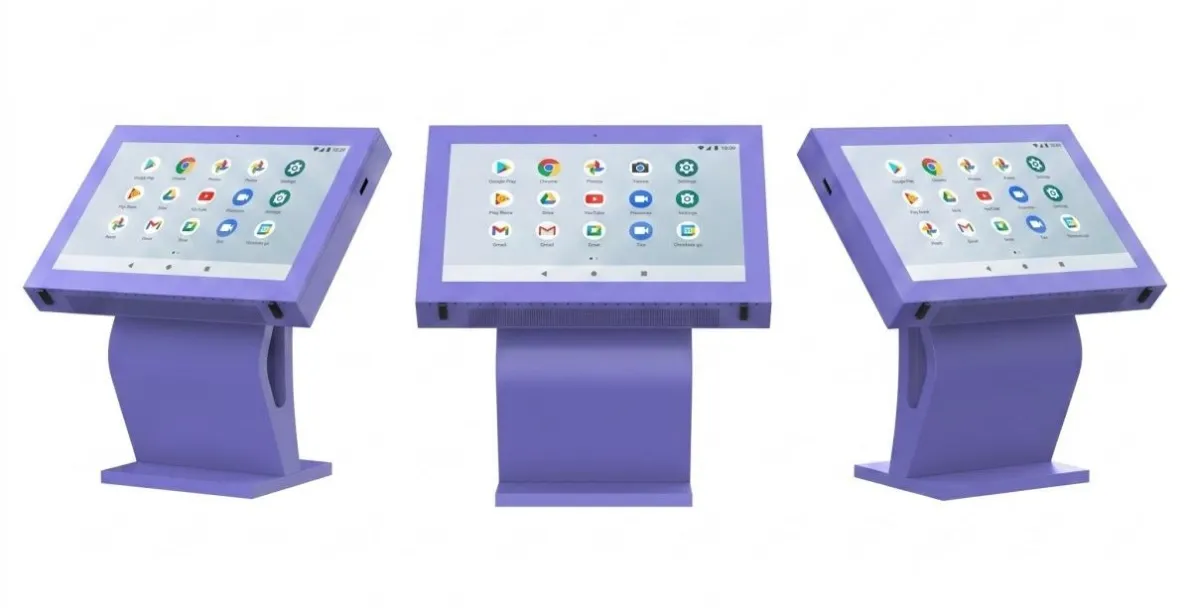

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

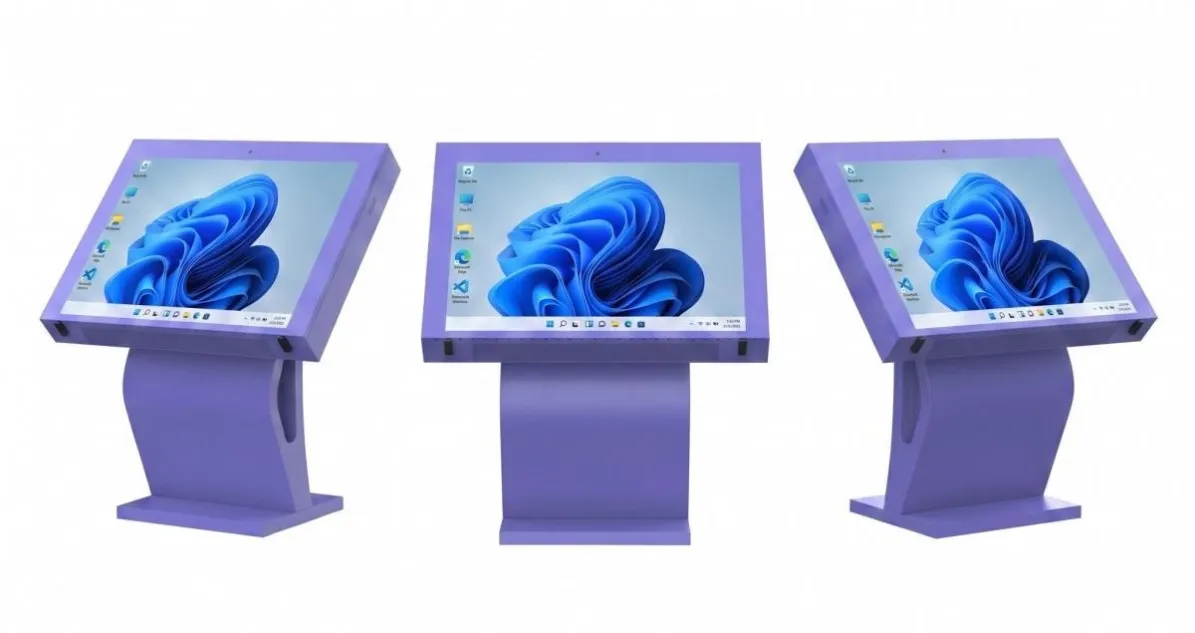

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤450w | |

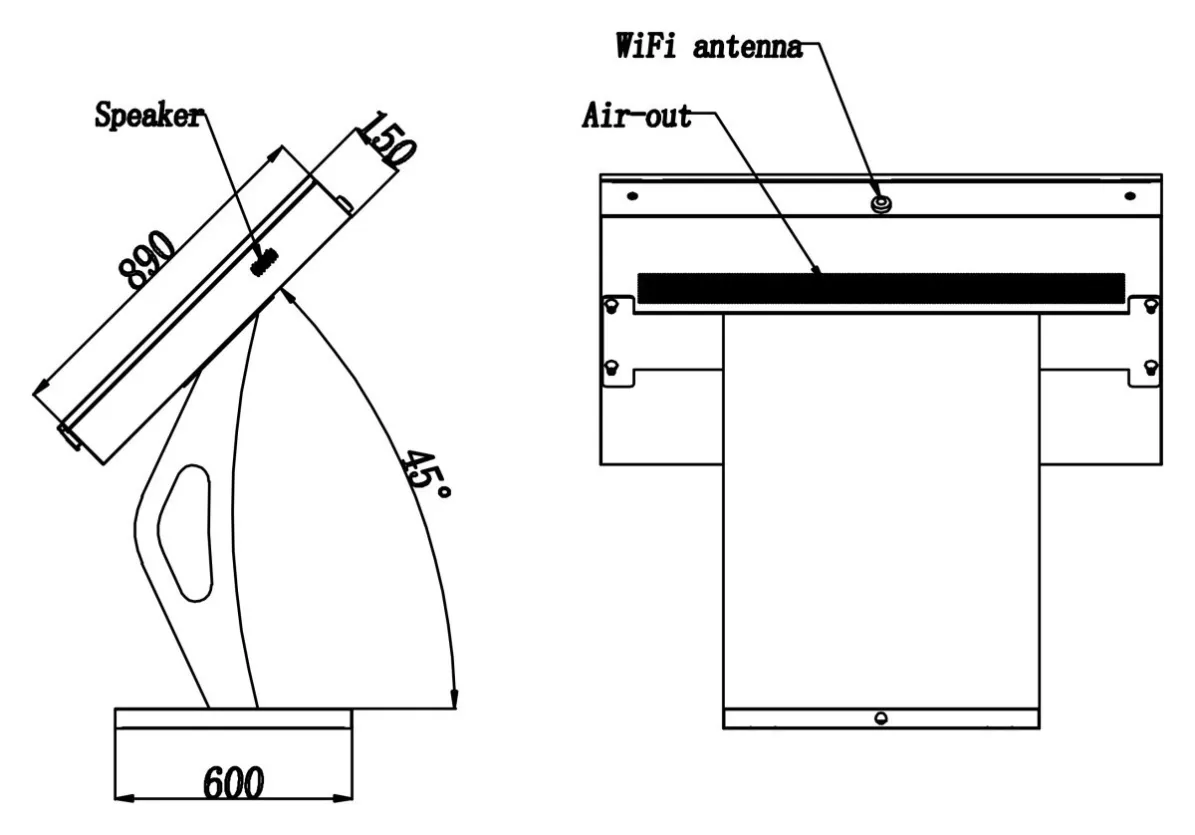

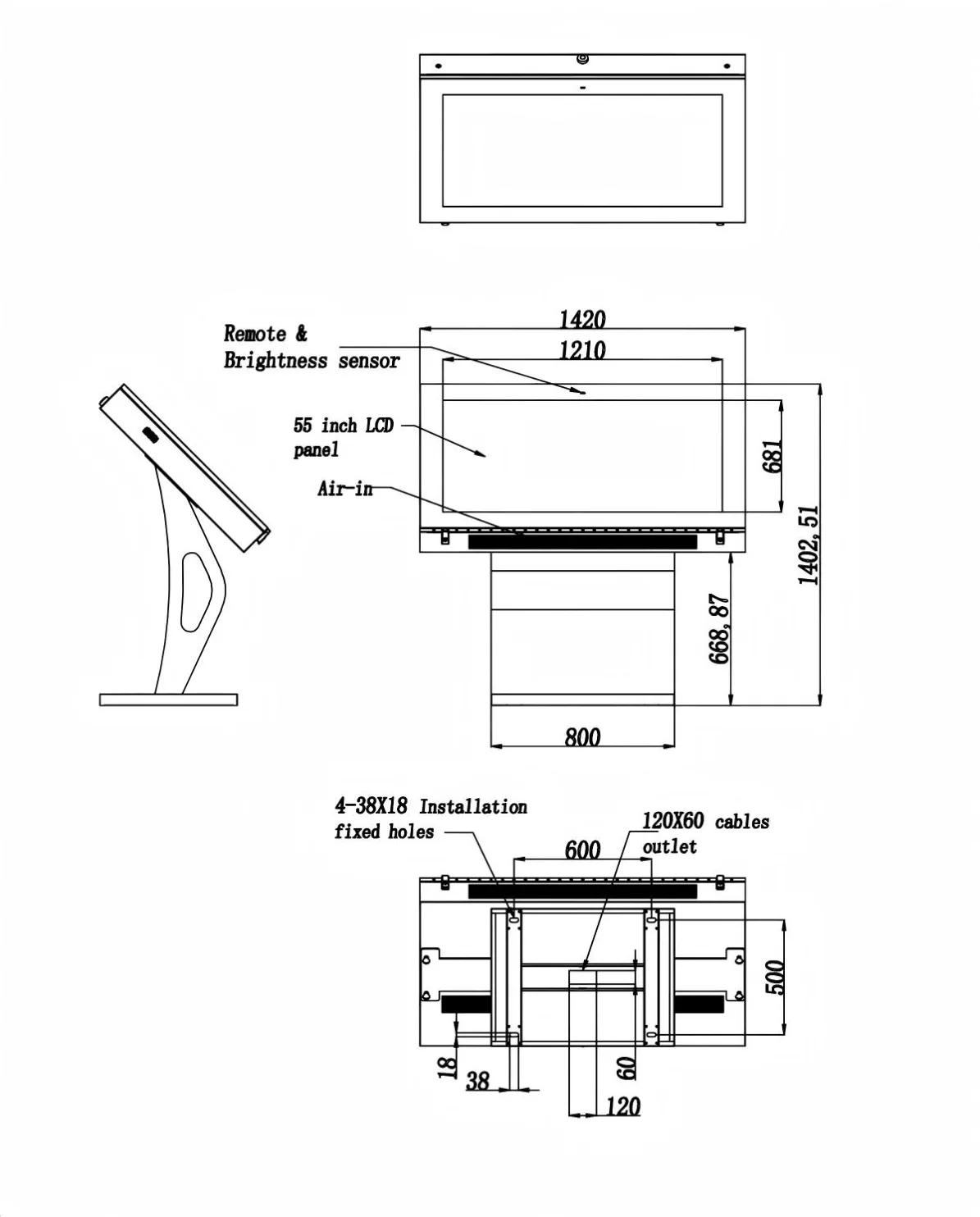

Mechanical parameters | Machine size(H*W*D)（mm) | 1420*890*150 |
Net machine weight | 146kg | |
Package size(H*W*D)(mm) | 1630*1570*890 | |
Package weight | 200kg | |
Why Landscape Orientation Matters
Many outdoor kiosks use portrait screens, but landscape orientation can be more effective for maps, transport diagrams, event banners and split-screen layouts. It also allows the display to fit below architectural sightlines or inside wider street furniture.
A 55-inch landscape screen may be used for:
Municipal announcements;
Local event calendars;
Pedestrian maps;
Public-service campaigns;
Transport information;
City-supported advertising.
The interface and content should be designed specifically for the horizontal format. Simply rotating an existing portrait campaign usually creates poor use of the available screen area.
Anti-Reflective Safety Glass
The 6 mm AR safety glass helps protect the display surface while reducing reflections that can interfere with outdoor readability. This is valuable near roads, glazed buildings and open plazas where changing light sources may be reflected toward the viewer.
Cleaning procedures should use products suitable for the glass coating. Abrasive materials or unsuitable chemicals may gradually affect the surface. Maintenance teams should receive clear care instructions when the display is commissioned.
The project should also confirm whether the screen is accessible to the public and whether additional impact-resistance requirements apply under local regulations.
Cooling and Service Access
Fan cooling supports heat removal during extended operation. In a customized installation, airflow cannot be treated as an afterthought. Decorative housings, benches or information structures must not block the ventilation path.
The design should provide access to fans, filters, power components and the media player. If technicians must dismantle the surrounding street furniture for routine maintenance, operating costs can quickly increase.
IP65 protection should be maintained at cable entrances and installation joints. Water should be directed away from the base, and the mounting structure should account for local drainage conditions.
Separating Civic and Commercial Content
A 55 inch horizontal outdoor digital signage network may publish information from several departments. Emergency messages, transport changes and public notices may need priority over routine commercial media.
The content platform should support user permissions and scheduled playback. Municipal teams should identify who can publish urgent content, which screens receive it and how the normal playlist resumes afterward.
For commercial campaigns, reporting requirements such as playback logs and screen-status monitoring should be agreed with the system integrator.
Customizing for the Streetscape
The floor-standing version can simplify deployment, while a customized installation can coordinate the display with local architecture, branded street furniture or an existing information point.
Before production, provide layout drawings, mounting requirements, orientation, climate information and the intended content system. This allows the enclosure, cooling arrangement and service doors to be reviewed together.
The 55 inch horizontal outdoor digital signage is a practical choice for projects that need a protected landscape screen rather than another standard portrait advertising kiosk.
