Built-in Fan Version
Outdoor Advertising Kiosk for 21.5 Inch Retail Windows, 2500 Nits IP65 Fan Cooling
Place of Origin:CN;GUA Viewing Angle:178°/178° Max Resolution:1920*1080 Pixel Pitch:0.4845(H)*0.4845 (V)
Specifications
- SKU
- ZXTLCD-OUTFHK215B
Outdoor Advertising Kiosk for 21.5 Inch Retail Windows, 2500 Nits IP65 Fan Cooling
21.5 Inch Outdoor Advertising Kiosk for Retail Windows
Small shopfronts, service counters and pickup windows may not have room for a conventional digital-signage unit. This 21.5 inch outdoor advertising kiosk offers a compact Full HD screen for locations where installation space and close viewing are more important than maximum display size.
The listed configuration includes 2500-nit brightness, IP65 protection, fan cooling, 1920 × 1080 resolution and a 178° horizontal and vertical viewing angle.
21.5 Inch Horizontal-screen Horizontal-style Digital Signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Side frame backlight |
Display dimension | 478*269mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤180W | |

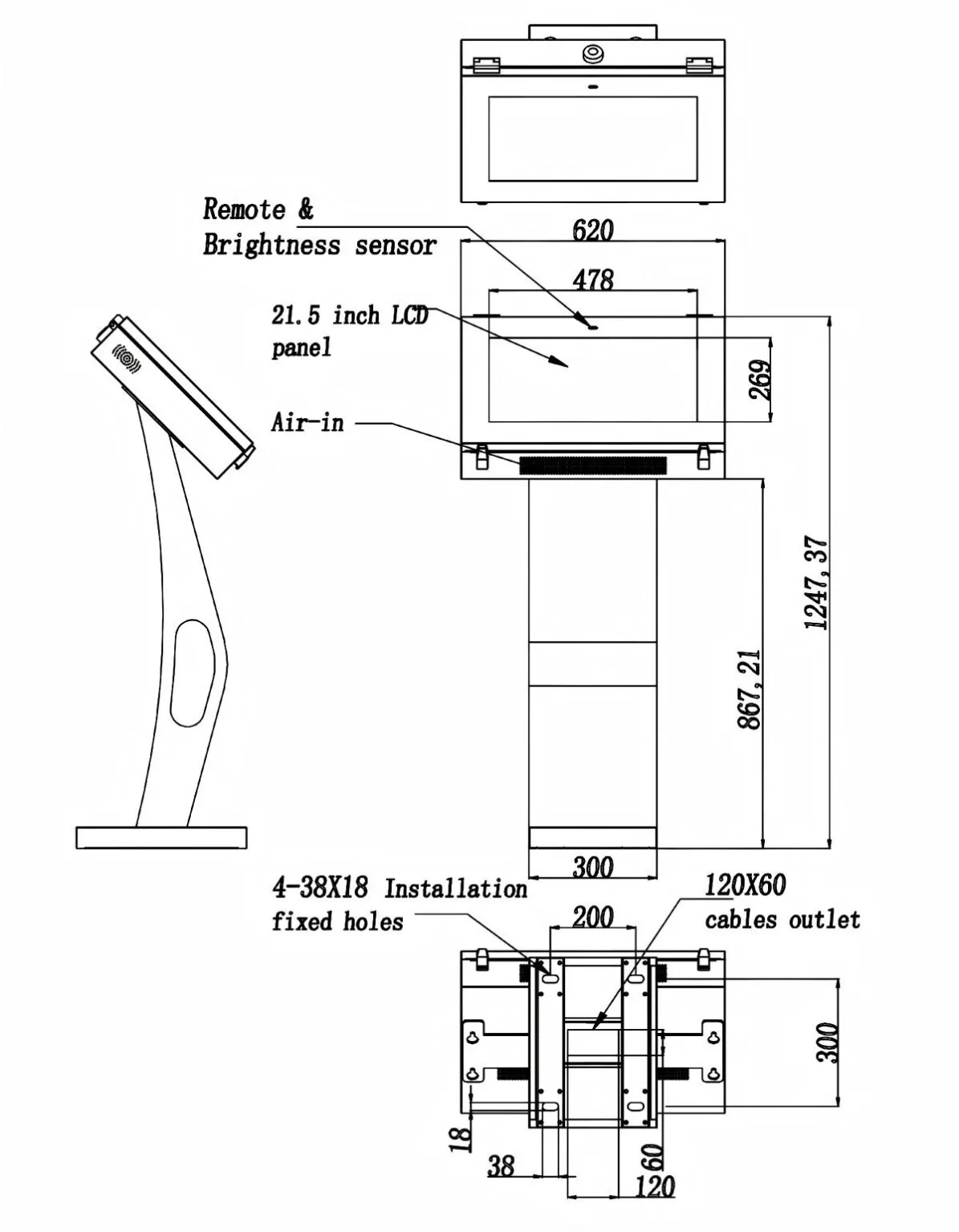

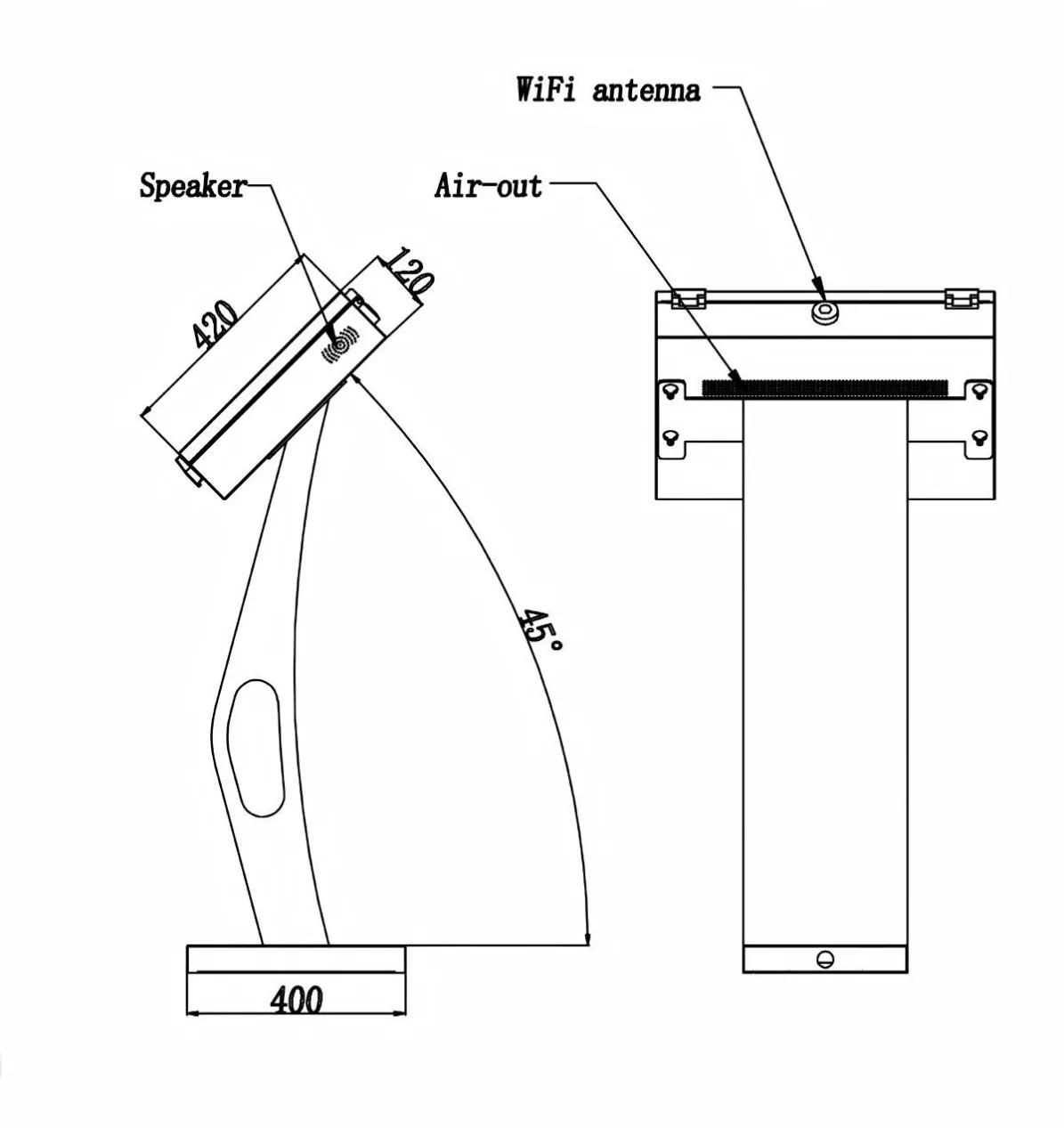

Mechanical parameters | Machine size(H*W*D)（mm) | 620*420*120 |
Net machine weight | 52kg | |
Package size(H*W*D)(mm) | 1480*770*560 | |
Package weight | 90kg | |
Using Limited Window Space Effectively
A small retail window may need to communicate opening hours, promotions, pickup instructions and product information within a narrow area. The 21.5-inch format can be positioned beside merchandise or near a service opening without blocking the primary view into the store.
It is suitable for:
- Café collection windows;
- Ticket or service counters;
- Pharmacy windows;
- Small-format convenience stores;
- Tourist information points;
- Outdoor product-price displays.
The display should be mounted where customers naturally pause. If it is placed too far from the transaction point, its compact content may be overlooked.
Content for a Close-Range Screen
Full HD resolution supports sharp product photographs and readable text at close viewing distances. The design should avoid trying to reproduce a large poster on a smaller screen.
One promotion, instruction or product group per screen is generally easier to understand. QR codes can be used for menus, booking pages and product details, but they should be large enough to scan without the customer touching the protective surface.
The wide 178°/178° viewing angle helps customers see the image when approaching from the side. Reflections from window glass and the kiosk front should still be reviewed at the installation site.
Outdoor Brightness in a Small Format
The 2500-nit panel differentiates this product from standard indoor monitors of the same size. It is intended for environments where daylight would make a conventional desktop display difficult to read.
Brightness should be adjusted after sunset. A compact screen viewed from close range can feel excessively bright at night if it remains at its daytime setting.
Fan cooling supports internal temperature control. The enclosure should not be pushed tightly against a wall or decorative panel if that arrangement blocks its designed airflow.
Updating Frequently Changed Information
A 21.5 inch outdoor advertising kiosk can be useful for information that changes more often than printed window graphics. Restaurants can replace daily offers, service businesses can update queue instructions and retailers can schedule messages by time of day.
The buyer should confirm whether updates will be made by USB, local network or a remote CMS. A multi-store deployment benefits from centralized templates so that local staff only change approved fields such as price or availability.
Ordering and Installation Details
The listed SKU is ZXTLCD-OUTFHK215B. Provide the mounting position, available dimensions, viewing direction and environmental conditions when requesting a quotation.
This 21.5 inch outdoor advertising kiosk is intended for buyers who need the brightness and protection of commercial outdoor signage in a space where a 43-inch or 55-inch screen would be impractical.
