Built-in Fan Version
Floor Standing Outdoor Advertising Display 49 Inch 2500 Nits IP65 for Drive Thru Menus
Protection Grade:IP65 Working temperature:Working temperature: -40C-50C Material:Aluminum alloy,tempered glass
Specifications
- SKU
- ZXTLCD-OUTFHK490O
Floor Standing Outdoor Advertising Display 49 Inch 2500 Nits IP65 for Drive Thru Menus
49 Inch Outdoor Drive Thru Display for Menu Ordering
A drive-thru menu display must be readable from a vehicle, operate in changing weather and support frequent price or item updates. This 49 inch outdoor drive thru display combines 2500-nit brightness, IP65 protection, an aluminum-alloy enclosure and tempered glass.
Its listed operating-temperature range of −40°C to 50°C supports projects in regions with demanding seasonal conditions, subject to final configuration and site confirmation.
49 Inch Horizontal-screen Horizontal-style Digital Signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Side frame backlight |
Display dimension | 1074*604mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤400w | |

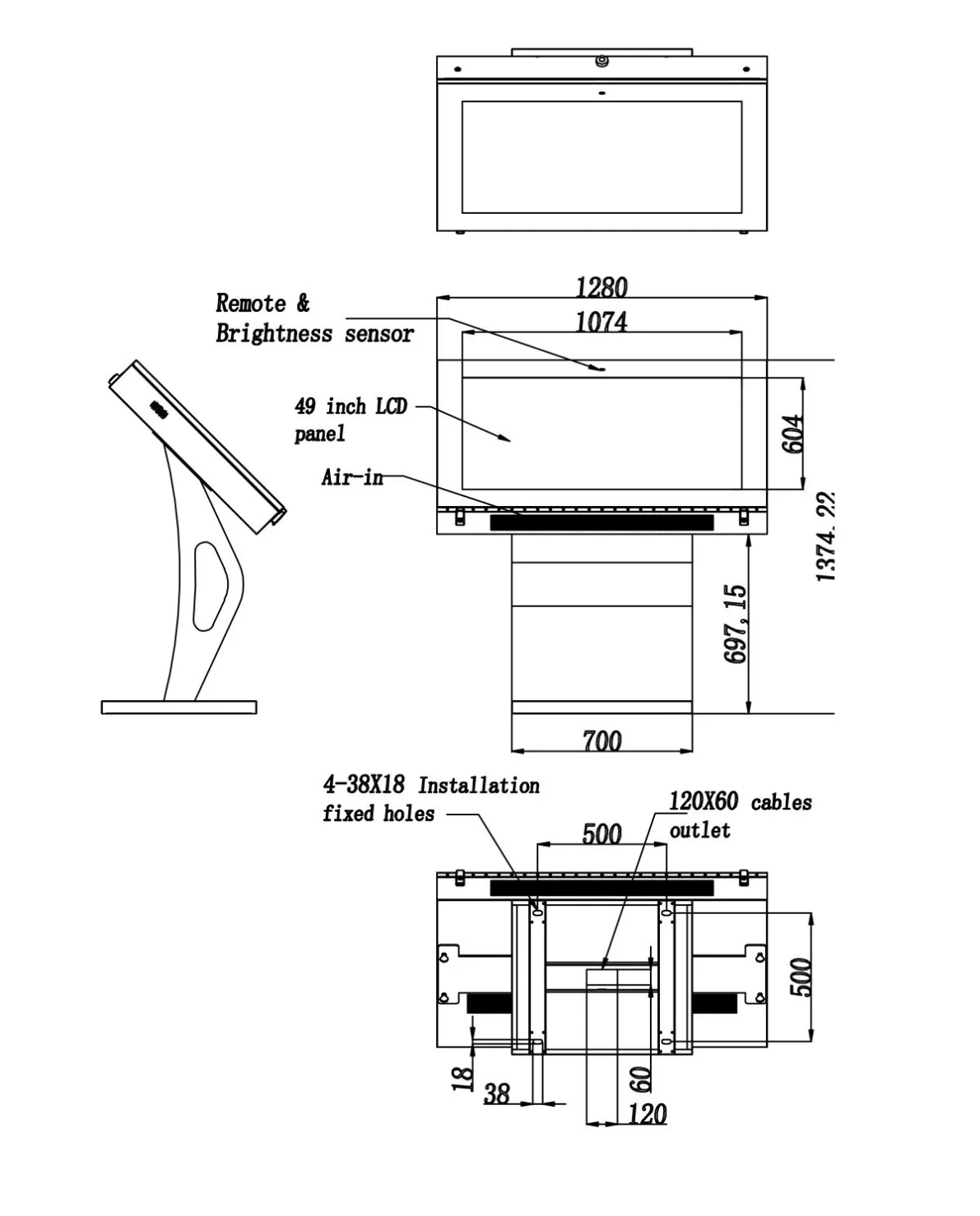

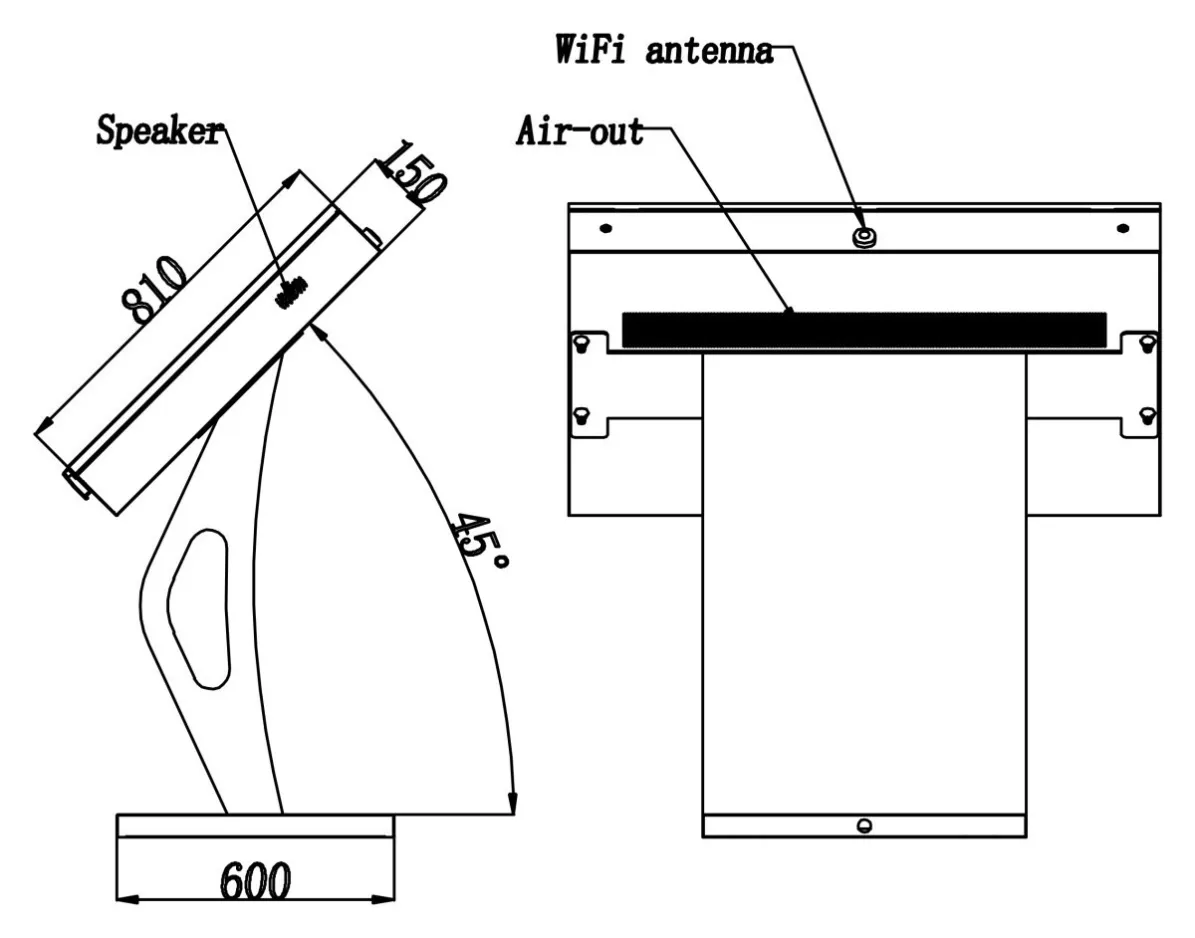

Mechanical parameters | Machine size(H*W*D)（mm) | 1280*810*150 |
Net machine weight | 130kg | |
Package size(H*W*D)(mm) | 1600*1430*830 | |
Package weight | 180kg | |
Start with the Driver’s Viewing Position
Menu-board performance depends heavily on placement. The correct height and angle should be determined from the driver’s position, not from the installer’s standing eye level.
The site survey should consider:
- Distance from the ordering point;
- Vehicle approach angle;
- Cars, SUVs and commercial vehicles;
- Speaker and microphone positions;
- Potential obstruction by menu canopies;
- Direct afternoon or morning sunlight.
A 49-inch display can work as a single promotional board or as part of a multi-screen menu system. The layout should keep popular items and purchasing decisions visible before the driver reaches the speaker.
Content Designed for Fast Ordering
Drive-thru customers need to recognize categories, compare options and make a decision quickly. Small text and crowded menus increase ordering time.
Prices should use consistent positioning, while photographs should represent only the items that need visual emphasis. Animation can attract attention, but constant movement behind the ordering instructions may make the menu harder to read.
Daypart scheduling allows the restaurant to change from breakfast to lunch and dinner menus without replacing printed panels. Out-of-stock products and limited promotions can also be updated centrally.
Construction for Exposed Locations
The IP65 enclosure helps protect the internal components from dust and water exposure. The aluminum-alloy structure provides a practical balance between corrosion resistance and enclosure weight, while tempered glass protects the screen surface.
At the lower end of the stated temperature range, component selection and startup behavior should be confirmed for the project. At high temperatures, the ventilation system must remain unobstructed.
Snow accumulation, water drainage and cleaning access should also be included in the installation plan. The kiosk base should not sit in an area where standing water regularly collects.
Brightness During Day and Night
The 2500-nit output supports daytime readability, but maximum brightness is generally unnecessary after dark. Scheduled or sensor-based brightness adjustment can improve viewing comfort for drivers and reduce excessive light around nearby residential areas.
Content colors should be tested under both conditions. A bright white menu background may be effective in daylight but uncomfortable at night, while a dark theme may need additional contrast during the day.
Preparing a Restaurant Rollout
For a multi-location rollout, the 49 inch outdoor drive thru display should use a consistent player and content-management setup. Restaurant teams need a clear method for publishing price changes, checking screen status and restoring content if network access is interrupted.
When requesting a quotation, provide the number of screens per lane, installation drawings, temperature range, power supply and content-control method. The 49 inch outdoor drive thru display can then be configured around actual ordering behavior rather than treated as a generic outdoor advertising screen.
