Built-in Fan Version
32 Inch 2500 Nits IP65 Outdoor Digital Signage Floor Standing Fan Cooling for Public Information
Max Resolution:1920*1080 Pixel Pitch:0.4845(H)*0.4845 (V) Contrast Ratio:4000:1 Brightness:2500nits
Specifications
- SKU
- ZXTLCD-OUTFHK320BL
32 Inch 2500 Nits IP65 Outdoor Digital Signage Floor Standing Fan Cooling for Public Information
32 Inch Outdoor Digital Signage for Public Information
Large displays are not always the best choice for public communication. At entrances, community facilities and pedestrian information points, viewers often stand close to the screen and need focused information. This 32 inch outdoor digital signage provides a compact floor-standing format with 2500-nit brightness, Full HD resolution and fan-assisted cooling.
The published specifications include a 1920 × 1080 maximum resolution, 4000:1 contrast ratio and a pixel pitch of 0.4845 mm horizontally and vertically.
32 Inch Horizontal-screen Horizontal-style Digital Signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 697*392mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤230w | |

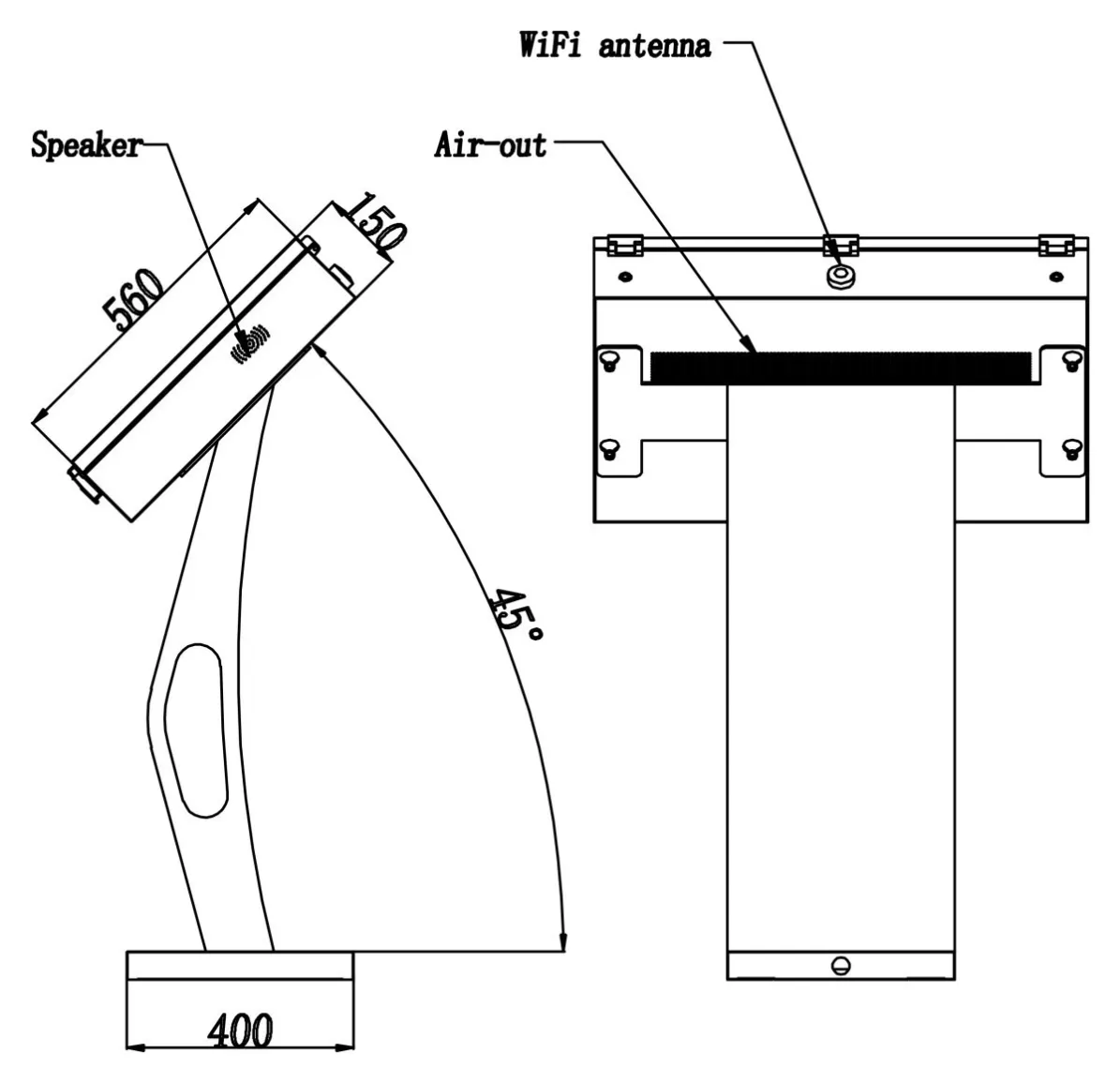

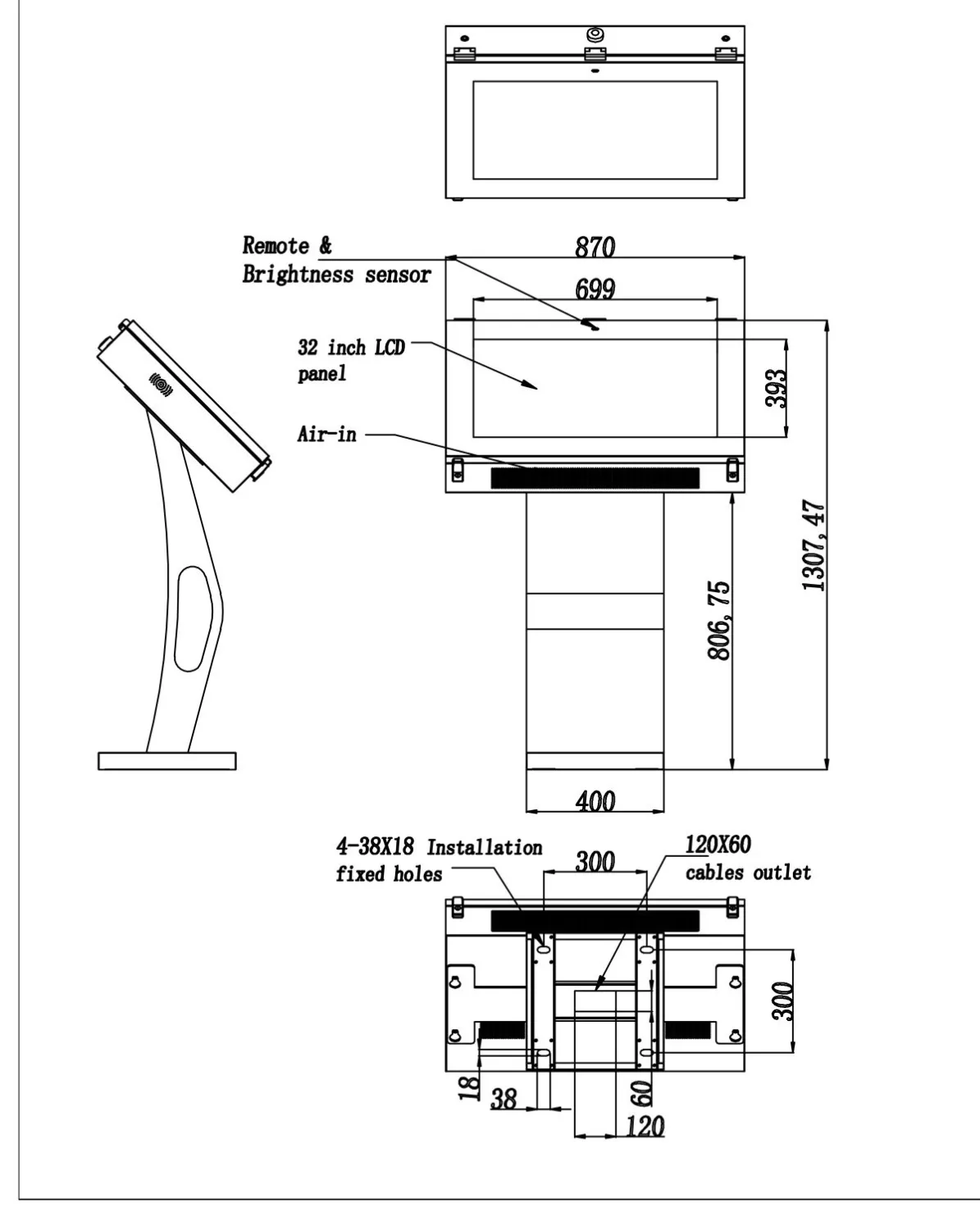

Mechanical parameters | Machine size(H*W*D)（mm) | 870*560*150 |
Net machine weight | 74kg | |
Package size(H*W*D)(mm) | 1540*1020*650 | |
Package weight | 115kg | |
A Compact Screen for Close Viewing
A 32-inch display can be placed where a larger kiosk would obstruct circulation or dominate the surroundings. Suitable applications include park notices, campus information, visitor instructions, community events and public-service announcements.
Because the audience normally views it at a shorter distance, the content can contain more detail than a roadside advertisement. However, essential information should still appear first.
Headings, dates, locations and emergency contacts need a clear hierarchy. Long paragraphs should be divided into short sections or multiple screens.
Full HD Resolution for Maps and Instructions
The 1920 × 1080 resolution supports text, maps, icons and instructional graphics. Fine details should be tested at the intended viewing distance, particularly when the display is placed behind protective glass.
For maps, the viewer needs a visible “You Are Here” marker and an obvious relationship between the map orientation and the physical surroundings. Decorative graphics should not reduce the available space for directions.
The 4000:1 contrast ratio can help with text definition, while the 2500-nit brightness supports visibility in outdoor ambient light.
A Different Maintenance Pattern
A compact kiosk may be installed in locations without permanent technical staff. Remote monitoring can therefore be more valuable than screen size.
Operators should be able to determine whether the display is online, whether the current content has downloaded and whether the internal temperature remains within the intended range. Fan filters and ventilation openings should be inspected according to local dust conditions.
The physical design should also allow cleaning teams to wipe the display surface without accidentally opening service areas or interrupting playback.
Local or Centralized Publishing
A single 32 inch outdoor digital signage unit may use local playback. Public agencies operating multiple information points may prefer a central CMS with location-based publishing permissions.
This allows one department to update park information while another manages transport or municipal notices. Emergency messages can be assigned a higher priority than normal community content.
The system should retain previously downloaded content if the network connection is temporarily lost.
Project Configuration
The listed SKU is ZXTLCD-OUTFHK320BL. Before production, confirm the installation location, foundation, power route, network method and daily operating schedule.
The 32 inch outdoor digital signage is a strong option when the project requires outdoor visibility and protected commercial operation but does not need a large advertising-scale display.
