Built-in Fan Version
High Brightness Outdoor LCD Display 43 Inch Floor Standing for Bus Station Wayfinding
Contrast Ratio:4000:1 Brightness:2500nits Response Time:5ms Color:16.7M
Specifications
- SKU
- ZXTLCD-OUTFHK430G
High Brightness Outdoor LCD Display 43 Inch Floor Standing for Bus Station Wayfinding
43 Inch Outdoor Wayfinding Display for Bus Stations
Wayfinding screens at bus stations have a straightforward responsibility: passengers must understand the information quickly and continue in the correct direction. This 43 inch outdoor wayfinding display combines 2500-nit brightness, a 4000:1 contrast ratio, 5 ms response time and 16.7-million-color reproduction.
The floor-standing format is suitable for entrances, platform transitions, ticketing areas and pedestrian routes where a compact screen is preferable to a large advertising kiosk.
43 Inch Horizontal-screen Horizontal-style Digital Signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Side frame backlight |
Display dimension | 941*530mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

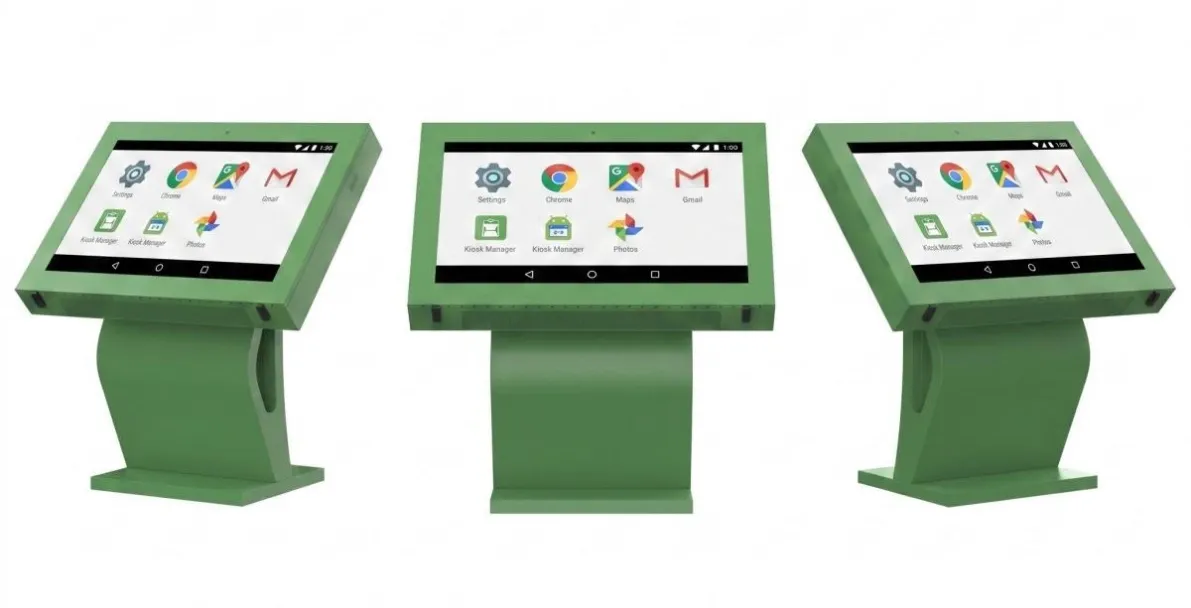

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

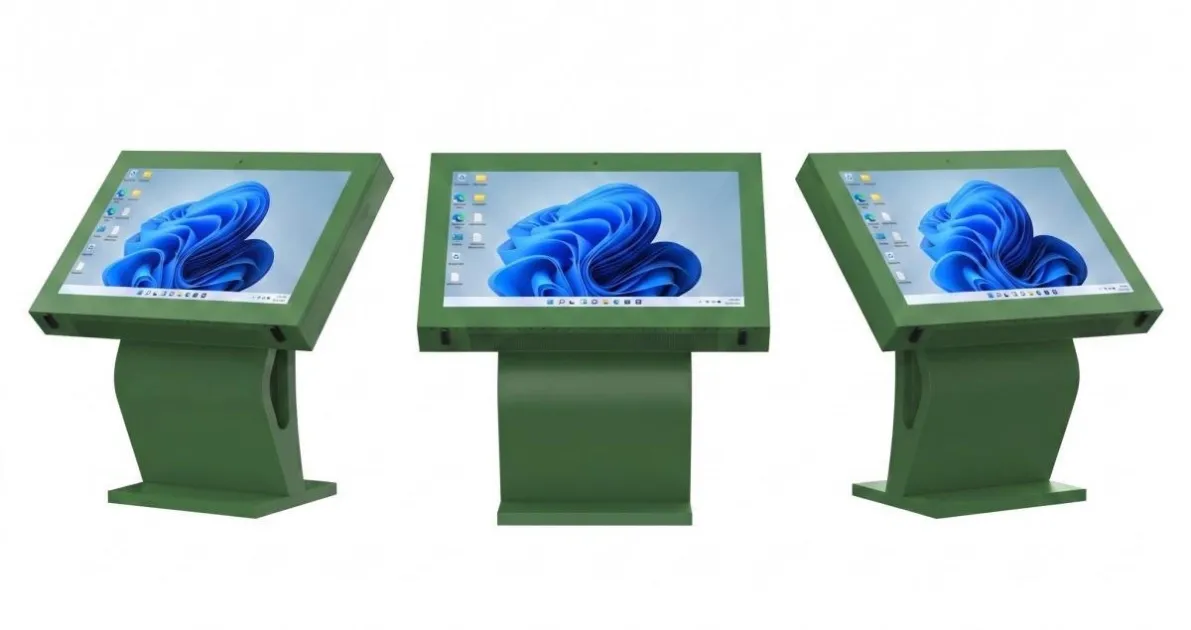

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤300w | |

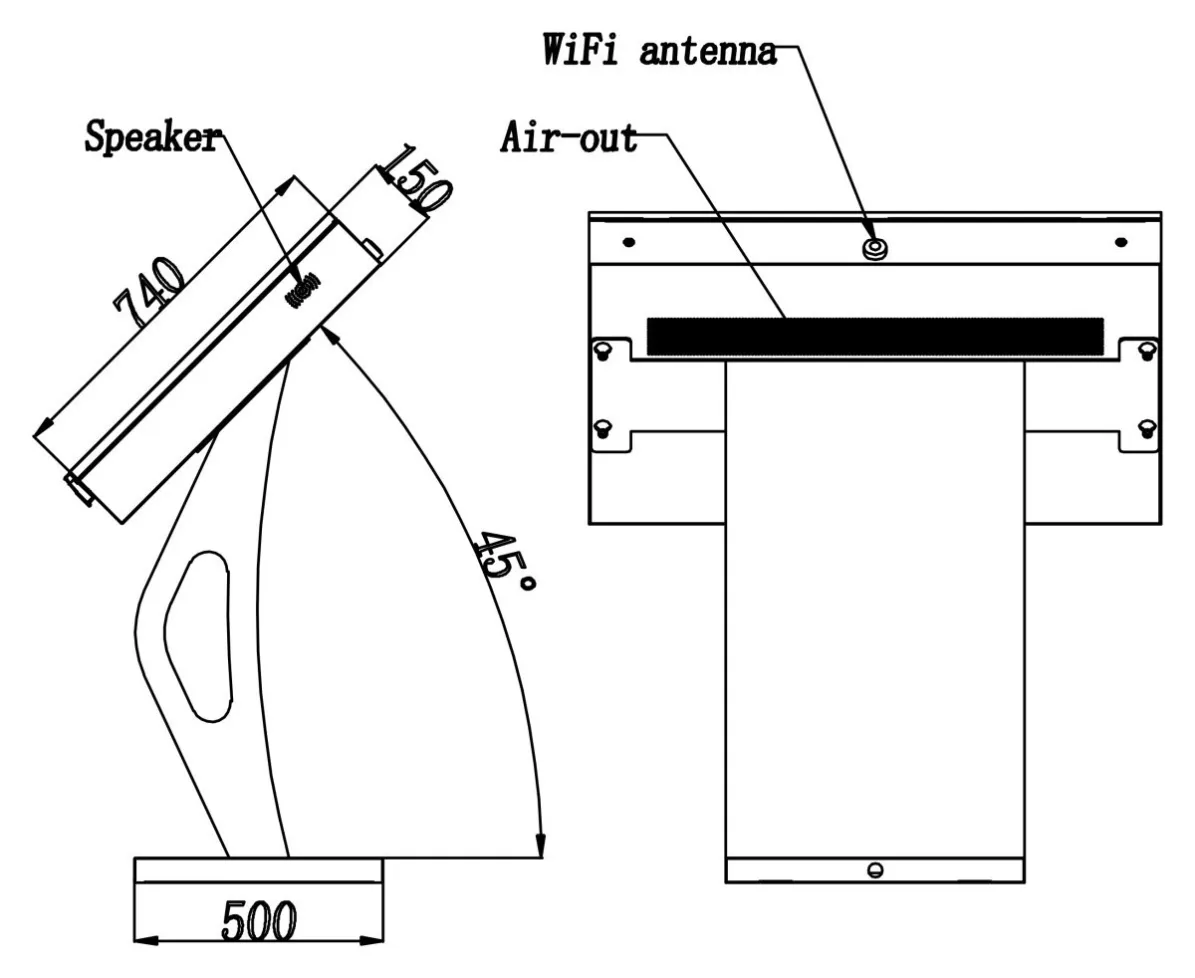

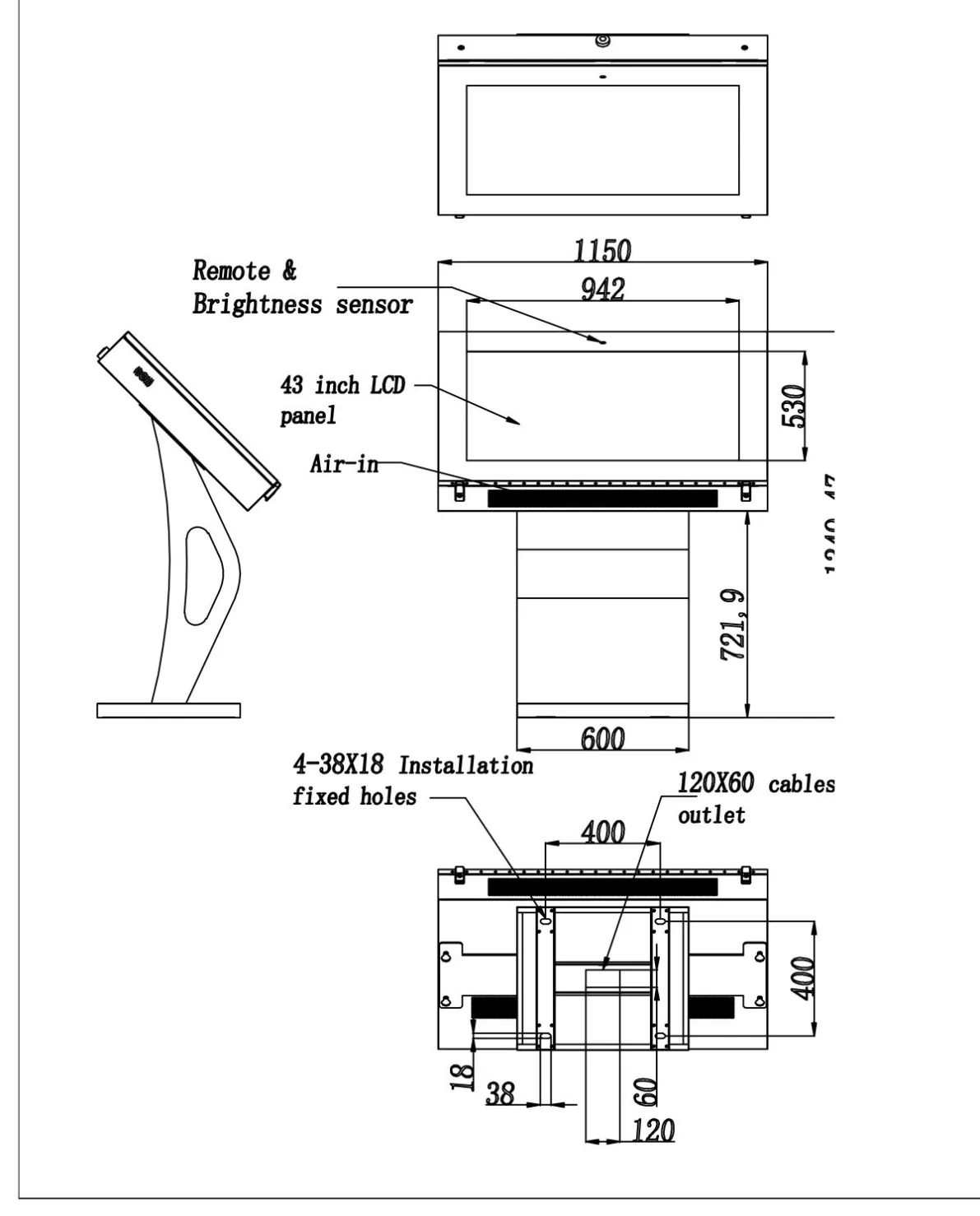

Mechanical parameters | Machine size(H*W*D)（mm) | 1150*740*150 |
Net machine weight | 110kg | |
Package size(H*W*D)(mm) | 1580*1300*780 | |
Package weight | 150kg | |
Information Hierarchy Comes First
Passengers may be carrying luggage, watching for vehicles or moving through a crowded area. The page layout should therefore prioritize route number, destination, direction and departure information.
Supporting details can be arranged below the main instruction, but they should not compete with it. Color can identify routes or zones, provided the design does not rely on color alone.
A good wayfinding screen normally needs:
- Large route and platform numbers;
- Clear directional arrows;
- High text-to-background contrast;
- Consistent terminology;
- Multilingual support where necessary;
- Space for disruption notices.
The 43-inch format encourages focused information rather than an overloaded directory.
Visibility in Strong Ambient Light
The specified 2500-nit brightness supports outdoor readability, while the 4000:1 contrast ratio helps separate text and graphics. Actual visibility will still depend on direct sunlight, reflections and the viewing angle created by the kiosk position.
The screen should be evaluated from the passenger’s approach path. If it is mounted too low, crowds may block the information. If placed too high, smaller details become difficult to read.
Nighttime brightness should be reduced to a comfortable level. Automatic control or scheduled settings can maintain readability throughout the operating day.
Motion and Real-Time Updates
A 5 ms response time supports moving content and transitions, but wayfinding information should not depend on fast animation. Important directions should remain stable long enough for users to read and confirm them.
Real-time feeds may show arrivals, delays or platform changes. The media player and transport-data integration should be specified separately from the LCD hardware.
When operational information is unavailable, the system should have a defined fallback screen. Displaying an outdated departure time can be worse than showing a clear temporary-service message.
Positioning a Floor-Standing Unit
The 43 inch outdoor wayfinding display must not reduce the usable width of a pedestrian route. Accessibility, emergency movement and cleaning equipment should be considered before the base position is approved.
Power and network connections should enter through a protected route. Service doors must remain accessible without requiring technicians to work in an unsafe traffic area.
For installations near roadways or vehicle movements, the project may require additional physical protection around the kiosk.
Information Needed for Integration
When specifying this screen, provide the data source, update frequency, required languages, orientation and operating environment.
The 43 inch outdoor wayfinding display is best suited to transport projects that need a readable, high-brightness information point with enough visual space for routes and directions but without the footprint of a very large kiosk.
