Built-in Air conditioner
Weatherproof Digital Signage 43 Inch 2500 Nits IP65 Floor Stand for EV Charging
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVP430BG
43 Inch Outdoor Digital Signage for EV Charging Stations
A charging driver may remain on site for twenty minutes or longer, but that does not mean the screen should play a twenty-minute advertisement. The strongest use of 43 Inch Outdoor Digital Signage for EV Charging is to answer immediate questions first and use the remaining attention for relevant commercial content.
The product image shows a compact dark-green cabinet with a portrait screen. Its modest width can suit charging bays where equipment must remain clear of vehicle doors, bollards and charging cables.
43 Inch Outdoor floor standing digital signage with air conditioner specification-B style | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 941*530mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

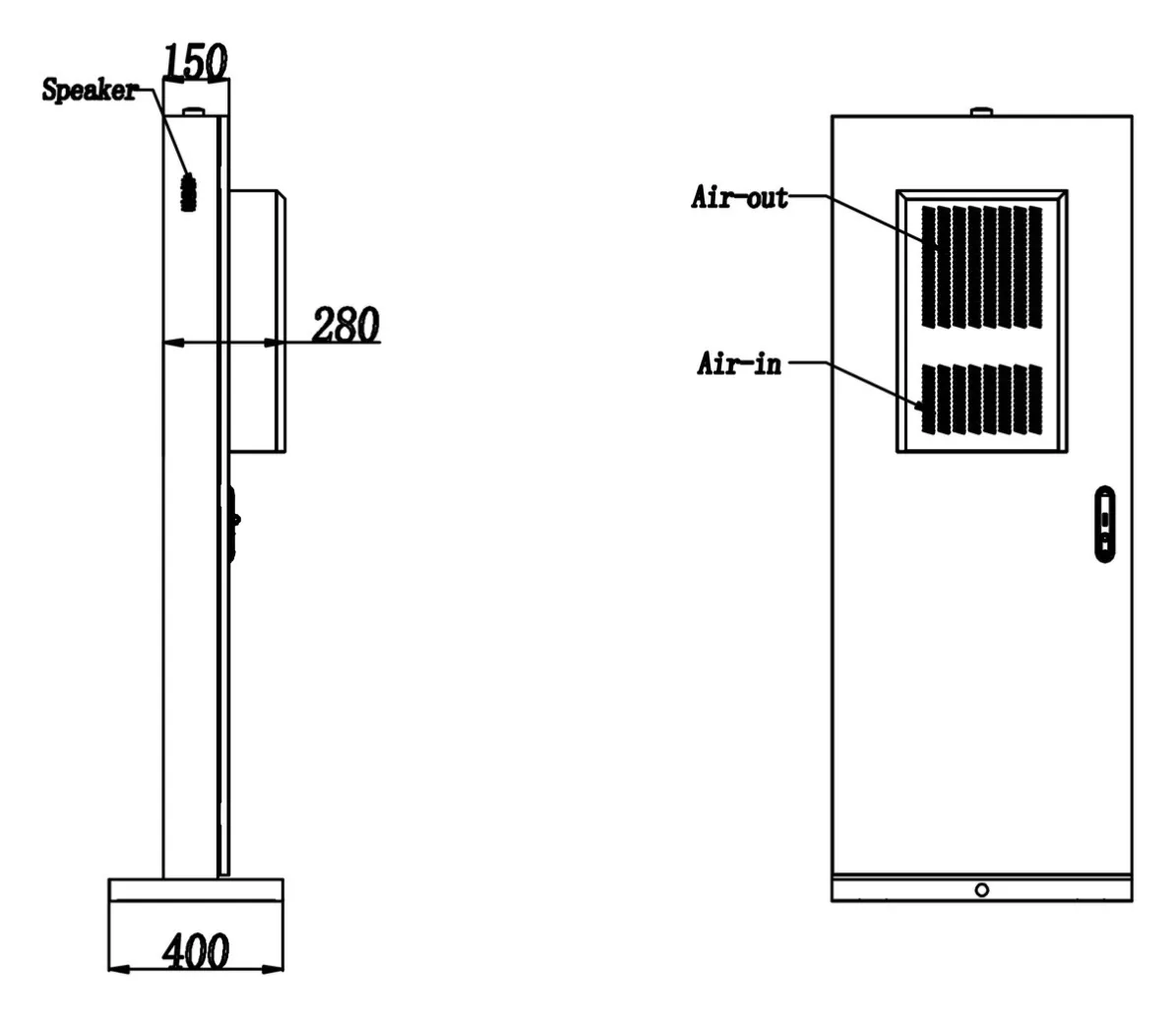

Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 5%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 570W | |

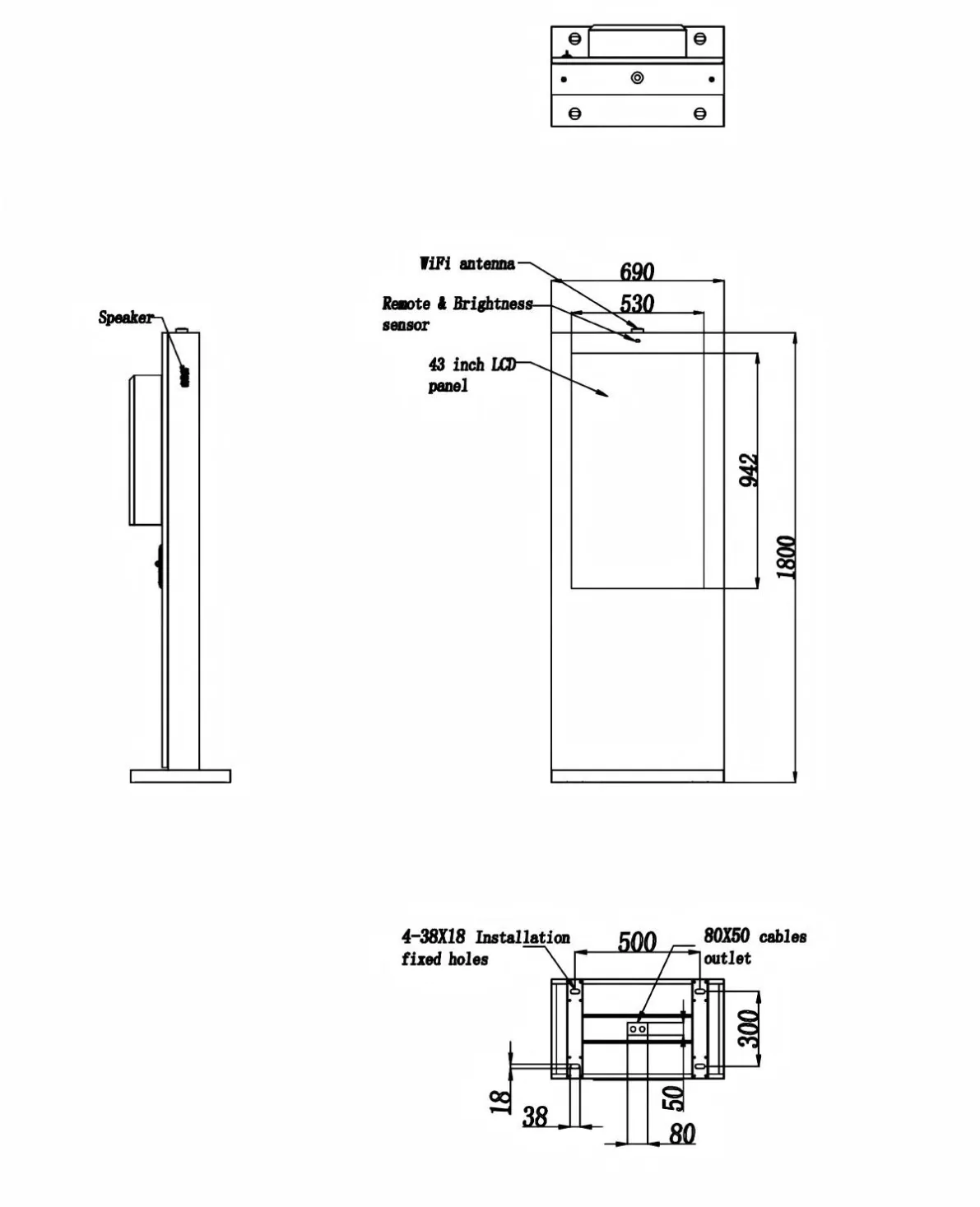

Mechanical Para | Whole device dimension H*W*D | 1800*690*150mm |
Whole device net.weight(kg) | 95kg | |
Package dimension H*W*D(mm) | Machine 780*1850*520mm AC700*600*310mm | |
Gross packing(kg) | Machine 110kg AC23kg | |
Service Information Comes Before Promotion
Drivers initially want to know whether the charger is available, how payment works and where support can be found. Once those needs are covered, the screen can promote nearby services.
A balanced playlist may include:
- Charging instructions
- Safety reminders
- Site contact information
- Nearby cafés and stores
- Loyalty-program promotions
- Local travel or parking information
The display should not imply that it directly controls the charger unless that integration is actually included.
Compact Size for Equipment-Dense Sites
A 43-inch format can provide useful visibility without dominating a small charging area. The 43 Inch Outdoor Digital Signage for EV Charging may be installed near a shared pedestrian route rather than directly beside every charging connector.
Its final position should allow maintenance staff to open service doors without interfering with parked vehicles. Cabinet orientation must also avoid creating a collision hazard when drivers reverse into the bay.
Daylight and Weather Exposure
A 2500-nit screen supports daytime readability, while the IP65 enclosure is intended for dust and water exposure. Because charging locations are frequently installed in open parking areas, sunlight direction can change substantially between morning and afternoon.
The built-in air conditioner helps control internal temperature during hot-weather operation. Buyers should provide the expected temperature range and daily schedule when requesting a configuration.
Content That Earns Attention
The longer dwell time at a charging site permits useful content, but repetition quickly becomes irritating. Short local guides, changing retailer offers and service updates give regular users more reason to look at the screen.
The 43 Inch Outdoor Digital Signage for EV Charging should be managed as part of the charging-site experience. Clear instructions build trust; relevant advertising can then support site revenue without obscuring essential information.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
