Built-in Fan Version
Weatherproof Digital Signage 21.5 Inch Vertical Fan Cooling for Mall Promotions
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVW215B
21.5 Inch Vertical Weatherproof Digital Signage for Outdoor Retail Information
The product image shows a very compact portrait screen inside a narrow dark frame. Its small footprint places it in a different category from full-height outdoor advertising kiosks: it is designed for information viewed at close range.
This 21.5 Inch Vertical Weatherproof Digital Signage model is listed with 2500-nit brightness, IP65 protection and built-in fan cooling.
21.5 Inch Outdoor portrait displays wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Side frame backlight |
Display dimension | 478*269mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤180W | |
Mechanical Para | Machine seize H*W*D（mm） | 620*420*120 |
Net weight（Kg） | 30 | |
Package size H*W*D（mm） | 690*770*270 | |
Gross weight(Kg) | 50 | |
A Screen for the Point of Decision
At an outdoor retail location, customers may need information directly beside an entrance, pickup window or payment point. A large kiosk can be unnecessary in these situations.
Suitable exterior uses include:
- Outdoor restaurant pickup windows
- Open-air retail counters
- Exterior ticketing points
- Outdoor store entrances
- Drive-up collection areas
- Outdoor payment stations
The screen can show one promotion, opening hours, collection instructions or a short customer notice.
Working With the Narrow Appearance

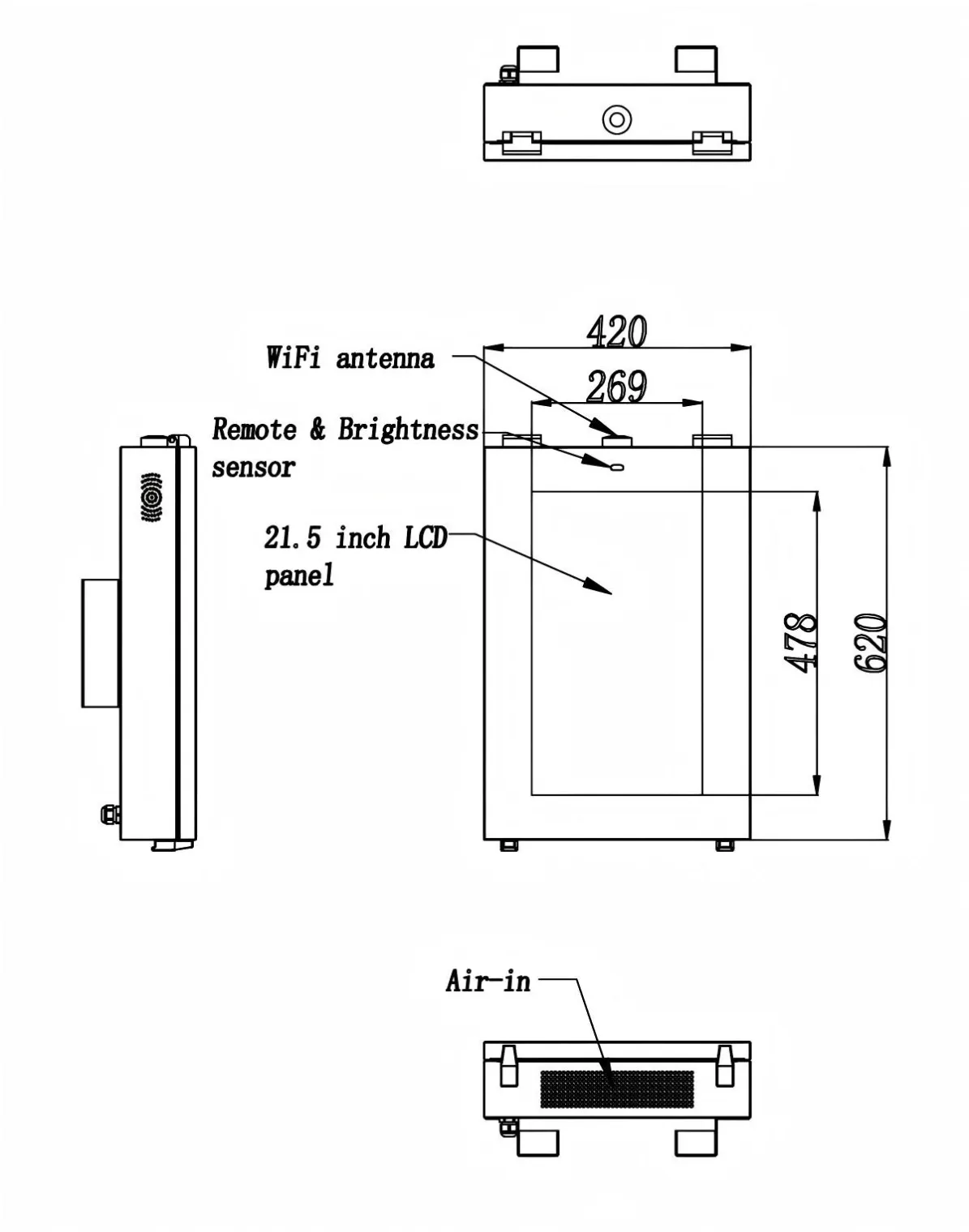

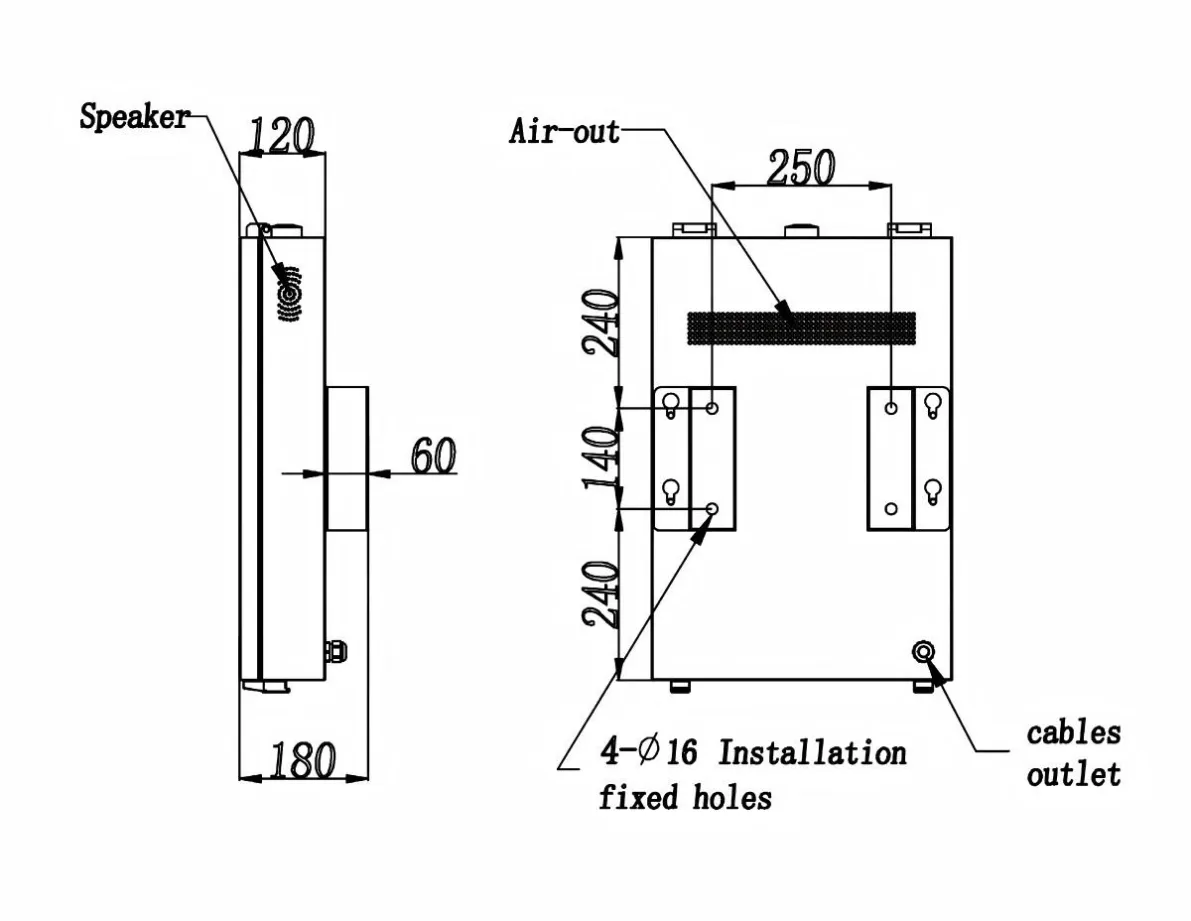

The dark slim frame shown in the image keeps attention on the screen and requires less visible wall or fixture space. The exact mounting method is not clear from the thumbnail, so the technical drawing should be used to determine cabinet depth, support and service access.
Final cabinet color and surface coating should be confirmed before production.
Content Must Respect the Size
A 21.5-inch outdoor display should not reproduce a full promotional brochure. Use one product image, one price or one instruction.
The 2500-nit specification supports exterior viewing, but thin text and dark graphics can still lose clarity under reflected daylight.
IP65 protection helps defend against dust and water jets. Built-in fan cooling requires unobstructed airflow, particularly if the screen is installed inside another outdoor fixture.
The 21.5 Inch Vertical Weatherproof Digital Signage model is a focused outdoor communication point for customers who naturally pass close to the screen.
