Built-in Fan Version
Wall Mounted Outdoor LCD Display 75 Inch 2500 Nits IP65 for Drive Thru Menus
Product name:outdoor lcd display Working temperature:Working temperature: -40C-50C Material:Aluminum alloy,tempered glass Material:Metal Case + Toughened Glass Panel
Specifications
- SKU
- ZXTLCD-OUTFHW750Y
75 Inch Wall Mounted Drive Thru Menu Board for a Complete Ordering Menu
Unlike a compact 32-inch promotional screen, this 75 Inch Wall Mounted Drive Thru Menu Board has enough landscape space to serve as a primary outdoor menu. It can display core meals, combinations, drinks and limited offers without requiring several small standalone cabinets.

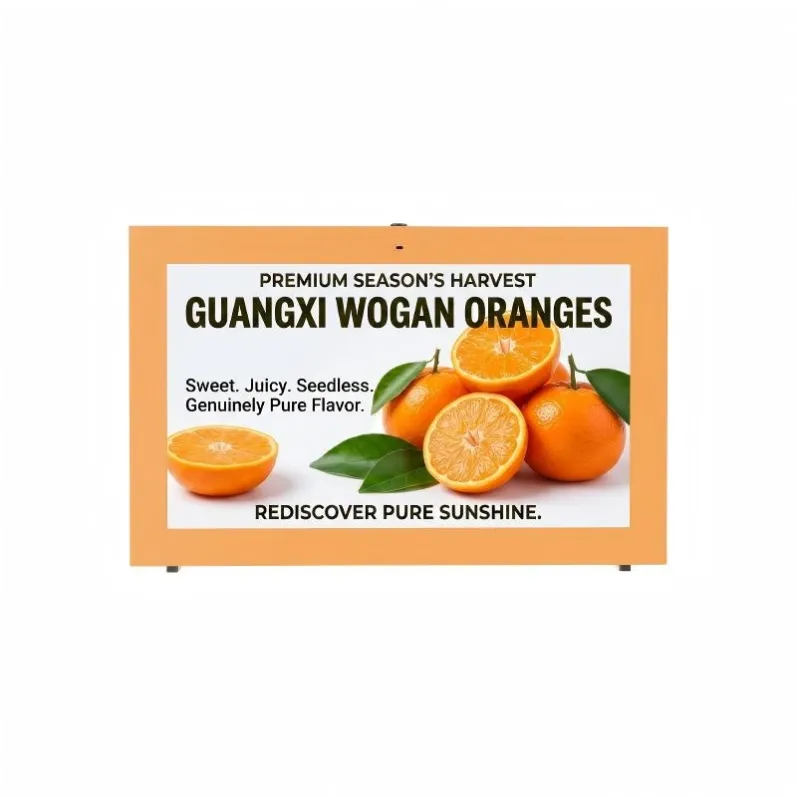

The product image shows a wide screen inside an orange surround, suitable for installation on a restaurant exterior wall or purpose-built menu structure.
75 Inch Outdoor horizontal wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 1651*929 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤860W | |

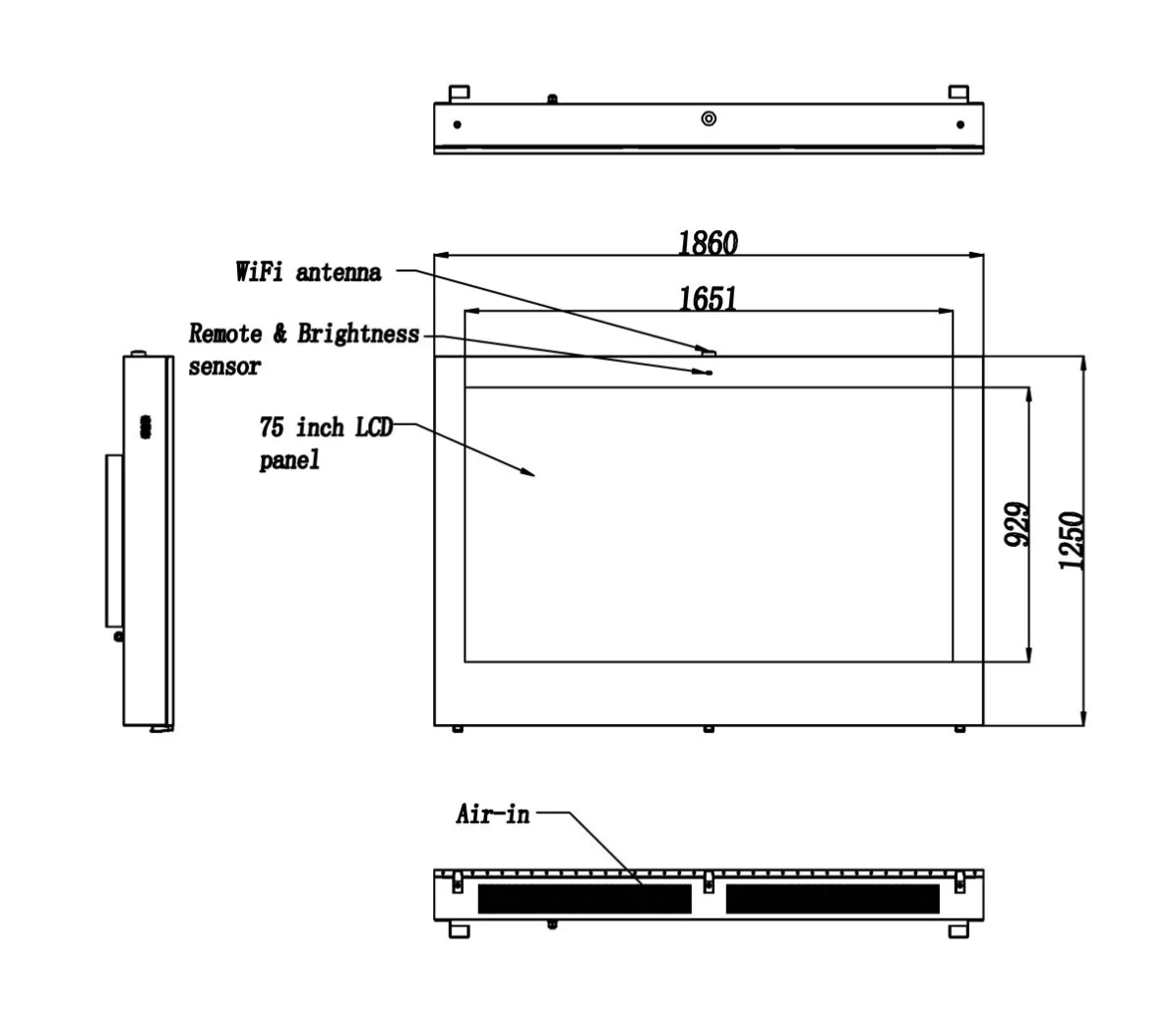

Mechanical Para | Machine seize H*W*D(mm) | 1860*1250*170 |
Net weight(Kg) | 180 | |
Package size H*W*D(mm) | 1520*2010*320 | |
Gross weight(Kg) | 220 | |
How Much Menu Fits Without Becoming Crowded?
The answer depends on viewing distance and the number of price variations. A practical screen may use:
- One section for best-selling combinations
- One section for individual items
- A narrow area for drinks and additions
- A clearly separated limited-time offer
- Consistent price alignment throughout
Product names should remain readable from inside the vehicle. If every available item cannot fit clearly, rotating entire dayparts is better than shrinking the text.
Wall Angle Matters
The 75 Inch Wall Mounted Drive Thru Menu Board may need an angled mounting system so the screen faces the driver’s stopping position. A screen mounted flat against a wall beside the lane can produce an uncomfortable viewing angle.
Sunlight, vehicle headlights and rain reflections should be checked from the actual driver position.
Restaurant Operation
The 2500-nit panel supports daytime visibility. IP65 protection and fan cooling address outdoor operation, although ventilation areas need frequent cleaning in food-service and vehicle environments.
Daypart scheduling can change breakfast, lunch and evening menus automatically. The 75 Inch Wall Mounted Drive Thru Menu Board should also allow unavailable products and price changes to be updated without redesigning the full menu.
