Built-in Fan Version
Wall Mounted Outdoor Digital Signage 49 Inch 2500 Nits IP65 for EV Charging Ads
HS code:8528591090 Backlight:LED backlight Menu language:Mutil Language Place of Origin:CN;GUA
Specifications
- SKU
- ZXTLCD-OUTFHW490DB
Wall Mounted Outdoor Digital Signage 49 Inch 2500 Nits IP65 for EV Charging Ads
49 Inch Wall Mounted Outdoor Digital Signage for Charging Locations
Drivers may remain at an EV charging site long enough to read operating instructions, compare membership options and respond to nearby retail offers. This creates a different media environment from a roadside billboard.
The 49 Inch Wall Mounted Outdoor Digital Signage provides a 2500-nit display with IP65 protection and LED backlighting. The wall-mounted design can integrate with parking structures, service-station buildings and charging canopies without adding another base to the vehicle area.
49 Inch Outdoor horizontal wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |
Display size(mm) | 1074*604 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | below 40℃ ~ + 55℃ |
Working humidity | 5% ~ 95% | |
Working Voltage | AC 100 ~240v , 50Hz | |
Max Power Consumption | ≤400W | |

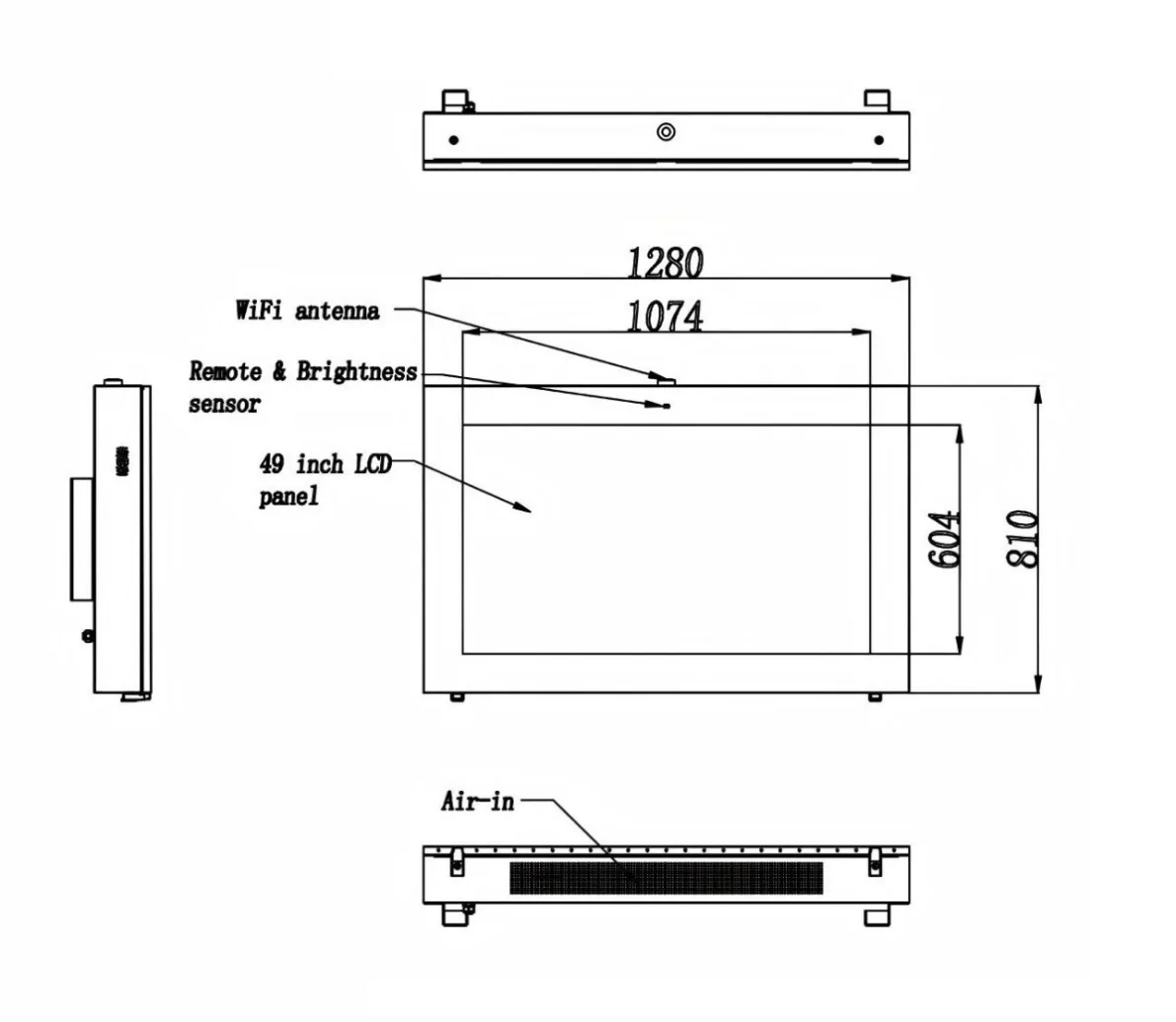

Mechanical Para | Machine seize H*W*D(mm) | 1280*810*150 |
Net weight(Kg) | 75 | |
Package size H*W*D(mm) | 1080*1430*300 | |
Gross weight(Kg) | 105 | |
Content Can Follow the Charging Process
The first part of the playlist should help the driver start charging. It may explain payment, application or connector steps. Once the charging session is underway, the display can move to nearby restaurants, shopping offers or charging-network promotions.
Safety and operating instructions should remain easy to find. They should not disappear inside a long commercial loop.
QR codes can support application downloads and retailer offers. The code needs to remain on screen long enough to scan, and the driver should be able to approach it without standing in a reversing area.
Mounting Around Vehicles and Charging Equipment
The proposed wall position needs to account for charging-cable reach, vehicle doors, bollards and pedestrian movement.
A screen should not encourage drivers to cross another charging bay to read instructions. Mounting it behind a protected walkway or beside the charging equipment may create a safer viewing point.
The display and charger should have separate service access. Technicians working on one system should not need to dismantle or disconnect the other.
Bright Daylight and Long Nighttime Viewing
The 2500-nit panel supports visibility during bright outdoor conditions. Reflections from parked vehicles, wet surfaces and nearby glass buildings should still be considered during the site survey.
At night, drivers remain near the display for longer than pedestrians passing an advertisement. Lower brightness improves comfort and reduces unnecessary light around mixed-use or residential properties.
Campaign designers can prepare separate daylight and nighttime layouts. A bright white background may work during the day but feel excessive after sunset.

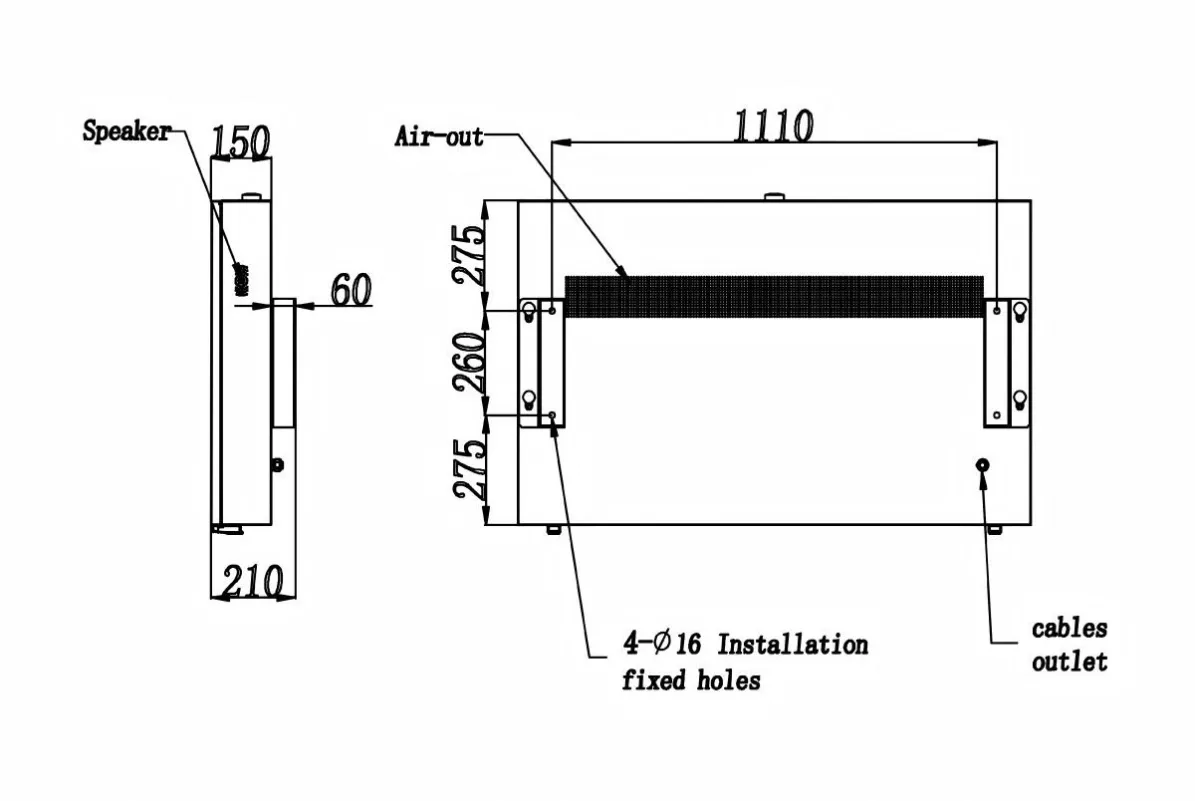

The design drawing of rear display
Maintaining IP65 Protection
The IP65 enclosure helps protect internal components from dust and water. Cable entries and mounting joints added on site require proper sealing.
The maintenance environment will vary. A motorway service area may expose the unit to road dust, while a covered parking structure can accumulate fine vehicle residue. Cleaning should include the front surface and ventilation areas.
Device monitoring is useful when the charging operator manages several locations. The support team should know whether the screen is offline, the player has failed or a new campaign has not downloaded.
Managing Advertising by Property Type
A 49 Inch Wall Mounted Outdoor Digital Signage network may cover malls, hotels, offices and roadside charging stations. Each property requires a different playlist.
Shopping-center screens can promote mall tenants. Hotel installations may focus on dining and guest services. Motorway sites can advertise food and travel products. Central management allows campaigns to be assigned by location and time.
Provide the wall drawing, parking layout, screen orientation, network method and operating hours before ordering. When correctly positioned and managed, 49 Inch Wall Mounted Outdoor Digital Signage turns charging time into a useful information and advertising period without interfering with the primary charging service.
