Built-in Fan Version
Pole Mounted Outdoor LCD Display 98 Inch 2500 Nits IP65 for Public Information
Frame:Unibody Aluminum Life:60000 Hours Protection Grade:IP65 LOGO:Customerize
Specifications
- SKU
- ZXTLCD-OUTFHN980Y
98 Inch Pole Mounted Outdoor LCD Display for Large Public Information

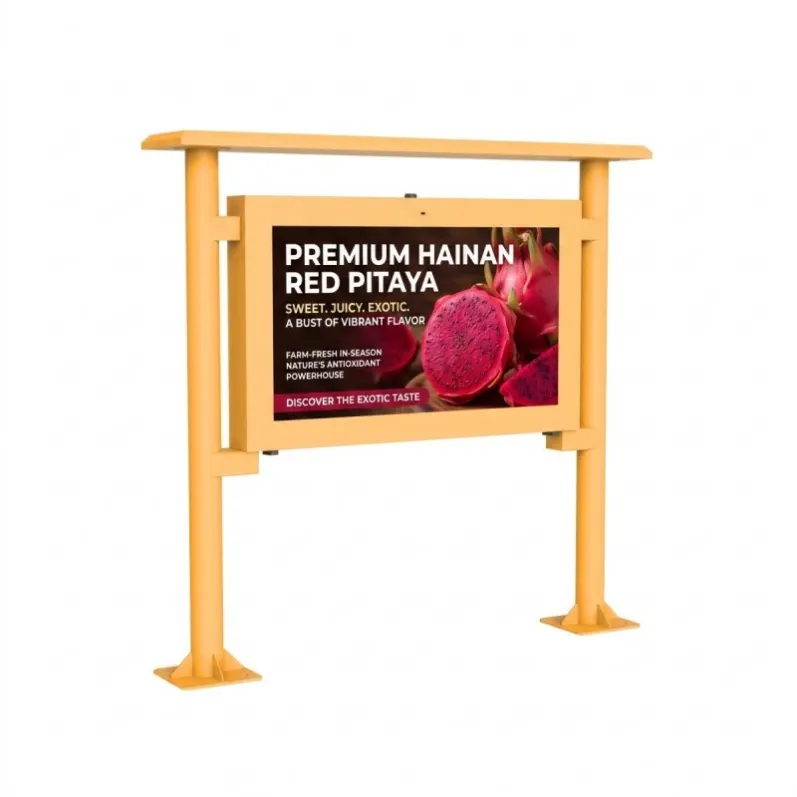

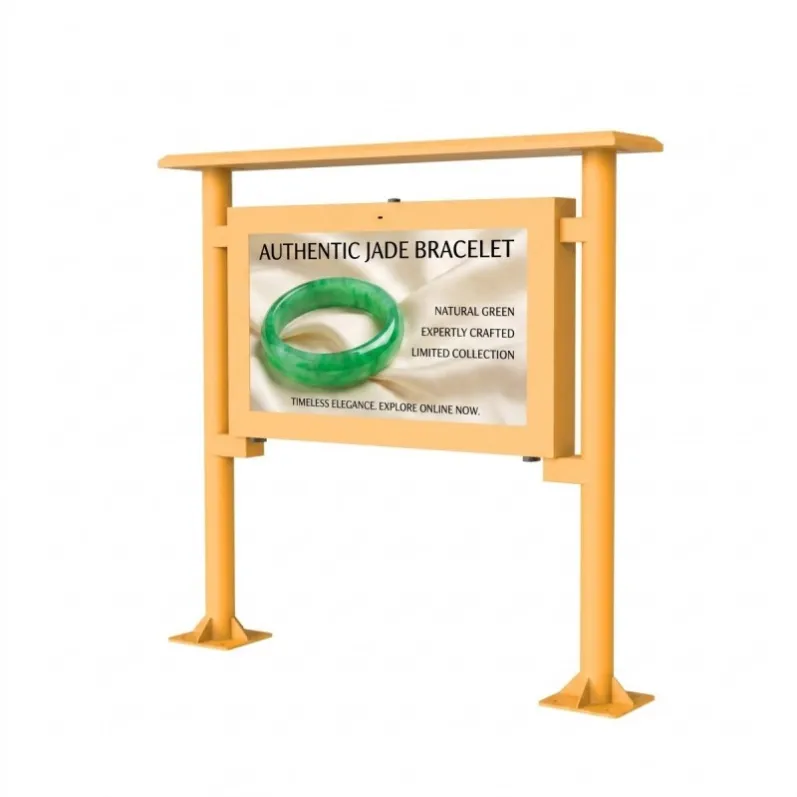

The product image shows a wide display supported between two orange posts. This structural appearance separates the 98 Inch Pole Mounted Outdoor LCD Display from wall-mounted screens and conventional floor-standing kiosks.
Its large landscape surface is intended for public information viewed across open outdoor areas.
98 Inch Outdoor air-cooled horizontal screen floor-standing column style specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 2158*1214mm | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤2000W | |

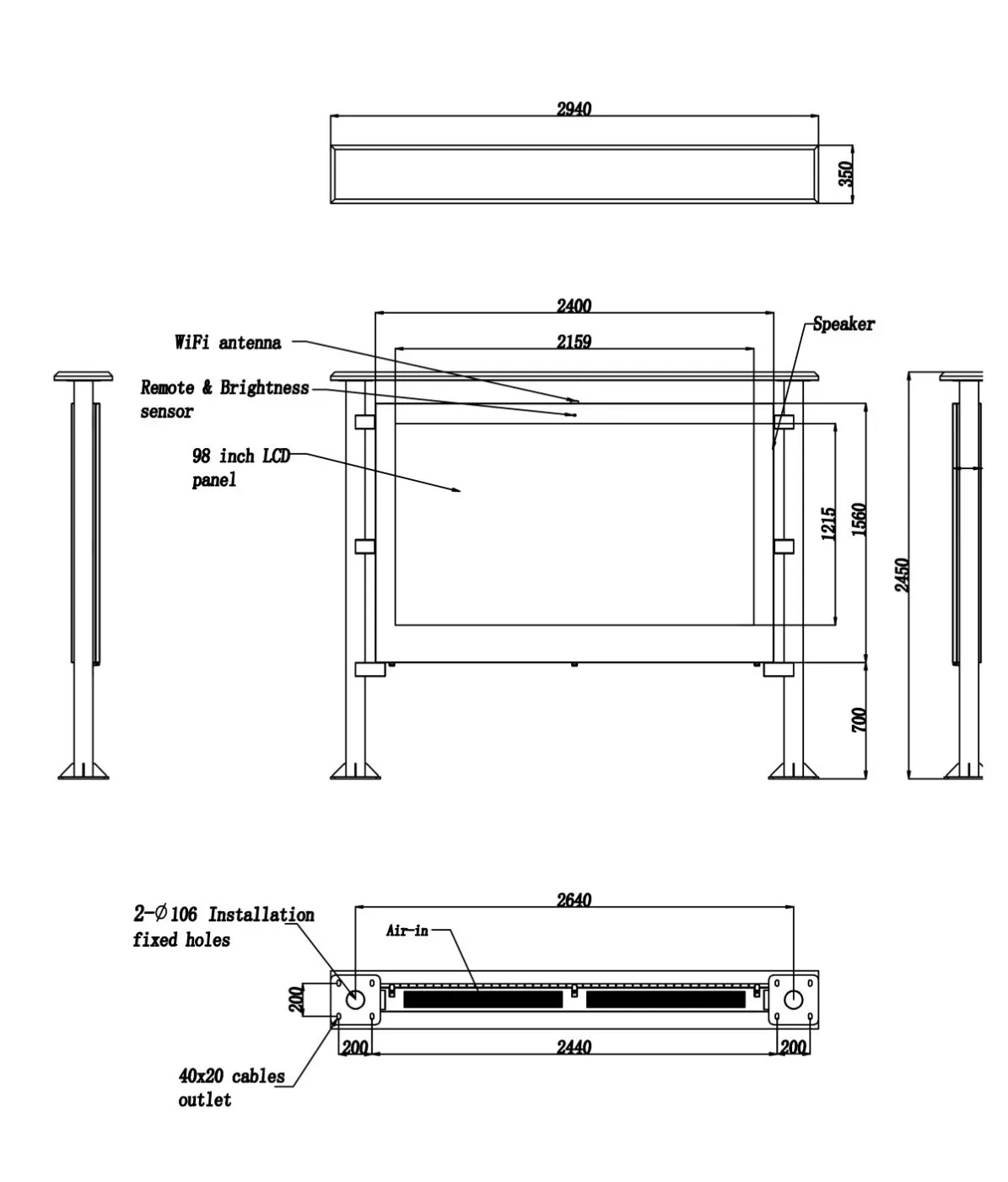

Mechanical parameters | Whole device dimension H*W*D | 2450*2940*350mm |
Whole device net.weight | 430kg | |
Package dimension H*W*D | 1830*2550*320mm | |
Stand pole package dimension H*W*D | 570*3190*510mm | |
Mechanical parameters | Whole device gross weight | 400kg |
Stand pole gross weight | 170kg | |
Start with the Structural Questions
A 98-inch pole-mounted installation places significant loads on the support system. Before content or cabinet colour is discussed, the project team should establish:
- Display weight and centre of gravity
- Pole spacing
- Foundation dimensions
- Local wind-load requirements
- Soil or concrete conditions
- Installation height
- Maintenance access equipment
These items require project-specific engineering. A generic foundation detail should not be applied to every site.
Information for Open Outdoor Spaces
The 98 Inch Pole Mounted Outdoor LCD Display can serve civic plazas, transport forecourts, public parking approaches, event grounds and large campus entrances.
Suitable content includes major directions, emergency messages, public events, traffic changes and facility information. Text must be sized for the actual viewing distance.
Screen Height and Viewing Angle
Mounting the display higher can improve visibility above pedestrians, but it also increases viewing angle and wind exposure. The screen should not be raised simply because the poles allow it.
A site elevation showing the normal viewing point is more useful than selecting a mounting height from a product photograph.
Weather and Thermal Control
The unit combines 2500-nit brightness, IP65 protection and built-in fan cooling. Cable routes should pass through the support structure or another protected path.
The 98 Inch Pole Mounted Outdoor LCD Display is an engineered outdoor installation. Structural design, electrical work and screen maintenance must be planned together before foundation construction begins.
