Built-in Fan Version
Pole Mounted Outdoor Digital Signage 65 Inch 2500 Nits IP65 for Drive Thru Menus
Touch screen:Mesh metal touch/G+G cap touch Surface:Spraying,frosted aluminum Control method:IR controller, Android Windows OS Sensors:Light sensor,temperature sensor
Specifications
- SKU
- ZXTLCD-OUTFHN650P
65 Inch Pole Mounted Drive Thru Menu for Outdoor Ordering Lanes

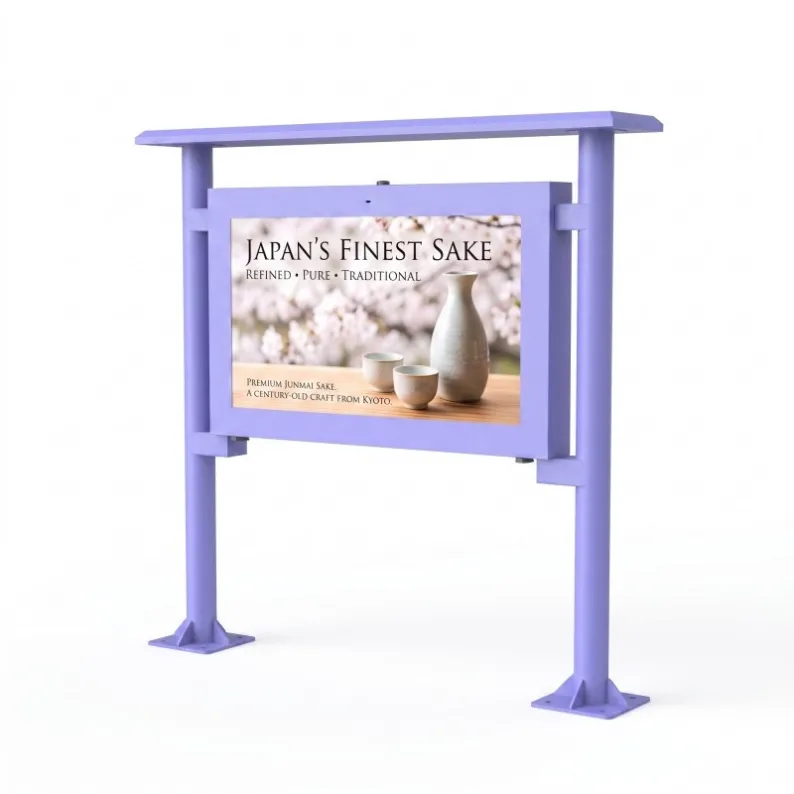

The purple two-post structure shown in the product image gives this 65 Inch Pole Mounted Drive Thru Menu a different footprint from a full-height restaurant menu cabinet. The open space below the screen can simplify cleaning around the installation and reduce the size of the solid structure facing the vehicle lane.
65 Inch Outdoor air-cooled horizontal screen floor-standing column style specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1429*804mm | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤700W | |

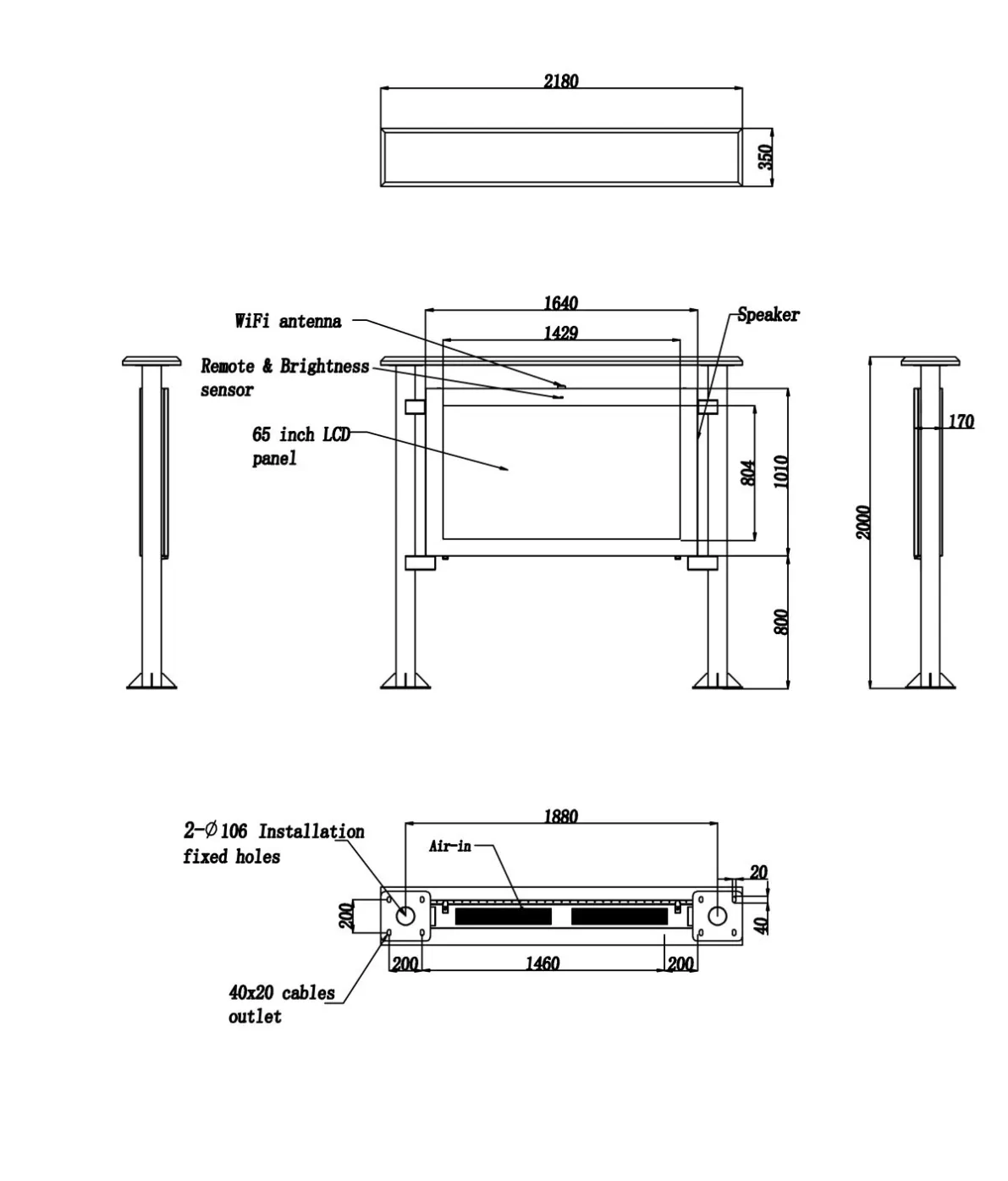

Mechanical parameters | Whole device dimension H*W*D | 2000*2180*350mm |
Whole device net.weight | 190kg | |
Package dimension H*W*D | 1280*1790*320mm | |
Stand pole package dimension H*W*D | 570*2430*510mm | |
Mechanical parameters | Whole device gross weight | 145kg |
Stand pole gross weight | 135kg | |
The Menu Must Be Tested from the Driver’s Seat
Screen height, lane width and vehicle stopping position determine whether prices can be read comfortably. A design reviewed only from directly in front of the unit may fail when viewed through a windscreen at an angle.
Before foundation work, test:
- Headline visibility from the lane entrance
- Price readability at the ordering point
- Screen angle for cars and SUVs
- Clearance from vehicle mirrors
- Position relative to the speaker post
One Screen, One Ordering Sequence
The 65 Inch Pole Mounted Drive Thru Menu should follow the order in which customers decide:
- Core meals
- Sizes or combinations
- Drinks and sides
- Limited-time offers
- Additions or upgrades
Unnecessary animation can slow ordering. Menu transitions should never hide prices while the customer is speaking.
Outdoor Restaurant Conditions
The display provides 2500-nit brightness, IP65 protection and built-in fan cooling. Road dust, vehicle emissions and airborne grease may require more frequent ventilation cleaning than a conventional public display.
The 65 Inch Pole Mounted Drive Thru Menu delivers value through shorter decisions and faster content updates. Its success should be measured at the order lane, not only by how attractive the screen looks in a product photograph.
