Built-in Fan Version
Pole Mounted Outdoor Advertising Kiosk 43 Inch 2500 Nits IP65 for EV Charging Ads
Viewing Angle:178°/178° Max Resolution:1920*1080 Pixel Pitch:0.4845(H)*0.4845 (V) Contrast Ratio:4000:1
Specifications
- SKU
- ZXTLCD-OUTFHN430DB
43 Inch Pole Mounted EV Charging Kiosk for Shared Charging Areas
Large advertising displays are not always suitable for a charging area with only a few bays. This 43 Inch Pole Mounted EV Charging Kiosk provides a compact landscape screen that can communicate with drivers without occupying the footprint of a full-height cabinet.
The product image shows a blue screen enclosure suspended between two dark supports. Its open lower section provides a lighter physical profile and can make the surrounding pavement easier to inspect and clean.
43 Inch Outdoor air-cooled horizontal screen floor-standing column style specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 941*530mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤300W | |

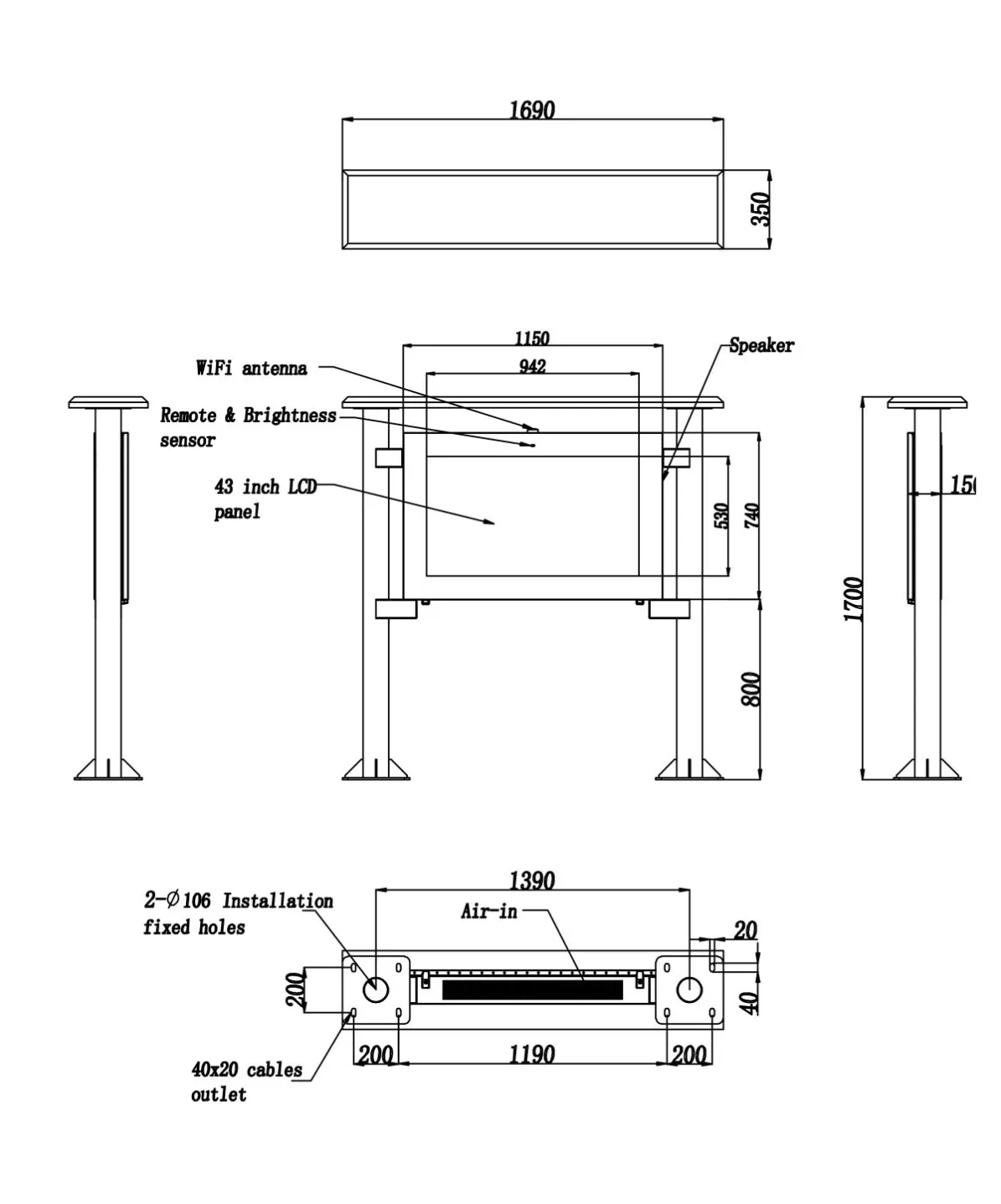

Mechanical parameters | Whole device dimension (H*W*D) | 1700*1690*350mm |
Whole device net.weight | 140kg | |
Package dimension H*W*D | 1010*1300*300mm | |
Stand pole dimension H*W*D | 570*1940*510mm | |
Mechanical parameters | Whole device gross weight(kg) | 95 |
Stand pole gross weight(kg) | 110 | |
Give the Screen a Clear Priority Order
Information should appear according to what a newly arrived driver needs first:
- Charging or payment instructions
- Site-support contact details
- Safety and parking notices
- Directions to nearby amenities
- Commercial promotions
Advertising can support site revenue, but it should not delay access to essential charging information.
Positioning Around Vehicles
The 43 Inch Pole Mounted EV Charging Kiosk should be visible from the normal arrival direction without standing directly beside charging cables. The posts also need protection from vehicle impact where the installation is close to a parking bay.
A site drawing should identify:
- Vehicle approach and reversing paths
- Charging-cable reach
- Pedestrian route
- Screen viewing direction
- Foundation and bollard positions
- Power and network entry points
Outdoor Configuration
The display provides 2500-nit brightness, IP65 protection and built-in fan cooling. Ventilation openings must remain clear, especially in dusty outdoor parking environments.
The 43 Inch Pole Mounted EV Charging Kiosk is most effective as a shared information point for several bays, not as a substitute for the operational controls on the individual chargers.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
