Built-in Fan Version
Outdoor LCD Display for 32 Inch Retail Windows, 2500 Nits IP65 Fan Cooling
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVW320W
32 Inch Outdoor LCD Display for Exterior Retail Windows
The product image shows a narrow dark-green enclosure surrounding a compact portrait screen. Its restrained frame and small physical format are noticeably different from the large floor-standing kiosks used in outdoor plazas.
This 32 Inch Outdoor LCD Display is intended for retail information viewed from relatively close range. The listed specifications include 2500-nit brightness, IP65 protection and built-in fan cooling.
It can support exterior storefront campaigns without requiring the architectural space of a 55-, 65- or 75-inch advertising cabinet.
32 Inch Outdoor portrait displays wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size（mm） | 697*392 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤230W | |
Mechanical Para | Machine seize H*W*D（mm） | 960*560*150 |
Net weight（Kg） | 45 | |
Package size H*W*D（mm） | 830*1100*300 | |
Gross weight(Kg) | 65 | |
A Compact Screen With a Specific Retail Role
A 32-inch display works best when customers pass close to an outdoor-facing window, service counter or entrance. It is not designed to behave like a distant roadside billboard.
Suitable exterior applications include:
- Street-facing retail windows
- Outdoor restaurant pickup points
- Exterior shop entrances
- Open-air shopping streets
- Outdoor ticket counters
- Retail collection areas
- Drive-up service windows
The display can show opening hours, a single product promotion, pickup instructions, pricing or a short customer message.
Trying to fit an entire product catalog onto a 32-inch screen would reduce text and images to an impractical size.
How the Narrow Cabinet Affects Placement
The product image shows a slim, dark-green border with no visually dominant lower base. This gives the screen a relatively discreet appearance and may help it integrate into a small storefront or custom outdoor fixture.

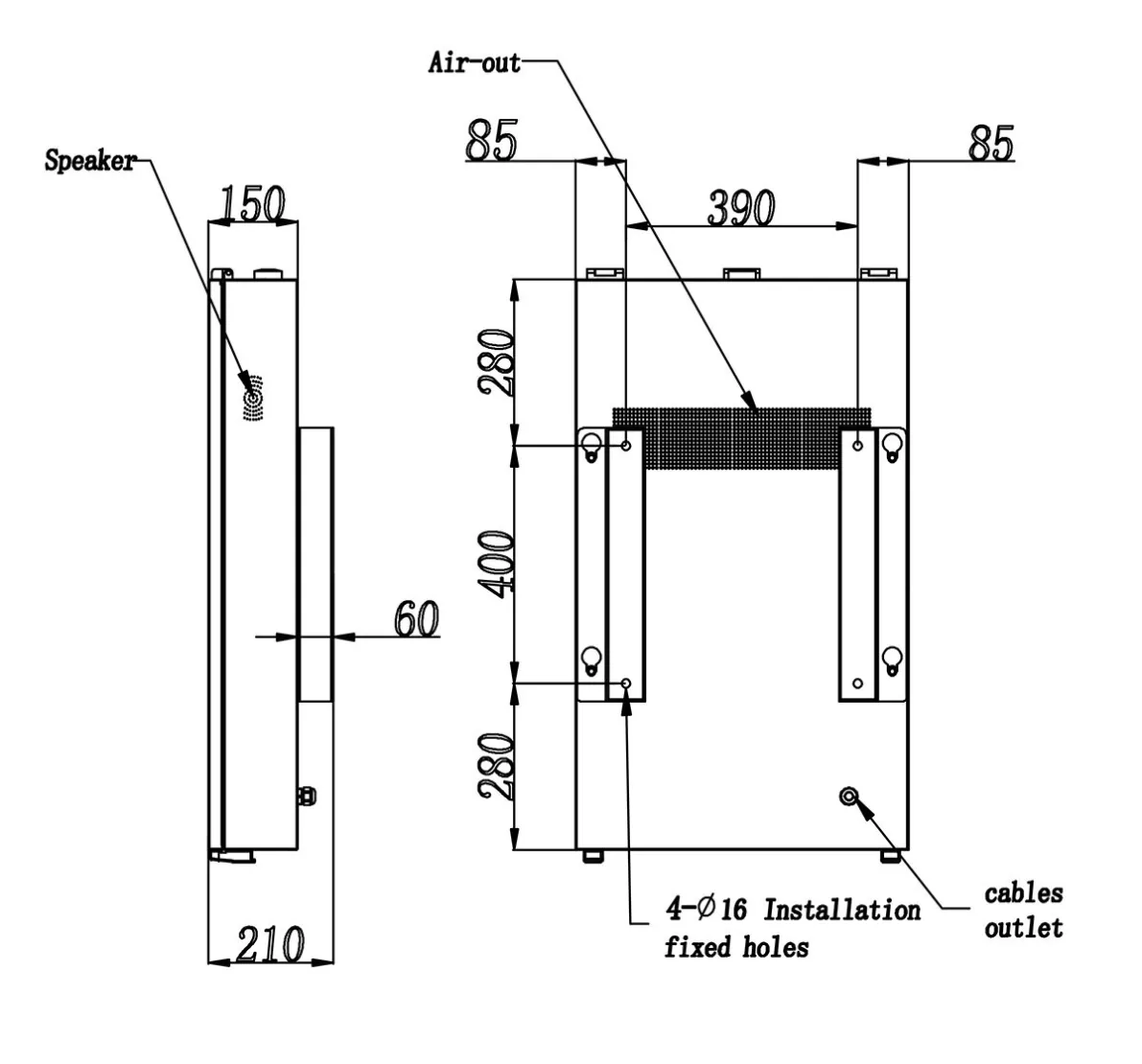

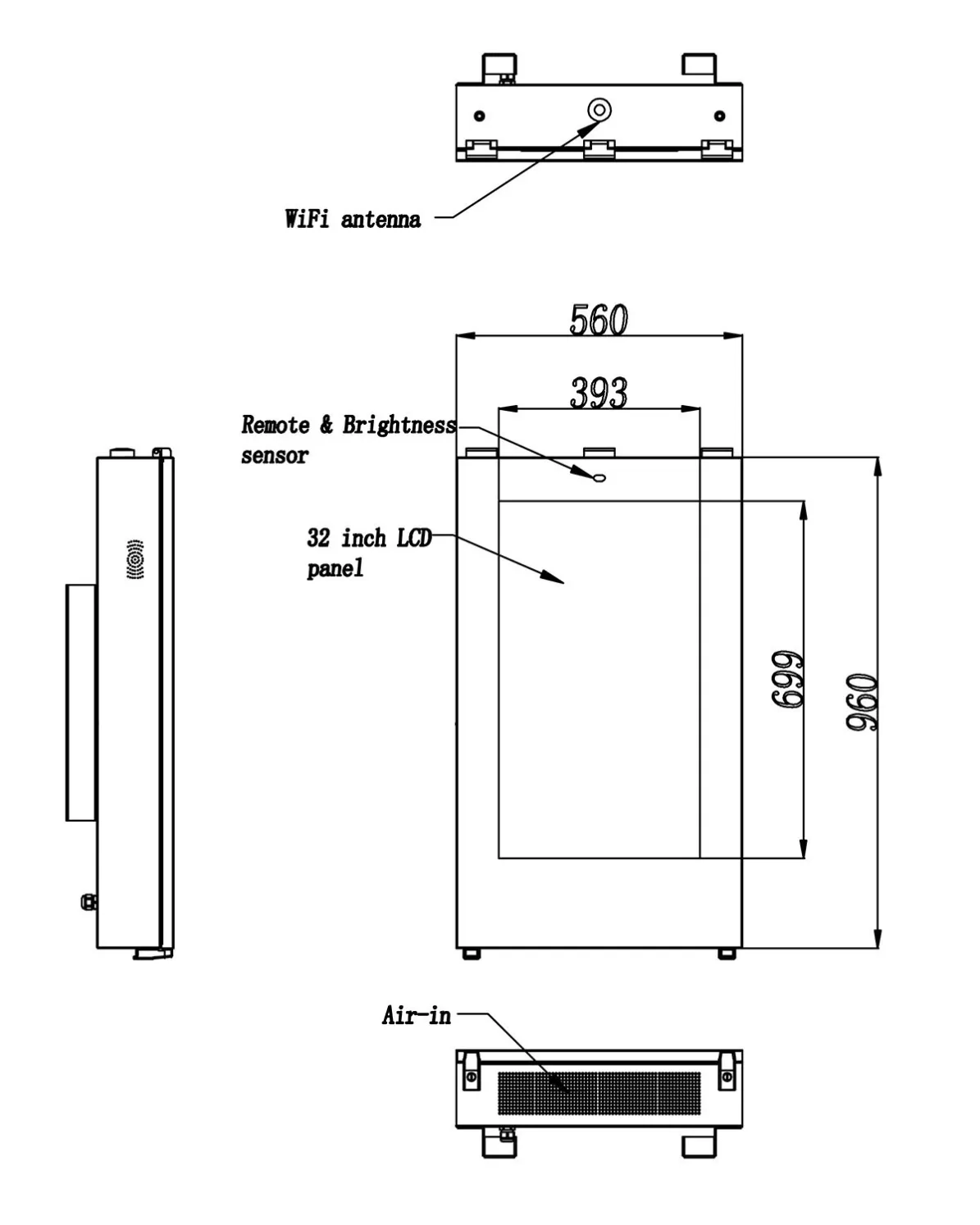

The thumbnail alone does not confirm whether the final cabinet is wall-mounted, embedded or supported by another structure. The technical drawing must be used to establish the mounting points, depth, weight and service access.
The dark-green finish shown in the image may suit an outdoor lifestyle brand, landscaped retail site or environmental campaign. Final color and coating availability should be confirmed before production.
2500-Nit Brightness Near Exterior Glass
Retail-window visibility is influenced by both daylight and glass reflections. A standard indoor panel may appear clear from inside the store but lose contrast when viewed from the pavement.
The 2500-nit specification provides a higher-brightness platform for exterior viewing.
Even so, the screen position should be assessed for:
- Direct sunlight
- Reflections from opposite buildings
- Tinted storefront glass
- Distance between the screen and window
- Morning and afternoon sun angles
- Nighttime glare
If the unit is placed behind another pane of glass, the additional heat and optical effect of that glass should be included in the project review.
Content for a 32-Inch Portrait Screen
Outdoor retail content should be prepared specifically for the available area. A practical layout normally includes one clear visual, a short headline and one action.
Small disclaimers, complex price tables and multiple QR codes will make the screen harder to understand. If detailed information is necessary, the display can direct customers to a website or provide a single clearly labelled QR code.
Product photographs should use strong contrast. Dark items against a dark background may disappear under exterior reflections even when the panel itself is bright.
IP65 Protection and Fan Cooling
The IP65-rated enclosure helps prevent dust ingress and protects against water jets when correctly installed. The protection level depends on cabinet assembly, sealed cable entries and proper installation.
The built-in fan system manages heat generated by the high-brightness panel and electronics. Airflow paths must remain clear if the display is incorporated into another retail structure.
Maintenance access should be planned before decorative panels or storefront finishes are completed. Staff may need to inspect seals, clean the display surface and check the cooling system.
A Different Role From Large Outdoor Kiosks
The value of the 32 Inch Outdoor LCD Display comes from putting focused information close to the customer. It uses less visual and architectural space than a large freestanding cabinet while retaining the brightness and enclosure protection required for outdoor-facing retail communication.
For small exterior storefronts, service windows and outdoor collection points, the 32 Inch Outdoor LCD Display provides a more appropriate scale than an oversized advertising kiosk.
