Built-in Fan Version
Outdoor LCD Display 75 Inch Horizontal Fan Cooling for Smart City Media
Control method:IR controller, Android Windows OS Sensors:Light sensor,temperature sensor Temperature Control System:Precise air conditioner Front Panel:Toughened glass or acrylic,High transparency
Specifications
- SKU
- ZXTLCD-OUTFHN750PG
75 Inch Smart City Outdoor LCD Display for District-Level Information

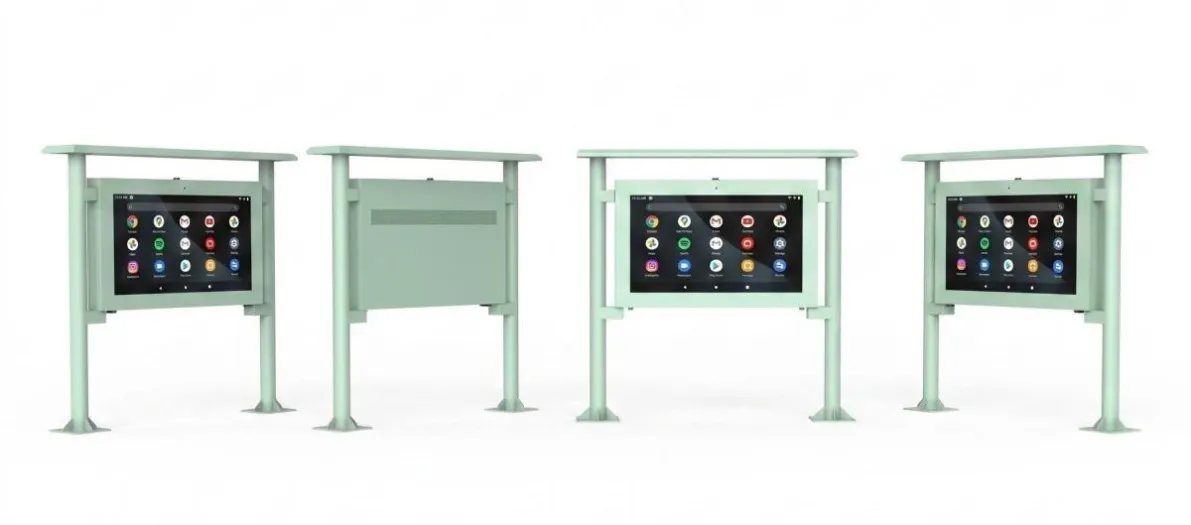

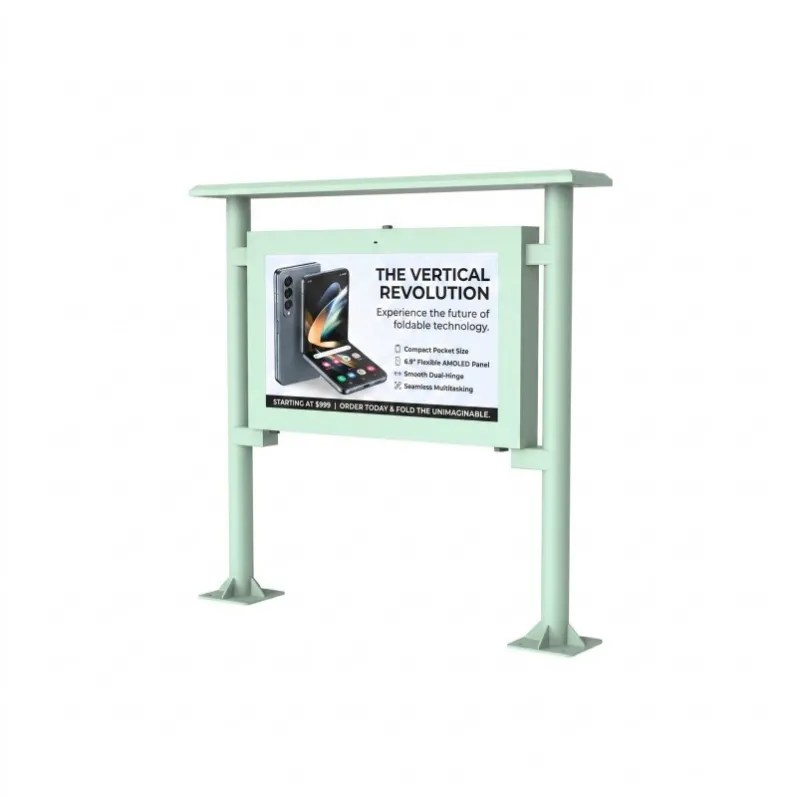

The screen shown in the product image is installed between two turquoise posts, creating a wide outdoor information structure. This 75 Inch Smart City Outdoor LCD Display is suited to maps and civic content that needs more horizontal room than a portrait kiosk can provide.
Its most useful role is not displaying generic city branding. It should explain the surrounding district and help people make a decision at that location.
75 Inch Outdoor air-cooled horizontal screen floor-standing column style specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1651*929mm | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤860W | |

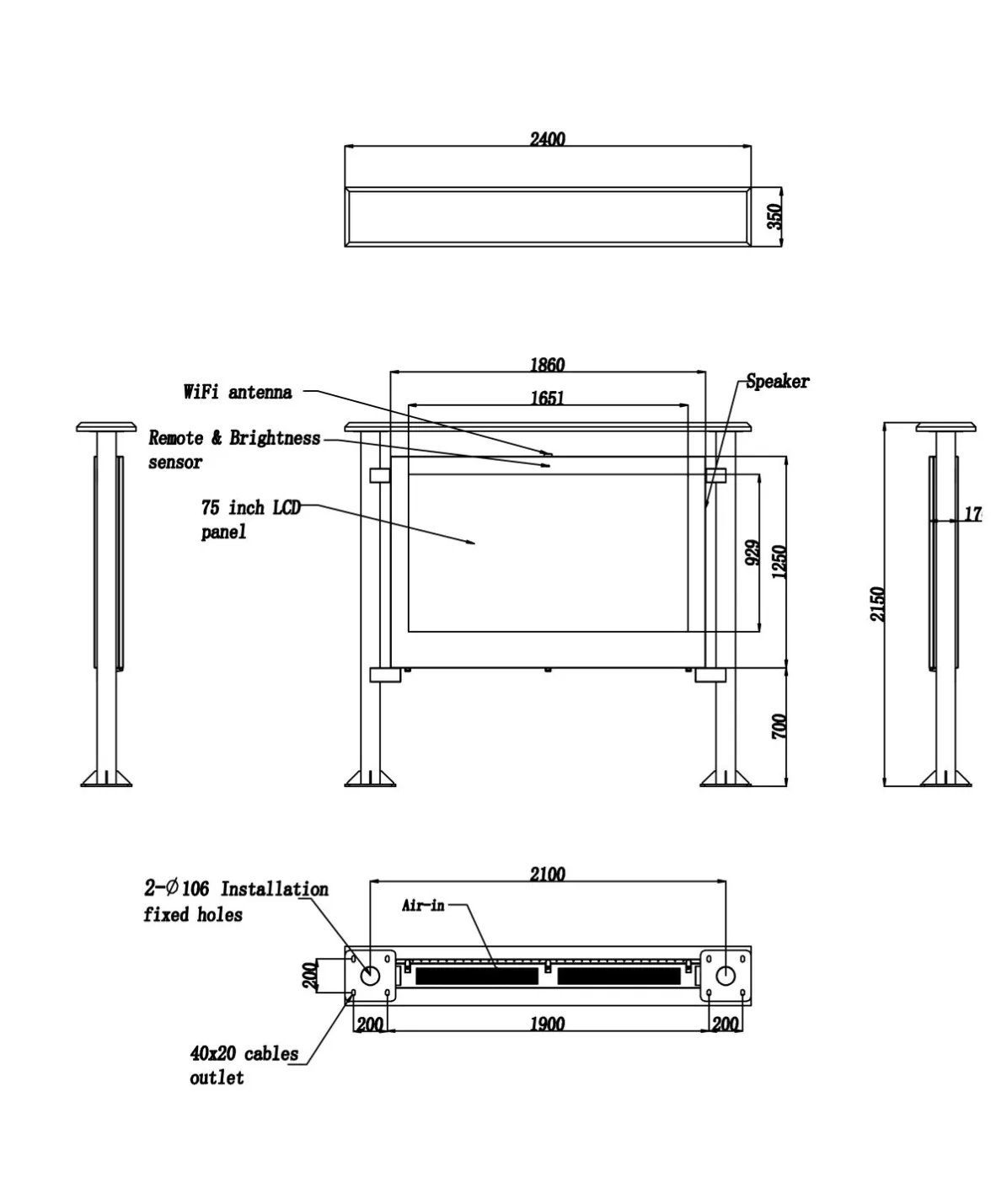

Mechanical parameters | Whole device dimension H*W*D | 2150*2400*350mm |
Whole device net.weight | 246kg | |
Package dimension H*W*D | 1520*2010*320mm | |
Stand pole package dimension H*W*D | 570*2650*510mm | |
Mechanical parameters | Whole device gross weight | 210kg |
Stand pole gross weight | 140kg | |
Possible Outdoor Locations
The 75 Inch Smart City Outdoor LCD Display can support:
- Civic plazas
- Public-park entrances
- Pedestrian districts
- Outdoor transport connections
- Municipal-service forecourts
- Large campus routes
Touch capability should only be advertised when the ordered configuration includes the necessary hardware and software.
Network Operation and Content Authority
A smart-city screen needs device monitoring, scheduled updates and clear publishing permissions. Emergency or safety information should override normal civic campaigns.
The enclosure uses IP65 protection and fan cooling. Ventilation, foundation design and concealed cable routing must be incorporated into the site plan.
The 75 Inch Smart City Outdoor LCD Display becomes valuable when every installation carries information specific to its immediate surroundings rather than duplicating the same citywide playlist.
