Outdoor LCD Display 65 Inch Vertical Air Conditioning for Retail Windows
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVP650BP
65 Inch Outdoor LCD Display for Retail Windows
A street-facing promotion has to compete with daylight, vehicle movement and neighbouring storefronts. This 65 Inch Outdoor LCD Display for Retail Windows is intended for exterior or weather-exposed positions where an indoor commercial screen would not provide sufficient protection or daylight visibility.

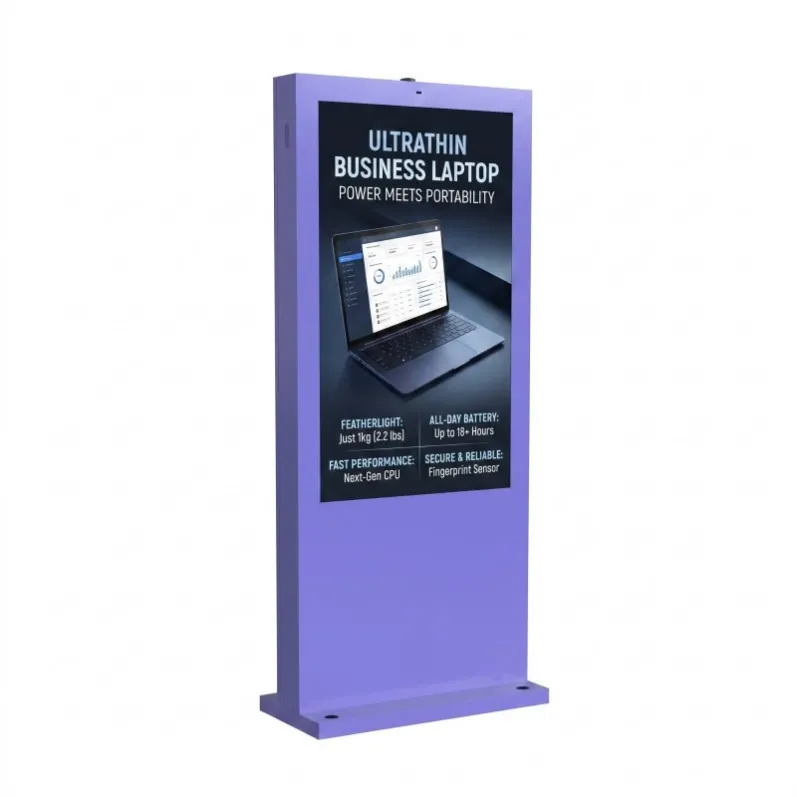

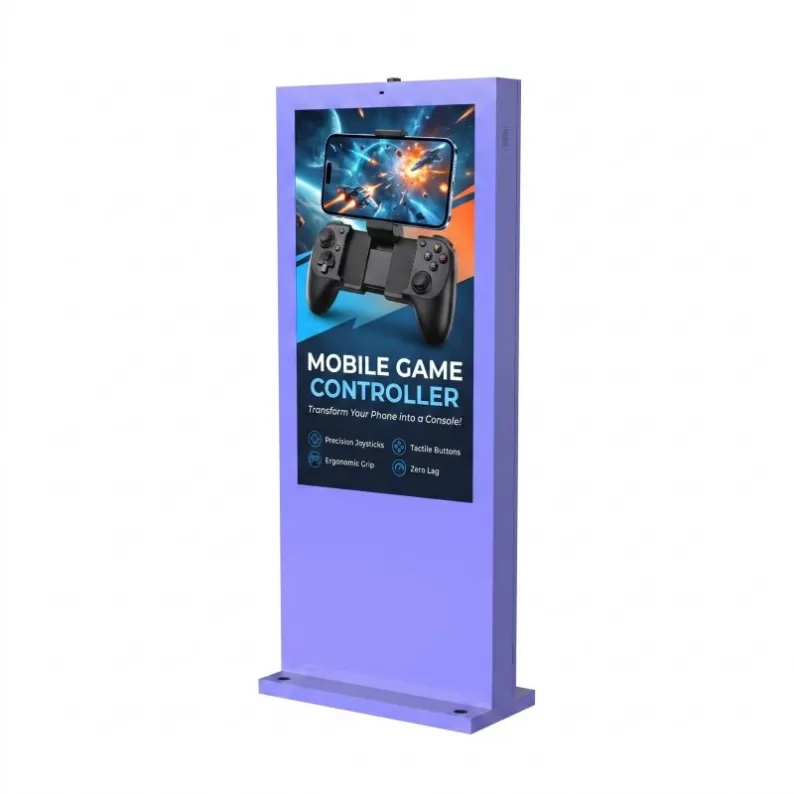

The image shows a narrow purple upright cabinet with a portrait display. Its straight sides and compact floor area allow it to sit near an exterior shopfront without looking like a wide roadside billboard.
65 Inch Outdoor floor standing digital signage with air conditioner specification-B style | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1429*804mm | |
Display ration | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

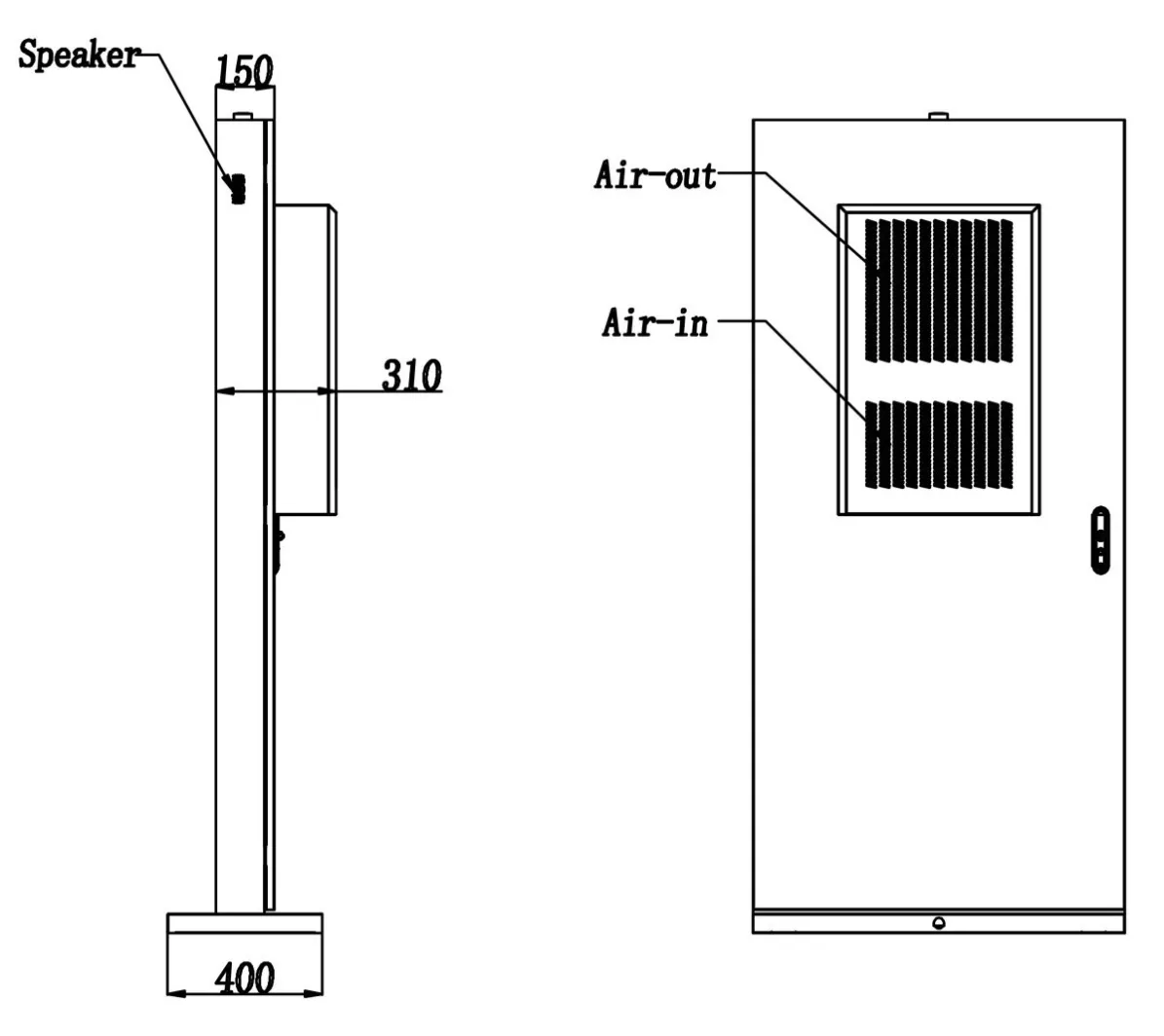

Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 5%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 1130W | |

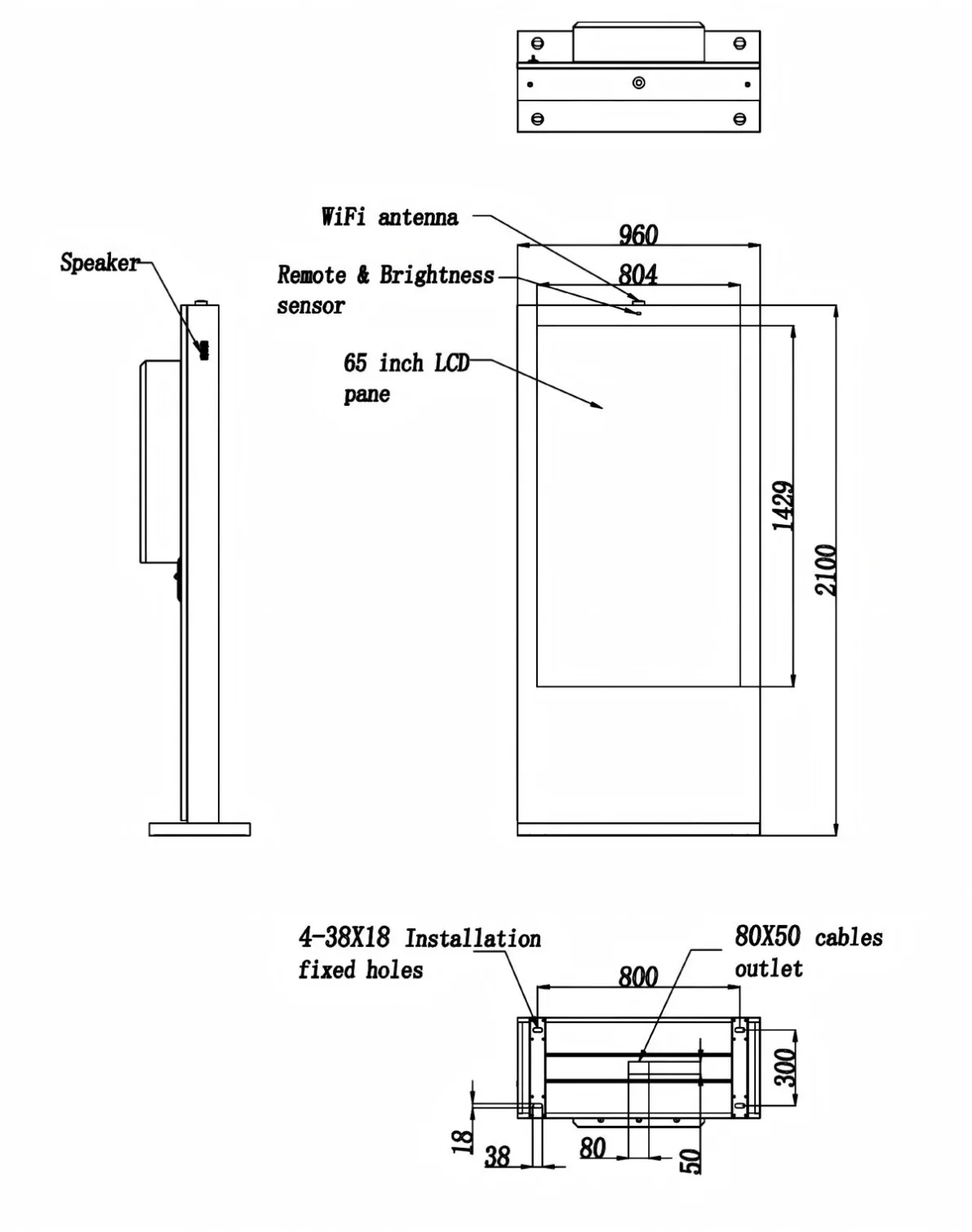

Mechanical Para | Whole device dimension H*W*D | 2100*960*150mm |
Whole device net.weight | 150kg | |
Package dimension H*W*D | Machine 1190*2450*470mm AC1030*670*470mm | |
Gross packing | Machine 160kg AC45kg | |
Begin with the Customer’s Walking Direction
Screen placement should follow pedestrian movement rather than simply filling an empty space. A display parallel to the storefront may be easy to install but difficult to notice. Turning it slightly towards the main approach can give shoppers more time to see the message.
Retailers can use the screen for:
- New-product launches
- Seasonal campaign posters
- Limited-time pricing
- Store opening information
- Outdoor pickup directions
- Brand videos designed for portrait playback
A single strong product image usually performs better than a collage of many small items.
Daylight Visibility Outside the Glass
The 65 Inch Outdoor LCD Display for Retail Windows is designed for bright outdoor communication. This is different from placing a high-brightness indoor screen behind a closed window: the outdoor unit must also deal with dust, moisture and changing environmental temperature.
Store teams should test content at the busiest viewing time. Colours that look rich on a desktop monitor may appear weaker outdoors, while small promotional text can disappear at normal walking distance.
Why Air Conditioning Matters
The backend identifies this model as an air-conditioned version. Controlled cooling helps manage heat inside the sealed outdoor enclosure during extended commercial operation.
The project team should review direct-sun exposure, maximum summer temperature and screen operating schedule before production. A unit that runs twelve hours in a shaded exterior arcade has a different thermal load from one operating continuously beside a west-facing storefront.
Keep Campaign Updates Practical
The content system should match the retailer’s real workflow. A single store may only require scheduled playback from a local player. A chain with many exterior screens will benefit from remote publishing, device status reporting and permission control.
The 65 Inch Outdoor LCD Display for Retail Windows can attract attention, but the screen should not repeat the same campaign for months. Coordinating it with current stock, store events and seasonal launches gives customers a reason to notice it again.
Before ordering, provide the cabinet color, screen orientation, player platform, network method, installation drawings and expected operating temperature.
