Built-in Fan Version
Outdoor LCD Display 55 Inch Horizontal Fan Cooling for Mall Promotions
Resolution:1920*1080 / 3840*2160 Operating system:Android / Windows os Back:Cold-rolled sheet metal board Frame:Unibody Aluminum
Specifications
- SKU
- ZXTLCD-OUTFHW550MB

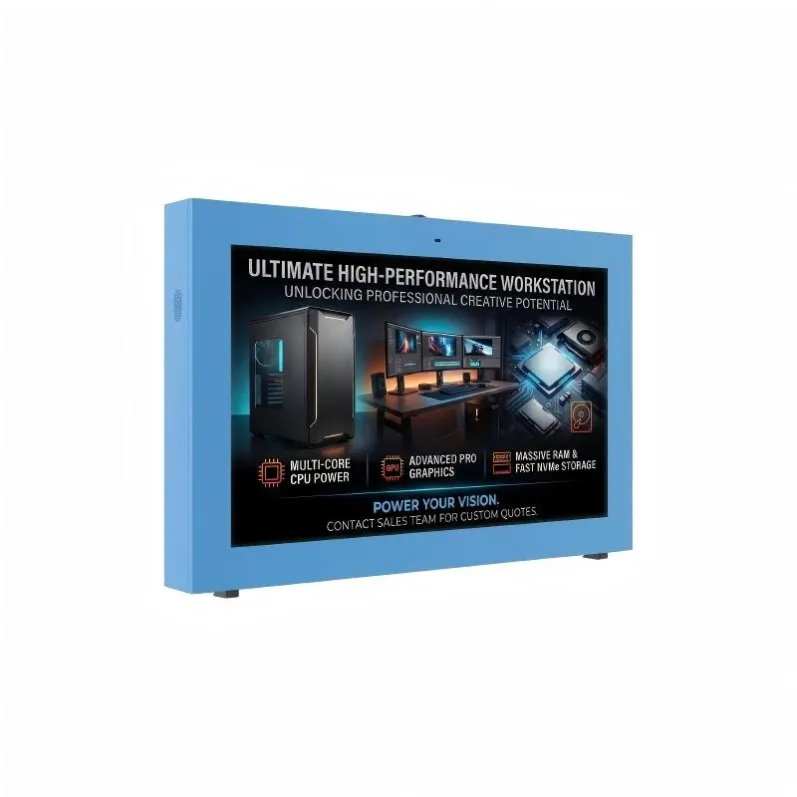

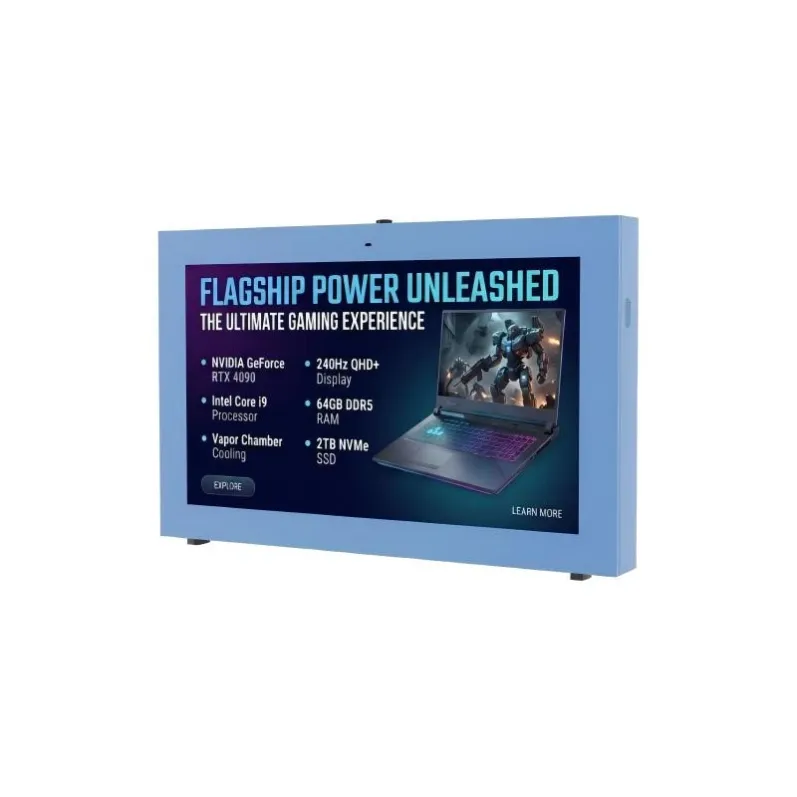

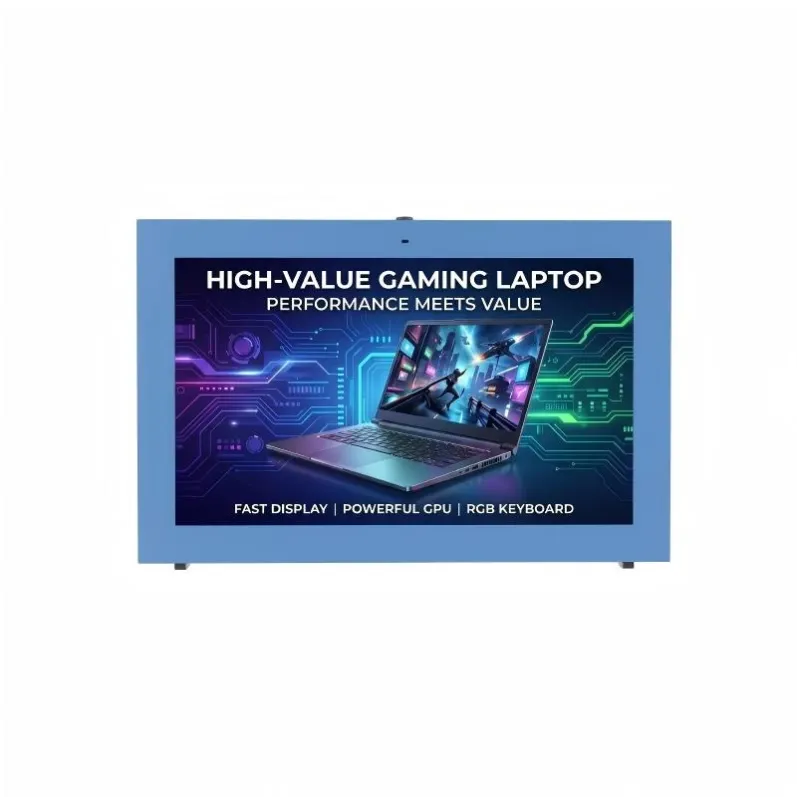

Outdoor LCD Display 55 Inch Horizontal Fan Cooling for Mall Promotions
55 Inch Horizontal Outdoor LCD Display for Shopping Centers
Mall promotions frequently use landscape artwork: event banners, cinema schedules, restaurant combinations and paired product images. A horizontal display can present this material more naturally than a portrait kiosk, especially above an entrance or inside a wide media structure.
This 55 Inch Horizontal Outdoor LCD Display is available with 1920 × 1080 or 3840 × 2160 resolution. Android and Windows operating systems are offered. Its enclosure uses a cold-rolled sheet-metal back, a unibody aluminum frame and fan cooling.
55 Inch Outdoor horizontal wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |

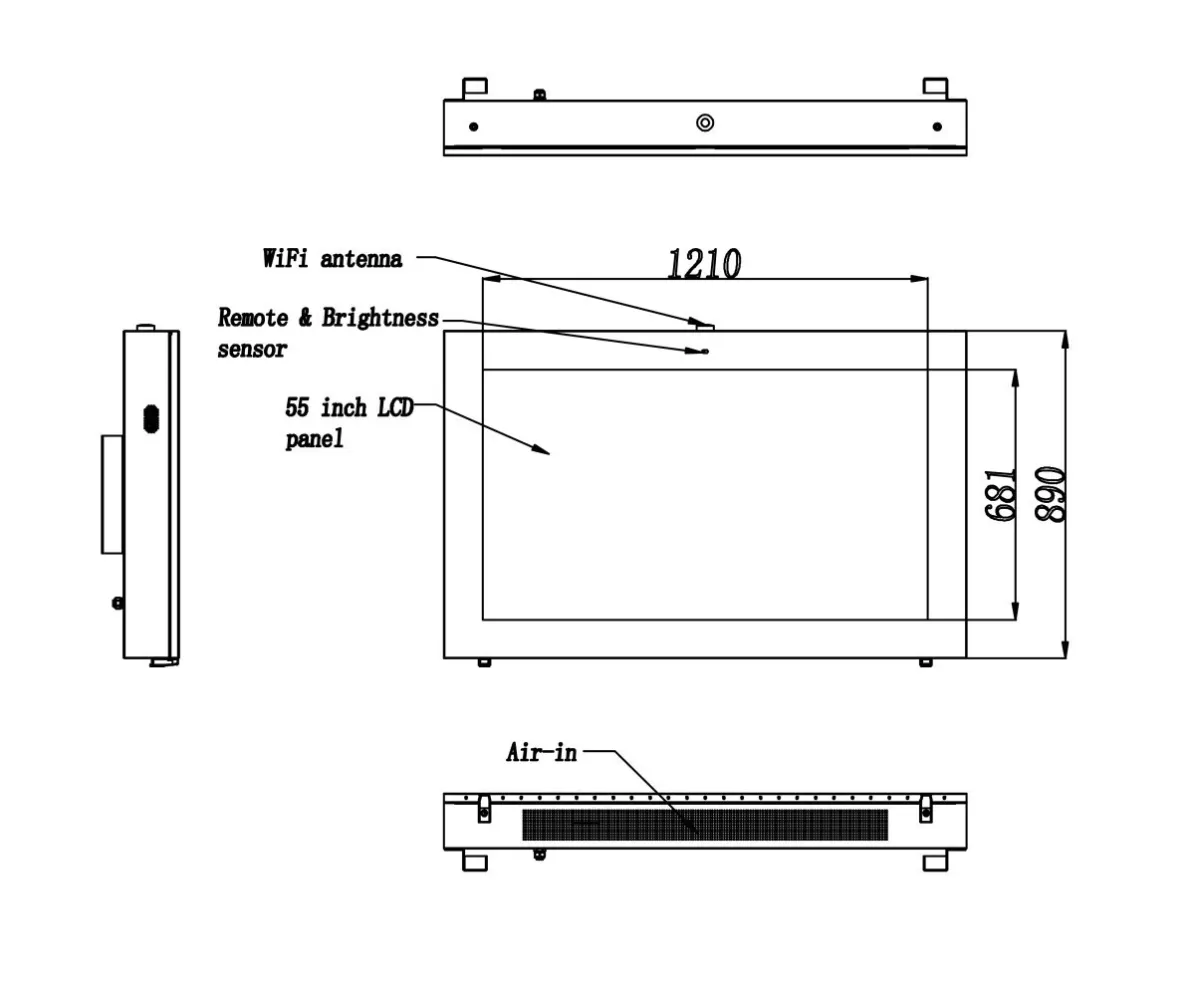

Display size(mm) | 1210*680 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | below 40℃ ~ + 55℃ |
Working humidity | 5% ~ 95% | |
Working Voltage | AC 100 ~240v , 50Hz | |
Max Power Consumption | 280W | |

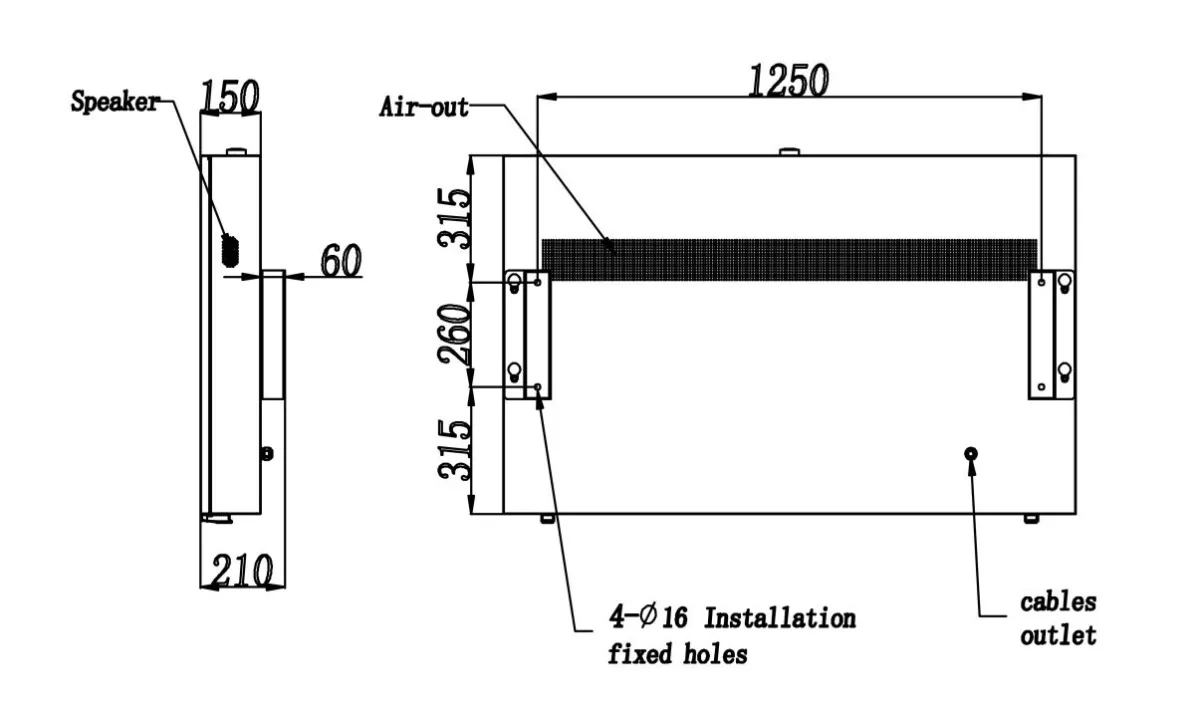

Mechanical Para | Machine seize H*W*D(mm) | 1420*890*150 |
Net weight(Kg) | 85 | |
Package size H*W*D(mm) | 1160*1570*300 | |
Gross weight(Kg) | 115 | |
Make the Width Work for the Campaign
Landscape orientation supports two-column layouts and directional promotions. A campaign can place the main image on one side and the event date, store location or offer on the other.
The extra width should create clarity. Filling the screen with many tenant promotions will make every item smaller and reduce its value to passing shoppers.
A main message, one supporting image and a clear next action are usually enough for an entrance display. Screens near waiting or dining areas can carry longer campaign sequences because visitors remain there for more time.
Full HD and 4K Applications
Full HD supports standard promotional video and advertising graphics. A 4K option may be useful when the audience stands close to the screen, the content contains detailed luxury-product imagery or the mall already produces UHD media.
The player must support the selected resolution reliably. Installing a 4K panel while continuing to use low-resolution files will not improve the campaign.
Mall management should issue content specifications to tenants. Correct dimensions, file formats and maximum video length reduce preparation work before each campaign is published.

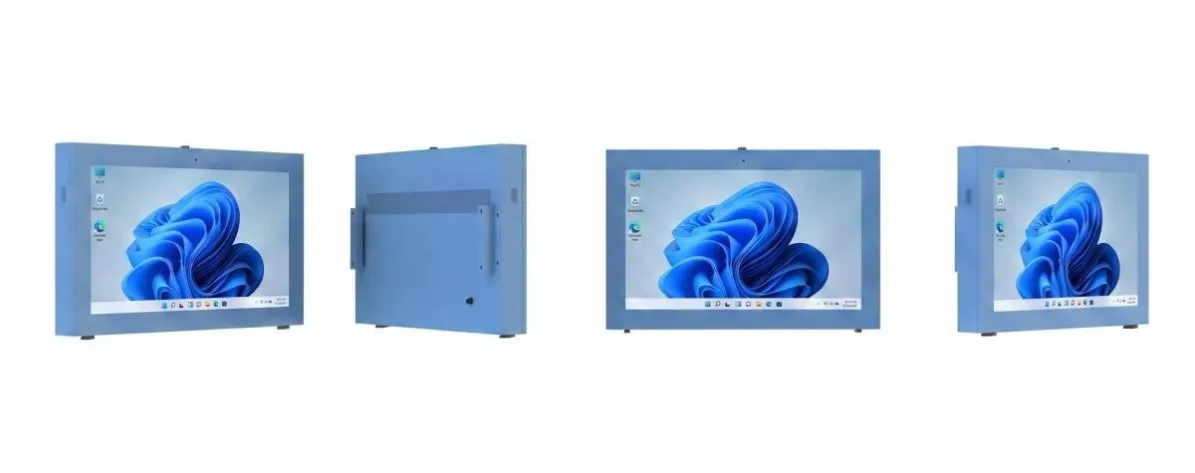

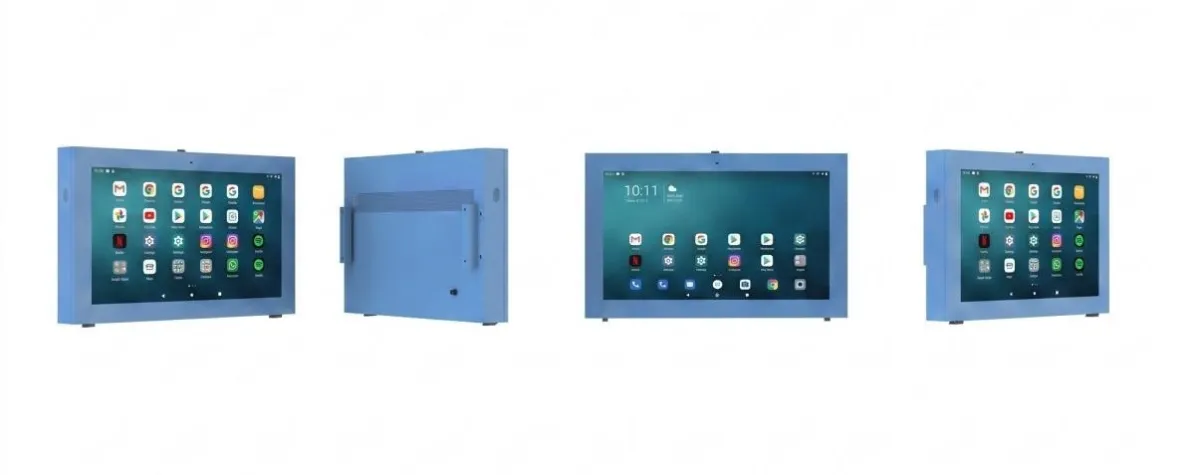

Android or Windows Operation
Android can provide scheduled playback and remote content distribution in a focused digital-signage environment. Windows may suit malls using an existing application, dashboard or enterprise software platform.
The building IT team should review network access, security updates and remote-support requirements. The operating system should follow the software and management needs rather than being selected only from the hardware specification.
Approved media should remain stored locally so the screen continues playing during a temporary network interruption.
Cooling and Access Inside the Media Structure
The unibody aluminum frame provides a clean outer edge. The cold-rolled rear panel supports the enclosure and internal components.
Fan cooling requires open intake and exhaust routes. Architectural cladding must not cover these areas. Filters, fans, the power supply and player should be reachable without dismantling the complete installation.
Shopping centers may only allow technical work outside opening hours. Straightforward service access can reduce labor time and avoid repeated disruption to stores near the display.
Managing Tenant Campaigns
A 55 Inch Horizontal Outdoor LCD Display can serve one main tenant or form part of a mall-wide advertising network. Central scheduling helps management coordinate seasonal campaigns and allocate playback time.
User permissions should separate mall-controlled content from tenant submissions. Approval deadlines and artwork requirements also need to be clear before the network launches.
For production, supply the selected resolution, operating system, mounting drawing, network method and daily schedule. The 55 Inch Horizontal Outdoor LCD Display performs best when the campaign is designed around its landscape format instead of being adapted from a portrait poster at the last moment.
