Built-in Fan Version
Outdoor Digital Signage for 75 Inch Mall Promotions, 2500 Nits IP65 Fan Cooling
Protection Grade:IP65 Color:16.7M Input Voltage:AC100~240V 50 /60 HZ
Specifications
- SKU
- ZXTLCD-OUTFHK750W
Outdoor Digital Signage for 75 Inch Mall Promotions, 2500 Nits IP65 Fan Cooling
75 Inch Outdoor Digital Signage for Mall Promotions
Mall entrances, external walkways and semi-outdoor shopping areas create difficult display conditions. Campaign content must remain visible during bright daytime periods while also fitting into a busy architectural environment. This 75 inch outdoor digital signage is designed for large-format promotional communication with 2500-nit brightness, IP65 protection and fan cooling.
The display supports 16.7 million colors and an AC100–240V, 50/60Hz input range. These characteristics make it suitable for shopping-center projects serving different markets and campaign requirements.
75 Inch Horizontal-screen Horizontal-style Digital Signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1651*929mm | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤860w | |

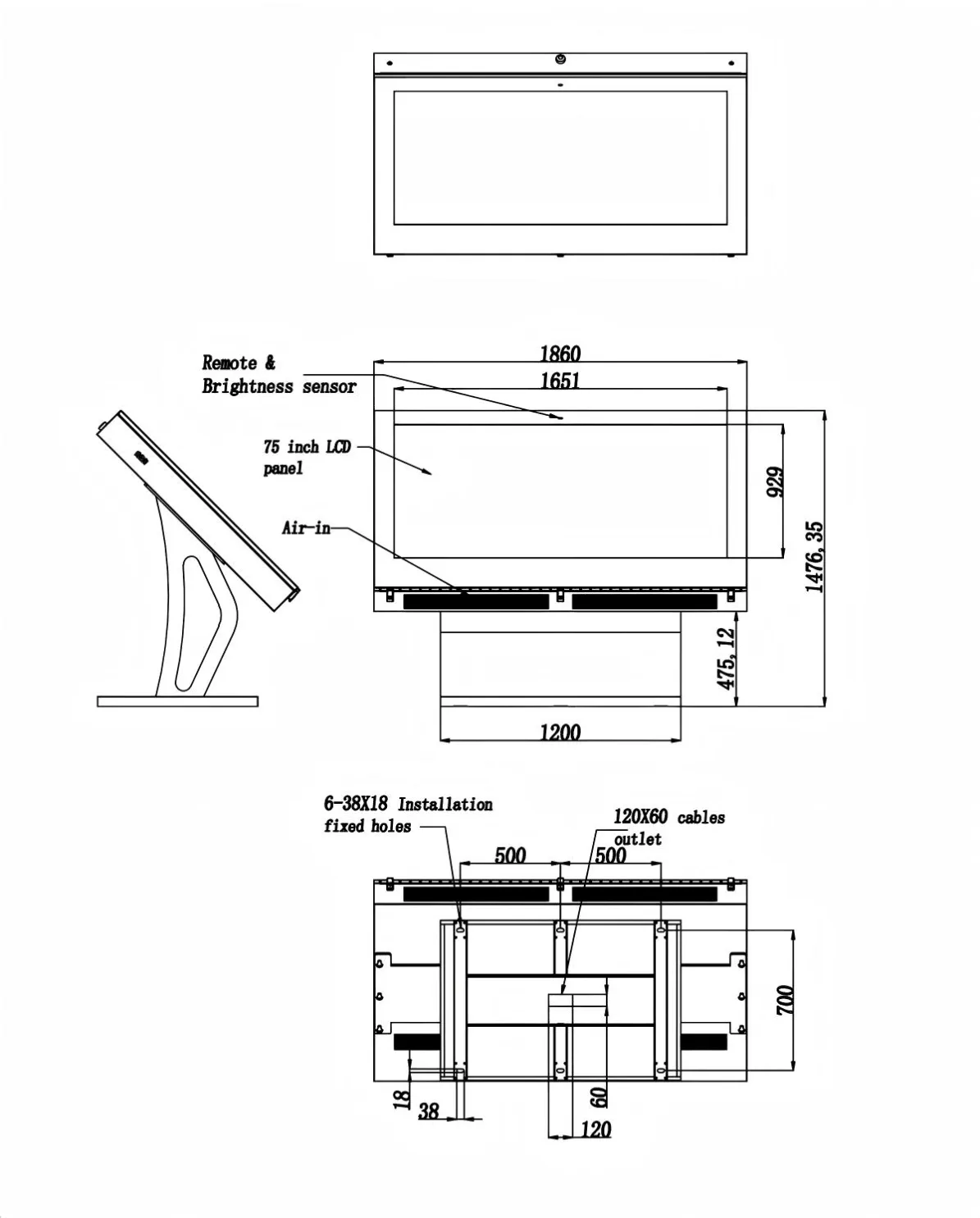

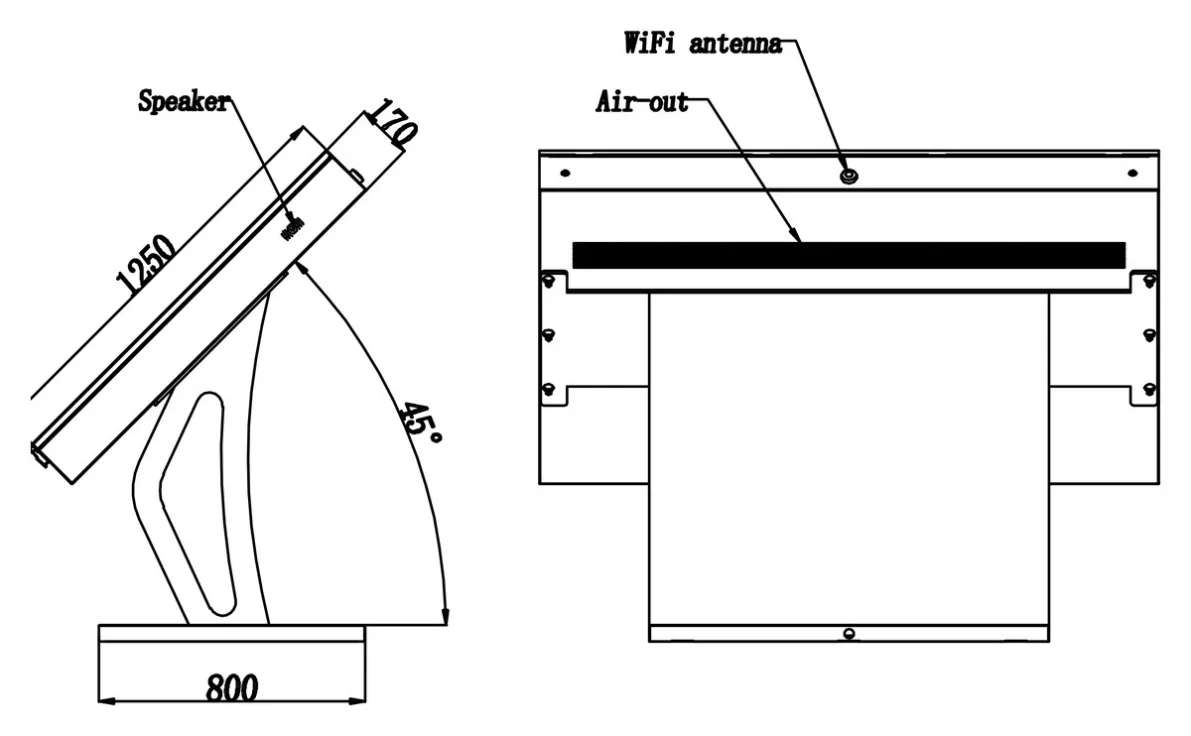

Mechanical parameters | Machine size(H*W*D) | 1860*1250*170 |
Net machine weight | 310kg | |
Package size(H*W*D)(mm) | 1710*2010*1150 | |
Package weight | 370kg | |
Where a 75-Inch Screen Fits in a Mall Campaign
The 75-inch format occupies a useful position between compact directory screens and very large outdoor billboards. It can support full-body fashion images, restaurant promotions, event announcements and branded videos without requiring the installation space of a 98-inch display.
Potential locations include:
Main shopping-center entrances;
External restaurant zones;
Covered pedestrian walkways;
Car-park transition areas;
Event plazas;
Street-facing promotional points.
The screen position should be selected according to pedestrian direction rather than simply placing it against an available wall. Content is more effective when viewers approach the display naturally and can see the main message without turning away from their route.
Color Planning for Retail Advertising
The 16.7-million-color specification supports commercial images, motion graphics and video. Nevertheless, artwork created for websites or indoor LED walls should not automatically be reused.
Outdoor mall content needs stronger contrast and larger typography. Fine details may disappear when viewers are several meters away. Promotional prices, dates and store locations should remain on screen long enough to be understood while walking.
The content team should test campaigns on the actual display before launch. This is particularly important for luxury-brand artwork containing dark backgrounds or subtle tones.
Cooling Under Long Operating Schedules
Shopping centers commonly run digital signs for extended hours. High-brightness panels also produce more internal heat than standard indoor displays. Fan-assisted cooling helps move heat away from the screen and electronic components.
The site team should leave sufficient clearance around the ventilation system. Filters and fan assemblies should be included in the preventive maintenance schedule, especially in locations exposed to traffic dust or seasonal pollen.
IP65 protection helps protect the enclosure from dust and water, but cable entries, mounting joints and site-made openings must also be sealed correctly. The completed installation should be checked rather than relying only on the enclosure rating.
Campaign Changes and Tenant Coordination
A 75 inch outdoor digital signage unit may serve multiple mall tenants. Content scheduling should therefore account for campaign priority, playback duration and seasonal changes.
For one display, local content updates may be sufficient. For multiple screens, a networked CMS can reduce manual work and maintain consistent publishing dates. Shopping-center management should determine who can upload media, who approves it and how urgent notices override normal advertising.
Ordering for a Specific Mall Location
Provide the proposed location, screen orientation, daily operating hours, sunlight conditions and preferred control system when requesting a configuration.
Custom enclosure colors may help the unit match the architecture or mall identity. The buyer should also confirm installation access, power routing and whether maintenance can take place without blocking a major entrance.
With the correct placement and campaign design, this 75 inch outdoor digital signage becomes a practical medium for tenant promotions, seasonal events and visitor communication.
