Built-in Fan Version
Outdoor Digital Signage 75 Inch Vertical Fan Cooling for Retail Windows
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP750B
Outdoor Digital Signage 75 Inch Vertical Fan Cooling for Retail Windows
75 Inch Vertical Outdoor Digital Signage for Exterior Retail Windows
The product image presents a tall portrait cabinet with a light-colored frame and a defined freestanding base. Its appearance is closer to a permanent outdoor retail fixture than a conventional indoor digital poster.
This 75 Inch Vertical Outdoor Digital Signage model is specified with 2500-nit brightness, IP65 protection and built-in fan cooling. It is suited to exterior storefronts, open-air shopping streets and retail windows viewed from outdoor pedestrian areas.
75 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1651*929 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

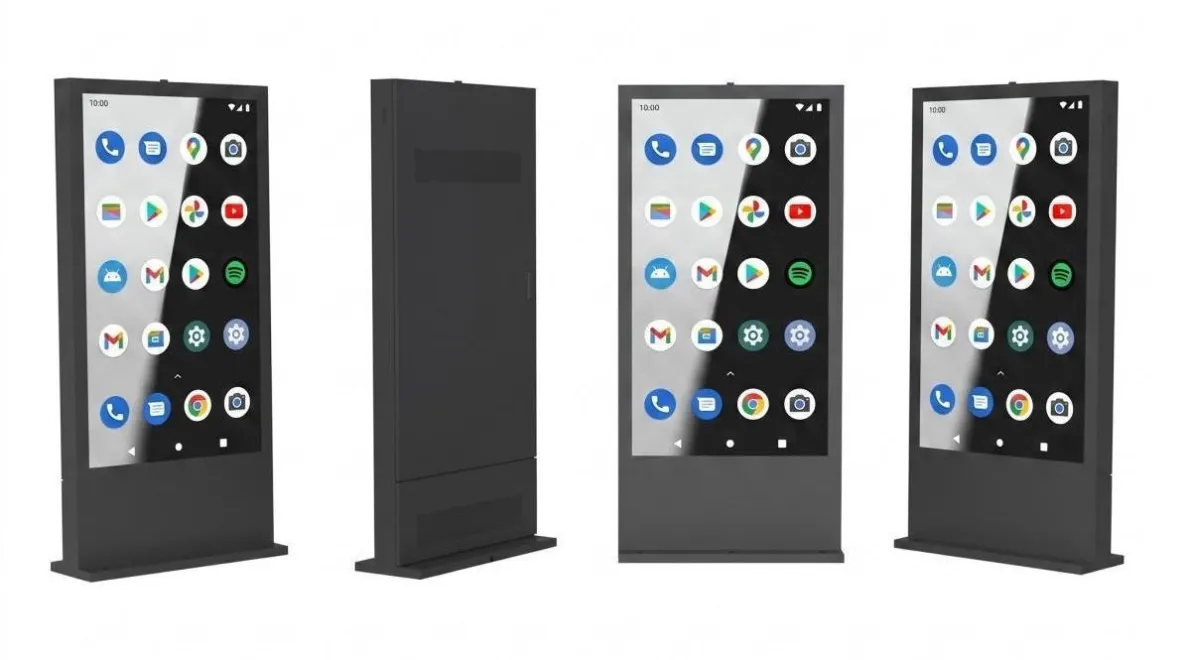

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

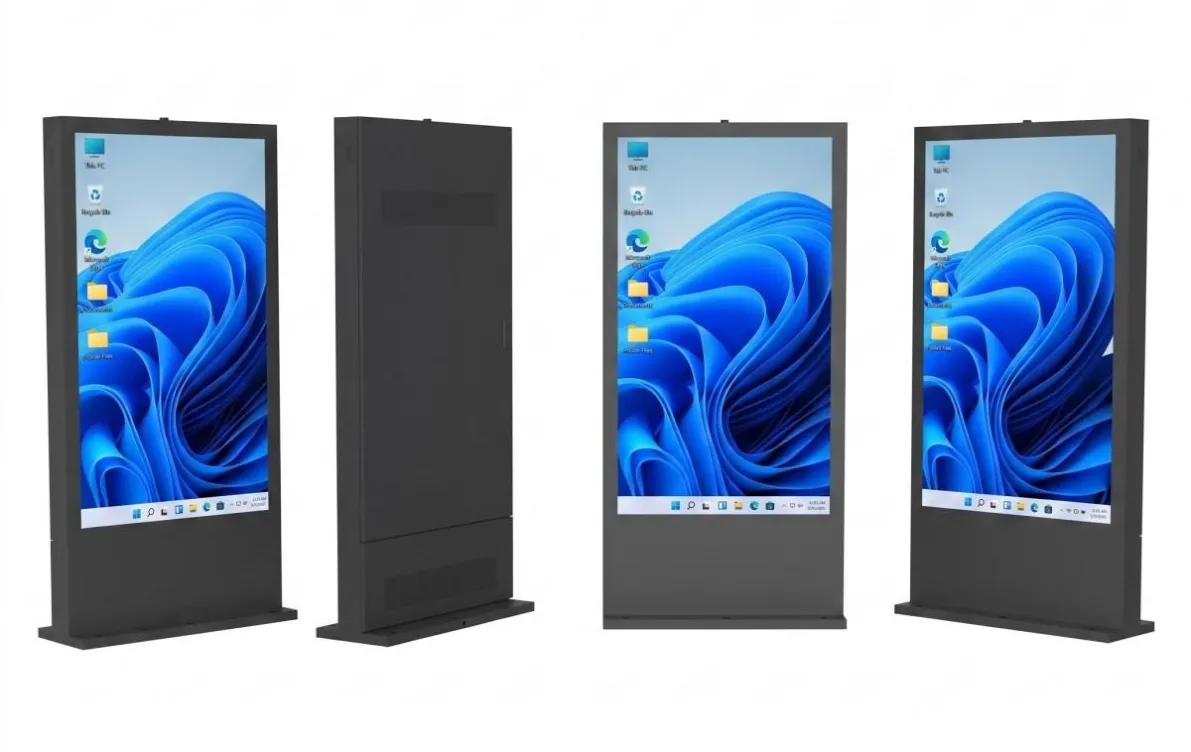

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

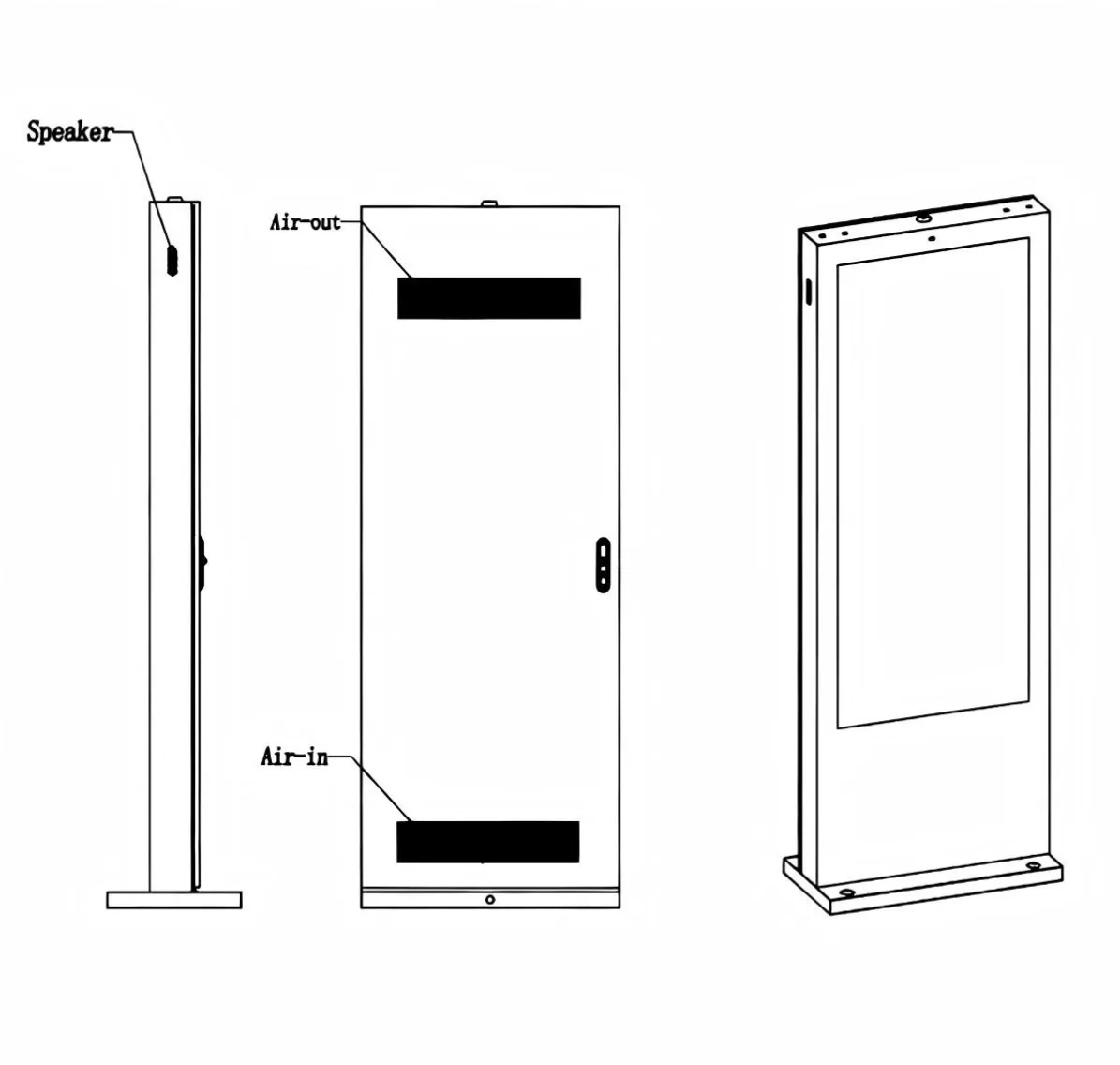

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤860W | |

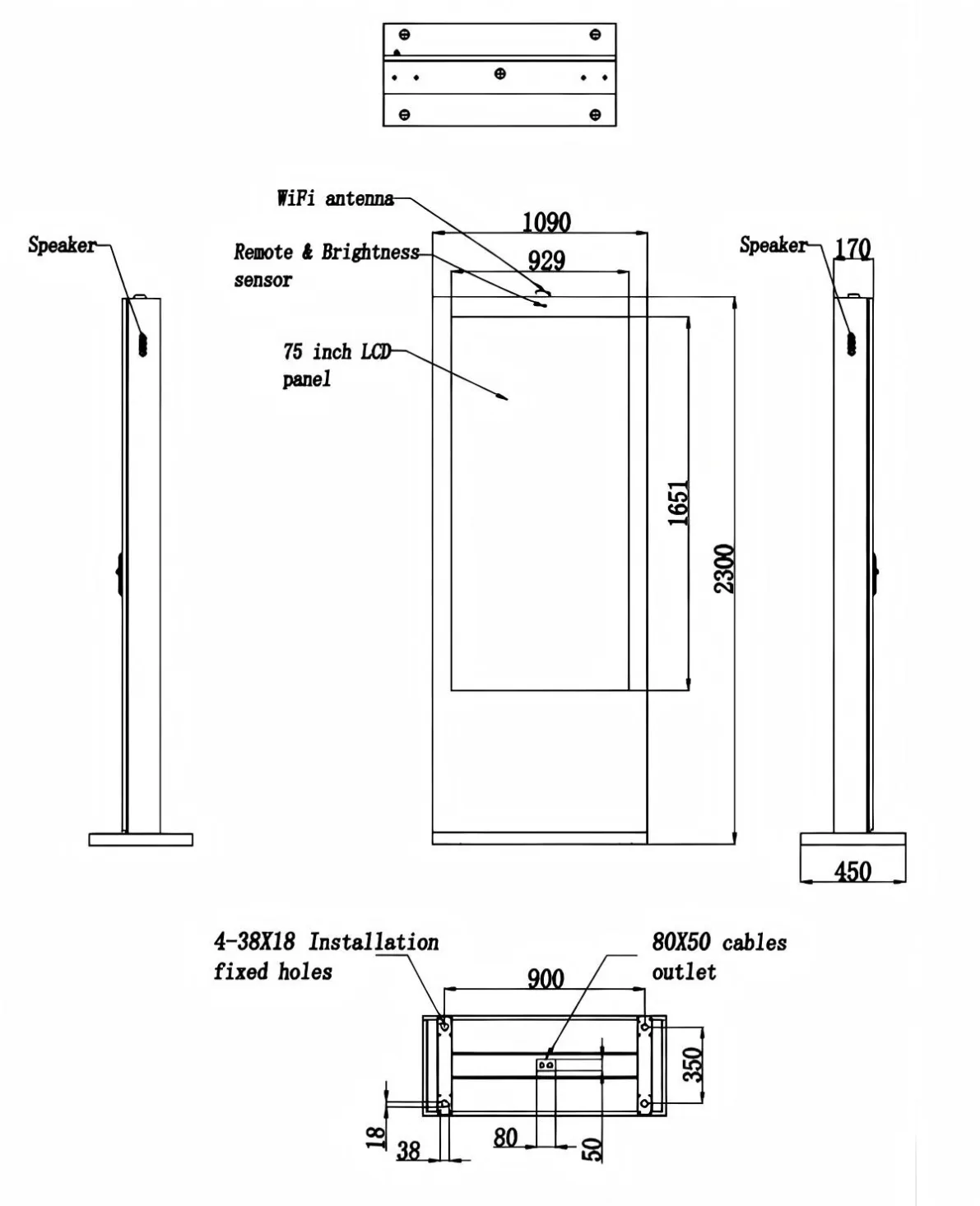

Mechanical Para. | Machine seize H*W*D( mm) | 2300*1090*170 |
Net weight(Kg) | 180 | |
Package size H*W*D( mm) | 1320*2450*520 | |
Gross weight(Kg) | 230 | |
Using the Portrait Proportions
The tall screen format works naturally with fashion photography, full-height product images, event posters and store-opening campaigns. It can also combine a large visual with short directions to an outdoor-facing entrance.
A 75-inch display should not be filled with small product tiles simply because additional space is available. The strongest campaigns normally use:
- One dominant image
- A concise headline
- A visible promotional period
- Store or entrance directions
- One customer action
Content should be prepared at a resolution suitable for large-format presentation.
Relationship Between the Cabinet and Storefront
The light-colored enclosure shown in the image may blend more easily with pale façades, glass storefronts and contemporary outdoor retail architecture. Color suitability depends on the actual site, and final coating options should be confirmed during procurement.
The freestanding form allows the unit to be positioned near a window without fixing the screen directly to the building. However, it still requires a prepared foundation, power route and safe service clearance.
The display must remain outside pedestrian circulation and should not block sightlines into the store.
Daylight, Glass and Reflections
The screen is listed at 2500 nits for high-light environments. When it is placed near exterior glazing, installers should evaluate reflections from both the screen surface and the retail window.
Direct afternoon sunlight may affect content differently from morning conditions. Viewing tests should therefore be completed at more than one time of day.
Weather Protection and Cooling
IP65 protection supports exposed outdoor installation when access doors, cable entries and other enclosure points are correctly sealed.
The built-in fan system assists with heat management. Outdoor retail locations near roads may accumulate dust more quickly, making cooling-system inspection an important maintenance task.
FAQ
Is this product an indoor window display?
No. It is presented as outdoor digital signage with IP65 protection and 2500-nit brightness. Its intended viewers may be outside a retail window, but the cabinet itself is an outdoor machine.
Can the cabinet color match a storefront?
The image shows a light-colored enclosure, but custom color availability must be confirmed with the supplier before production.
Can it display scheduled retail campaigns?
Scheduling depends on the selected media player and content-management software. These functions should be specified separately.
The 75 Inch Vertical Outdoor Digital Signage format is best suited to retailers that need large portrait content visible from an exterior pedestrian area.
