Built-in Fan Version
Outdoor Digital Signage 55 Inch Vertical Fan Cooling for Smart City Media
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVW550MG
55 Inch Vertical Outdoor Digital Signage for Street-Level Information

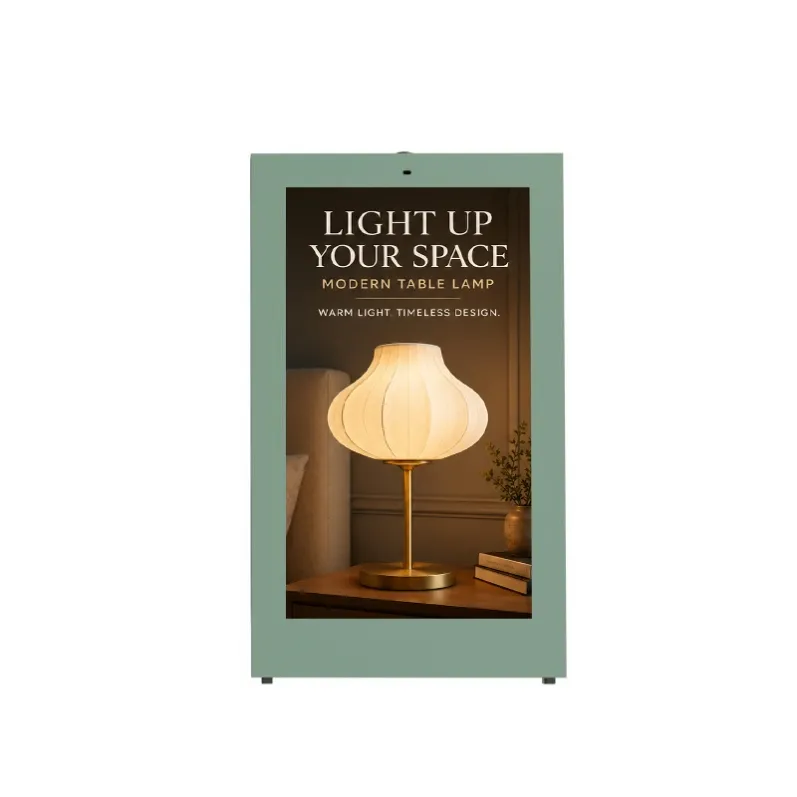

The product image shows a light green vertical cabinet with a relatively narrow perimeter. Its proportions suit outdoor information viewed by pedestrians rather than large-format advertising seen from a distant road.
The 55 Inch Vertical Outdoor Digital Signage model is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
55 Inch Outdoor portrait displays wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size（mm） | 1210*681 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤450W | |

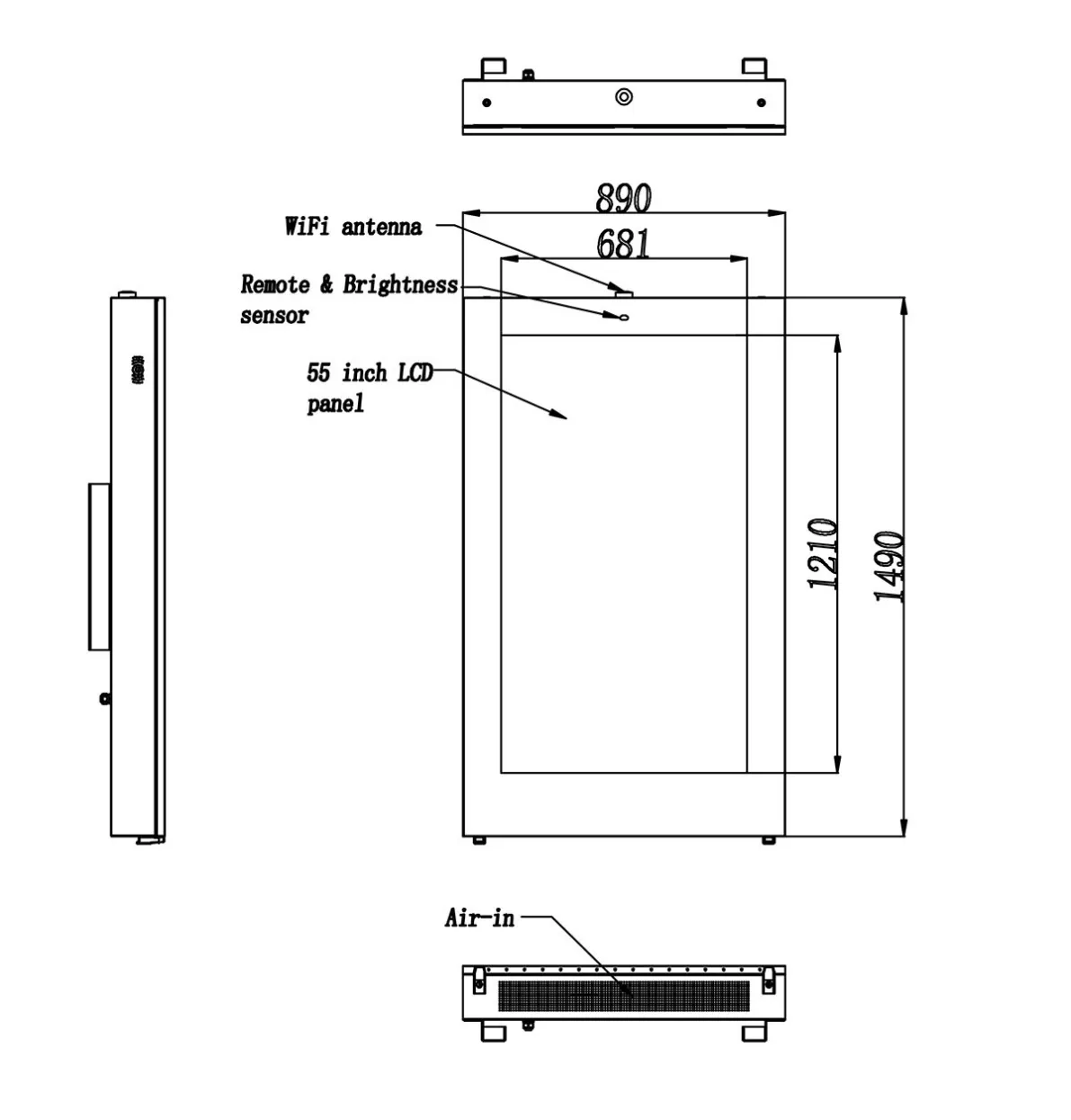

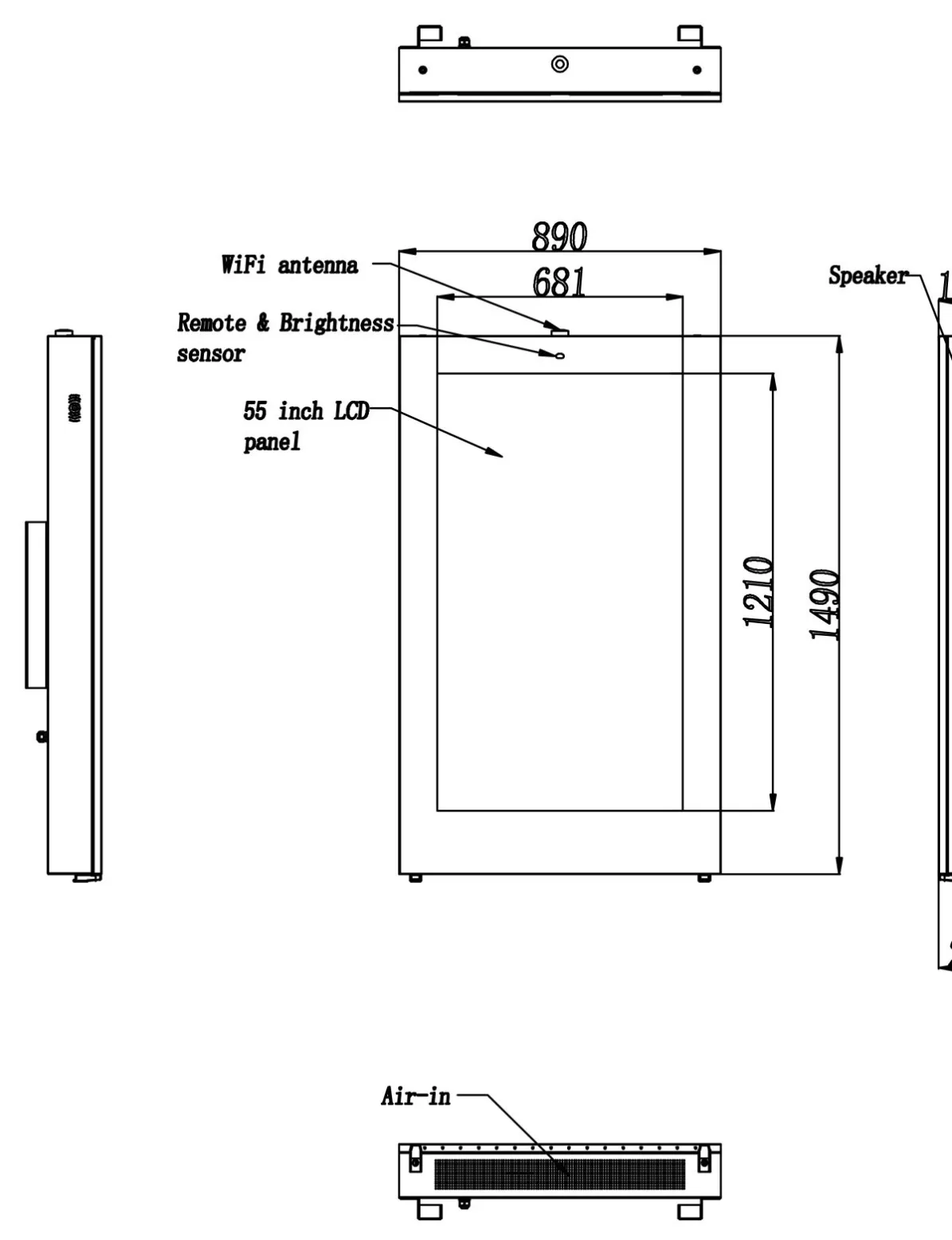

Mechanical Para | Machine seize H*W*D（mm） | 1490*890*150 |
Net weight(Kg) | 85 | |
Package size H*W*D（mm） | 1160*1640*300 | |
Gross weight(Kg) | 115 | |
Start With the Pedestrian’s Question
At street level, people usually want one of three things: direction, current information or an explanation of what is nearby.
The screen can carry:
- Outdoor walking directions
- Park and attraction information
- Public event schedules
- Emergency messages
- Municipal service notices
- Local outdoor advertising
A “smart city” application does not automatically include sensors, cameras or live data. These require separate hardware and integration.
A Cabinet That Can Support Location Identity

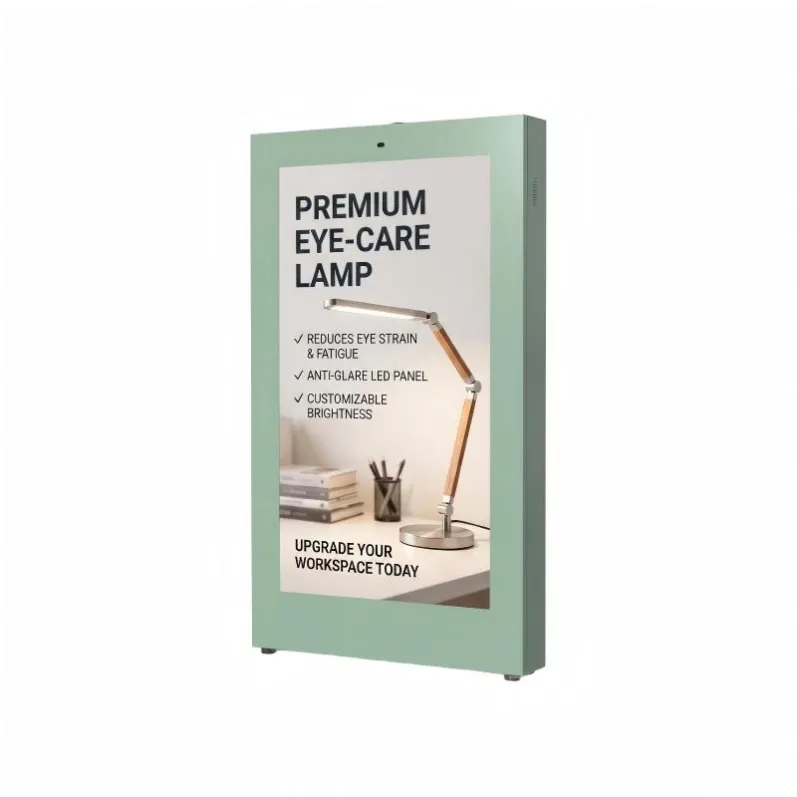

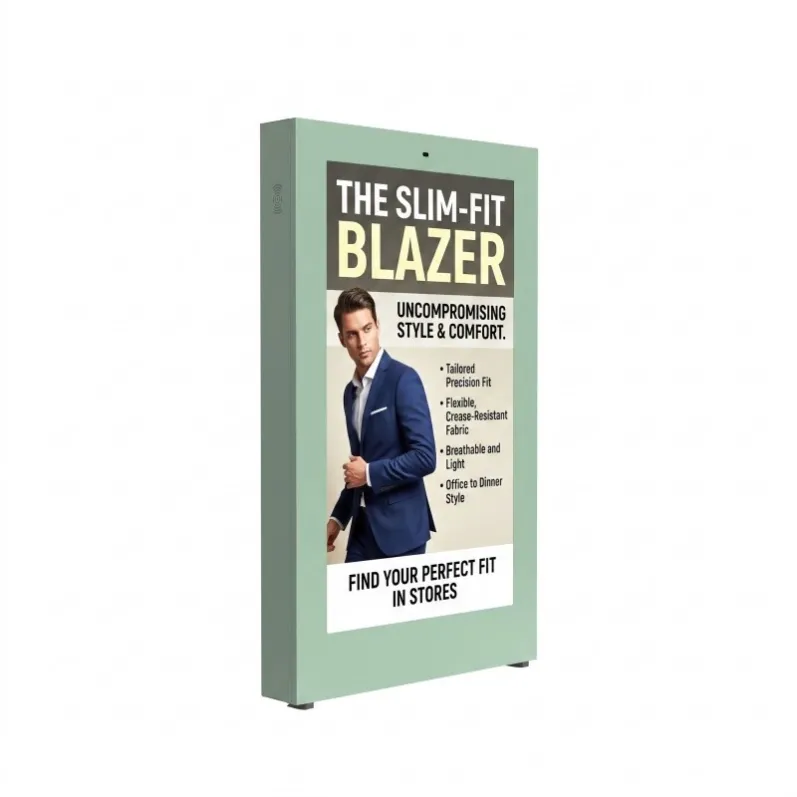

The light green enclosure shown in the image may suit landscaped routes, parks or environmental campaigns. It can help differentiate one outdoor information network from another.
The cabinet color should be confirmed in the order. Content should never rely on color alone to communicate essential directions.
Selecting the Viewing Position
A 55-inch portrait screen is suited to medium pedestrian distance. The display should be positioned near a natural decision point without narrowing the walking route.
Sunlight direction, nighttime brightness and nearby road traffic need review. The 2500-nit panel provides outdoor brightness, but content still requires strong contrast.
Maintenance in Public Areas
IP65 protection helps defend against dust and water jets. Built-in fan cooling requires inspection of airflow paths, especially near roads or landscaping.
The 55 Inch Vertical Outdoor Digital Signage format offers a practical middle ground between compact embedded screens and very large outdoor advertising kiosks.
