Built-in Fan Version
Outdoor Digital Signage 32 Inch Horizontal Fan Cooling for Retail Windows
Front Panel:Toughened glass or acrylic,High transparency Protection Glass:6mm AR safe glass Installation:Floor standing or customized Network:WIFI / LAN / 3G / 4G Optional
Specifications
- SKU
- ZXTLCD-OUTFHW320B
Outdoor Digital Signage 32 Inch Horizontal Fan Cooling for Retail Windows

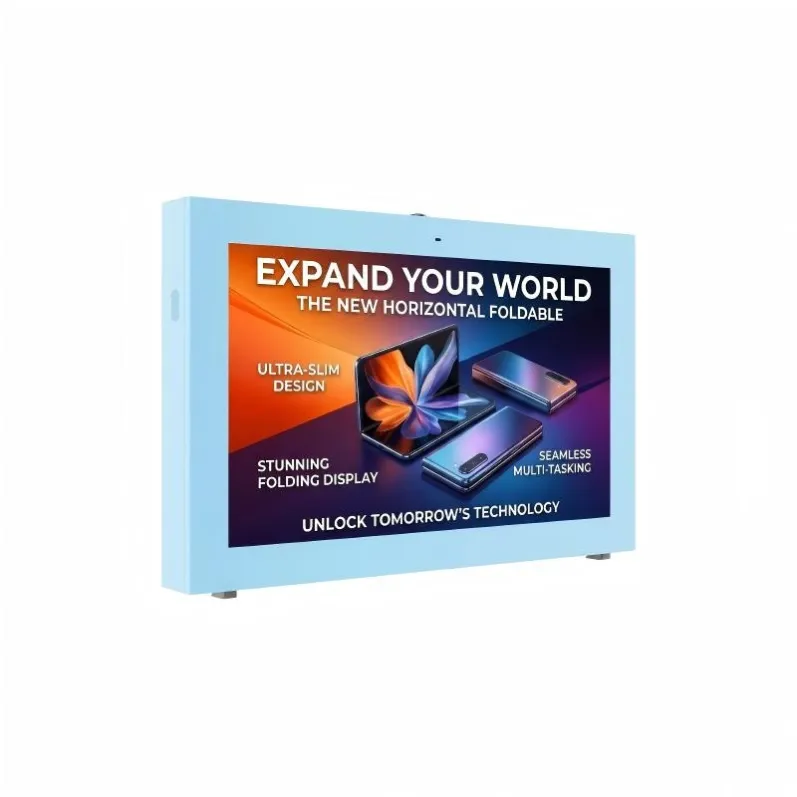

32 Inch Horizontal Outdoor Digital Signage for Retail Windows
A narrow shopfront or service window may have enough space for digital promotion but not for a full-height portrait kiosk. This 32 inch horizontal outdoor digital signage provides a landscape-format alternative for storefront campaigns, pickup instructions and product information.
The product can use toughened glass or high-transparency acrylic at the front, with 6 mm anti-reflective safety glass listed as a protection option. Installation can be floor-standing or customized, while Wi-Fi, LAN, 3G and 4G network connections are available as optional configurations.

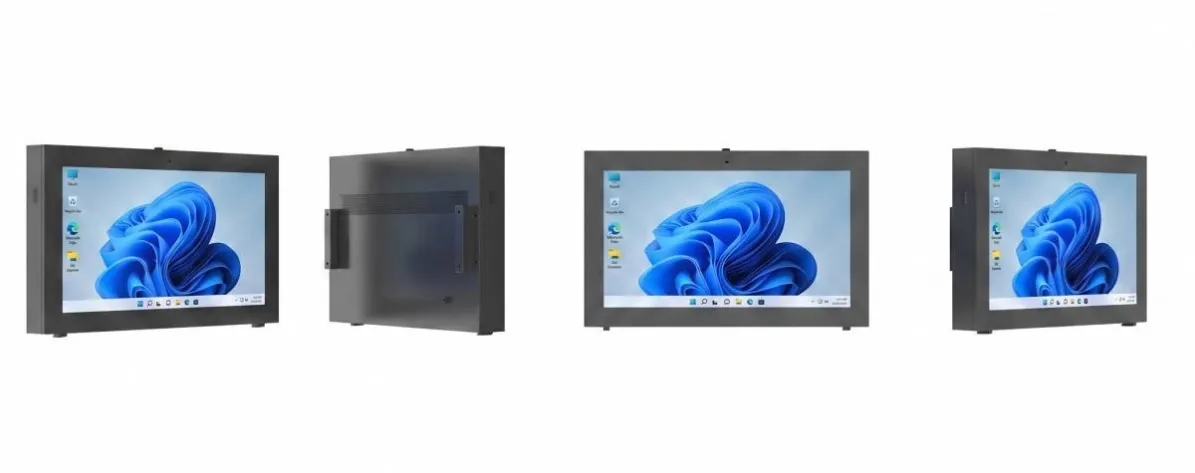

32 Inch Outdoor horizontal wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 697*392 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 280W | |

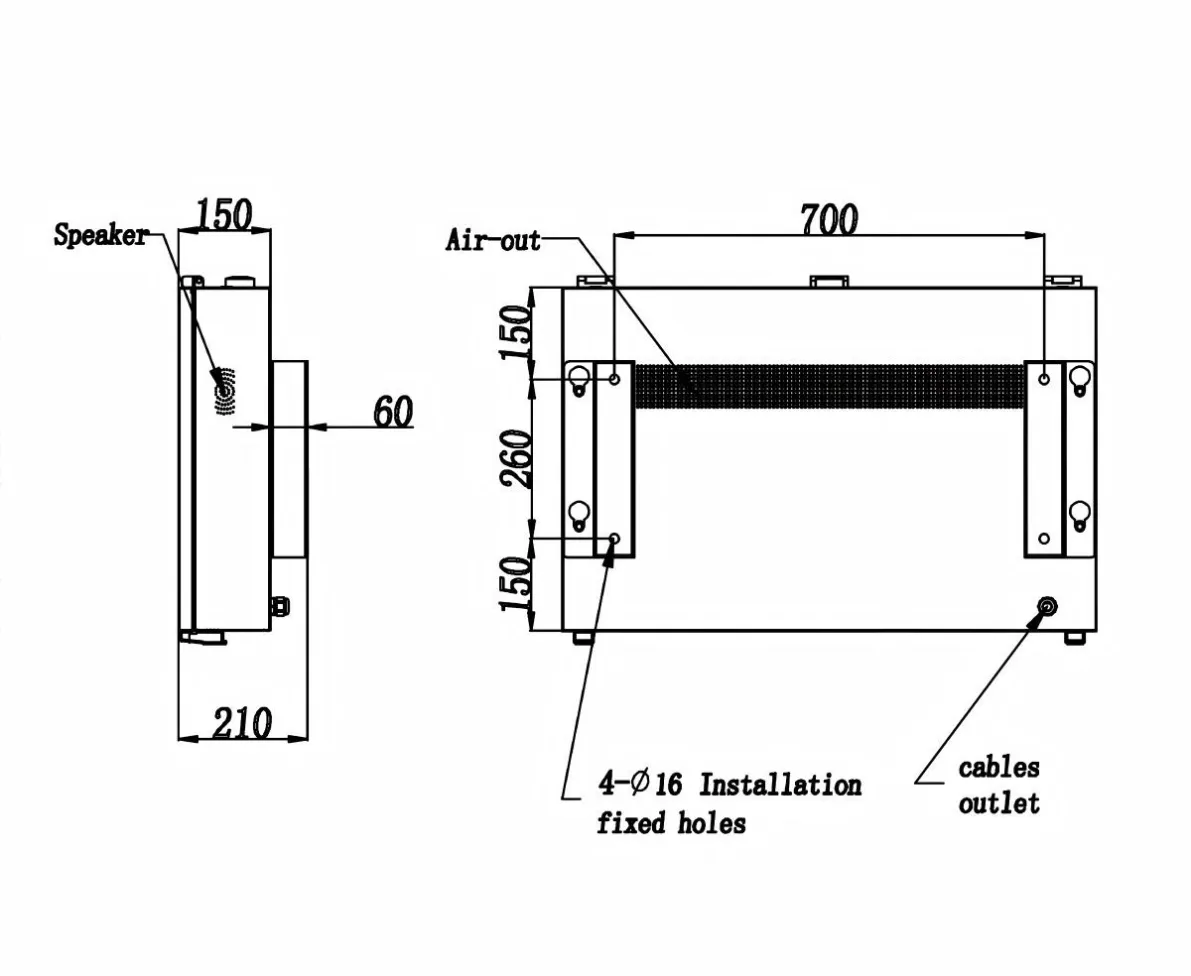

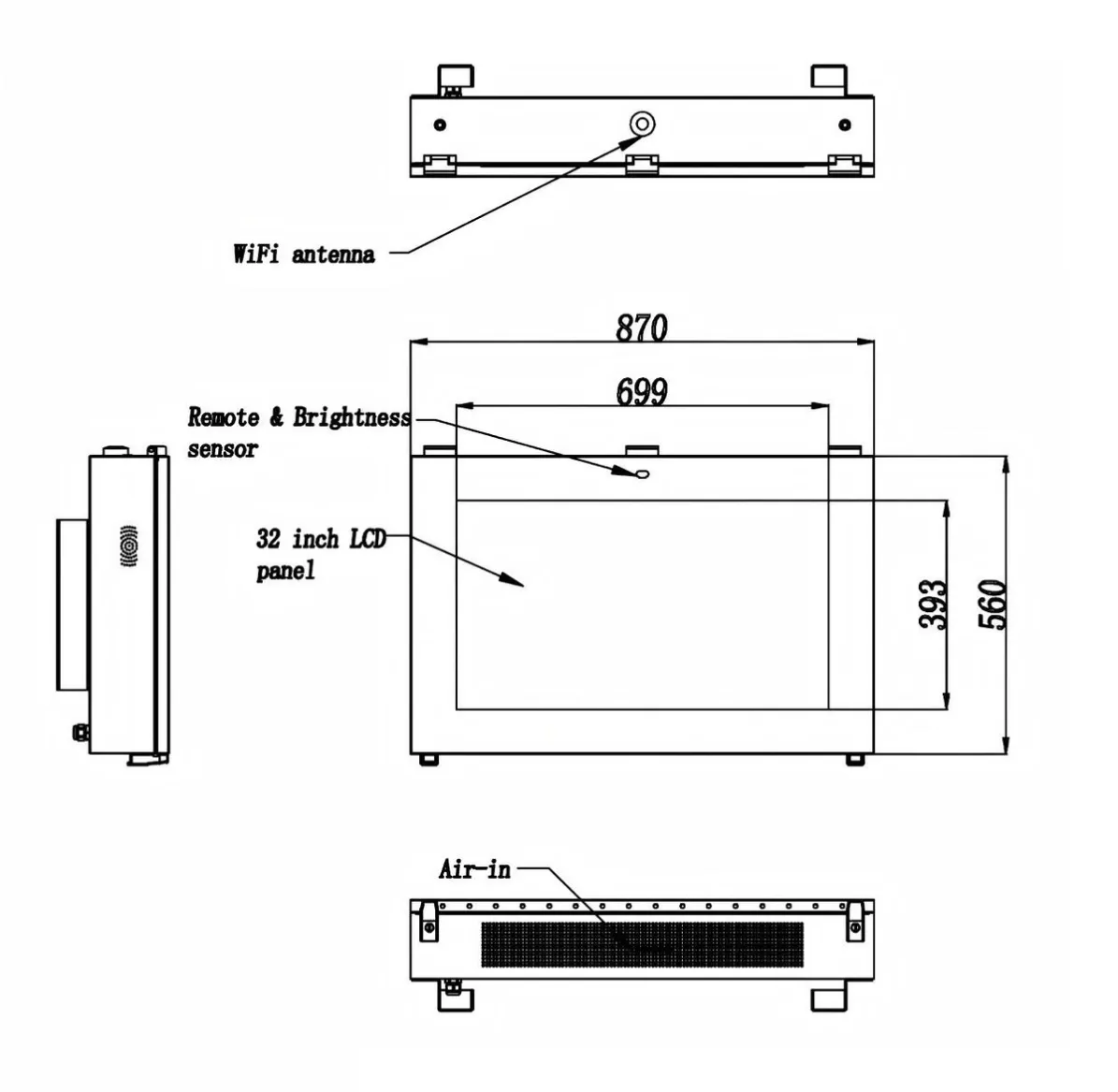

Mechanical Para | Machine seize H*W*D(mm) | 870*560*150 |
Net weight(Kg) | 45 | |
Package size H*W*D(mm) | 830*1210*300 | |
Gross weight(Kg) | 65 | |
Why Landscape Format Suits Some Windows
Horizontal screens align naturally with counter surfaces, window ledges and wide architectural openings. They can sit below the customer’s main sightline without blocking merchandise or the view into the store.
The format works particularly well for:
- Restaurant menu combinations;
- Before-and-after product comparisons;
- Multiple promotional prices;
- Pickup and queue instructions;
- Directional messages with arrows;
- Two-column campaign layouts.
A retailer should still avoid filling every part of the screen. Landscape space can tempt designers to place too many products side by side, making the message difficult to understand from outside.
Remote monitoring can identify offline players or abnormal device temperatures before passengers report a fault.
Front Protection and Reflections
Retail windows create multiple reflective layers. The storefront glass, display front and nearby lighting can all affect visibility. The listed 6 mm AR safety glass helps reduce disruptive reflections while protecting the LCD surface.
High-transparency acrylic offers a lighter alternative in configurations where project weight or handling is important. Toughened glass provides a harder surface and a different response to impact. Selection should follow the installation risk, local requirements and maintenance expectations.
The distance between the display and window glazing should be considered during installation. Positioning the unit directly against the storefront glass can restrict airflow and make cleaning difficult.
Planning the Content Connection
Optional Wi-Fi, LAN, 3G and 4G connectivity lets buyers match the screen to the available site infrastructure.
LAN is often stable for permanent stores where network cabling is available. Wi-Fi can simplify deployment but depends on signal quality and store-network policy. A 3G or 4G connection may be useful for temporary sites or locations where the retailer cannot access the building network.
The connection method alone does not provide content management. Buyers should specify the media player or CMS, publishing permissions and required reporting functions.
A chain retailer may schedule campaigns by store group, while an independent shop may only need a straightforward local playlist.
Cooling Inside a Storefront Installation
Fan cooling needs a complete airflow route. A decorative cabinet or custom window structure should include proper intake, exhaust and service clearance. The retailer should not close the screen inside a sealed furniture panel simply to create a flush appearance.
Dust filters and fan condition should be included in routine maintenance. Store staff can clean the front surface, but access to internal components should remain the responsibility of trained personnel.
From Promotional Screen to Useful Window Tool
The 32 inch horizontal outdoor digital signage can do more than play a repeating advertisement. A restaurant can change offers by time of day. A pharmacy can publish service hours. A click-and-collect counter can show pickup steps and order guidance.
For quotation and production, provide window dimensions, proposed mounting style, screen height, connection method and campaign-update frequency. Indicate whether toughened glass, acrylic or AR safety glass is required.
When planned around the window rather than treated as a generic monitor, 32 inch horizontal outdoor digital signage creates a practical digital layer without hiding the store behind an oversized screen.
