Built-in Fan Version
Outdoor Advertising Kiosk for 55 Inch Retail Windows, 2500 Nits IP65 Fan Cooling
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP550B
55 Inch Outdoor Advertising Kiosk for Exterior Retail Windows
The product image shows a dark, understated cabinet with a warm-toned campaign on the screen. Its neutral enclosure places visual emphasis on the advertised product rather than the machine itself.
This 55 Inch Outdoor Advertising Kiosk is specified with 2500-nit brightness, IP65 protection and built-in fan cooling for outdoor operation.
55 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1210*681 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤450W | |

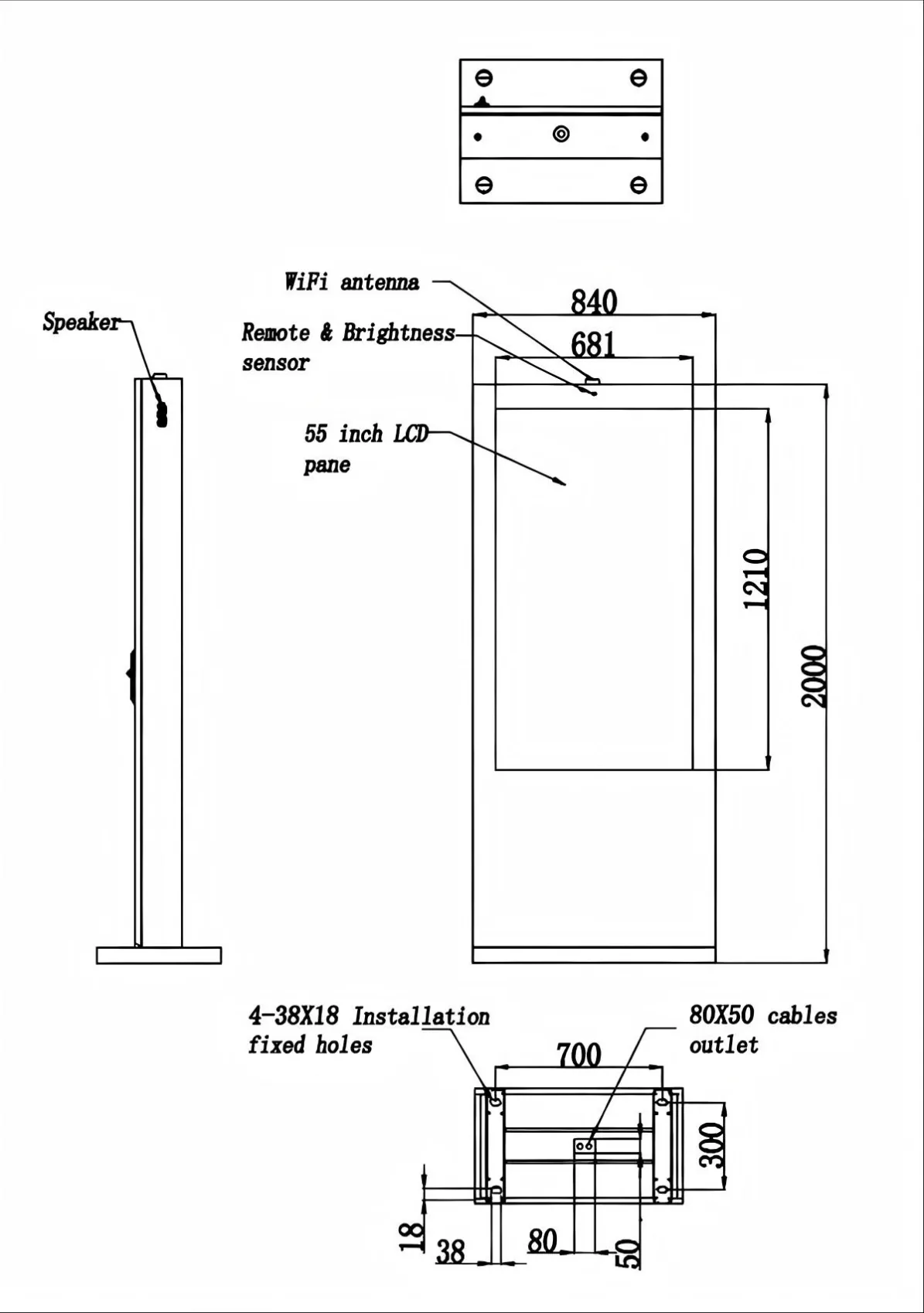

Mechanical Para. | Machine seize H*W*D( mm) | 2000*840*150 |
Net weight(Kg) | 100 | |
Package size H*W*D( mm) | 1070*2150*470 | |
Gross weight(Kg) | 140 | |
Retail Visibility Without an Oversized Cabinet
The 55-inch portrait format works well beside exterior storefront windows, outdoor entrances and pedestrian approaches. It provides enough space for a major product image and promotion without demanding the site area of a large 75- or 98-inch unit.
A successful outdoor retail page should contain one principal campaign, not a crowded catalog.
Dealing With Exterior Glass
Window reflections, tinted glazing and direct sunlight influence what customers actually see. The 2500-nit panel provides high output, but installation direction still matters.
If the kiosk is positioned outside a window, it must not obstruct the merchandise display or reduce the entrance path. If it sits behind an additional glass layer, the optical and thermal effects require review.
A Neutral Cabinet for Changing Campaigns

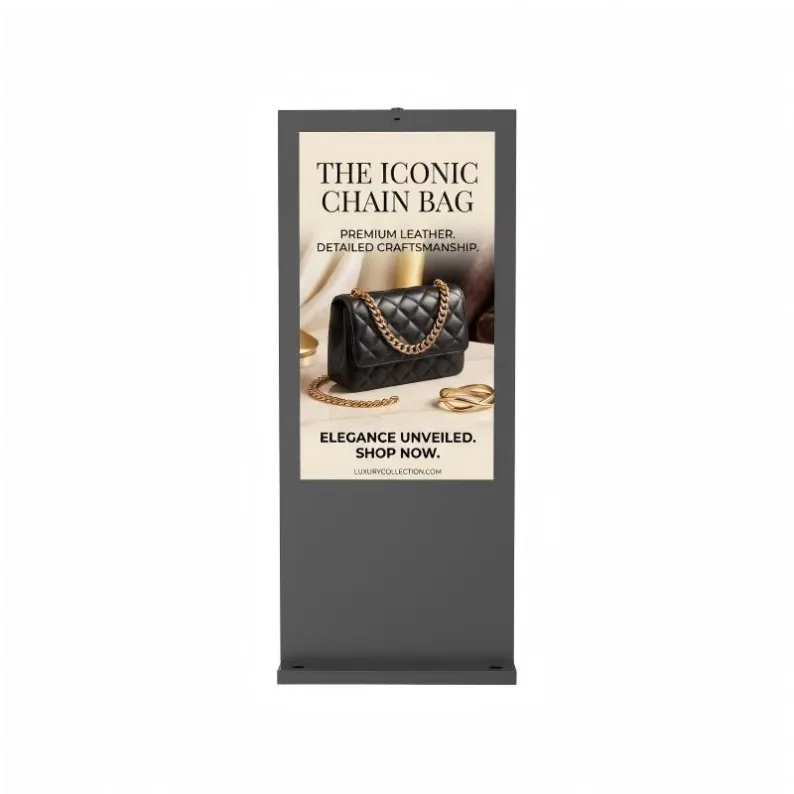

The dark enclosure shown in the image can work with campaigns from different brands because it does not impose a strong cabinet color.
Surface finish, logo placement and coating requirements should be confirmed during procurement.
IP65 protection helps defend against outdoor dust and water exposure. Fan cooling supports extended retail hours, and the cabinet must remain accessible for service.
The 55 Inch Outdoor Advertising Kiosk is suited to outdoor-facing retailers that need regularly updated portrait campaigns at pedestrian viewing distance.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
