Built-in Fan Version
Outdoor Advertising Kiosk for 49 Inch Mall Promotions, 2500 Nits IP65 Sealed Cooling
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTV490B
Outdoor Advertising Kiosk for 49 Inch Mall Promotions, 2500 Nits IP65 Sealed Cooling
49 Inch IP65 Outdoor Advertising Kiosk for Compact Retail Locations
Shopping-center advertising is often placed in areas where space is already under pressure. Entrances, pickup zones and pedestrian approaches need a screen that remains visible without obstructing movement.
The 49 Inch IP65 Outdoor Advertising Kiosk offers a portrait display for close-range retail communication. Its listed specifications include 2500-nit brightness and built-in fan cooling.
When a 49-Inch Screen Is Enough
A 49-inch screen can be effective where customers pass close to the cabinet. It suits store announcements, restaurant promotions, event notices and simple center directories.
The smaller format encourages campaign discipline. One product, one offer and one action will normally communicate more effectively than several competing messages.
49-inch outdoor optical bonding digital signage with no fan product specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 5mm tempered high permeability glass above the screen panel | |
Display parameter | LCD brand | LG |
Backlight type | DLED | |
Display size | 1074*604mm | |
Display ratio | 16：9 | |
Resolution | 1920*1080 | |
Brightness | 2500nit | |
Contrast ratio | 3500：1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -20℃～70℃ |
Working humidity | 10%～95% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 180W | |
Machine size and weight | Machine size(H*W*D) | 1154*684*100mm |
Net weight | 53kg | |
Package size and weight | Package material | Honeycomb Paper Box |
Package size H*W*D | 820*1320*280mm | |
Gross weight | 65kg | |
Using Daylight Brightness Properly
The screen is specified at 2500 nits for outdoor and high-ambient-light viewing. Creative material should use bold imagery and clearly separated foreground and background colors.
The display position should be checked for direct sunlight and nearby reflective surfaces. Content testing on the actual screen is preferable to approving it only on an office monitor.
What IP65 Means for the Site
The IP65 rating provides protection against dust and water jets when the cabinet is correctly installed. Foundation openings, electrical entries and network connections should use suitable sealing components.
The base position should allow rainwater to drain away rather than collect around the enclosure.
Correcting the Cooling Terminology
The old product title says “Sealed Cooling,” while the backend classifies the product as “Built-in Fan Version.” The current page copy should use built-in fan cooling until another specification is verified.
This correction is important because fan cooling normally involves airflow inspection and different maintenance considerations from a sealed thermal system.

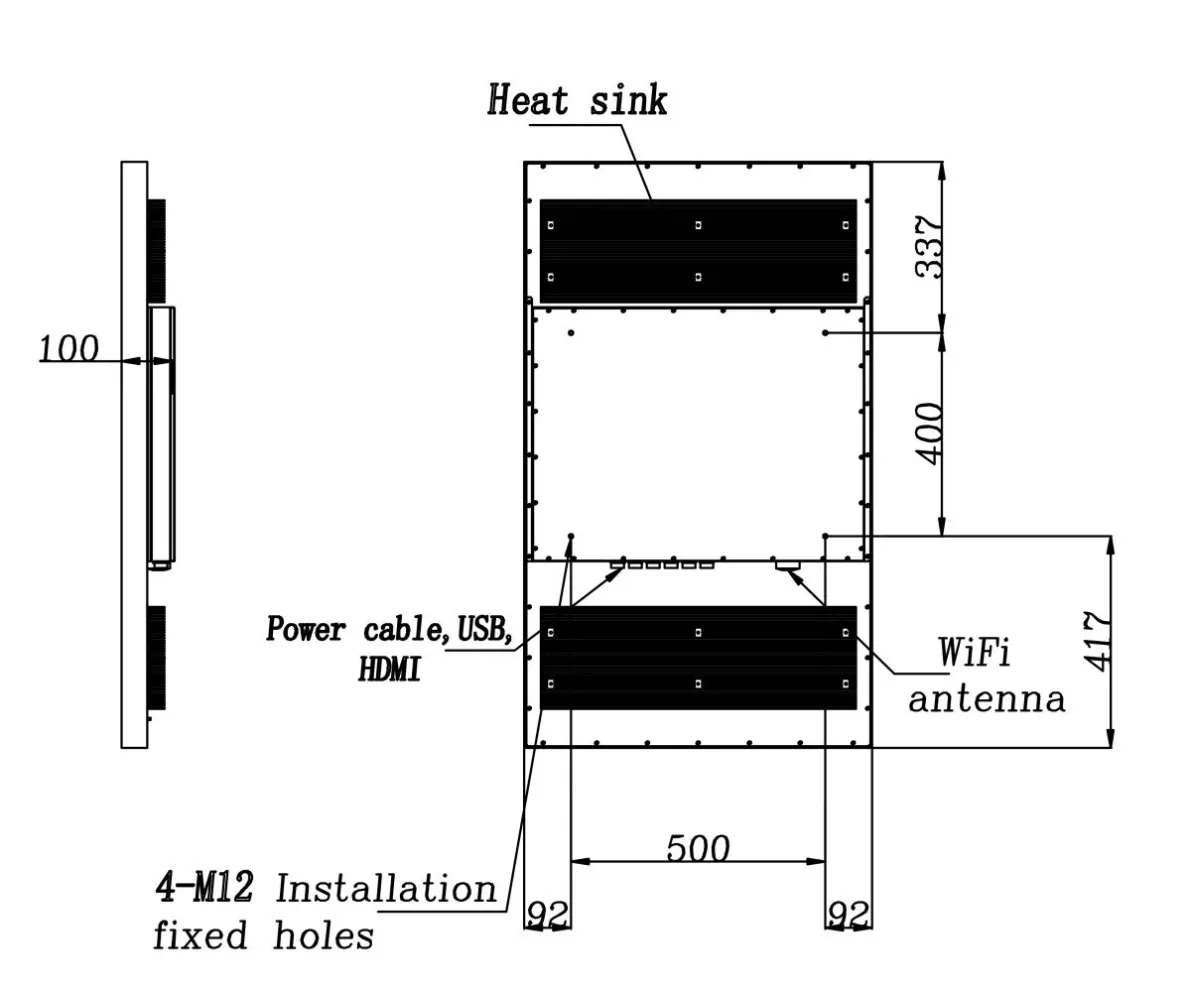

The design drawing of rear display
Retail Deployment Details
Before ordering a 49 Inch IP65 Outdoor Advertising Kiosk, the buyer should check cabinet dimensions, screen orientation, installation drawing, anchor requirements and service-door direction.
The content plan should identify who updates campaigns and how expired offers are removed. A technically suitable screen can still perform poorly when promotions remain outdated.
The 49 Inch IP65 Outdoor Advertising Kiosk is a practical option for outdoor-facing retail sites that need strong visibility without using a larger cabinet than the location requires.
