Built-in Air conditioner
Outdoor Advertising Display for 75 Inch Smart City Media, 2500 Nits IP65 Air Conditioning
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVP750AW
75 Inch Smart City Outdoor Advertising Display for Public Media Networks
“Smart city” should describe how information is managed, not simply serve as a label attached to an outdoor screen. A 75 Inch Smart City Outdoor Advertising Display becomes useful when municipal notices, local campaigns and commercial media can be scheduled across multiple locations with clear operational responsibility.
The illustrated model has a dark grey-green enclosure and a broad freestanding profile. Its restrained finish is suitable for outdoor civic environments where the cabinet should remain visible without resembling temporary promotional equipment.
75 Inch Outdoor floor standing digital signage with air conditioner specification -A style | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1651*929mm | |
Display ration | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

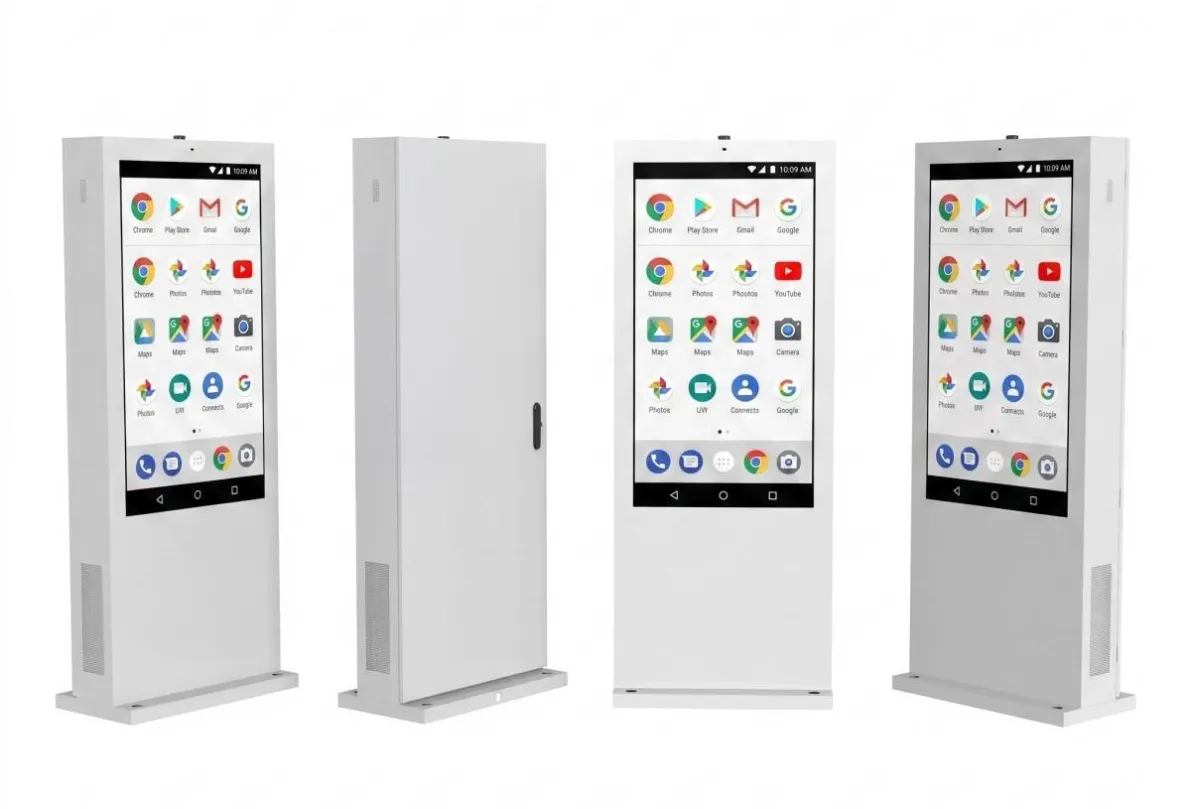

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

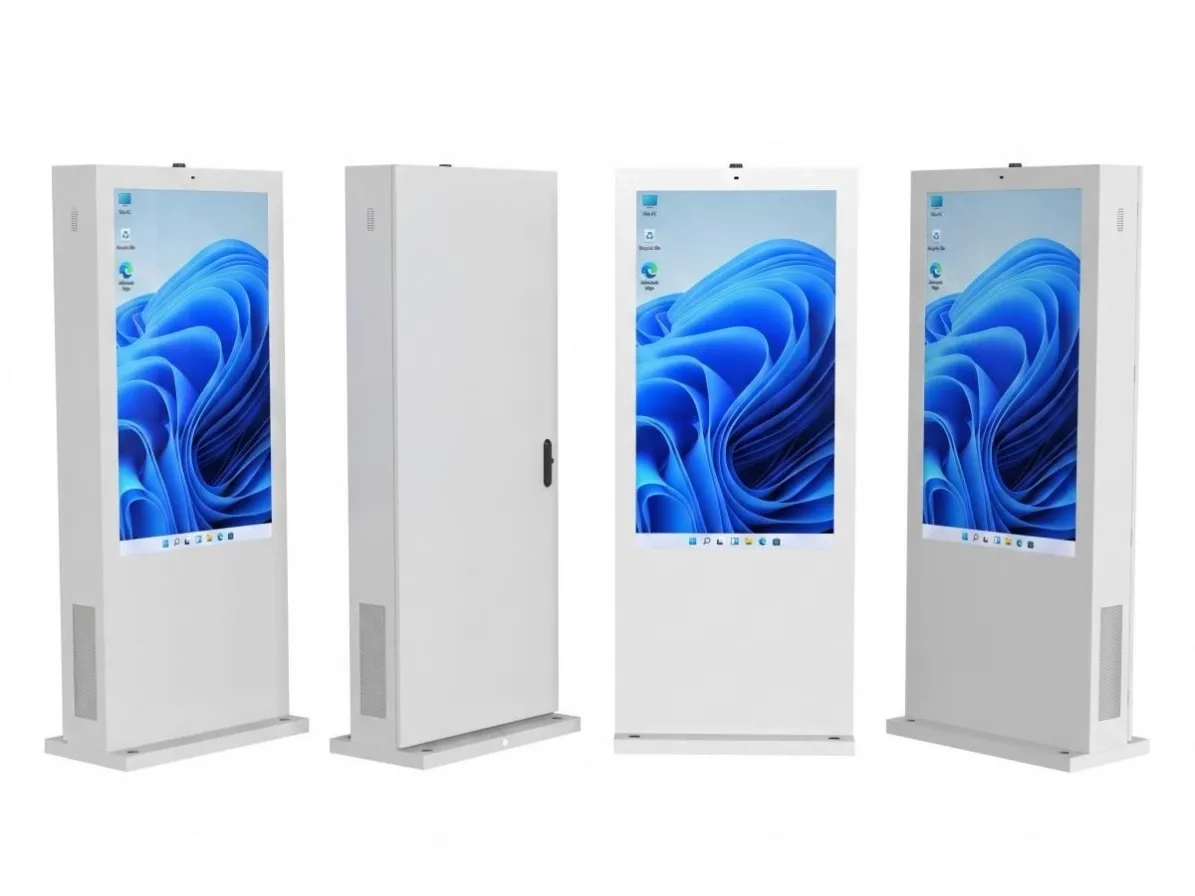

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 5%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 1320W | |

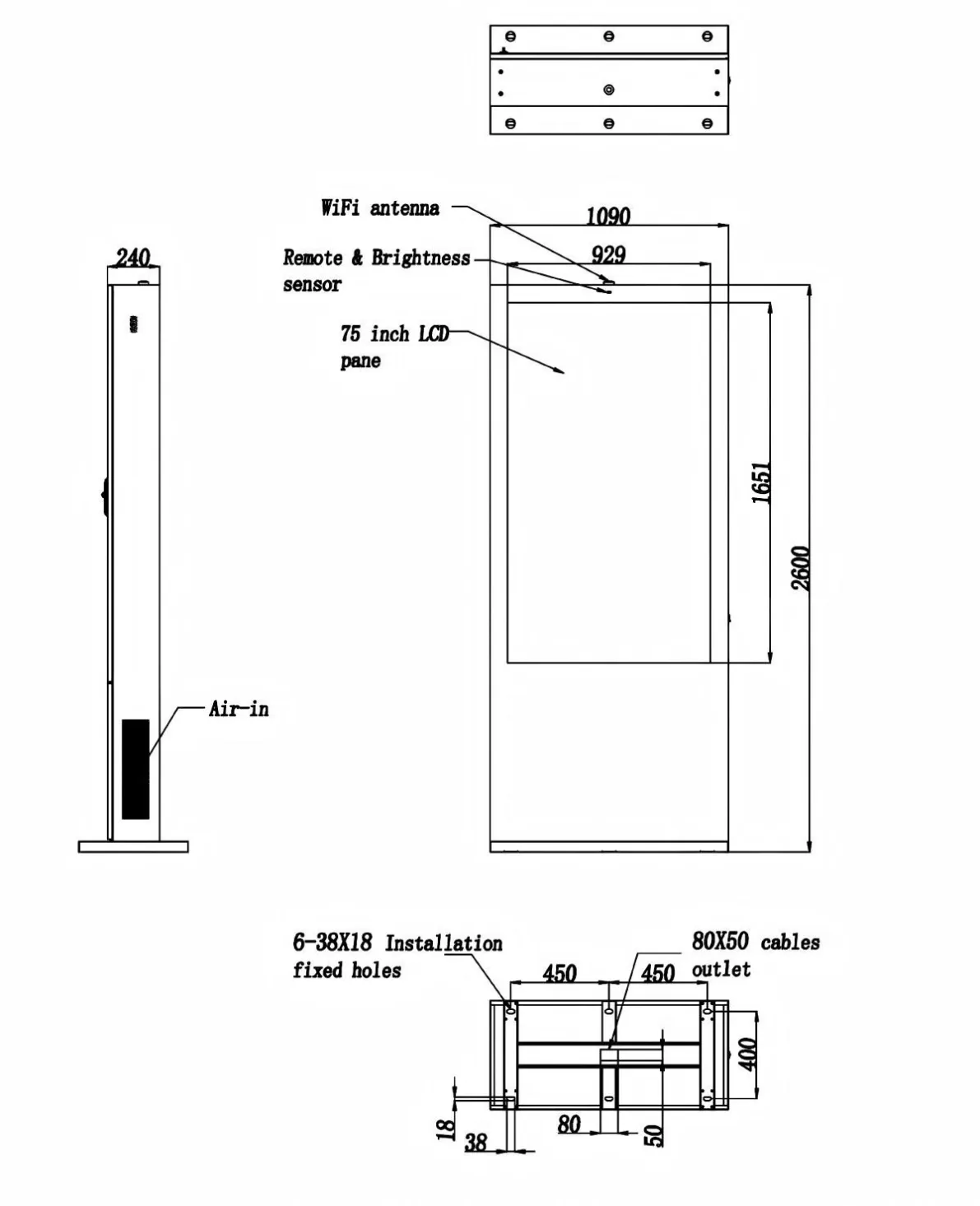

Mechanical parameters | Whole device dimension H*W*D | 2600*1090*240mm |
Whole device net.weight | 240kg | |
Package dimension H*W*D | Machine1320*2750*570mmAC 800*950*330mm | |
Gross packing | Machine250kg AC 55kg | |
A Shared Screen Needs a Content Hierarchy
Municipal media networks often serve several departments and commercial partners. Without publishing rules, urgent notices can become buried beneath routine advertising.
A sensible hierarchy places content in this order:
- Emergency and safety messages
- Temporary transport or facility changes
- Public-service information
- Community events
- Approved commercial campaigns
This hierarchy should be reflected in the content-management permissions, not handled informally after installation.
Large Enough for Mixed Public Content
The 75 Inch Smart City Outdoor Advertising Display gives designers enough space for a strong headline, supporting graphic and location-specific detail. It can be used at outdoor civic squares, pedestrian routes, public-building forecourts and transport connections.
Not every location needs the same playlist. Content should be adapted to what people are doing at that point—walking, waiting, transferring or entering a service building.
Environmental Control for Network Reliability

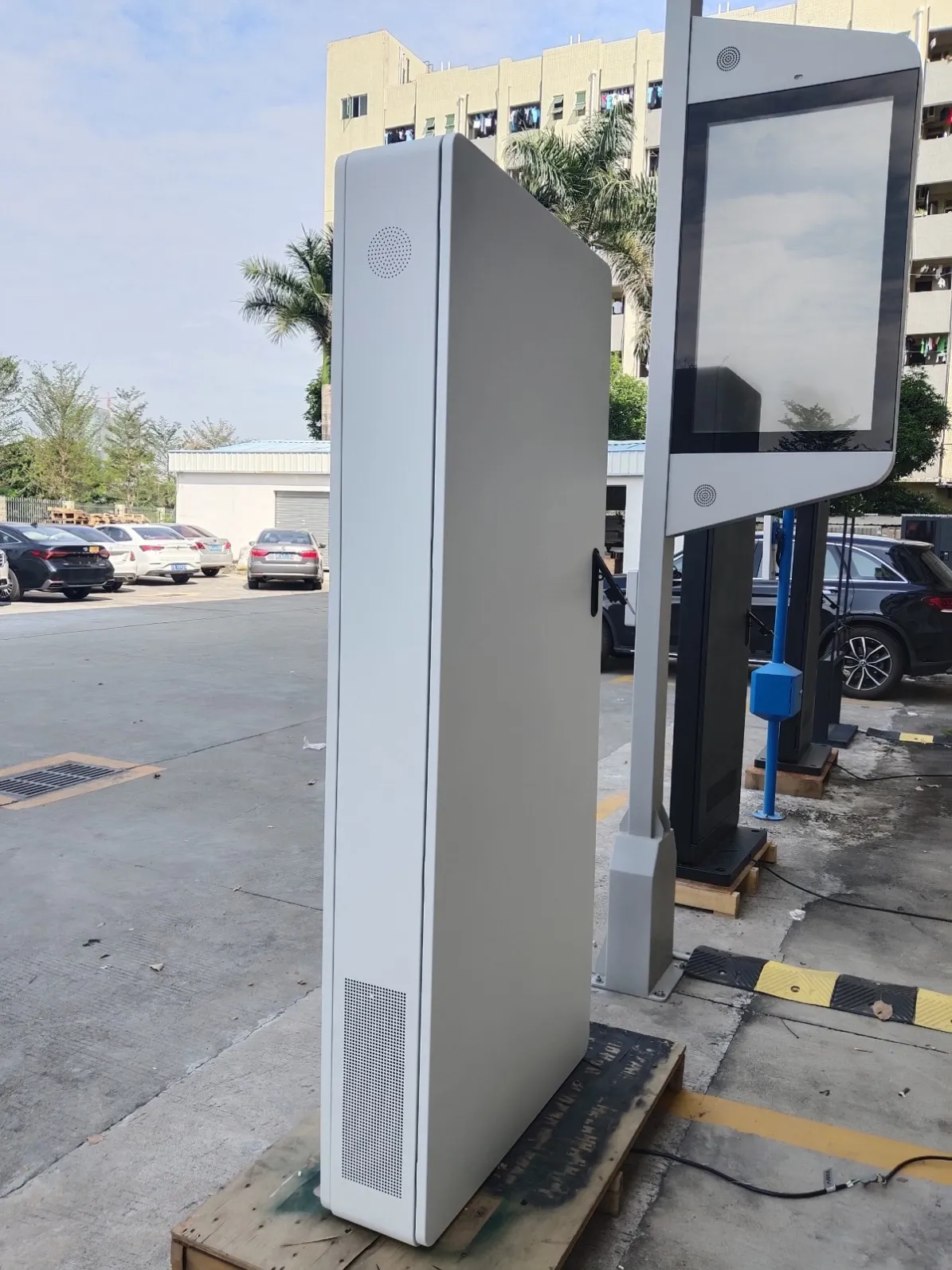

The 2500-nit panel supports daytime visibility, and IP65 protection helps isolate the internal system from outdoor dust and water. An integrated air conditioner manages cabinet temperature during prolonged operation.
For a multi-screen network, preventive maintenance should be standardized. Service teams need records for filter replacement, cabinet seal inspection, cleaning and fault history at each location.
Measure Availability, Not Just Installation Count
A city may report that twenty screens were installed, but the more meaningful measure is how many remained online and displayed current content. Device monitoring, playback records and temperature alerts help operators identify problems before the public reports a blank screen.
The 75 Inch Smart City Outdoor Advertising Display should therefore be purchased with consideration for monitoring, update workflow and service response—not only panel size and cabinet appearance.
