Built-in Fan Version
Outdoor Advertising Display for 75 Inch Mall Promotions, 2500 Nits IP65 Fan Cooling
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVW750P
75 Inch Outdoor Advertising Display for Open-Air Retail Campaigns

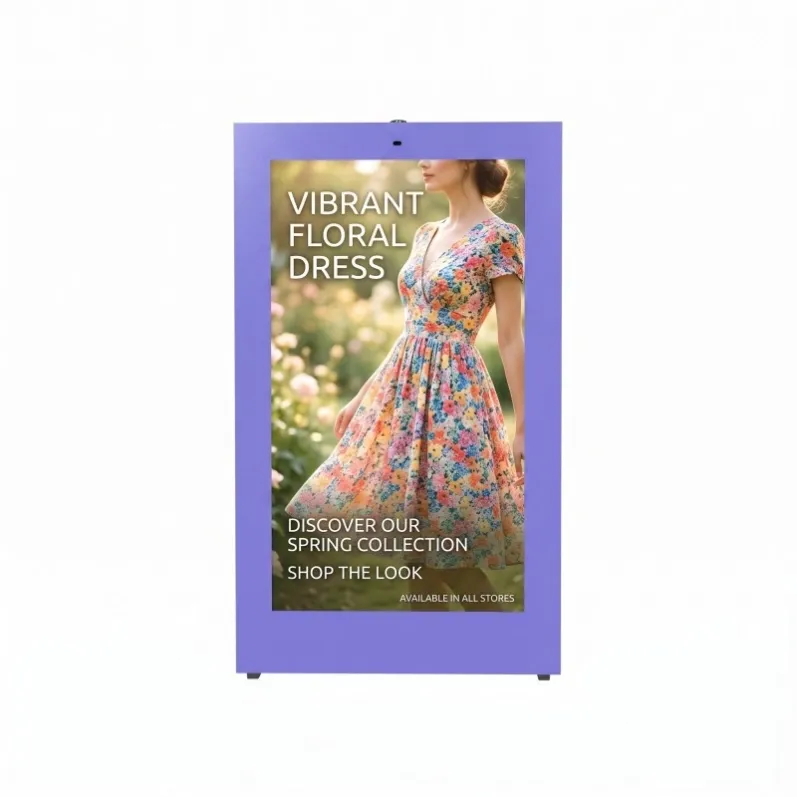

The product image shows a plain purple cabinet with a tall, uninterrupted body. Its simple rectangular exterior allows the campaign itself to remain the main visual feature while the enclosure contributes a recognizable color to the outdoor site.
This 75 Inch Outdoor Advertising Display is listed with 2500-nit brightness, IP65 protection and built-in fan cooling.
75 Inch Outdoor portrait displays wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size（mm） | 1651*929 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤860W | |

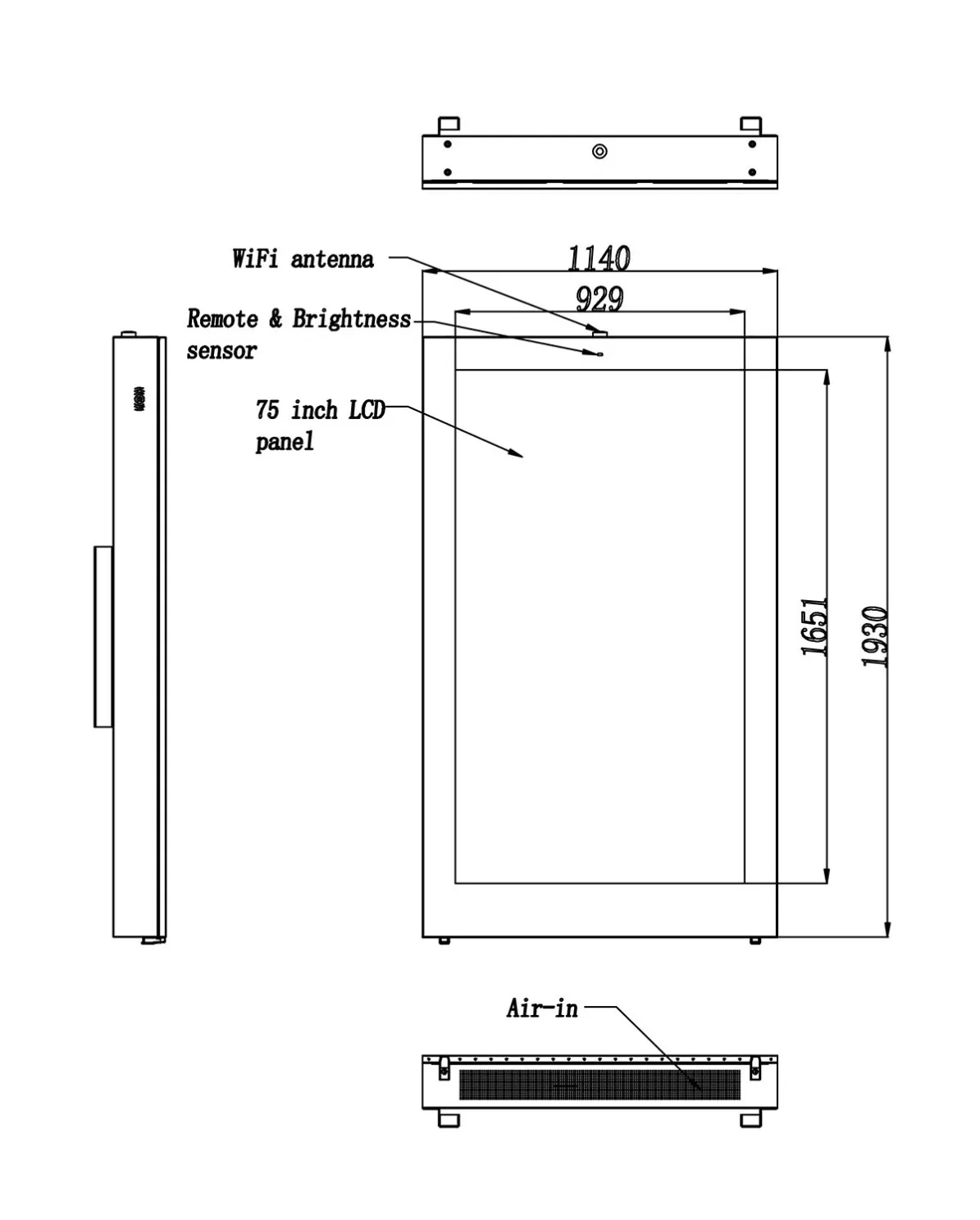

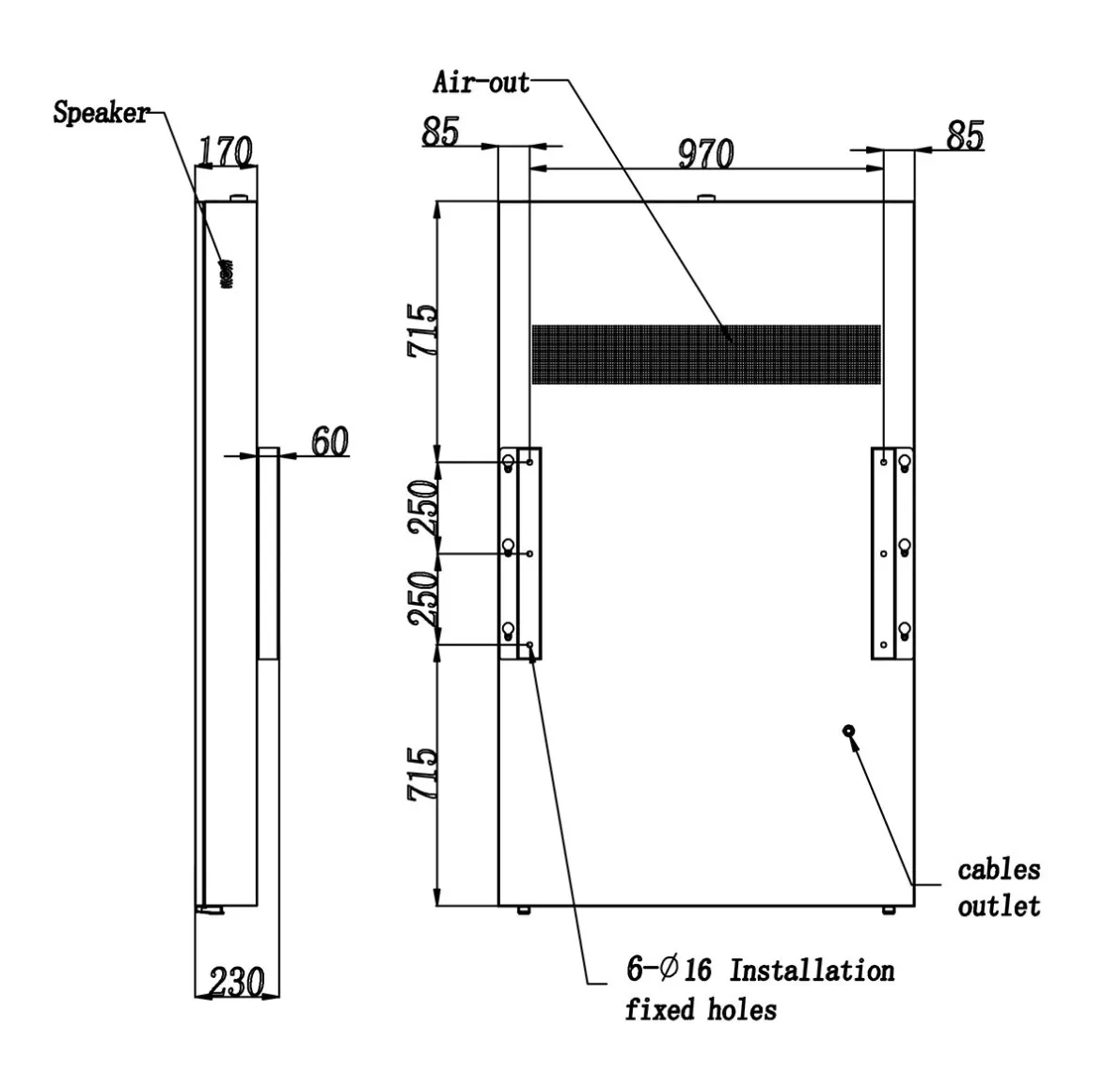

Mechanical Para | Machine seize H*W*D（mm） | 1930*1140*170 |
Net weight(Kg) | 180 | |
Package size H*W*D（mm） | 1410*2080*320 | |
Gross weight(Kg) | 220 | |
A Screen for Exterior Retail Approaches
The display can be positioned at open-air shopping streets, exterior mall entrances, outdoor restaurant areas and pedestrian approaches from parking facilities.
A 75-inch portrait screen provides enough scale for customers to recognize a campaign before reaching the store. Fashion photography, entertainment promotion and seasonal retail messages can use the full height effectively.
The cabinet should remain outside emergency and accessible routes. Its foundation and wind loading require engineering review.
Treat Cabinet Color as Part of the Site
The purple finish shown in the image creates a different architectural character from a standard black kiosk. It may suit a branded retail district or temporary campaign theme.
The product image does not guarantee this finish as standard. Buyers should specify the required color reference and outdoor coating.
Content Should Not Become a Product Grid
The large screen is more effective with one dominant image and a concise headline. A collection of small offers may be difficult to understand while pedestrians are moving.
Outdoor artwork should use stronger contrast than indoor campaign graphics. The 2500-nit output assists in daylight, but reflective glazing and direct sun still influence visibility.
Operational Requirements
IP65 protection helps defend the cabinet against dust and water jets. Fan cooling manages internal heat during extended campaign hours.
The display’s media player determines scheduling and remote updates. These functions need to be defined separately.
The 75 Inch Outdoor Advertising Display is suited to exterior retail locations that need a large portrait campaign surface and have enough space to support its physical scale.
