Built-in Fan Version
Outdoor Advertising Display for 75 Inch Bus Station Wayfinding, 2500 Nits IP65 Fan Cooling
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP750BO
Outdoor Advertising Display for 75 Inch Bus Station Wayfinding, 2500 Nits IP65 Fan Cooling
75 Inch Outdoor Advertising Display for Open-Air Bus Station Wayfinding
Outdoor bus stations present a demanding information environment. Passengers may approach from different directions, traffic noise can reduce the usefulness of audio announcements, and sunlight can change the visibility of conventional signs throughout the day.
This 75 Inch Outdoor Advertising Display is intended for large-format information and media at open-air bus stations, roadside transport stops and exterior passenger interchange areas. Its listed specifications include 2500-nit brightness, IP65 enclosure protection and built-in fan cooling.
The screen size makes it suitable for information that needs to be recognized from a greater distance than content shown on a compact 32- or 43-inch unit.
75 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1651*929 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

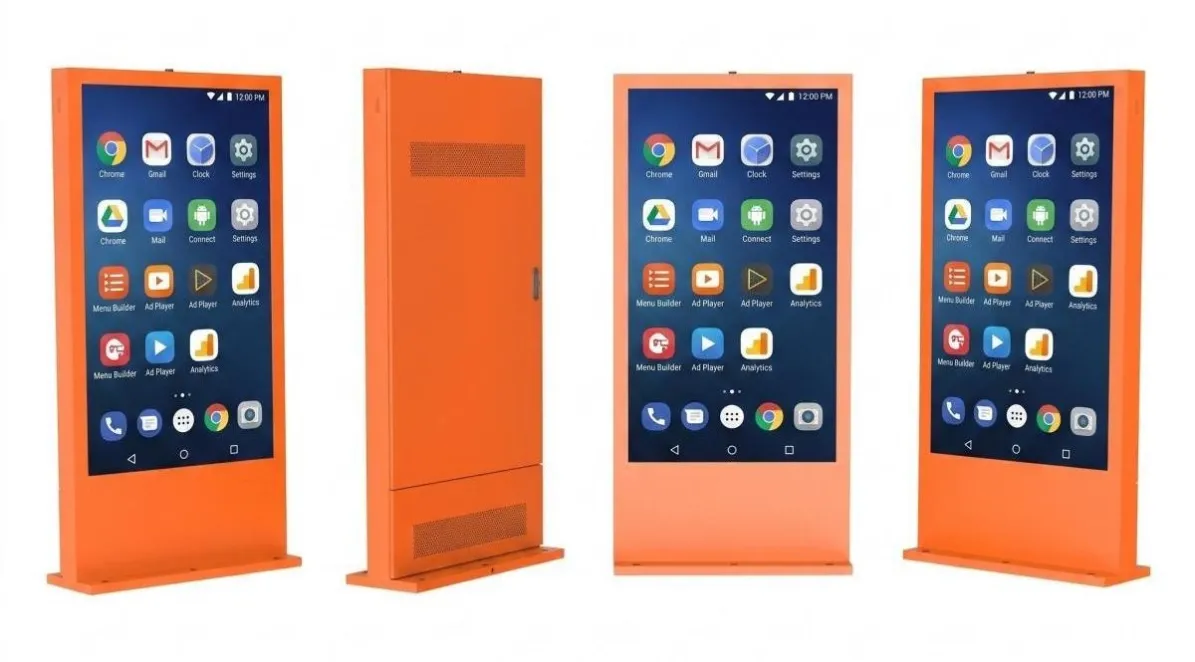

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

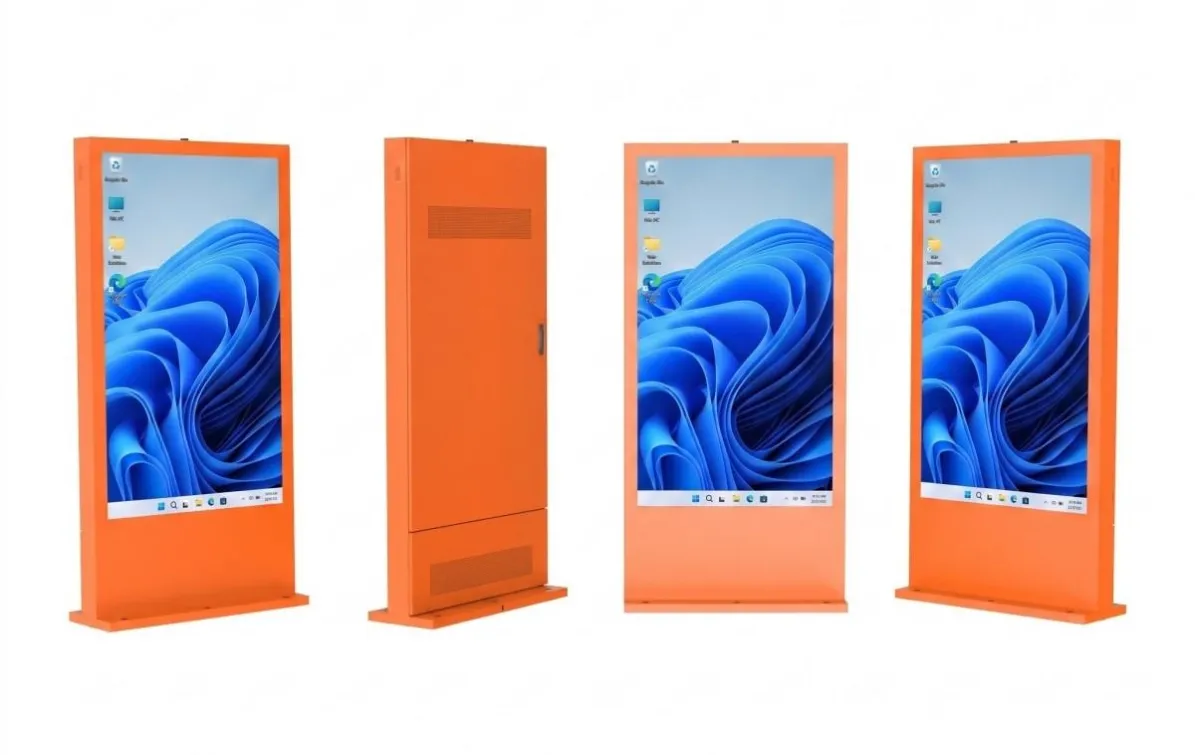

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

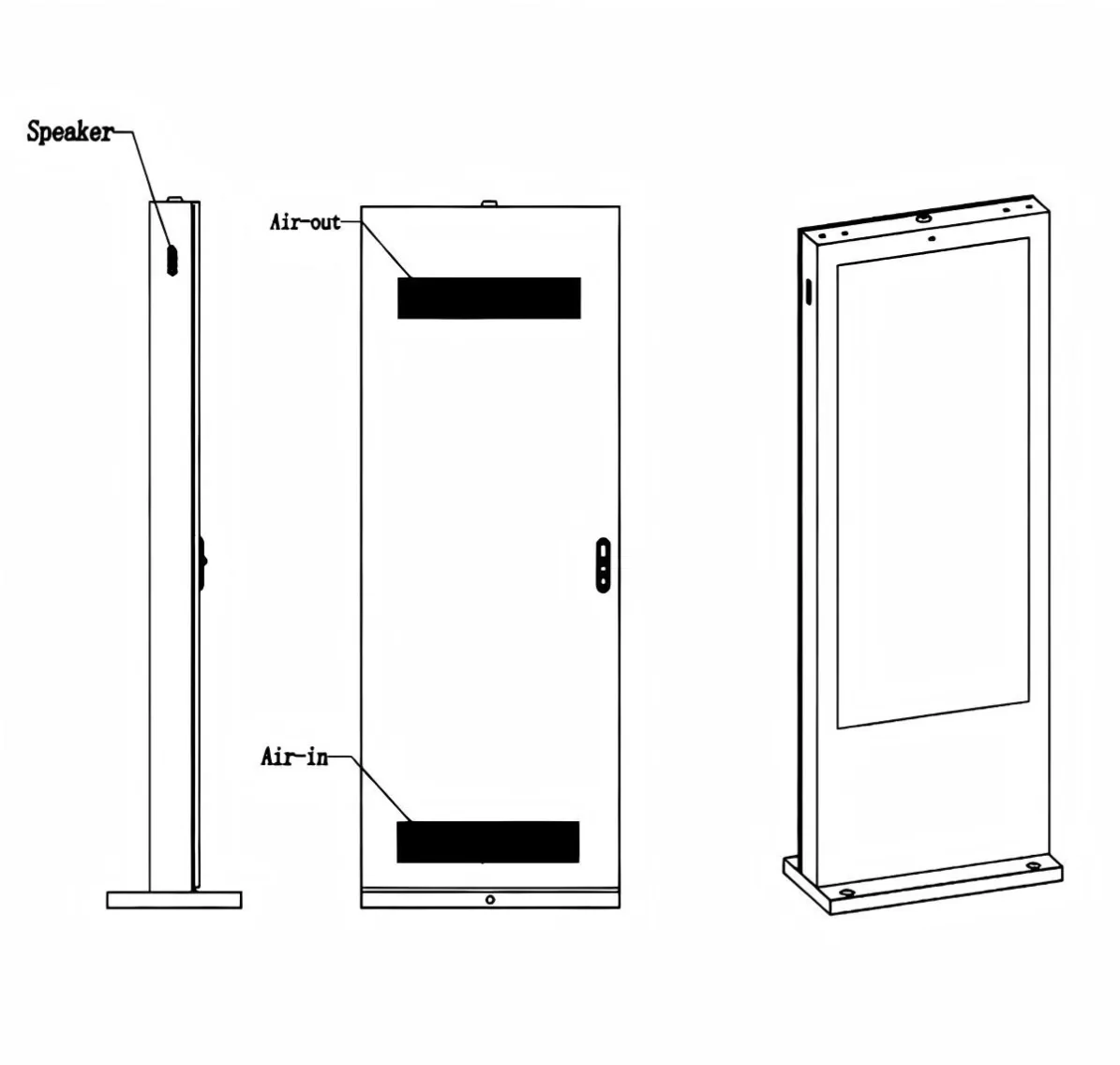

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤860W | |

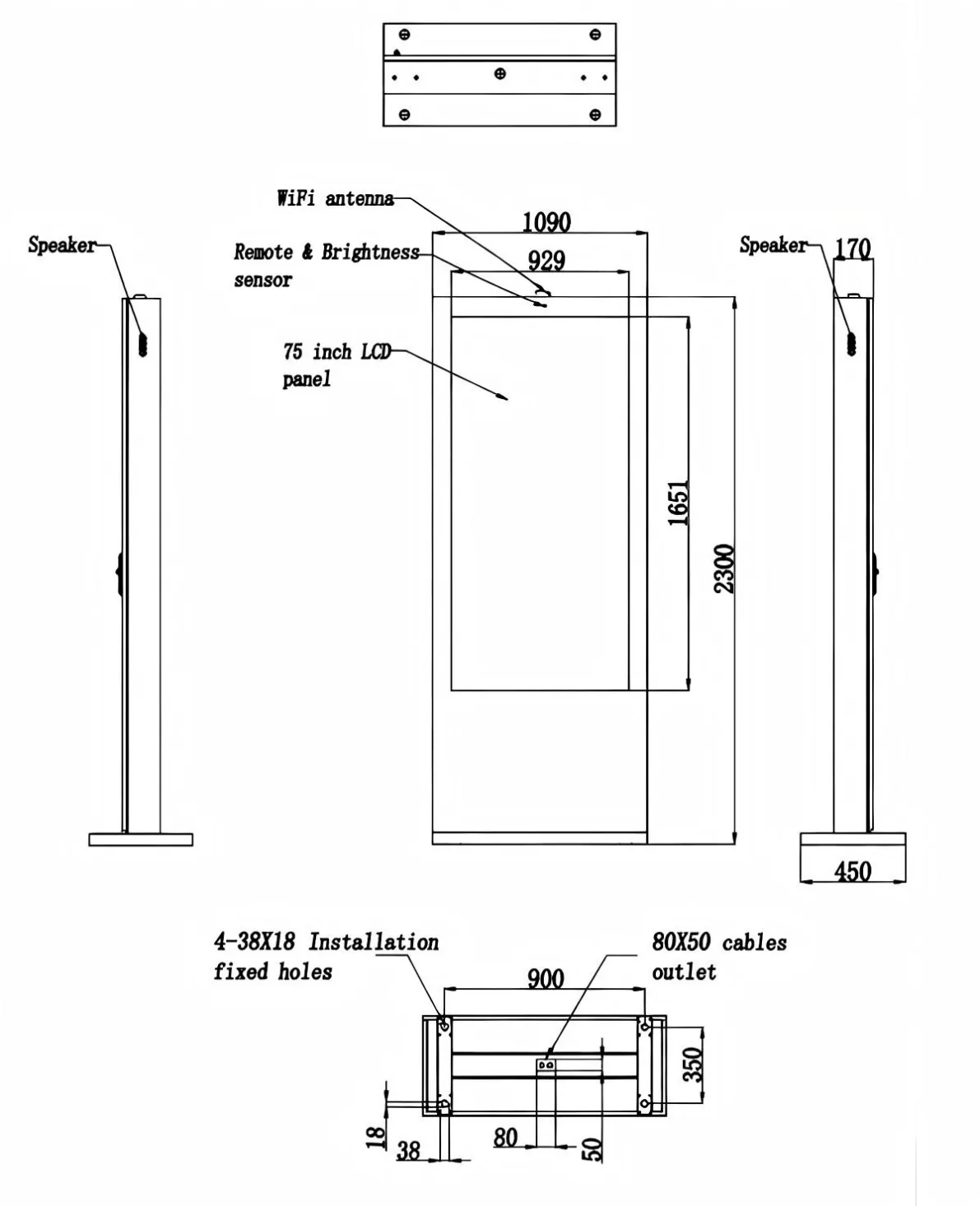

Mechanical Para. | Machine seize H*W*D( mm) | 2300*1090*170 |
Net weight(Kg) | 180 | |
Package size H*W*D( mm) | 1320*2450*520 | |
Gross weight(Kg) | 230 | |
Where the Screen Should Be Positioned
A large outdoor wayfinding display is most useful before passengers reach a major decision point. Typical outdoor positions may include:
- The approach to an open-air bus terminal
- An exterior station entrance
- A roadside boarding area
- A covered but externally exposed platform
- An outdoor transfer point
- The pedestrian route between parking and the station
- A public transport plaza
The screen must not obstruct emergency routes, accessible paths or sightlines to traffic and official transport signs.
Because a 75-inch cabinet has a substantial physical presence, pedestrian flow should be reviewed during both normal and peak operating periods.
Organizing Wayfinding for Fast Recognition
Passengers usually need only a few pieces of information at first glance: destination, route, direction and boarding location. These elements should receive the strongest visual priority.
A useful screen structure might contain:
- Route or destination name
- Large directional arrow
- Stop, bay or platform number
- Approximate walking distance
- Temporary service change
- Accessibility information
Commercial advertising can be included, but it should not compete with service disruption, evacuation or safety messages.
A large screen does not make small timetable text easier to understand automatically. Timetables and route maps should be redesigned for digital presentation rather than copied directly from printed material.
2500-Nit Visibility in an Outdoor Transport Area
The 2500-nit panel is designed to remain visible under high ambient light. Actual readability depends on the direction of sunlight, nearby shelters, reflective pavement and the position from which passengers approach.
The proposed location should be assessed at several times of day. A screen that appears clear in morning shade may receive strong direct sunlight during the afternoon commute.
Nighttime brightness also requires consideration. A display positioned near a road should remain visible without becoming a source of glare for drivers.
IP65 Protection and Outdoor Installation
The IP65 rating indicates protection against dust and water jets when the enclosure is correctly installed. This makes the unit more appropriate for an exposed passenger environment than an indoor commercial display placed inside a simple cabinet.
All power and network entries need suitable outdoor sealing. Foundation openings, access doors and cable glands are common areas where poor installation can reduce environmental protection.
The base and surrounding pavement should allow water to drain away. Standing water around the cabinet can create maintenance and electrical risks even when the enclosure itself is weather resistant.
Information System Requirements
The 75 Inch Outdoor Advertising Display can show supplied maps, directional graphics, service notices and advertising content. Real-time vehicle arrivals or disruption data require a compatible data source, player and software platform.
The hardware specification alone does not confirm live transport-system integration. This should be established during the project-planning stage.
Procurement and Site Checklist
Before production, the transport operator or integrator should review:
- Final outdoor installation position
- Screen orientation and viewing distance
- Cabinet dimensions and weight
- Foundation and anchor requirements
- Local wind-load conditions
- Power and network routes
- Maintenance access
- Brightness behavior after dark
- Content publishing responsibilities
- Emergency-message procedures
The 75 Inch Outdoor Advertising Display is best suited to open-air transport locations that need large, recognizable information at medium or long viewing distances. Its value depends on outdoor placement, disciplined wayfinding design and a reliable process for keeping passenger information current.
