Built-in Fan Version
Outdoor Advertising Display for 55 Inch Retail Windows, 2500 Nits IP65 Fan Cooling
Response Time:5ms Color:16.7M Input Voltage:AC100~240V 50 /60 HZ LCD Screen Type:TFT
Specifications
- SKU
- ZXTLCD-OUTFHN550FB

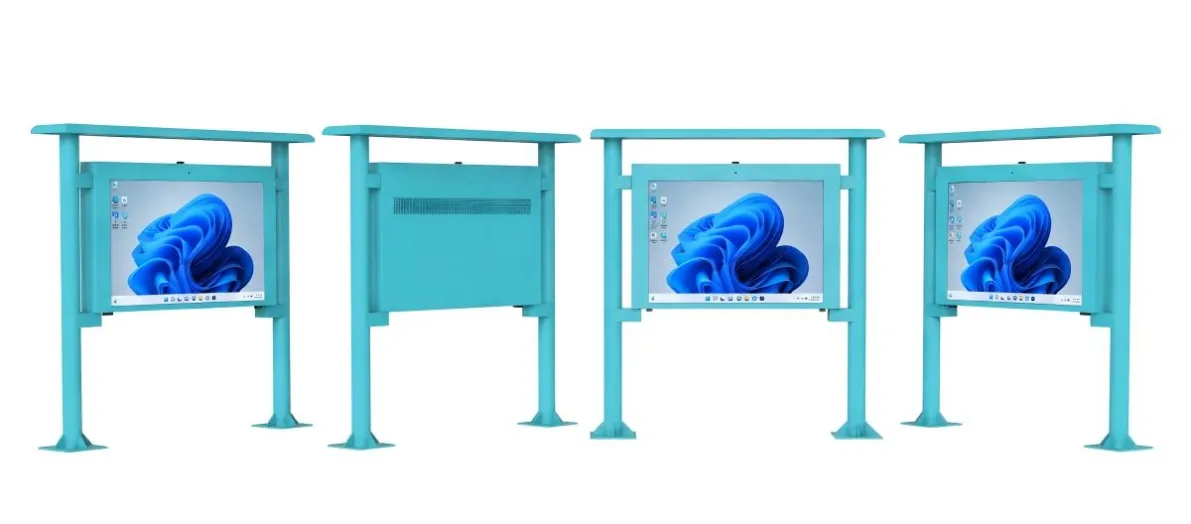

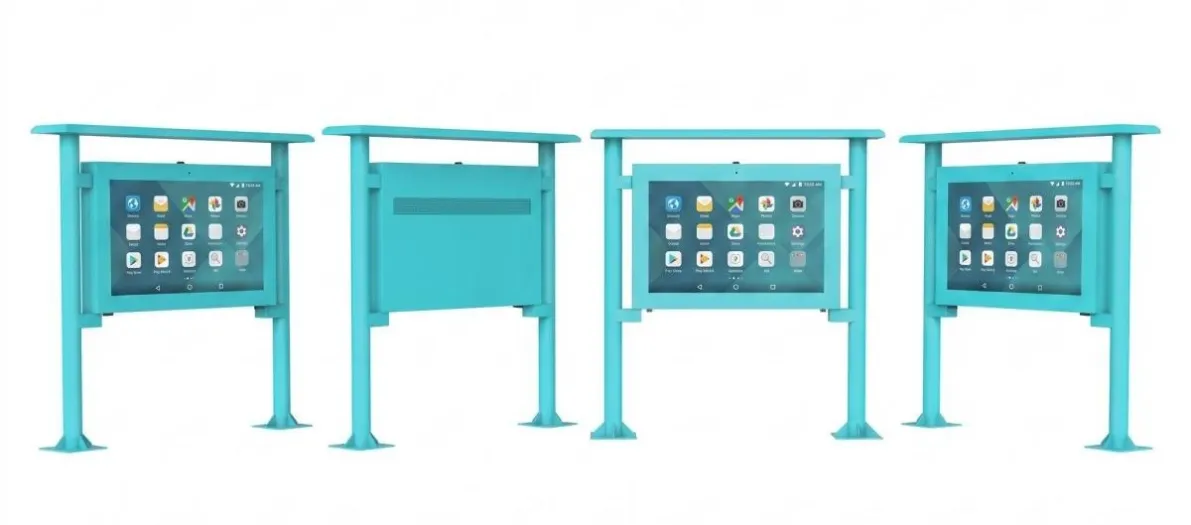

55 Inch Pole Mounted Public Information Display for Outdoor Facilities
Public facilities often need a screen that is visible without occupying the centre of a pedestrian route. This 55 Inch Pole Mounted Public Information Display places a landscape screen between two green supports, creating a permanent information point with open space beneath the cabinet.
Its medium size is appropriate for close- and mid-range viewing outside community facilities, parks and public-service buildings.
55 Inch Outdoor air-cooled horizontal screen floor-standing column style specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1210*681mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤450W | |

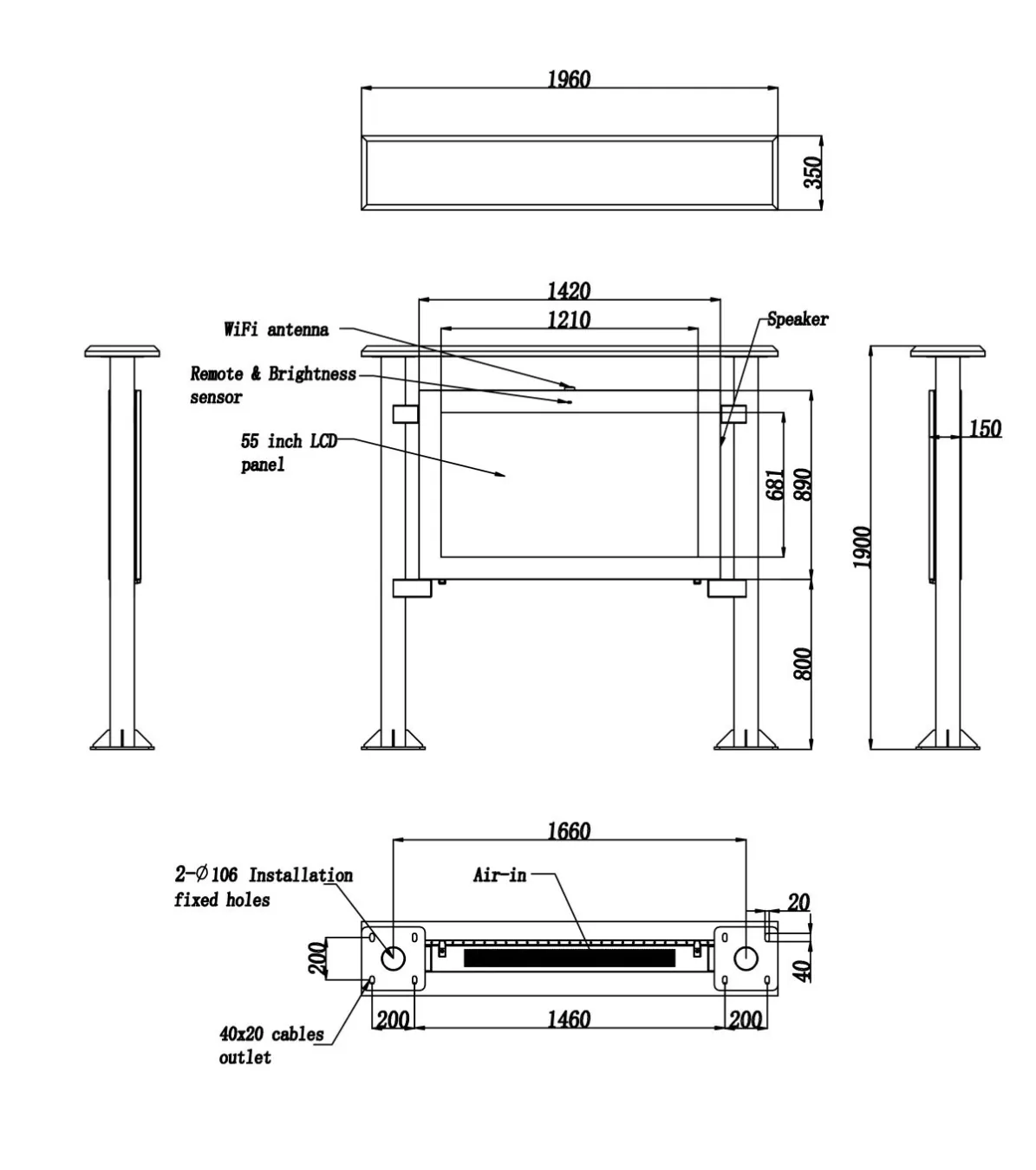

Mechanical parameters | Whole device dimension (H*W*D) | 1900*1960*350mm |
Whole device net.weight | 160kg | |
Package dimension H*W*D | 1160*1570*300mm | |
Stand pole dimension H*W*D | 570*2210*510mm | |
Mechanical parameters | Whole device gross weight(kg) | 110 |
Stand pole gross weight(kg) | 120 | |
A Weekly Operating Example
Rather than displaying one permanent poster, the screen can follow the facility’s real schedule:
- Monday: service-hour updates
- Tuesday: community programme notices
- Wednesday: maintenance or access information
- Thursday: local event promotion
- Friday: weekend facility schedules
- Emergency periods: priority safety message
This keeps the screen useful to returning visitors.
Protecting Information Quality
Every notice should have an owner and an expiry date. The 55 Inch Pole Mounted Public Information Display should not become a collection of digital posters that remain visible after an event has passed.
Use short summaries, recognizable headings and QR codes for longer documents.
Installation and Maintenance
The product provides 2500-nit brightness, IP65 protection and fan cooling. Its supports require secure foundations, concealed cable routing and sufficient rear service space.
If a public network includes several screens, basic status monitoring can identify offline units and outdated content.
The 55 Inch Pole Mounted Public Information Display is a manageable option for facilities that need regularly changing information but do not require the scale of an 86- or 98-inch civic screen.
