Built-in Fan Version
Outdoor Advertising Display for 43 Inch Bus Station Wayfinding, 2500 Nits IP65 Fan Cooling
Protection Grade:IP65 LOGO:Customerize HS code:8528591090 Backlight:LED backlight Menu language:Mutil Language
Specifications
- SKU
- ZXTLCD-OUTFHW430BR
Outdoor Advertising Display for 43 Inch Bus Station Wayfinding, 2500 Nits IP65 Fan Cooling
43 Inch Outdoor Advertising Display for Passenger Information
A screen at a bus station may need to serve two roles: carrying commercial campaigns during normal operation and publishing route information when passengers need direction. This 43 Inch Outdoor Advertising Display provides a 2500-nit screen with IP65 protection, fan cooling and LED backlighting.
The enclosure logo can be customized for a transport authority, station operator or advertising contractor. A multilanguage menu is available for device operation.
43 Inch Outdoor horizontal wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |
Display size(mm) | 941*530 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |

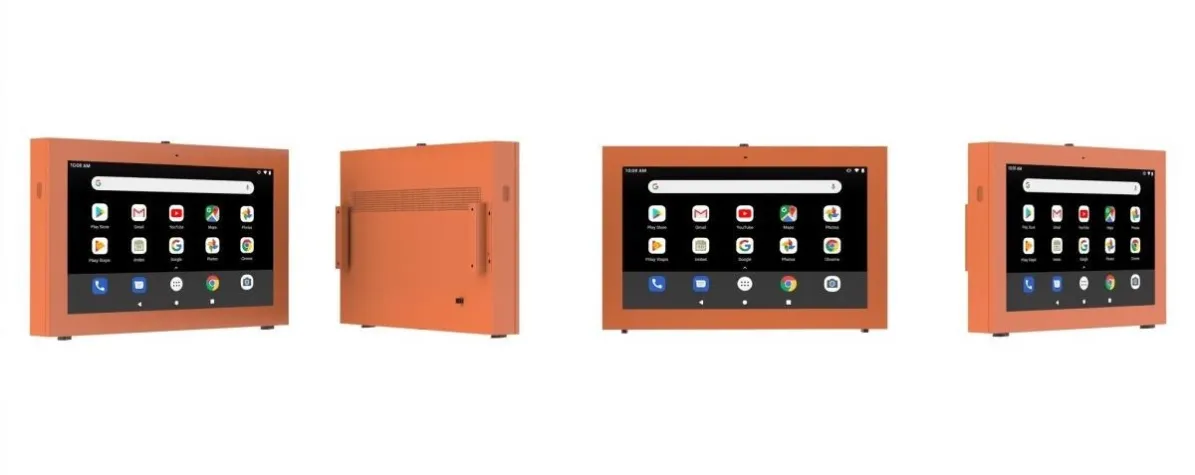

Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |

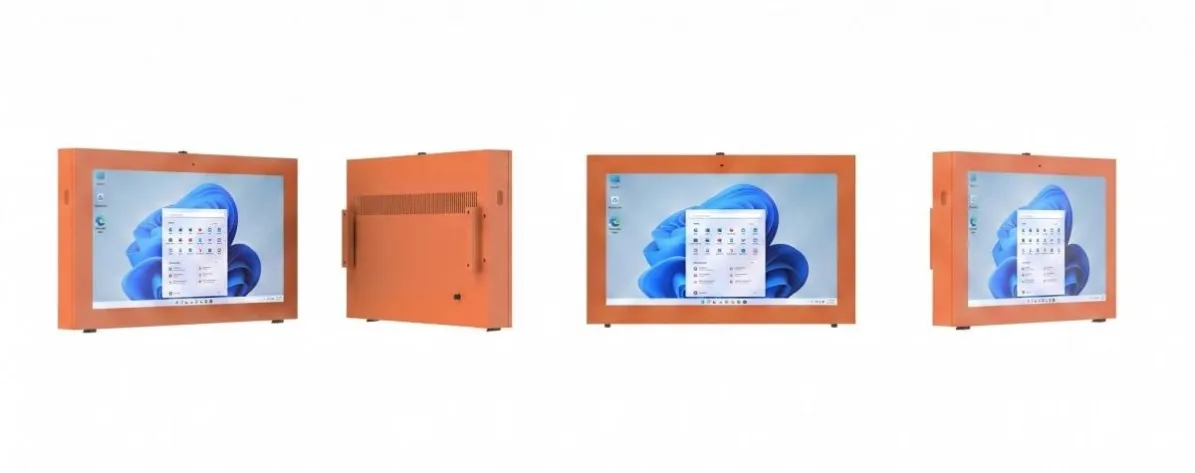

Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤300W | |

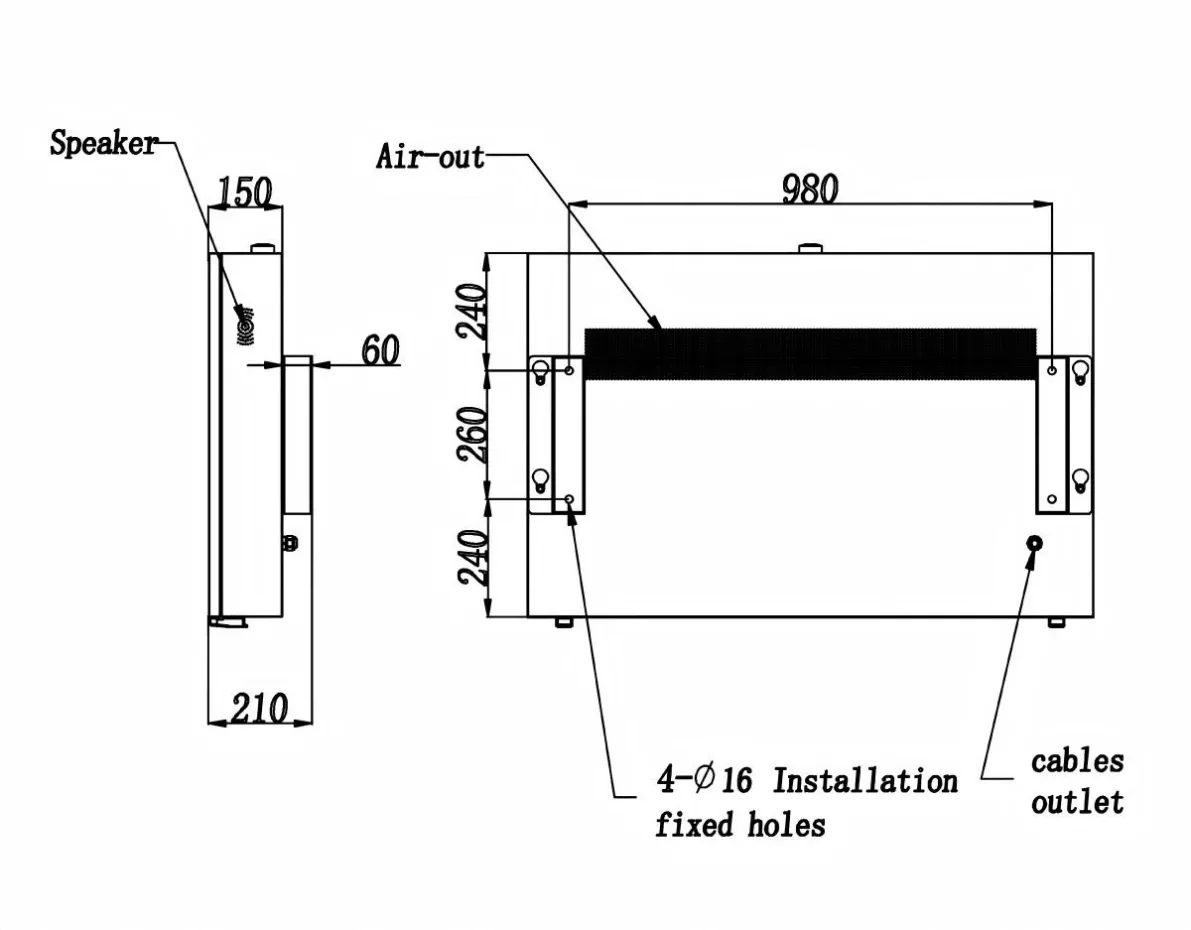

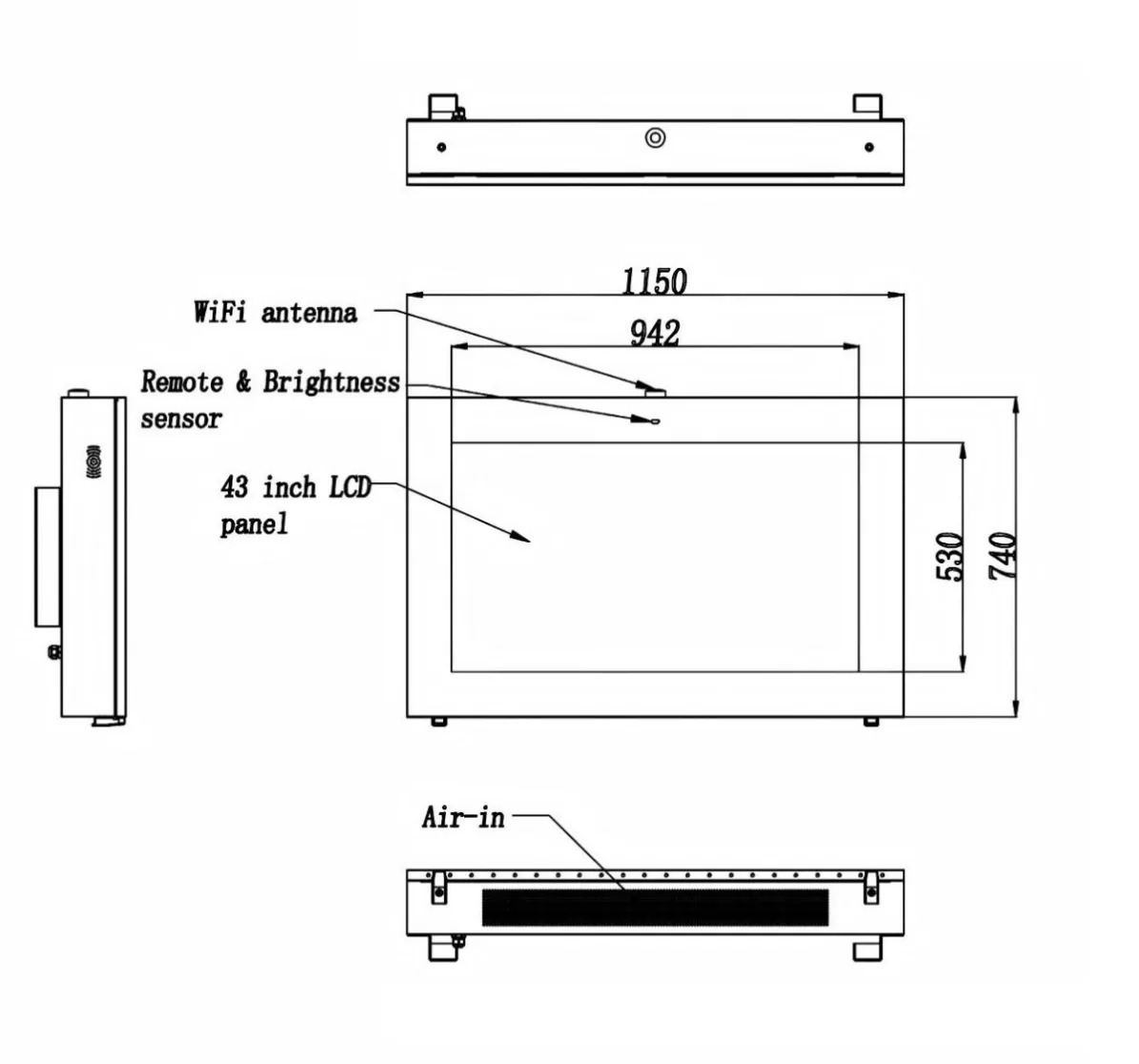

Mechanical Para | Machine seize H*W*D(mm) | 1150*740*150 |
Net weight(Kg) | 70 | |
Package size H*W*D(mm) | 1010*1300*300 | |
Gross weight(Kg) | 95 | |
Position It Before Passengers Need to Turn
A wayfinding screen must appear before the decision point. If it is installed directly at a corridor junction, passengers may notice it too late or lose sight of it behind a queue.
Useful locations include the route from ticketing to the platforms, entrances serving several bus bays, interchange corridors and exits leading to local transport.
The installer should inspect the location from the passenger’s approach rather than evaluating the wall from directly in front. Columns, ticketing equipment and people waiting with luggage can block sightlines that appear clear in an architectural drawing.
The display should remain high enough to be visible behind a small crowd while keeping route details within a comfortable reading angle.
Separating Advertising from Wayfinding
Commercial campaigns and passenger information should not compete on the same page. Route numbers, destinations and arrows need a stable, high-priority layout.
Advertising can run between operational messages or inside a clearly separated content area. A platform change, disruption or emergency instruction must be able to interrupt the scheduled campaign.
A consistent arrow system should be used across the station. Maps need to match the direction passengers are facing. Route colors can support recognition, but the information should not rely only on color.
Working with 2500-Nit Brightness
The high-brightness panel is intended for station entrances and outdoor or semi-outdoor areas. Strong contrast remains necessary when the screen faces daylight, vehicles or glazed surfaces.
Full daytime output may be uncomfortable at night, particularly in waiting areas. Scheduled brightness settings can maintain readability without allowing the screen to dominate official station signs.
LED backlighting supplies the panel illumination. Campaign designs should be tested on the actual display instead of being approved only from an office monitor.
Fan Cooling in a Transport Environment
Bus stations may contain road dust, exhaust residue and seasonal debris. These conditions can affect ventilation areas and filters more quickly than a clean indoor retail environment.
The IP65 enclosure helps protect internal components from dust and water under its rated conditions. Installation joints and cable entries must preserve that protection.
Maintenance access should allow technicians to inspect the cooling system and media player without closing a major passenger route. Cleaning staff should be able to wipe the front surface without opening technical compartments.
Preparing the Station Project
When ordering a 43 Inch Outdoor Advertising Display, provide the screen orientation, mounting drawing, normal viewing distance, passenger languages and content-management requirements.
The operator should state whether the screen receives live transport data or only scheduled media. Publishing permissions also need to separate transport information from paid advertising.
A well-positioned 43 Inch Outdoor Advertising Display can generate media value during normal periods while remaining available for route guidance and important passenger updates.
