Built-in Air conditioner
Outdoor Advertising Display 75 Inch 2500 Nits IP65 Floor Stand for Public Info
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVP750BR
A 75 Inch Outdoor Public Information Display Built for Changing Notices
Printed public-notice boards are inexpensive until information changes every day. Staff must print new sheets, remove outdated notices and travel to every location. This 75 Inch Outdoor Public Information Display gives municipalities, campuses and public facilities a more manageable way to update outdoor communications.

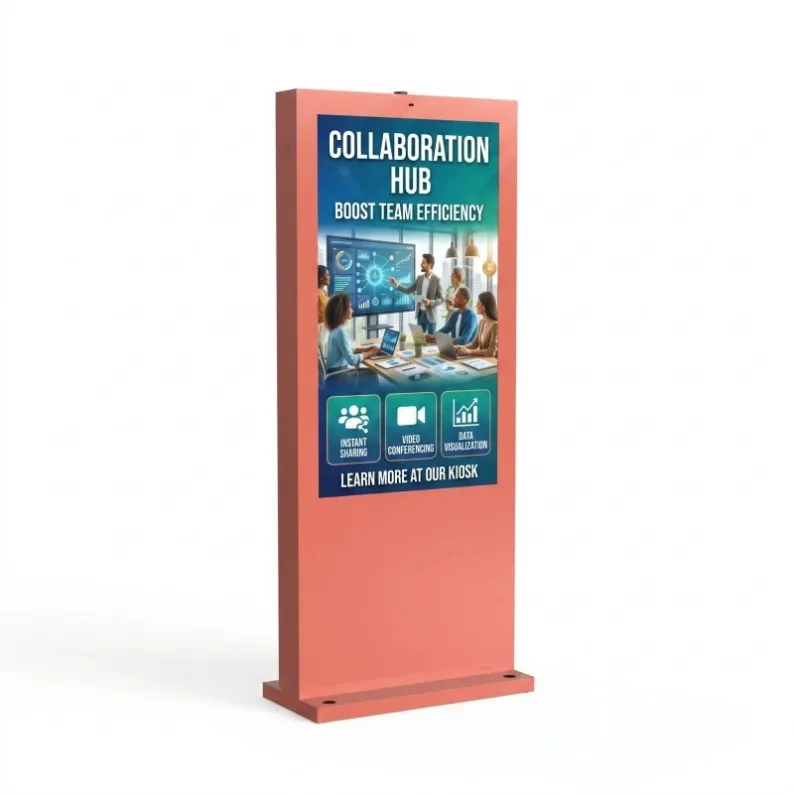

The product image presents a portrait screen in a bright orange-red enclosure with a stable floor-standing base. That visible cabinet treatment can help the unit stand out in an outdoor public area, although production color should be agreed separately for each project.
75 Inch Outdoor floor standing digital signage with air conditioner specification-B style | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 1651*929mm | |
Display ration | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

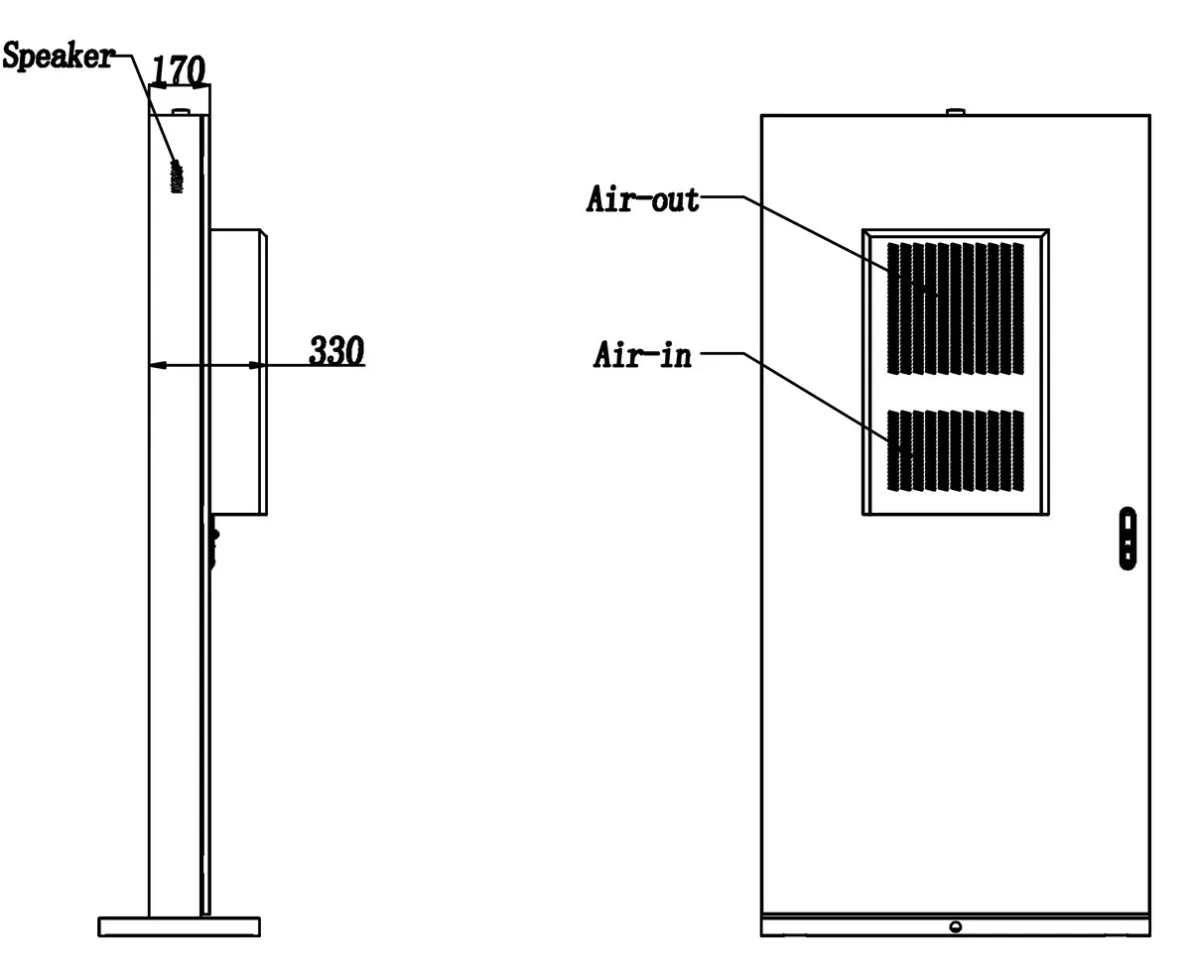

Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 5%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 1320W | |

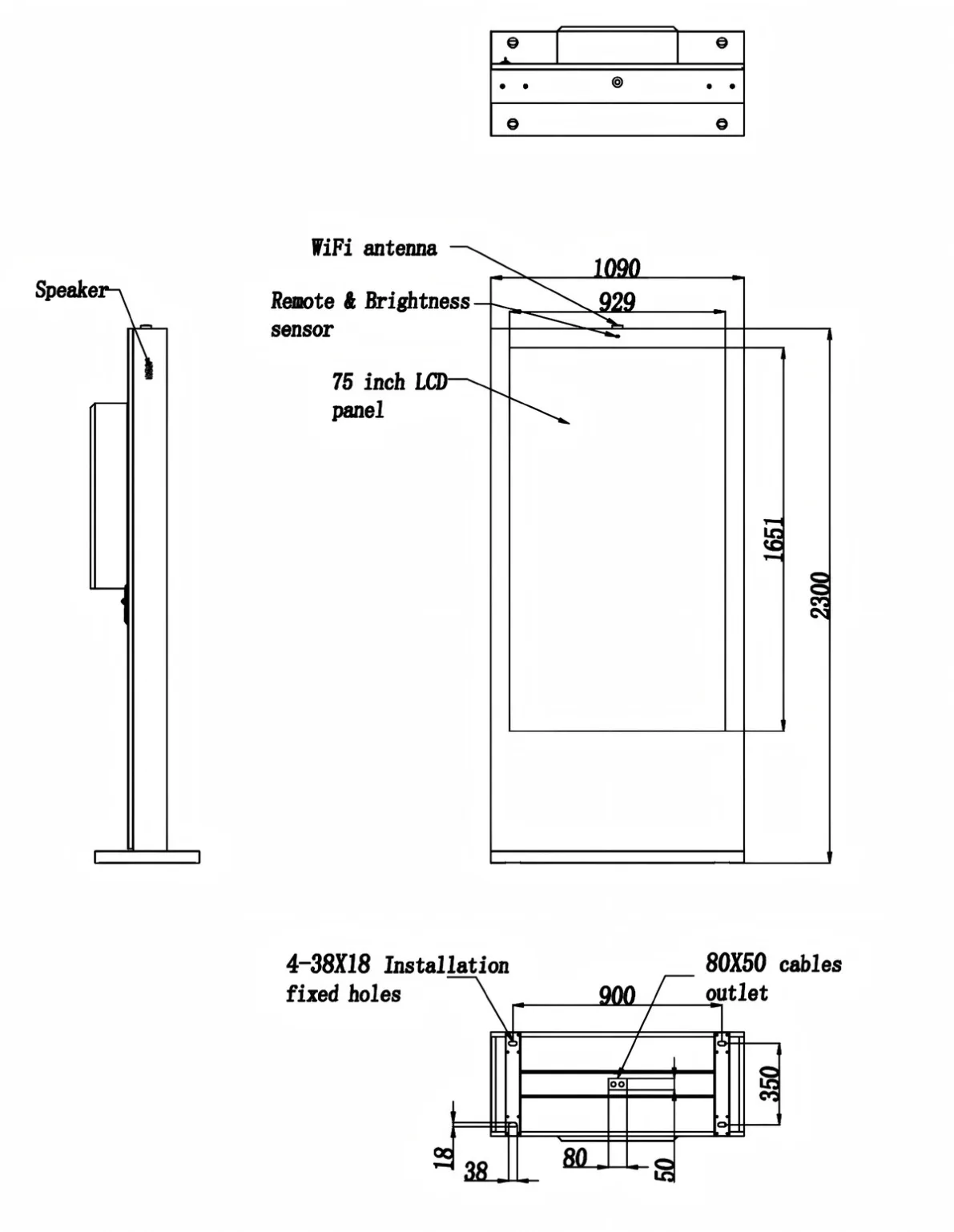

Mechanical Para | Whole device dimension H*W*D | 2300*1090*170mm |
Whole device net.weight | 210kg | |
Package dimension H*W*D | Machine 1320*2450*520mm AC1030*670*350mm | |
Gross packing | Machine 220kg AC55kg | |
One Screen, Several Public-Service Roles
The same display can carry routine information in the morning and urgent notices later in the day. A practical playlist might include community events, public-service opening hours, pedestrian directions, weather warnings and local transport updates.
This format works well in:
- Civic plazas
- Exterior community-service areas
- Outdoor hospital approaches
- Public park entrances
- Government-building forecourts
- Open-air event grounds
The screen should not imitate a printed bulletin board. Public information performs better when each page presents one clear subject with a visible headline and limited supporting text.
Visibility Without Uncontrolled Brightness
The 2500-nit panel gives the 75 Inch Outdoor Public Information Display the output needed for bright daytime surroundings. Automatic brightness scheduling can reduce unnecessary output after sunset and make the screen more comfortable for nearby pedestrians.
Content managers should prepare separate daytime and evening layouts when possible. White backgrounds that work in sunlight can become visually harsh at night, while darker evening templates reduce glare without hiding the message.
Air Conditioning for Long Operating Schedules
Large public displays may operate from early morning until late evening. The built-in air conditioner manages the internal cabinet temperature more actively than a basic circulation-fan arrangement.
The cooling system still requires maintenance. A purchasing specification should state expected ambient temperature, daily operating hours and local dust conditions so the thermal configuration is evaluated against the real site.
Public Information Needs Editorial Control
Hardware reliability is only part of the project. Authorities should assign publishing permissions and decide who approves normal notices, commercial content and emergency messages.
A useful workflow separates three roles:
- Local staff prepare routine updates.
- An authorized manager approves public-facing content.
- Emergency personnel can interrupt the normal playlist when necessary.
This prevents outdated material and unauthorized graphics from remaining on a prominent outdoor screen.
With structured publishing and regular servicing, the 75 Inch Outdoor Public Information Display becomes an operational communication point rather than simply another advertising machine.
