Built-in Fan Version
Outdoor Advertising Display 21.5 Inch Horizontal Fan Cooling for Bus Station Wayfinding
Protection Grade:IP65 LOGO:Customerize HS code:8528591090 Backlight:LED backlight
Specifications
- SKU
- ZXTLCD-OUTFHP215W
21.5 Inch Outdoor Transit Advertising Display for Bus Shelter Media
This product shares its compact size with small route-information screens, but its commercial role is different. The 21.5 Inch Outdoor Transit Advertising Display can carry sponsored local information, nearby retail promotions or short campaigns inside a bus-shelter structure.
The image shows a dark landscape screen on a compact pedestal-like support. It is intended for close viewing rather than long-distance roadside advertising.
21.5 Inch Outdoor floor-standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Side frame backlight |
Display dimension | 478*269mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

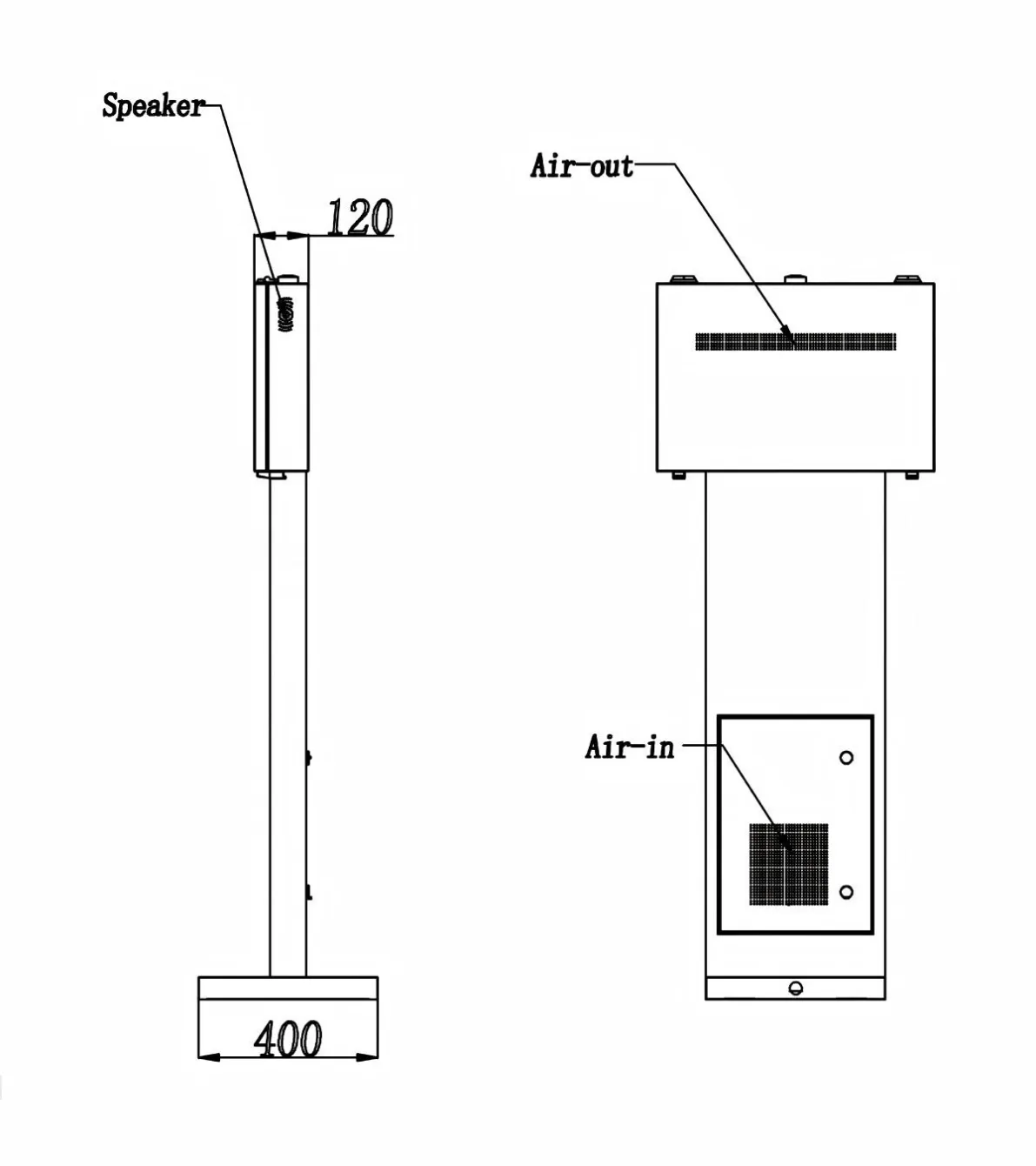

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤180W | |

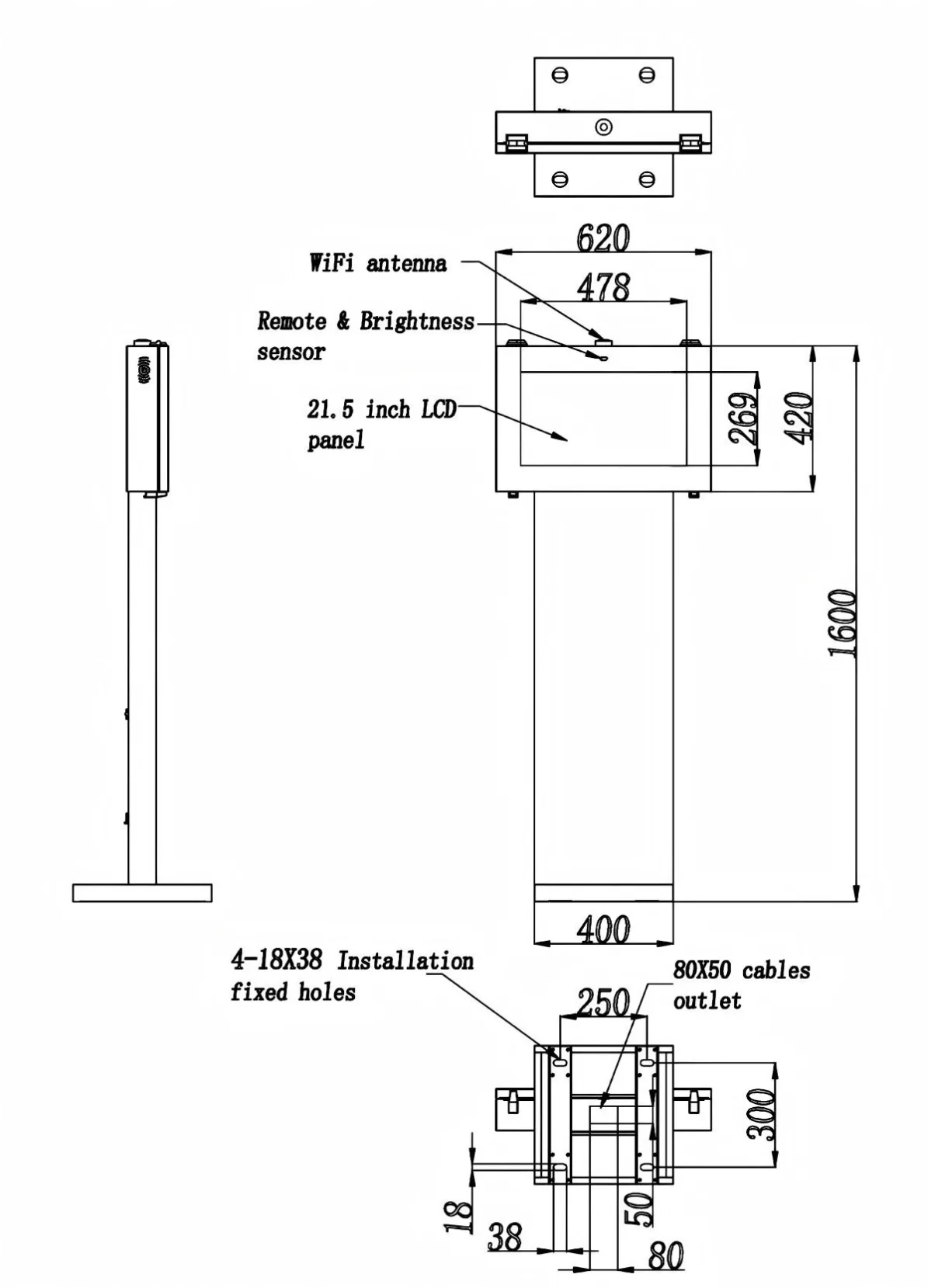

Mechanical parameters | Machine size(H*W*D) | 1600*620* 120mm |
Net machine weight | 55kg | |
Package size(H*W*D) | 1830*770* 420mm | |
Package weight | 90kg | |
Local Relevance Beats Large-Scale Branding
At this screen size, passengers are more likely to respond to information connected to the immediate area:
- A café across the street
- A nearby pharmacy
- Local event directions
- A mobile ticket offer
- A neighbourhood service
- A QR-linked discount
National brand campaigns can still run, but the creative must be redesigned for the smaller format.
Advertising Must Not Hide Route Information
Where the screen shares a shelter with wayfinding content, the operator should establish clear boundaries. Route numbers, stop identification and emergency information need permanent or priority space.
The 21.5 Inch Outdoor Transit Advertising Display can generate media value without interfering with the passenger’s main reason for looking at the screen.
Compact Hardware, Real Maintenance Needs
The enclosure uses fan cooling and is designed for weather-exposed operation. Shelter integration must preserve ventilation and allow service access.
Screens installed close to pavements are exposed to fingerprints, dust and vandalism. Cleaning frequency should be based on passenger traffic, not only on a fixed annual schedule.
Playback logs are useful when the display carries paid campaigns. Even a small outdoor media screen should be able to demonstrate that contracted content was shown.
