Built-in Fan Version
High Brightness Weatherproof Digital Signage 49 Inch Wall Mounted for Smart City Media
Input Voltage:AC100~240V 50 /60 HZ LCD Screen Type:TFT Protection Grade:IP65 LOGO:Customerize
Specifications
- SKU
- ZXTLCD-OUTFHW490CB
High Brightness Weatherproof Digital Signage 49 Inch Wall Mounted for Smart City Media
49 Inch Weatherproof Digital Signage for Urban Information Networks
Public media screens are often expected to handle municipal notices, local events and commercial advertising through one network. This 49 Inch Weatherproof Digital Signage provides a wall-mounted TFT LCD format for civic buildings, transport structures, parking facilities and other outdoor information points.
The product supports AC100–240V, 50/60Hz input and carries an IP65 protection rating. Logo customization is available for authorities, transport operators and media contractors.
49 Inch Outdoor horizontal wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |
Display size(mm) | 1074*604 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | below 40℃ ~ + 55℃ |
Working humidity | 5% ~ 95% | |
Working Voltage | AC 100 ~240v , 50Hz | |
Max Power Consumption | ≤400W | |

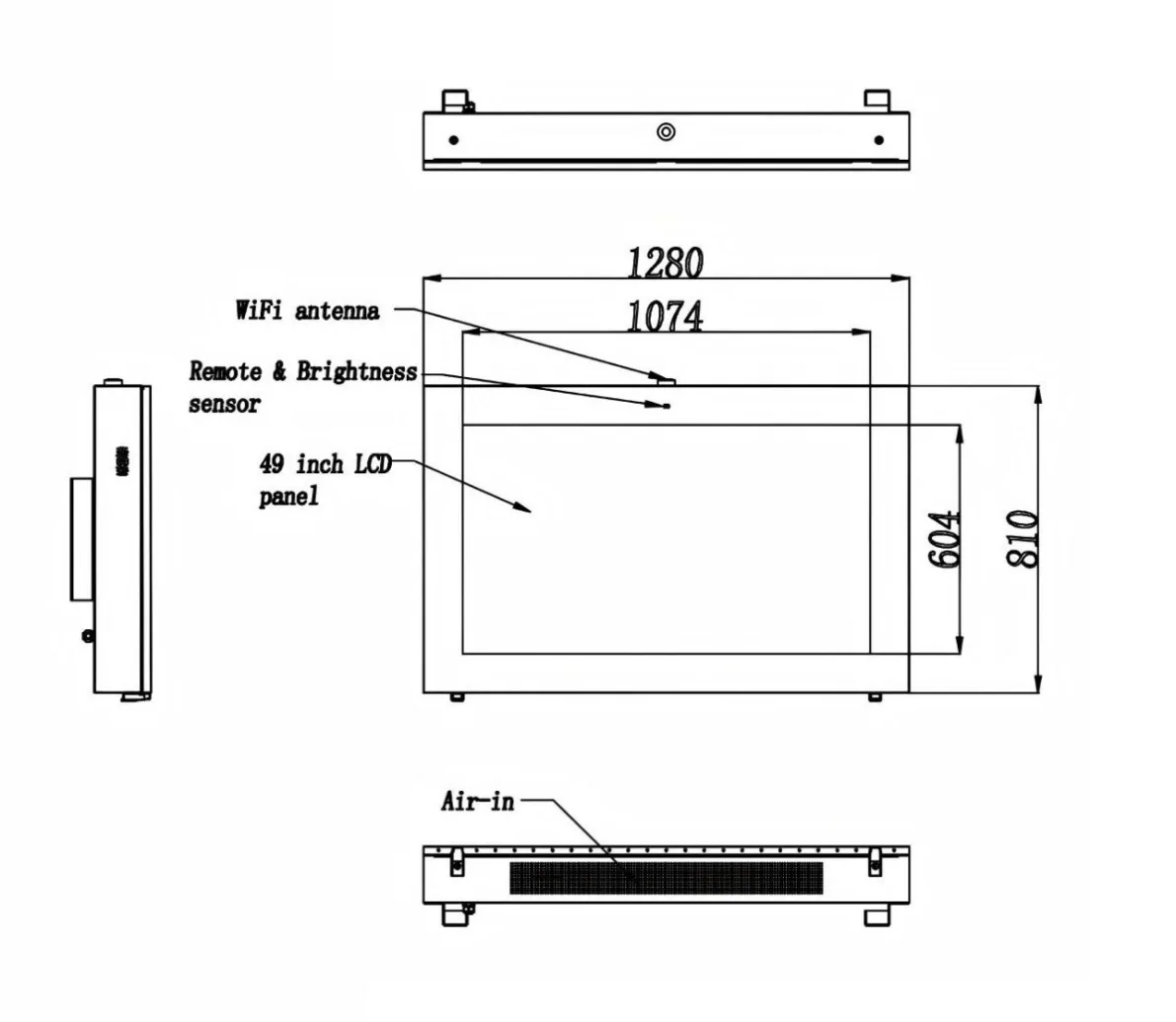

Mechanical Para | Machine seize H*W*D(mm) | 1280*810*150 |
Net weight(Kg) | 75 | |
Package size H*W*D(mm) | 1080*1430*300 | |
Gross weight(Kg) | 105 | |
Use Existing Structures Instead of Adding Another Kiosk
Wall mounting allows the display to become part of a bus shelter, parking structure or public-service building. This helps preserve pavement space and may fit more naturally with existing street furniture.
The supporting wall needs to carry the full equipment load. Decorative cladding alone may not be suitable, so the contractor should locate the structural surface and plan the bracket positions before production.
Recessed installations require ventilation and removal space. A flush architectural finish is useful only if technicians can still replace the media player, cooling components and power supply.
Several Content Owners Need Separate Permissions
A city network may involve communications teams, transport departments, emergency services and commercial media operators. Giving all users the same access can lead to publishing mistakes.
The CMS should support user roles, screen groups and message priority. Emergency information must be capable of interrupting normal campaigns, while routine users remain limited to their assigned locations.
The display should retain approved local content during a network interruption. An information point must not become blank because a remote data source is temporarily unavailable.
Design for the Actual Viewing Route
A screen beside a pedestrian path can carry event details or a local map. A display mounted above a parking entrance needs larger text and shorter messages.
Printed documents rarely transfer well to a digital display. Their text is usually too small and the page ratio does not match the screen. Public notices should be rebuilt as dedicated screen layouts.
Site testing should take place at different times of day. Sunlight, reflections and pedestrian direction can change which parts of a design remain readable.

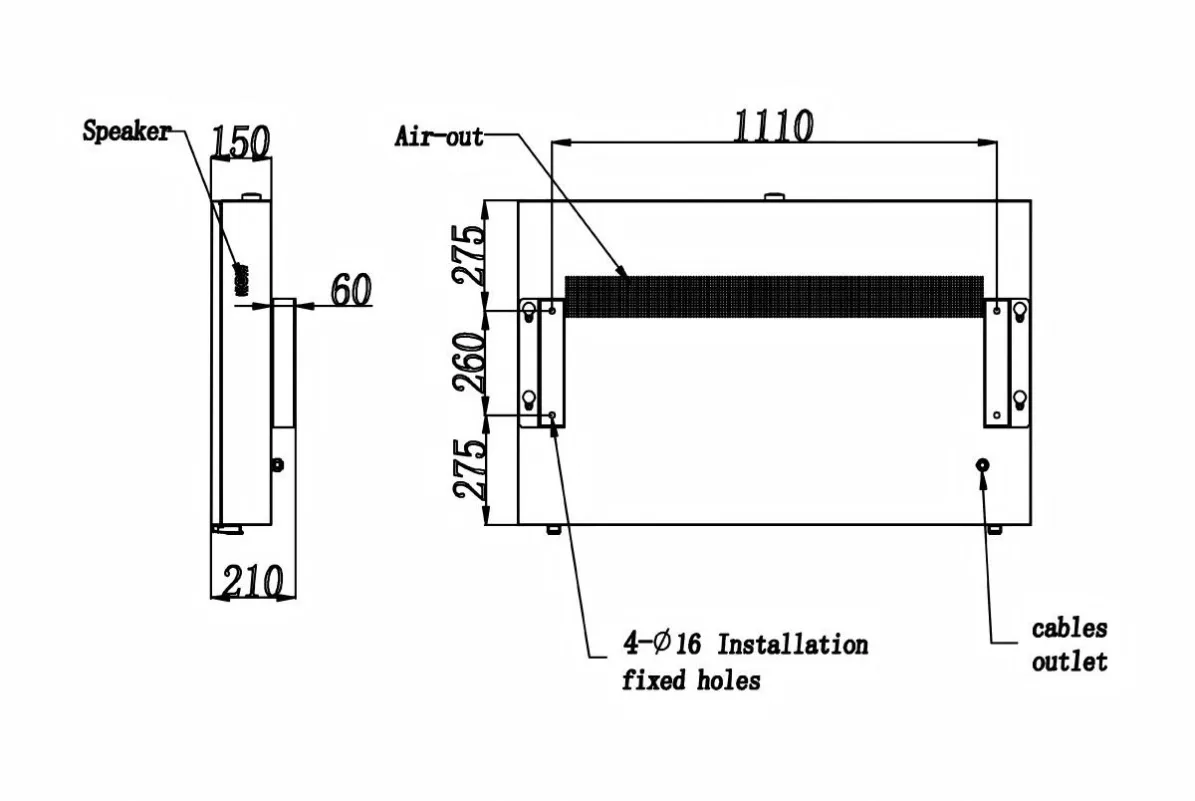

The design drawing of rear display
Power and Outdoor Installation
The AC100–240V, 50/60Hz input supports deployment in different regional markets. Local electrical protection and isolation still need to follow the installation requirements of the project location.
IP65 protection applies to the enclosure in its rated configuration. Site cable entries and wall joints must receive the same attention. Drainage should prevent water from collecting behind the display.
Maintenance should cover the front surface, ventilation system, enclosure seals and mounting hardware. Remote status reporting is useful when the screens are distributed across several districts.
Preparing a Smart-City Order
A 49 Inch Weatherproof Digital Signage project brief should include the mounting drawing, orientation, operating hours, environmental conditions and content-management requirements.
Logo treatment and enclosure finish can coordinate the product with other urban equipment. If commercial advertising helps fund the project, proof-of-play reporting may also be required.
The value of 49 Inch Weatherproof Digital Signage depends on more than outdoor protection. Publishing responsibility, service access and location-specific content determine whether the network remains useful after installation.
