Built-in Fan Version
High Brightness Outdoor LCD Display 55 Inch Floor Standing for Mall Promotions
Pixel Pitch:0.4845(H)*0.4845 (V) Contrast Ratio:4000:1 Brightness:2500nits Response Time:5ms
Specifications
- SKU
- ZXTLCD-OUTFHP550R
A 55 Inch Outdoor Mall Advertising Display for a Changing Retail Calendar

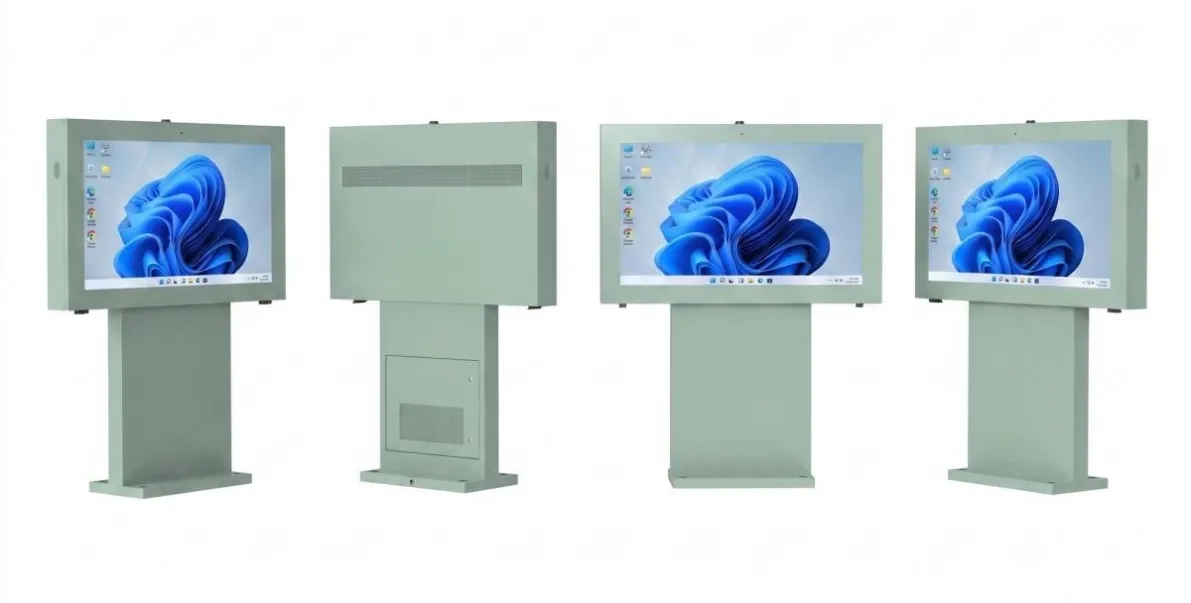

A shopping centre may promote fashion in one week, restaurants the next and a family event at the end of the month. The cabinet must therefore support many visual styles without looking tied to one campaign. This 55 Inch Outdoor Mall Advertising Display uses a pale green pedestal and landscape screen to provide a reusable outdoor media position.
55 Inch Outdoor floor-standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Side frame backlight |
Display dimension | 1210*681mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

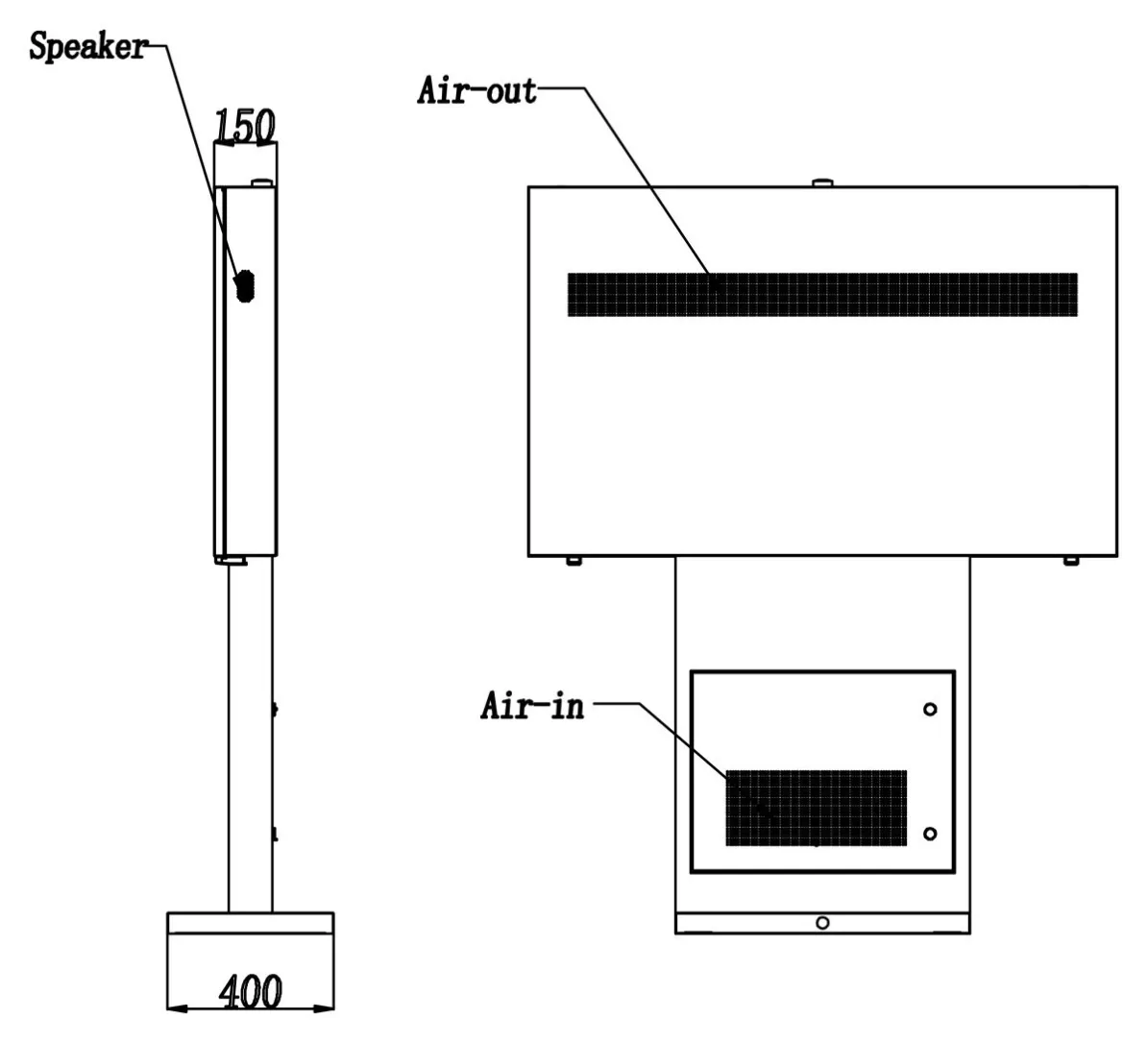

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤450W | |

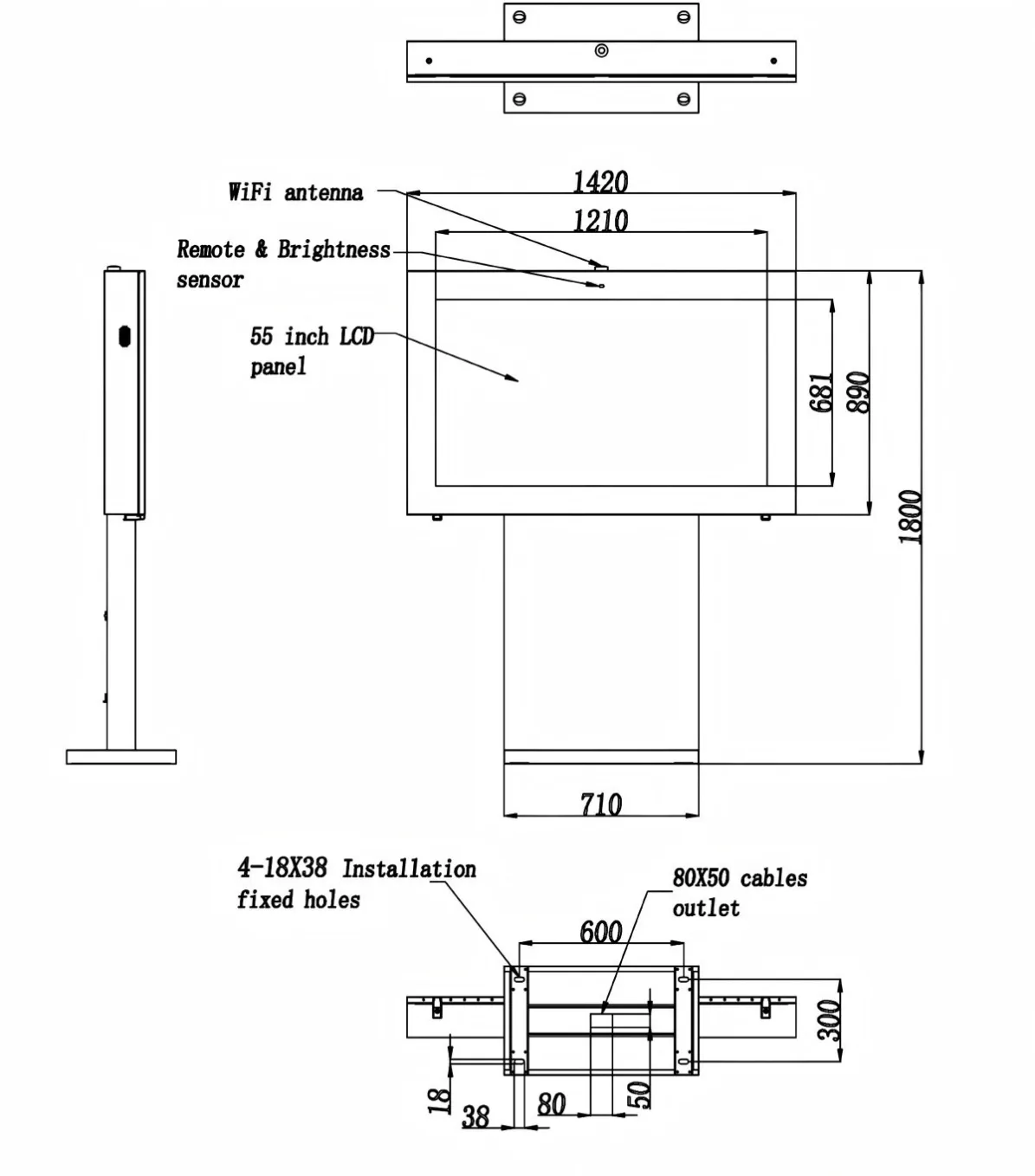

Mechanical parameters | Machine size(H*W*D) | 1800*1420* 150mm |
Net machine weight | 118kg | |
Package size(H*W*D) | 2030*1570* 420mm | |
Package weight | 158kg | |
January Is Not the Same as December
Retail content should follow the actual calendar of the shopping centre:
- New-year promotions
- Spring fashion launches
- Summer dining events
- Back-to-school campaigns
- Holiday markets
- End-of-season sales
A scheduling platform can publish campaign changes automatically, but the artwork still needs local relevance. Store location, offer dates and event times should be visible without requiring a second screen.
Use the Landscape Format Properly
The 55 Inch Outdoor Mall Advertising Display offers enough width for a lifestyle image and a short promotional message. Avoid shrinking several portrait posters into the landscape frame.
A useful composition may dedicate two-thirds of the screen to campaign photography and the remaining area to the offer, date and store location.
Positioning Around Outdoor Retail Space
The screen can be used beside exterior walkways, covered dining areas, cinema approaches or open-air event spaces. Its landscape body should not narrow busy pedestrian routes or hide physical storefront displays.
The high-brightness panel supports outdoor visibility, while IP65 protection and built-in fan cooling address environmental operation.
Treat Campaign Changeover as a Service Interval
When content changes, staff can inspect the front glass, cabinet finish, anchoring and cooling openings. Combining media updates with routine checks is more practical than managing two unrelated schedules.
A clean and current 55 Inch Outdoor Mall Advertising Display reflects well on both the advertiser and the retail property. An expired campaign or dirty screen does the opposite.
