Built-in Fan Version
High Brightness Outdoor LCD Display 55 Inch Floor Standing for Bus Station Wayfinding
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Fan
Specifications
- SKU
- ZXTLCD-OUTFVP550W
55 Inch Floor Standing Outdoor LCD Display for Open-Air Bus Stations

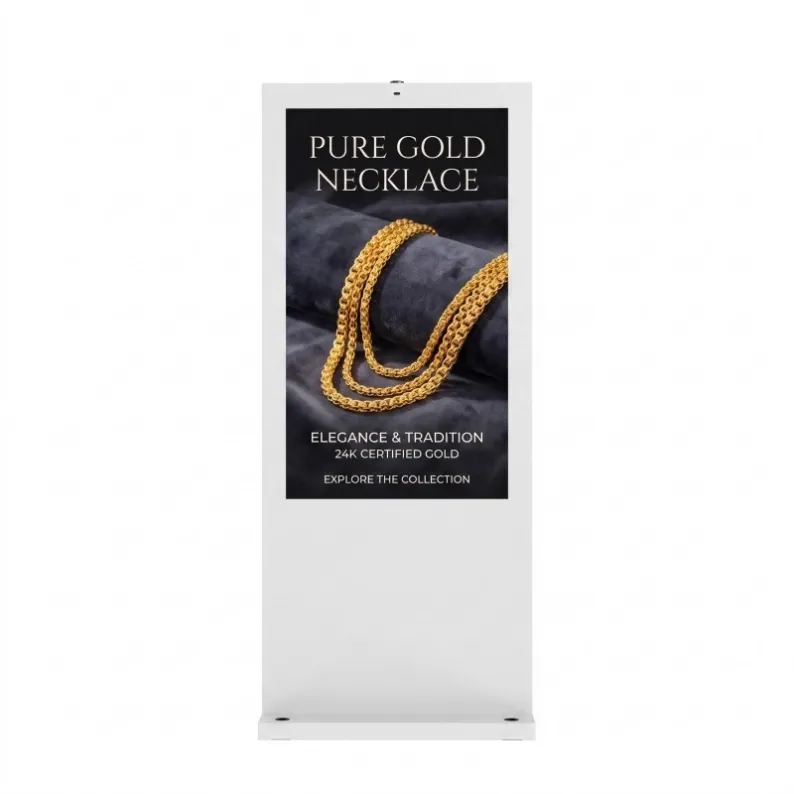

The product image shows a light grey or white cabinet with a broad lower base and a dark portrait screen. Its neutral exterior can integrate into outdoor station architecture without competing with route colors and official signage.
This 55 Inch Floor Standing Outdoor LCD Display is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
55 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size( mm) | 1210*681 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

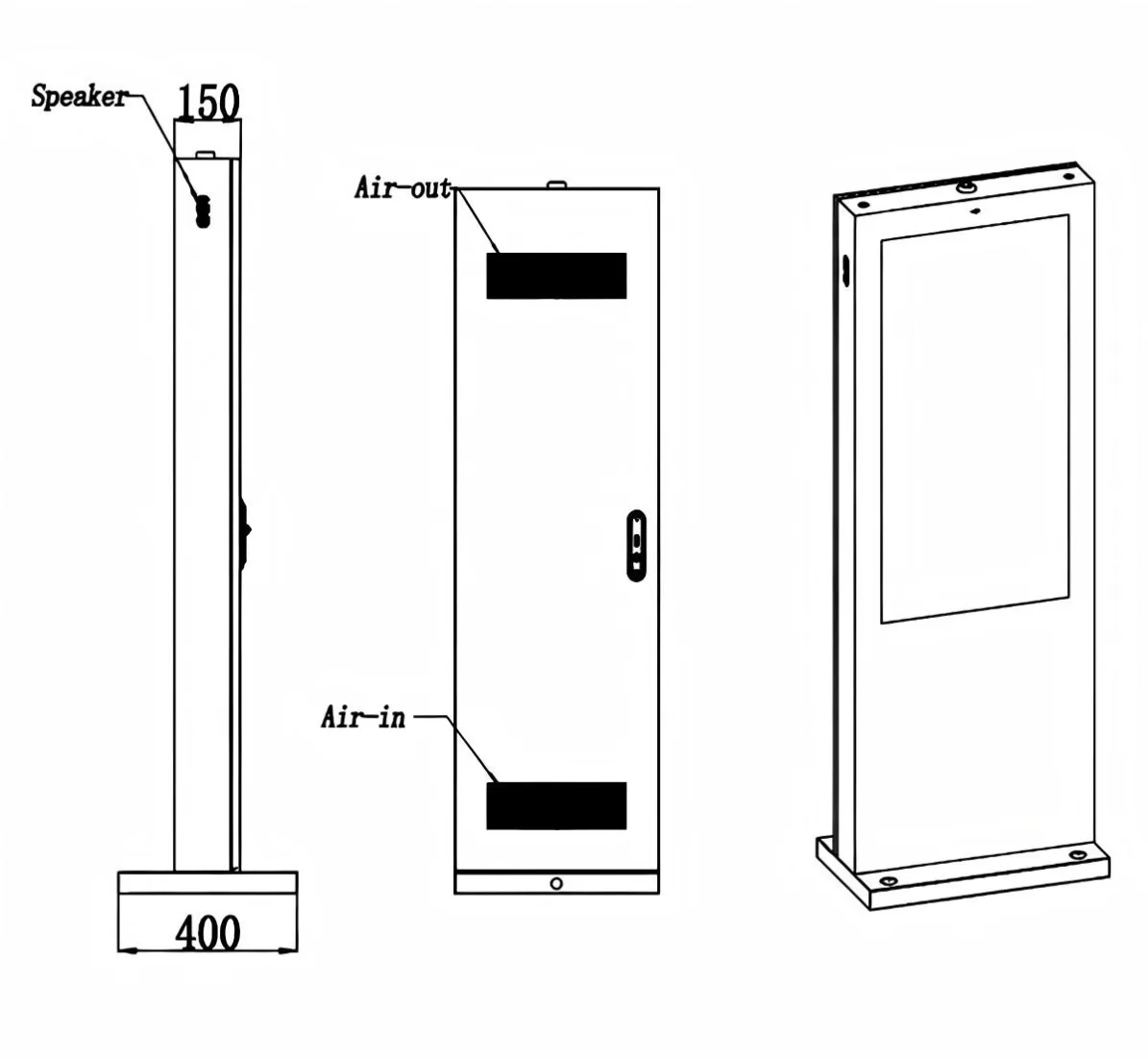

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤450W | |

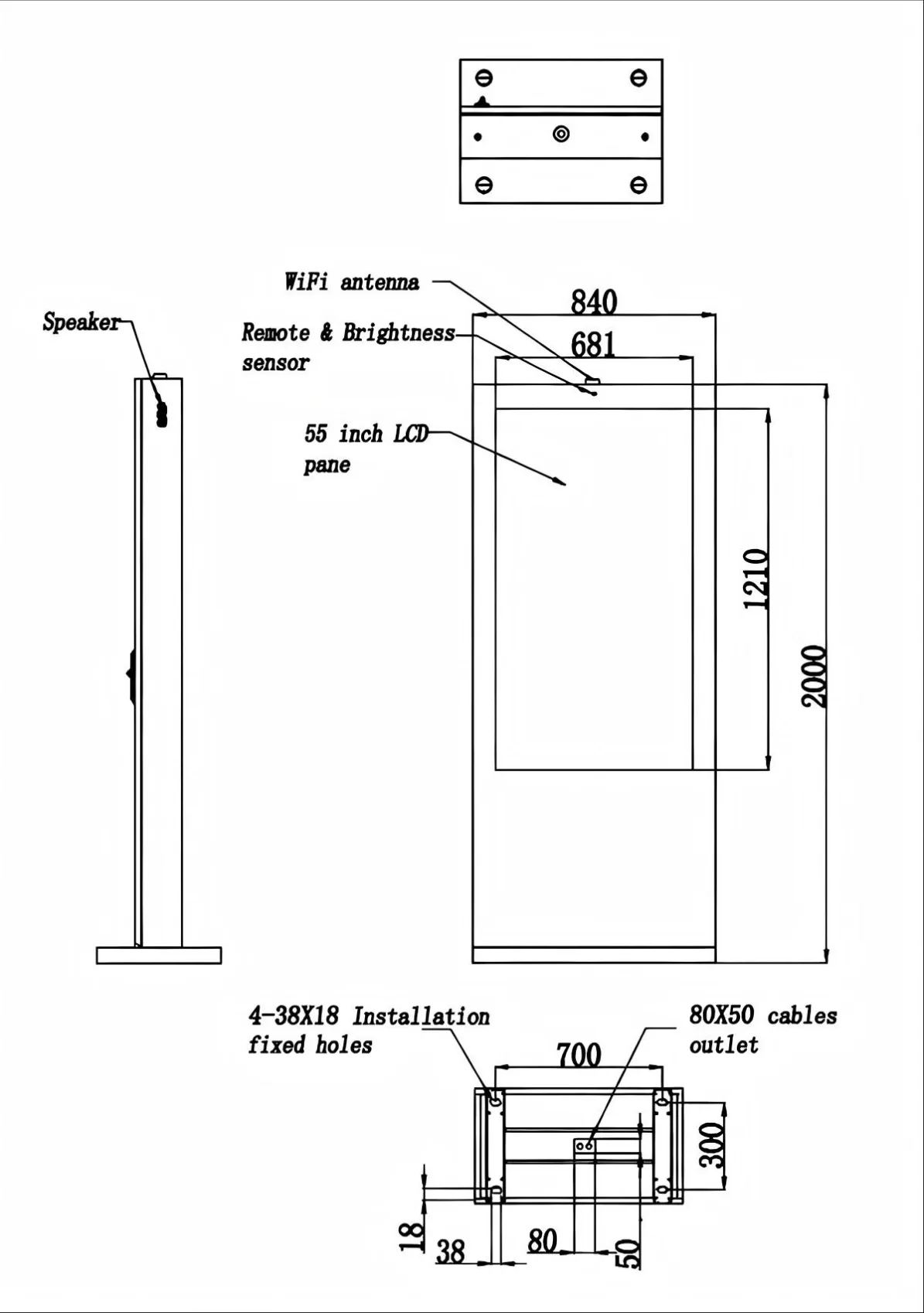

Mechanical Para. | Machine seize H*W*D( mm) | 2000*840*150 |
Net weight(Kg) | 100 | |
Package size H*W*D( mm) | 1070*2150*470 | |
Gross weight(Kg) | 140 | |
Built Around a Passenger Decision Point
A medium-format screen works well near an exterior entrance, outdoor platform approach or open-air transfer area. It can show route directions without occupying the space required by an 86- or 98-inch cabinet.
Passengers should be able to identify destination, direction and stop number within seconds. Advertising must remain separate from safety and disruption information.
Why the Broad Base Matters
The product image presents a wider lower cabinet rather than a thin support column. This gives the unit a visually stable form, but structural performance still depends on the foundation and anchoring.
Exact base dimensions, cabinet weight and service-door direction should be obtained before construction.
The light finish shown in the image may help the kiosk remain visible after dark without appearing excessively heavy. Final coating options require confirmation.
Outdoor Transit Conditions
The 2500-nit panel supports daylight viewing. Both screen angle and nighttime glare toward drivers should be assessed.
IP65 protection helps defend against road dust and water jets. Fan-cooling paths may require frequent inspection at busy roadside stations.
The 55 Inch Floor Standing Outdoor LCD Display provides a balanced screen size for outdoor bus wayfinding where passengers view information from a medium distance.
