High Brightness Outdoor LCD Display 43 Inch Floor Standing for Smart City Media
Protection Grade:IP65 Brightness:2500nits Cooling system:Built-in Air Conditioner
Specifications
- SKU
- ZXTLCD-OUTAVPD430R
43 Inch Double Sided Outdoor LCD Display for Two-Way City Communication

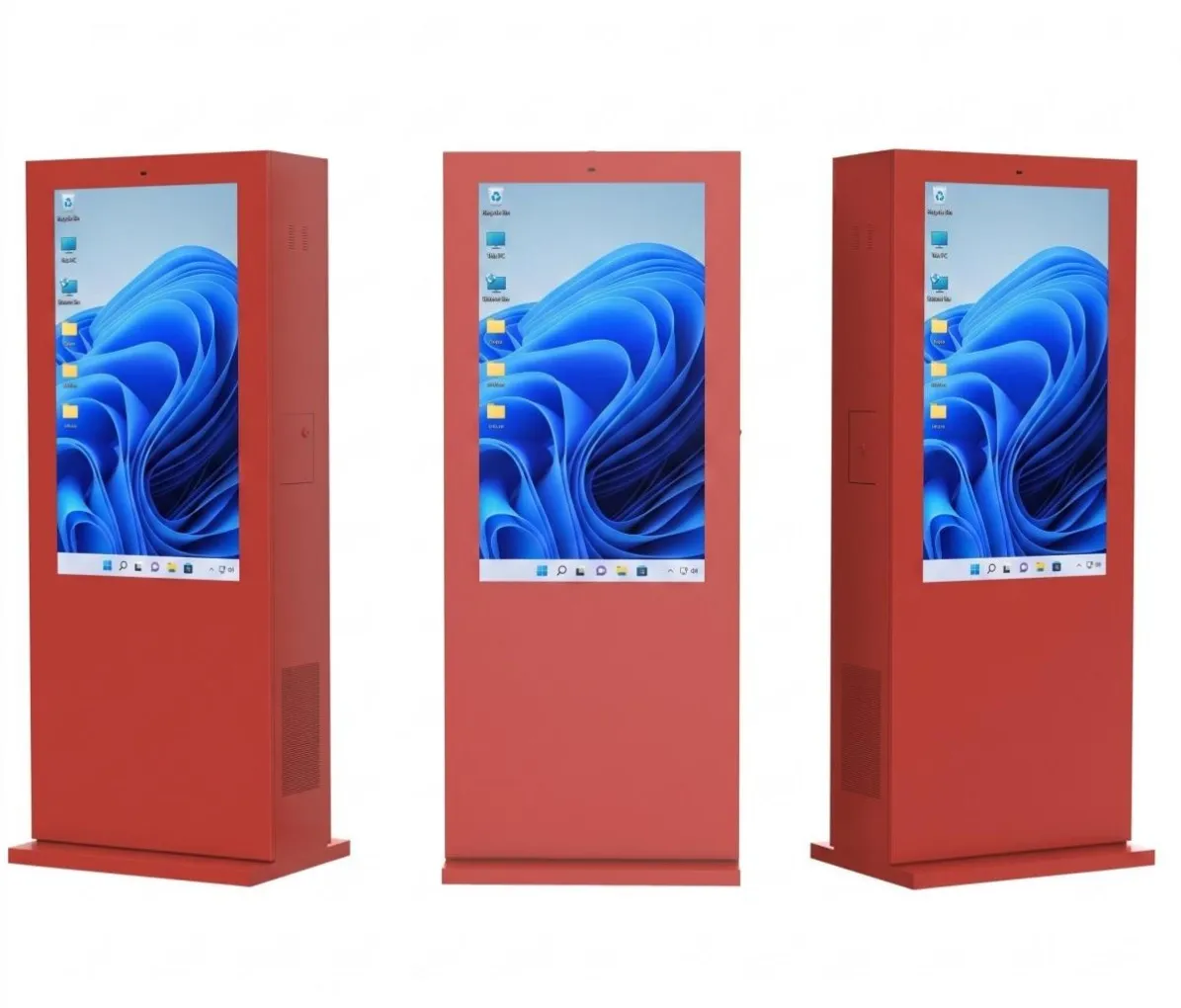

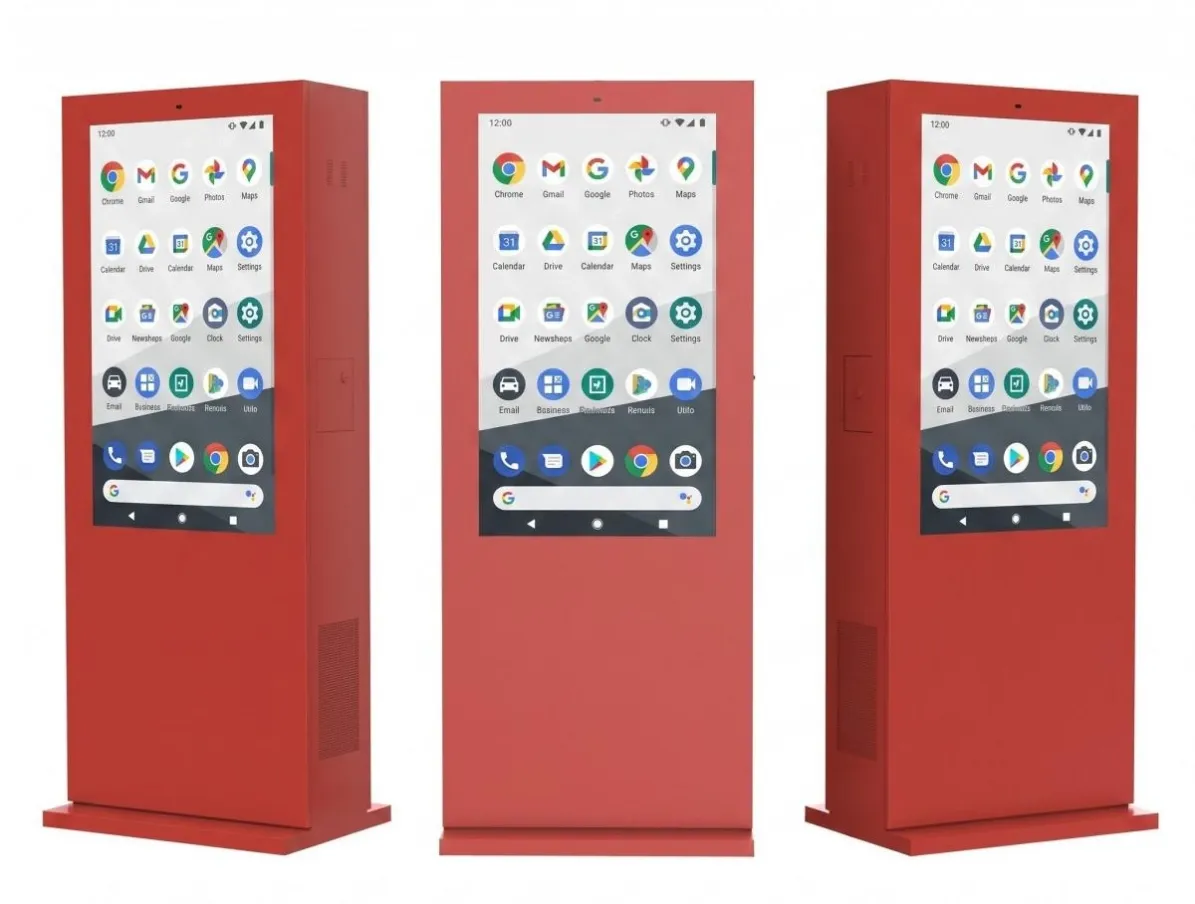

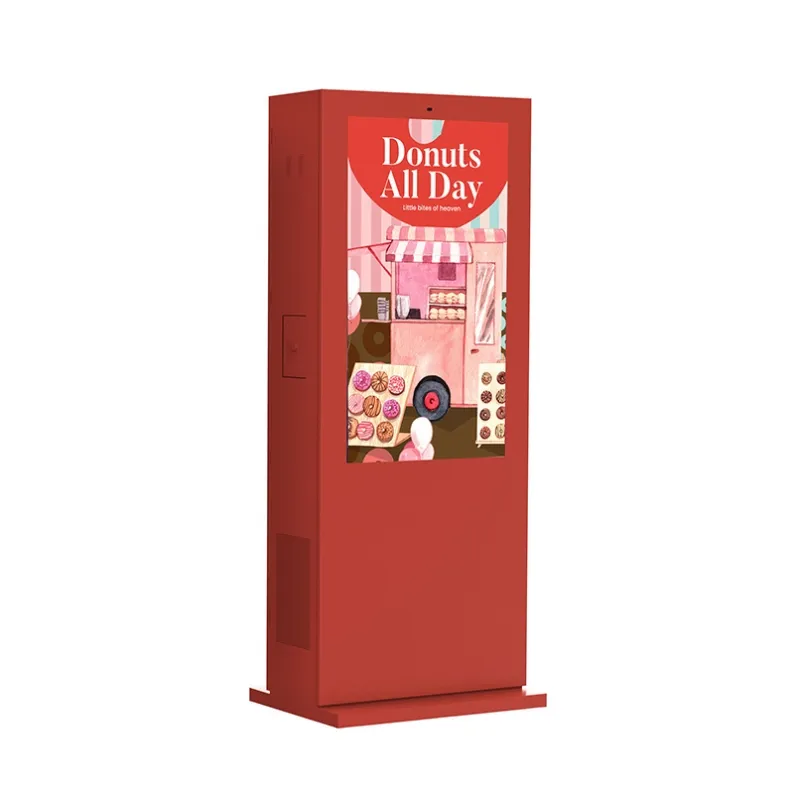

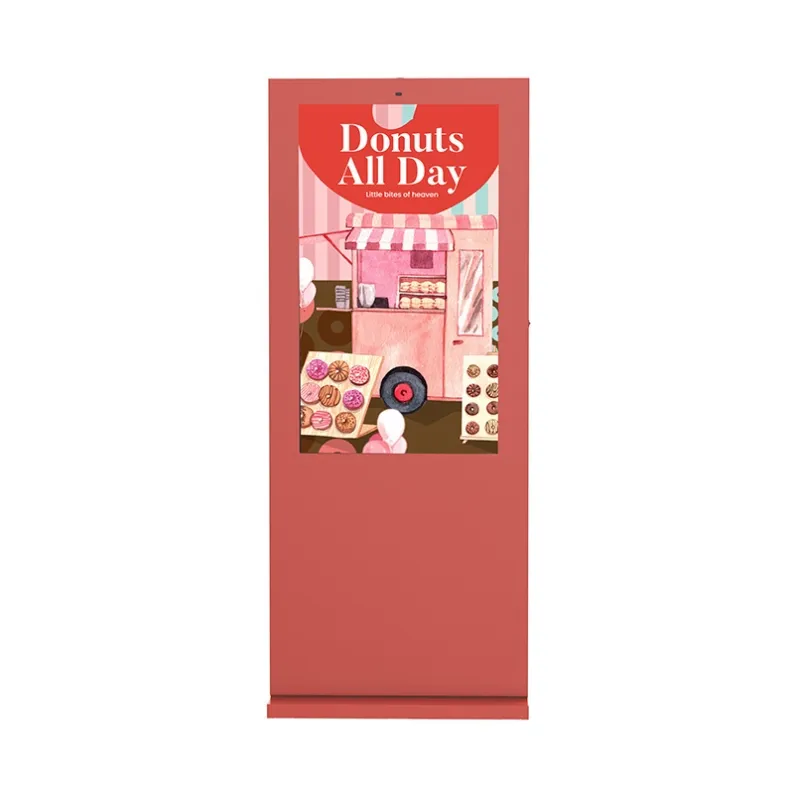

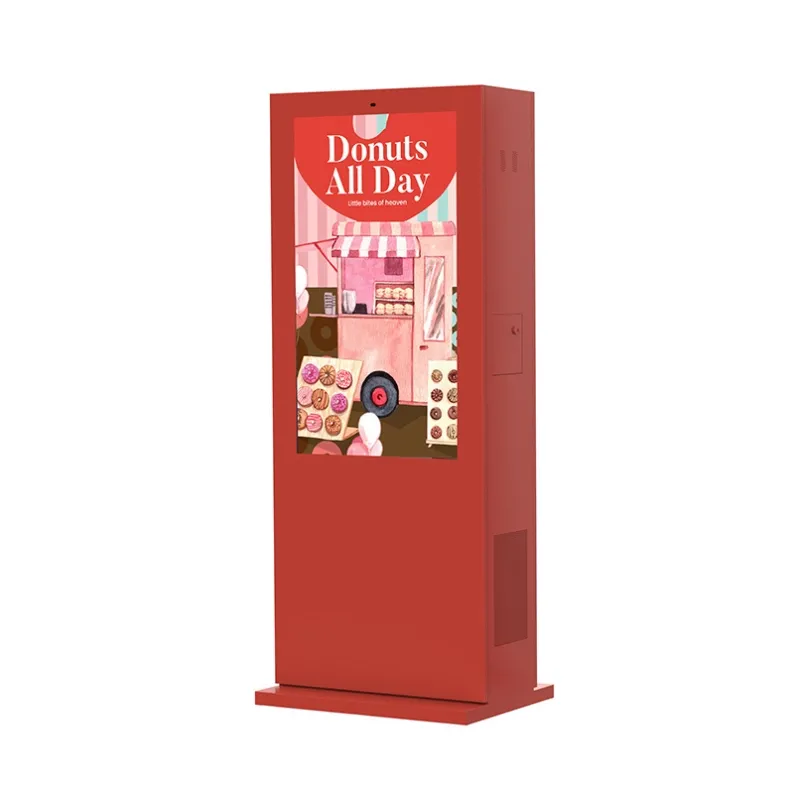

The product image shows a slim red freestanding cabinet with a tall portrait screen and a continuous body extending to the ground. What the old product title does not explain is more important than the cabinet color: this model is a double-sided outdoor machine.
The 43 Inch Double Sided Outdoor LCD Display provides a display face on each side of the enclosure. It can communicate with pedestrians approaching from opposite directions without requiring two separate cabinets, foundations and power routes.
The product is listed with 2500-nit brightness and IP65 protection. Its backend category identifies it as a built-in air-conditioner version rather than a standard fan-cooled kiosk.
43 Inch Outdoor floor standing digital signage with air conditioner specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 941*530mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | -40℃～55℃ |
Working humidity | 5%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | 900W | |

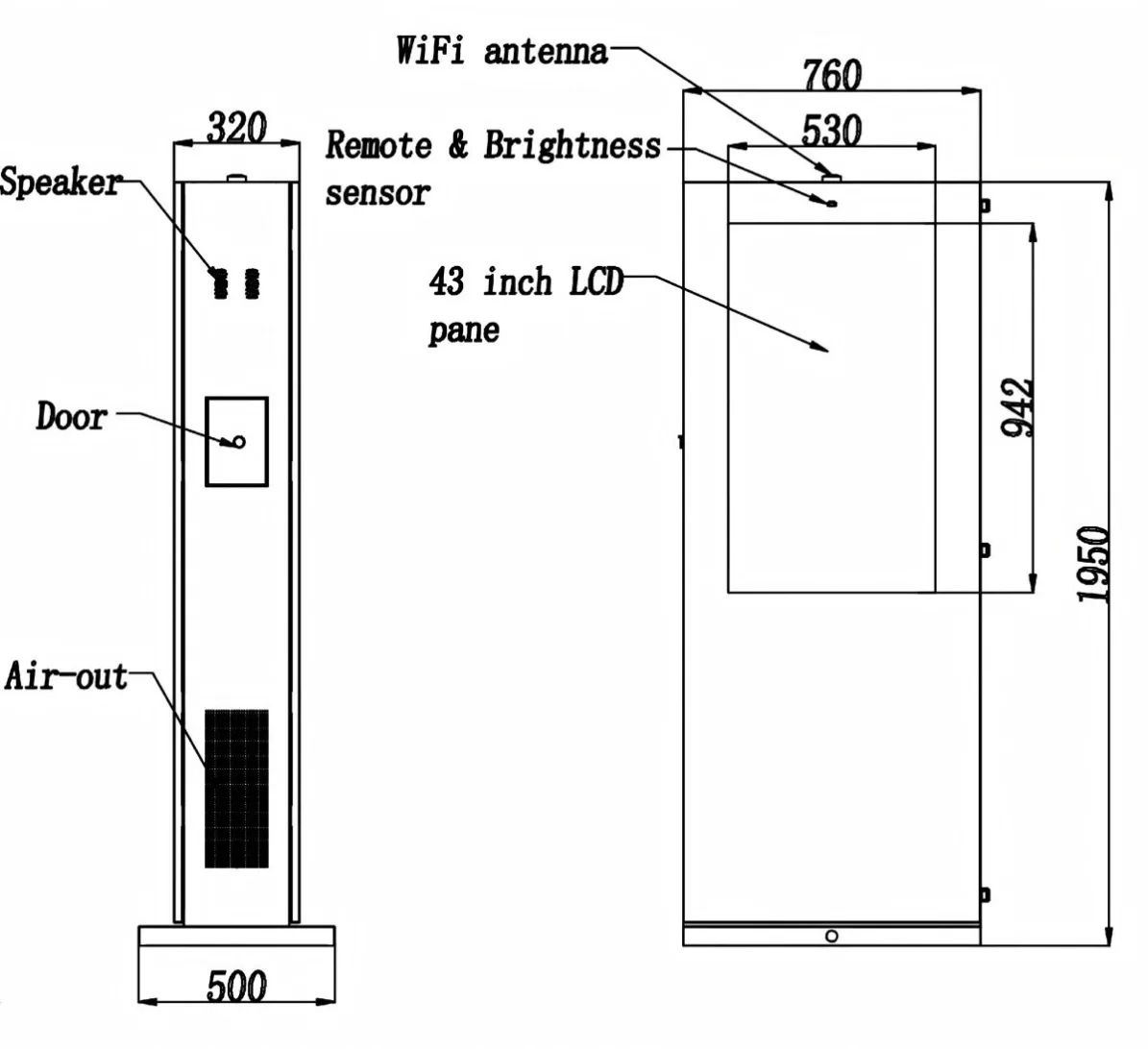

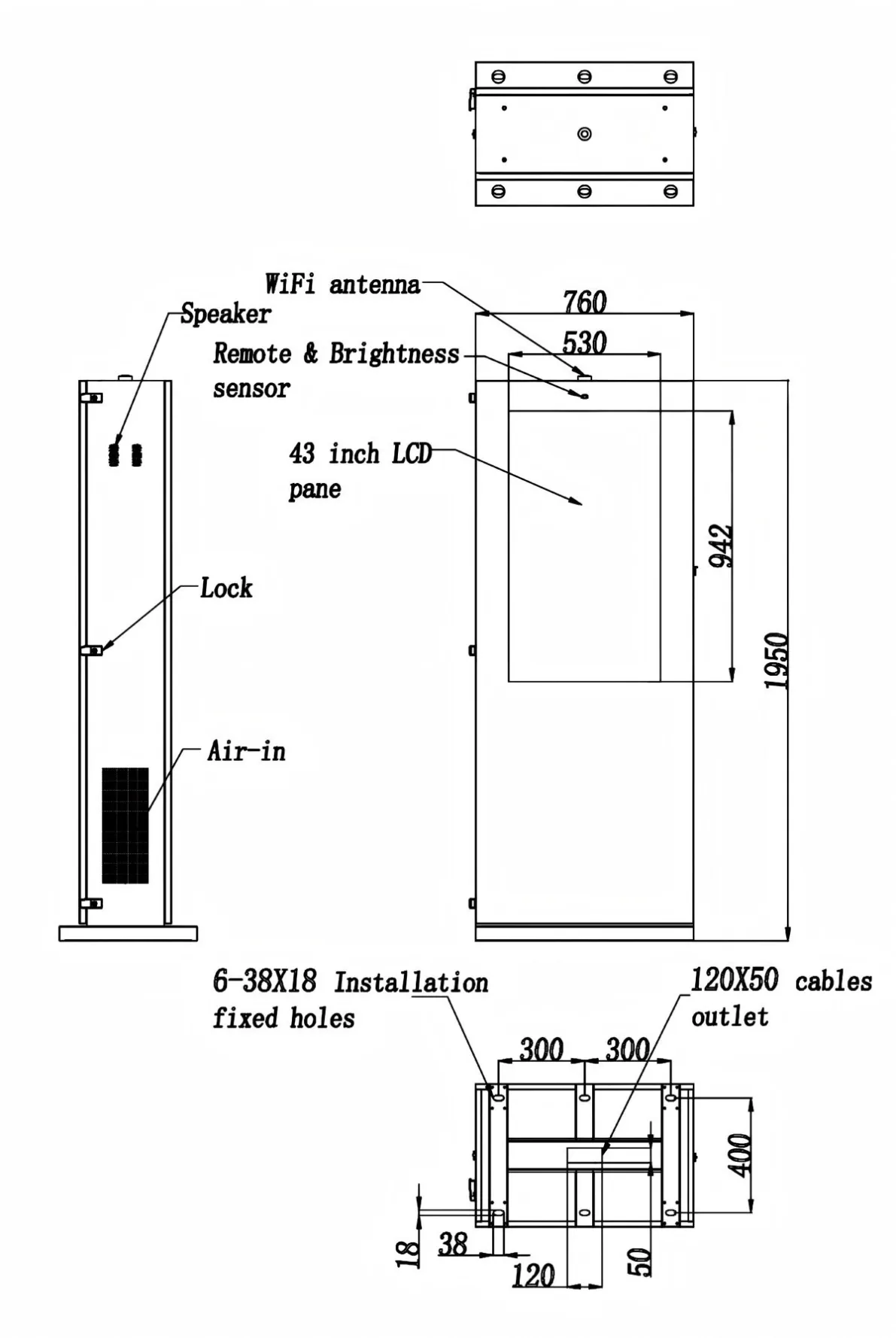

Mechanical parameters | Whole device dimension H*W*D | 1950*760*320mm |
Whole device net.weight(kg) | 160kg | |
Package dimension H*W*D(mm) | Machine 990*2100*570AC810*810*350 | |
Gross packing(kg) | Machine140kg AC35kg | |
A Compact Double-Sided Cabinet
At 43 inches, the screens are more suitable for close- and medium-range viewing than large-format roadside advertising. This makes the unit appropriate for outdoor pedestrian routes where people naturally pass near the cabinet.
The product image shows a relatively slim red enclosure. Even so, double-sided construction requires more depth than a comparable single-screen display because the cabinet accommodates two screen assemblies and internal thermal-management components.
Buyers should request the exact cabinet depth, weight, base dimensions and service-door position. These details cannot be calculated accurately from the screen size or product photograph.
The red finish shown in the image may give the unit a recognizable presence in a public media network. Final color, outdoor coating and branding options should be confirmed in the order specification.
Outdoor Locations With Two-Way Foot Traffic
The 43 Inch Double Sided Outdoor LCD Display can be considered for outdoor
locations such as:
- Public squares and civic plazas
- Pedestrian streets
- Outdoor campus paths
- Park and attraction entrances
- Exterior transport approaches
- Open-air shopping districts
- Outdoor event entrances
- Municipal service points
The cabinet should be positioned only where both faces have a useful audience. Placing one side directly against a wall, hedge or other structure would reduce the value of the double-sided design.
Accessibility clearance, emergency routes and driver sightlines must also be reviewed before the foundation position is finalized.
Planning Different Content for Each Face
Two screens do not have to repeat the same content. One side can address visitors arriving at a location while the reverse side provides information for people leaving.
For example, the approach-facing screen may display an outdoor event schedule and entrance direction. The opposite face may show transport connections, exit guidance or a different local advertisement.
Independent content playback depends on the selected media player and control configuration. If the project requires different material on each screen, this requirement should appear in the quotation and technical agreement.
IP65 Protection and Built-In Air Conditioning
The IP65-rated enclosure helps prevent dust ingress and protects against water jets when the cabinet is assembled and installed correctly.
Power and network entries must use suitable outdoor sealing components. Water should also be prevented from collecting around the cabinet base.
The built-in air conditioner provides more active internal temperature management than a basic circulation fan. The exact cooling capacity, permitted ambient-temperature range and maintenance interval should be confirmed from the final specification.
Because the cabinet contains two screen faces, technicians need adequate access without placing tools or equipment in front of active pedestrian routes.
FAQ
Can the two screens display different content?
Potentially, but independent playback requires the correct media-player and signal configuration. This should be confirmed before production.
Is this display suitable for outdoor use?
Yes. It is listed with 2500-nit brightness, IP65 protection and built-in air conditioning. Proper outdoor foundation, sealing and electrical work are still required.
Is 43 inches large enough for smart city information?
It is suitable for close- and medium-range information such as directions, outdoor notices and local advertising. Long-distance viewing may require a larger screen.
Does the red cabinet come as standard?
The product image shows a red sample enclosure. Final color availability and coating specifications must be confirmed with the supplier.
The 43 Inch Double Sided Outdoor LCD Display provides two-way outdoor communication in a cabinet smaller than large transit kiosks. It is best suited to pedestrian locations where both viewing directions can be used effectively.
