Built-in Fan Version
High Brightness Outdoor Digital Signage 98 Inch Pole Mounted for Retail Windows
Operating system:Android / Windows os Back:Cold-rolled sheet metal board Frame:Unibody Aluminum Life:60000 Hours
Specifications
- SKU
- ZXTLCD-OUTFHN980DG
98 Inch Pole Mounted Outdoor Digital Signage for Retail Destination Advertising
A screen of this scale is not intended for a customer standing directly beside a shop window. The 98 Inch Pole Mounted Outdoor Digital Signage is better used to attract attention toward a retail destination from an outdoor approach road, car park or broad pedestrian route.
The product image shows a large landscape screen supported by two light-coloured posts, with a green campaign visible on the display. The open structure creates a billboard-like appearance without requiring a complete wall.
98 Inch Outdoor air-cooled horizontal screen floor-standing column style specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 2158*1214mm | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤2000W | |

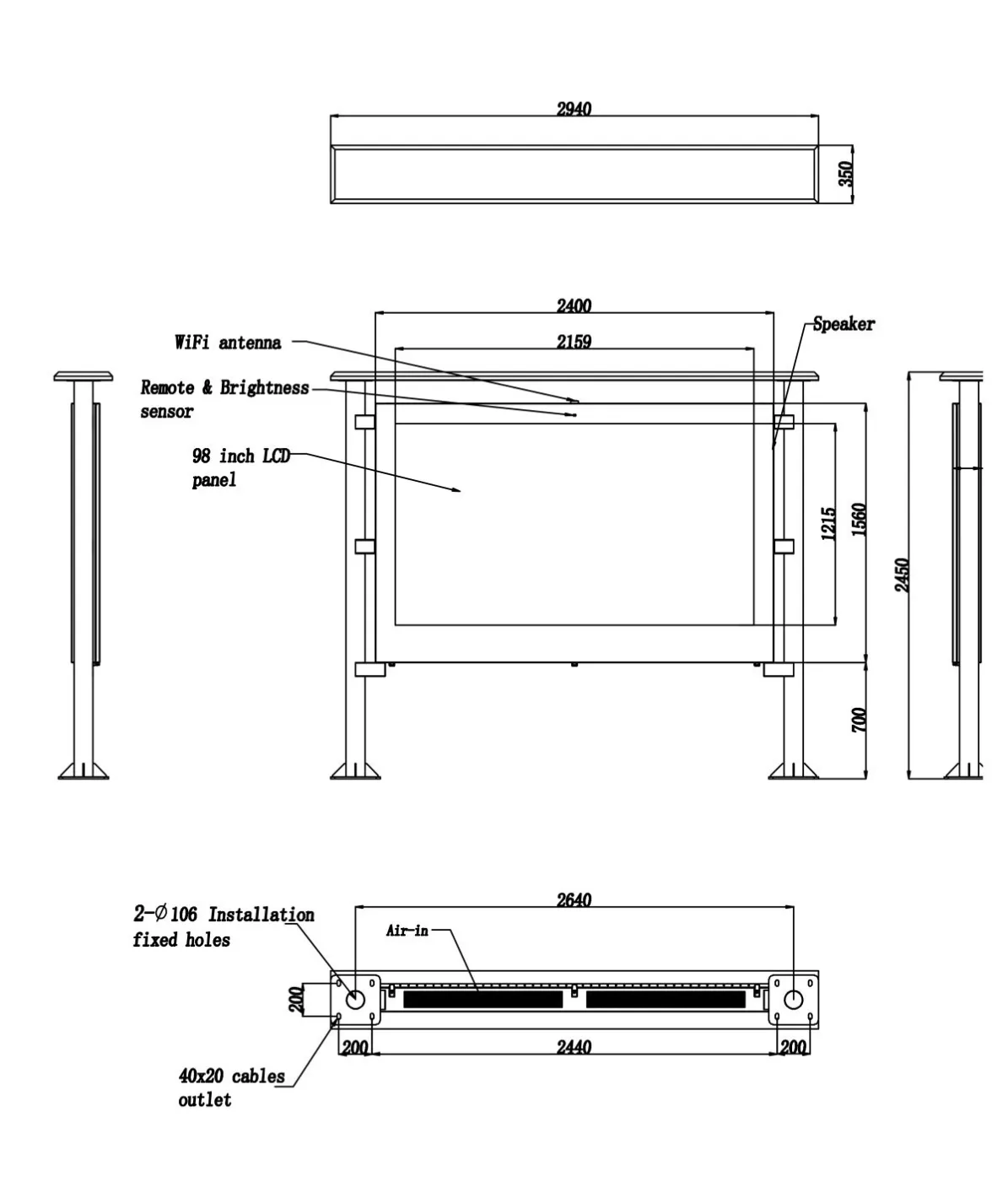

Mechanical parameters | Whole device dimension H*W*D | 2450*2940*350mm |
Whole device net.weight | 430kg | |
Package dimension H*W*D | 1830*2550*320mm | |
Stand pole package dimension H*W*D | 570*3190*510mm | |
Mechanical parameters | Whole device gross weight | 400kg |
Stand pole gross weight | 170kg | |
Promote the Destination, Not Every Product
At longer viewing distances, detailed product catalogues become unreadable. The campaign should communicate one reason to visit:
- A major seasonal sale
- A newly opened store
- A brand launch
- An outdoor dining event
- A retail-zone direction
- Extended opening hours
The 98 Inch Pole Mounted Outdoor Digital Signage should use short headlines and strong photography. Store location information must be simple enough to understand while moving.
Approach Direction Controls the Installation
Retail operators should identify whether the main audience arrives by vehicle or on foot. Vehicle-facing screens require larger text and longer sightlines. Pedestrian-facing campaigns can include a QR code or additional event detail.
Sun position, nearby trees and future construction should also be reviewed. A large screen can still be ineffective when hidden behind seasonal foliage or installed at the wrong angle.
Engineering and Service Access
The support posts and foundations require wind-load assessment. Power and network cabling should be concealed and protected inside the installation system.
High-brightness output supports outdoor viewing, while IP65 protection and fan cooling address environmental operation. Cleaning and component service may require lifting equipment, so safe maintenance access should be included in the site plan.
The 98 Inch Pole Mounted Outdoor Digital Signage is best suited to campaigns that sell the wider retail destination rather than individual shelf-level products.
